LDW Switch Circuit

LDW SWITCH CIRCUIT

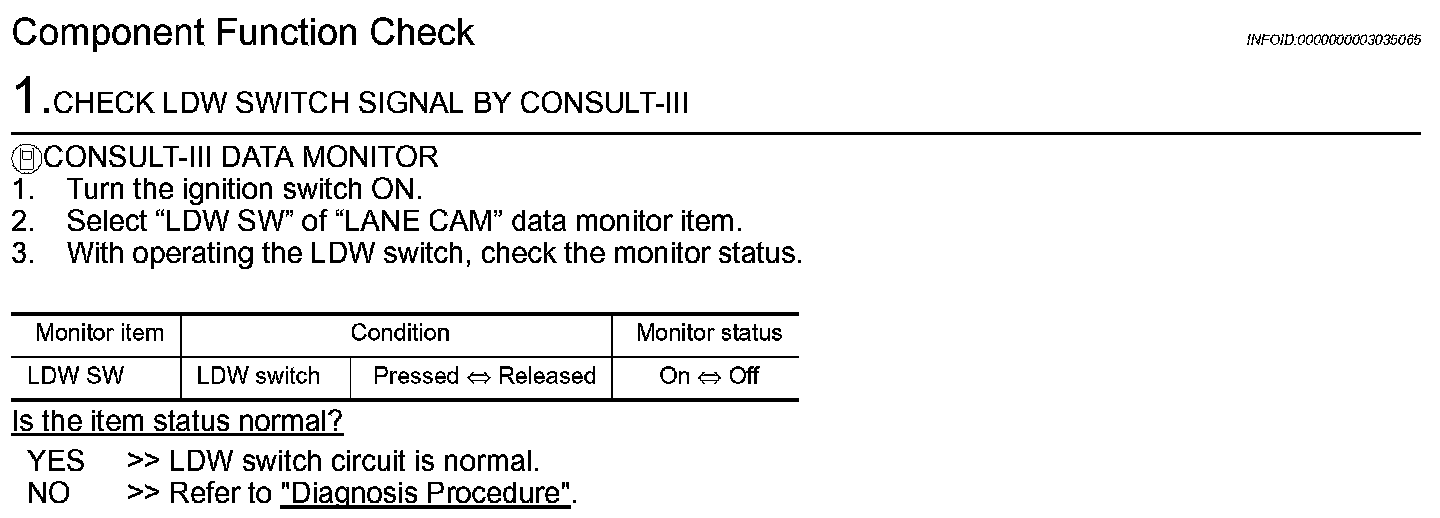

Component Function Check

Step 1:

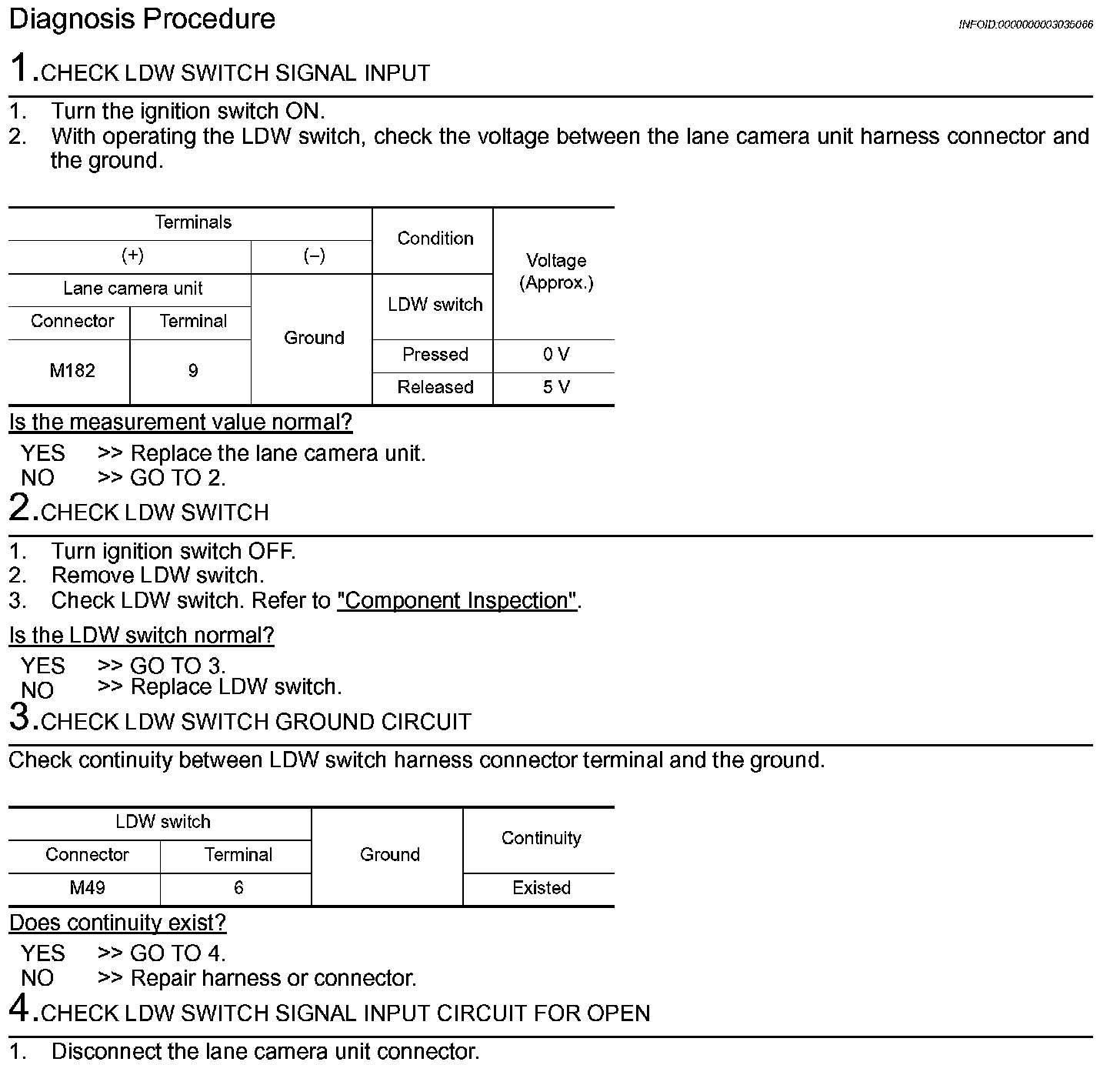

Diagnosis Procedure

Step 1-4:

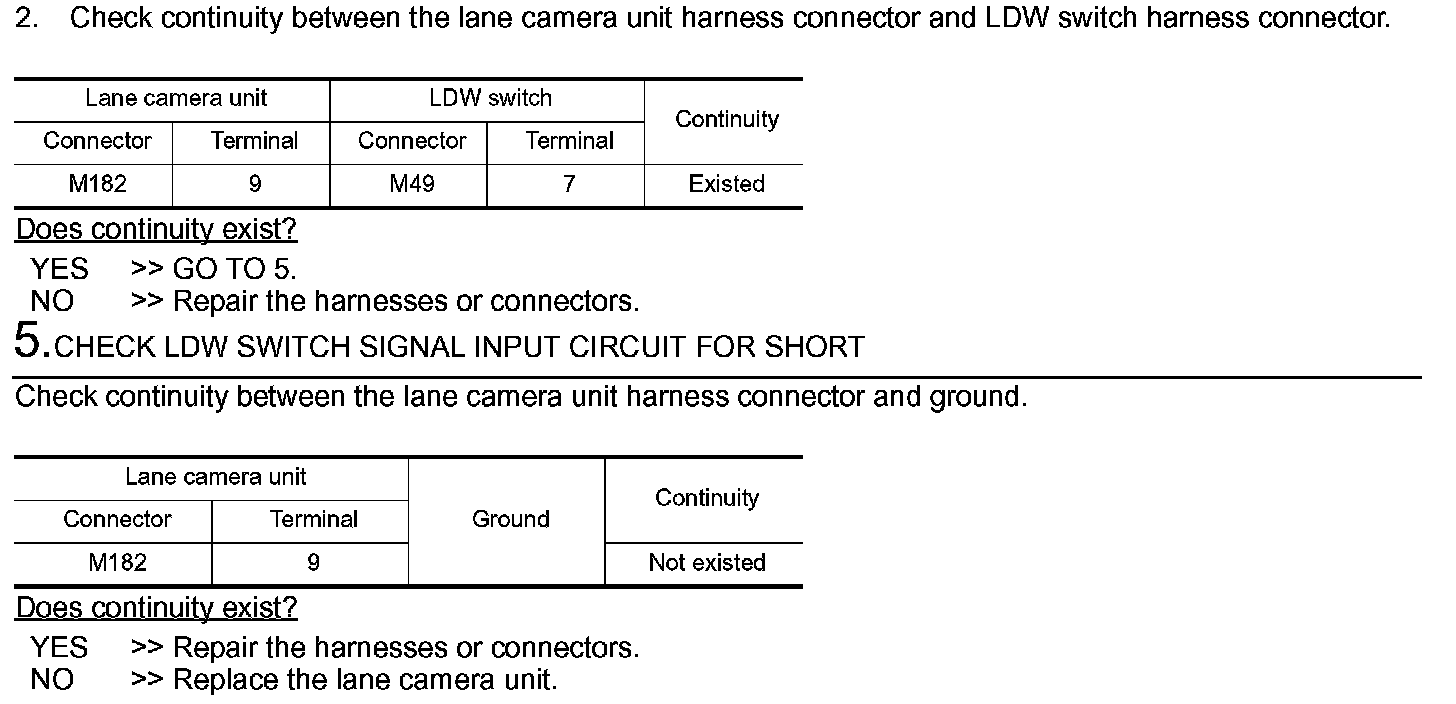

Step 4 (Continued)-5:

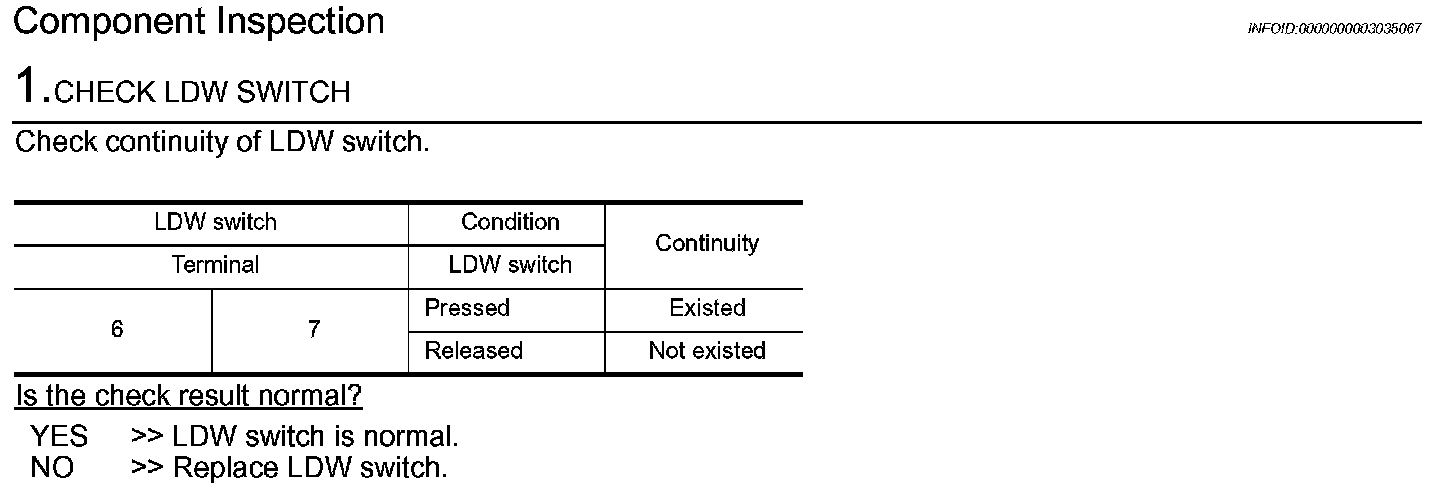

Component Inspection

Step 1:
