ABS Actuator and Electric Unit (Control Unit)
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)Reference Value

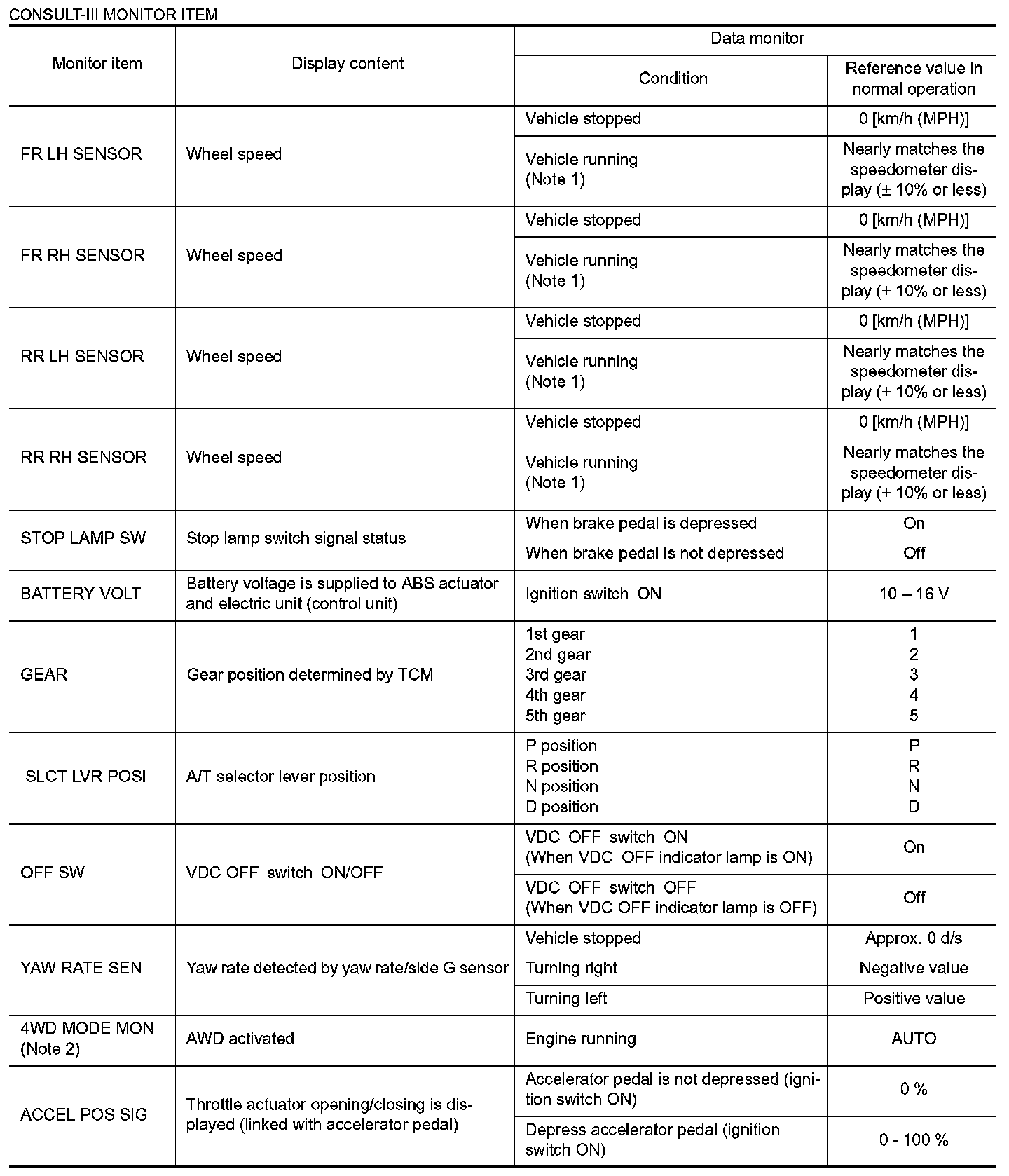

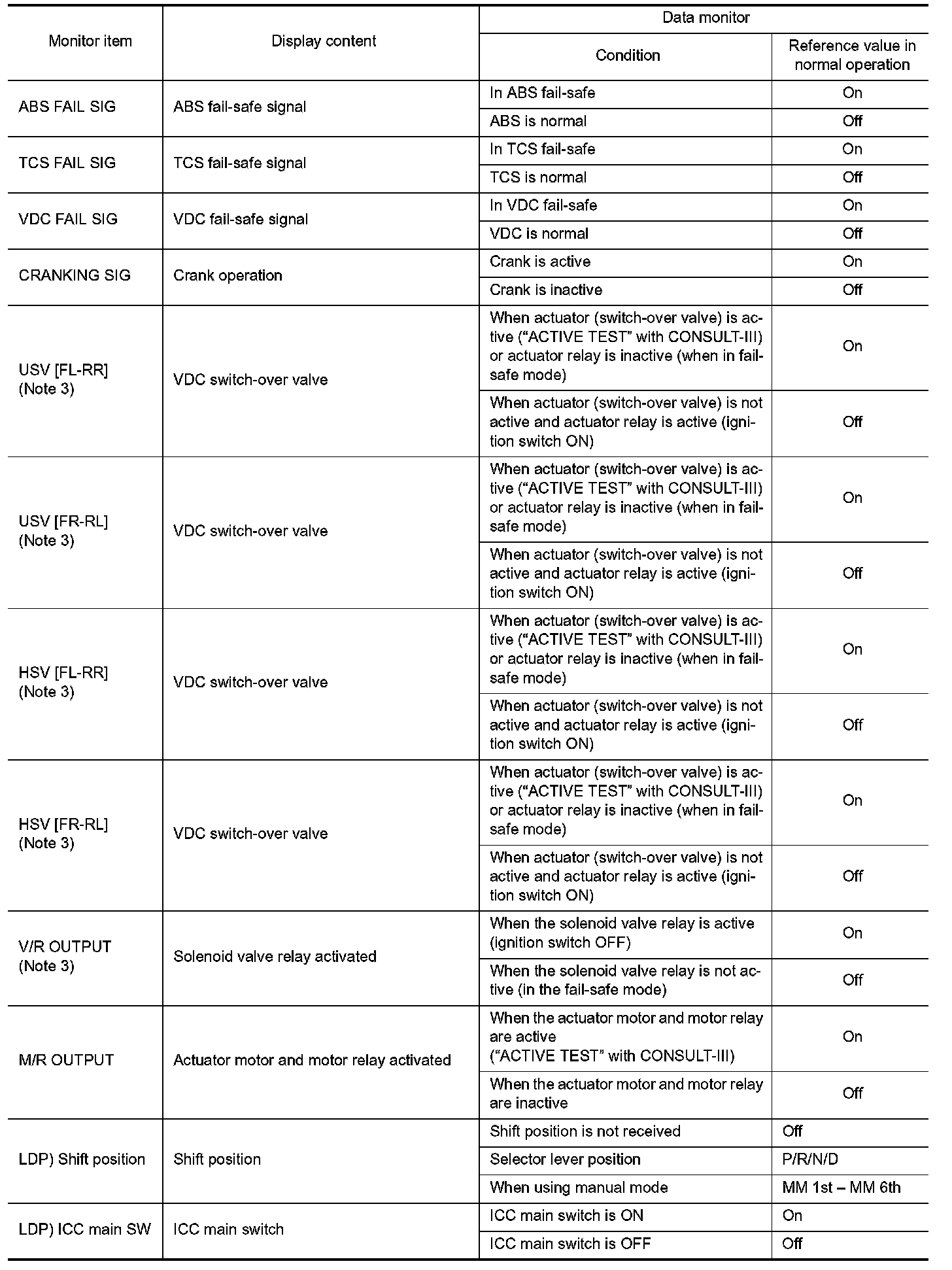

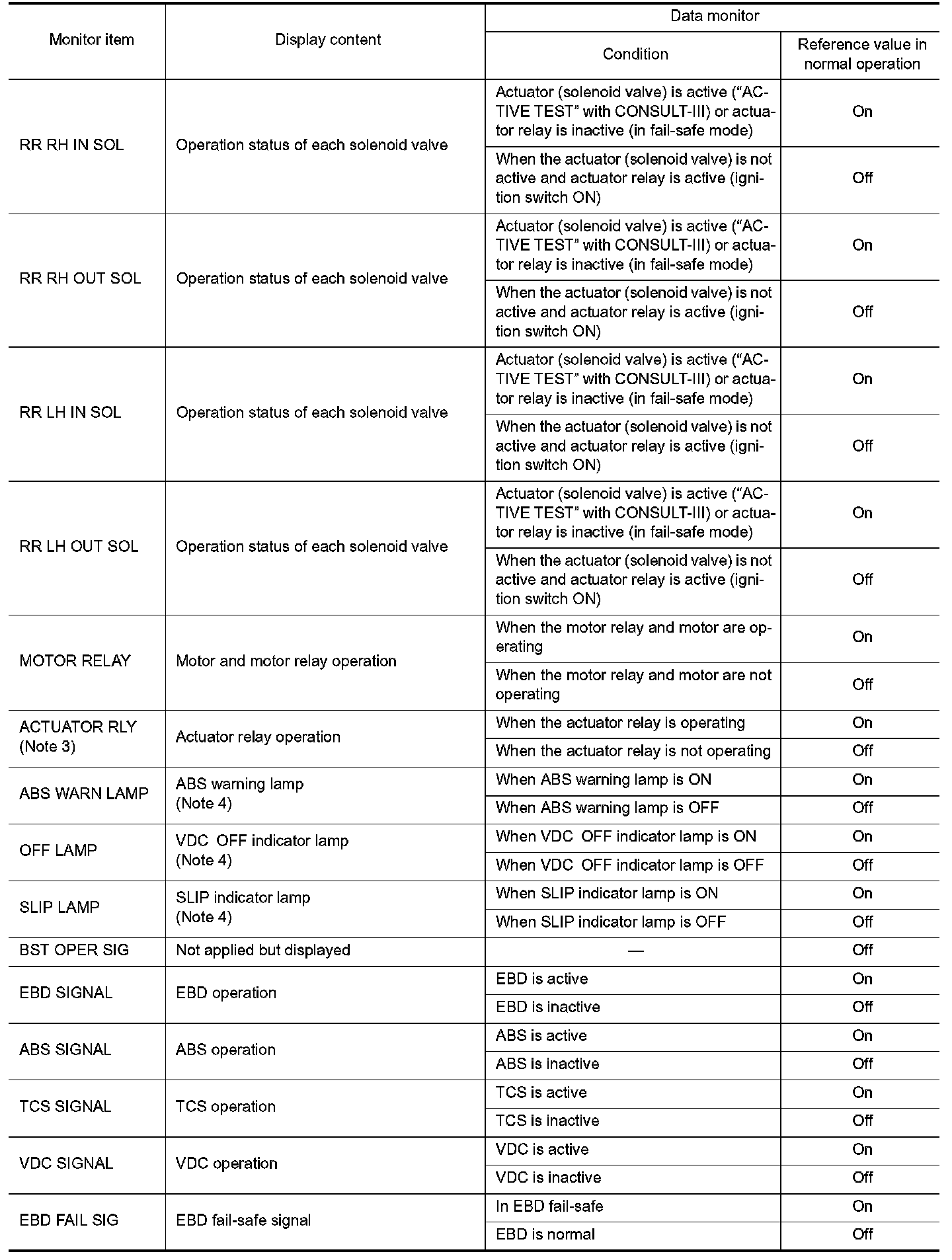

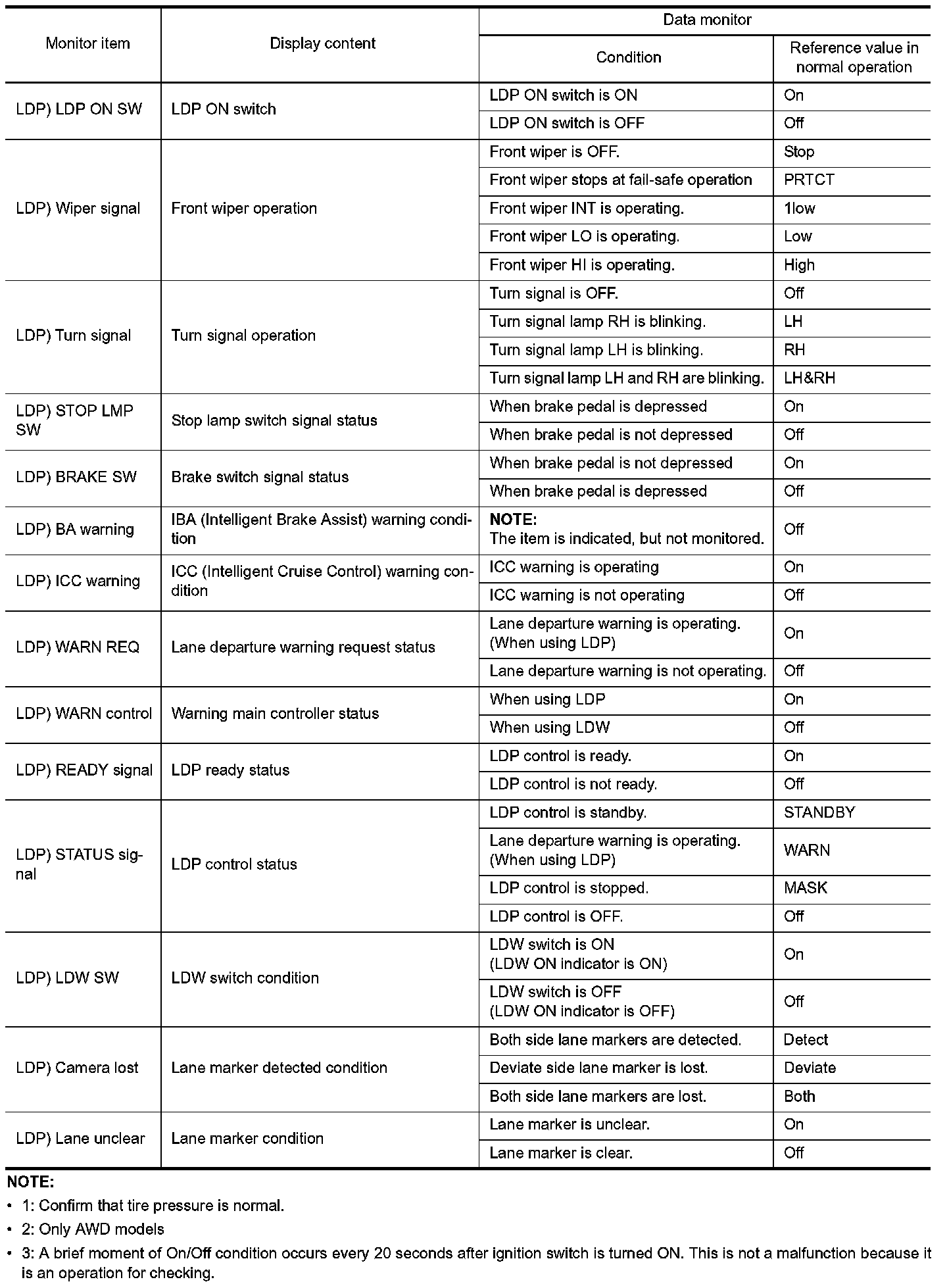

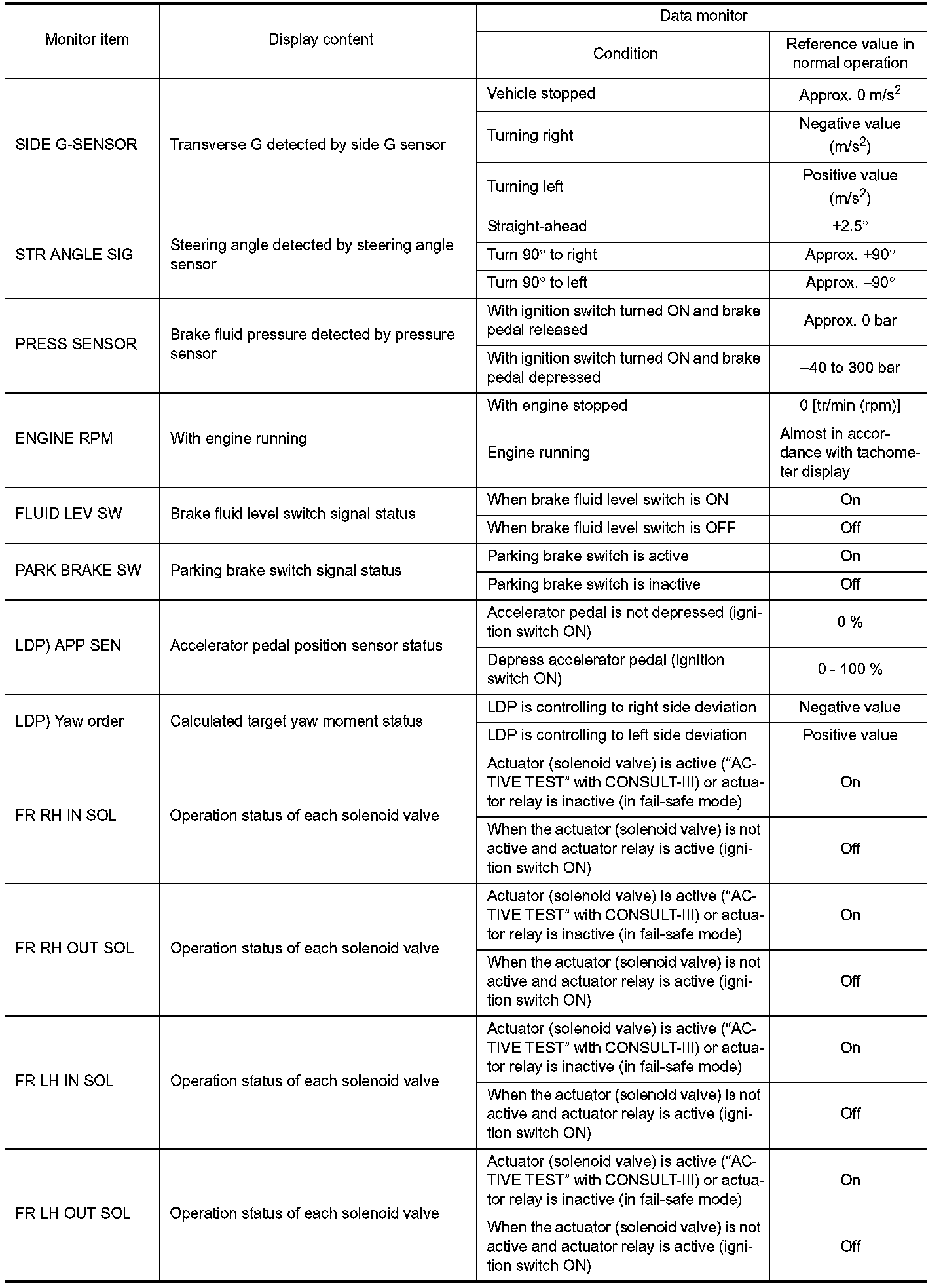

VALUES ON THE DIAGNOSIS TOOL
CAUTION: The display shows the control unit calculation data, so a normal value might be displayed even in the event that the output circuit (harness) is open or short-circuited.
