Diagnosis System (Lane Camera Unit)

DIAGNOSIS SYSTEM (LANE CAMERA UNIT)

CONSULT-III Function (LANE CAMERA)

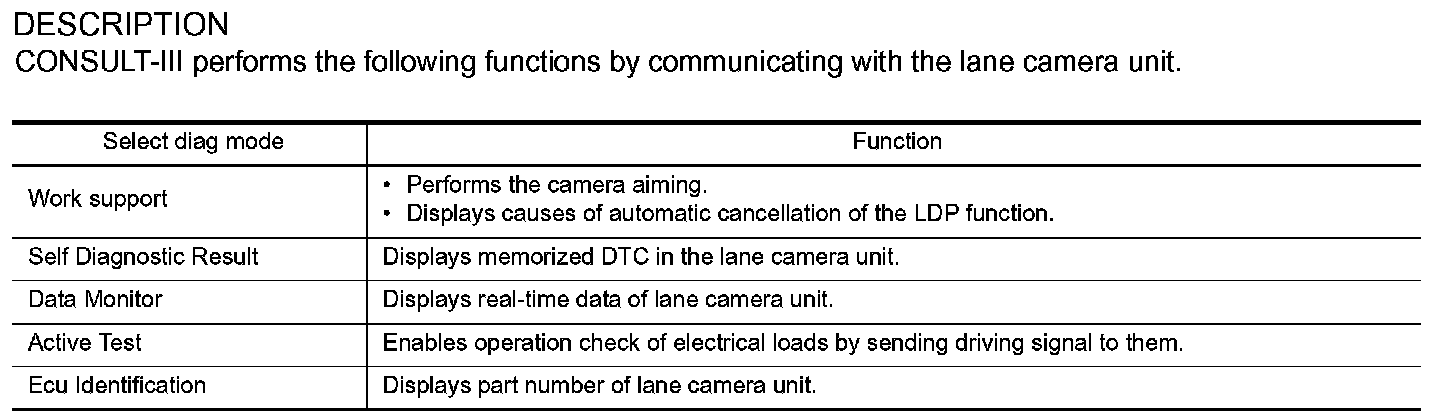

DESCRIPTION

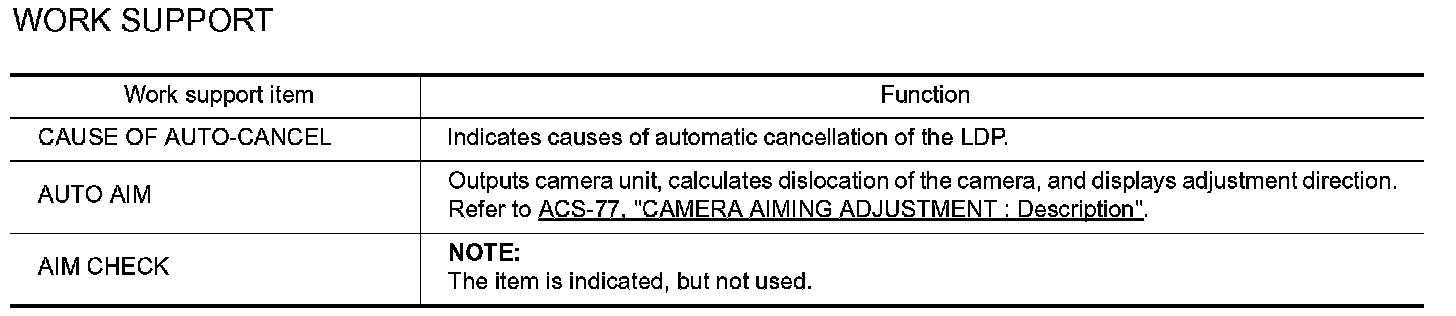

WORK SUPPORT

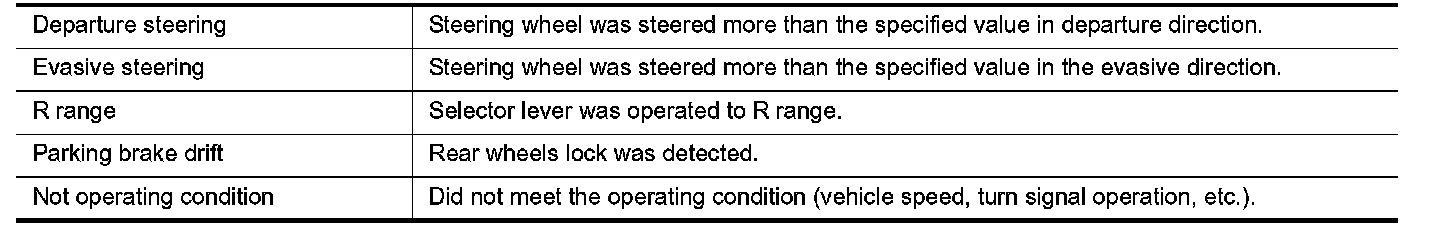

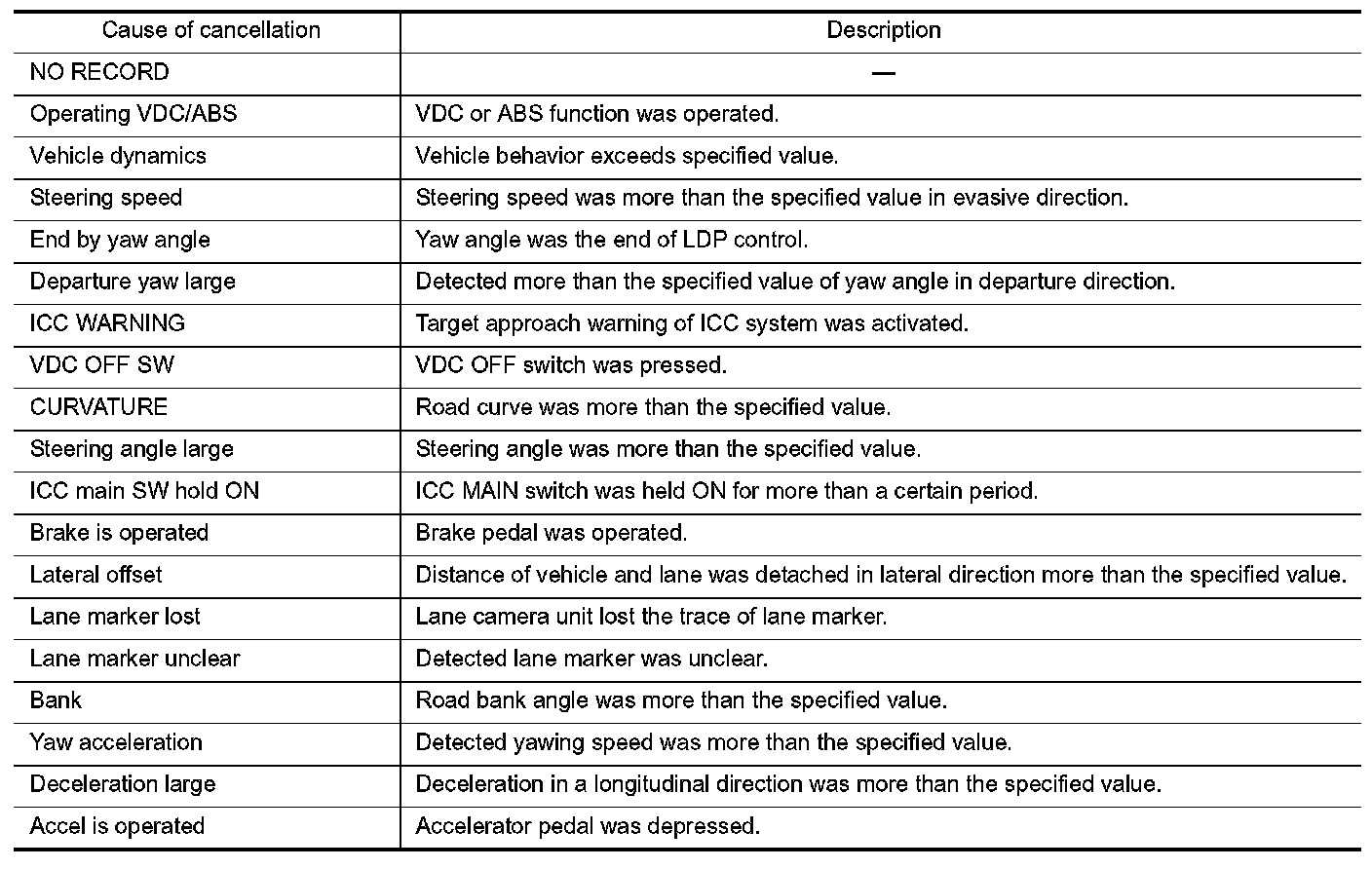

Cause of Auto-Cancel Display Item List
- Last five cancel (system cancel) causes are displayed.
- "CAUSE OF AUTO-CANCEL" displays the number of times of ignition switch ON/OFF up to a maximum of "39". "39" is kept even when the number exceeds "39". The number returns to 0 when detecting the same cancellation causes are detected.









SELF DIAGNOSTIC RESULT
Displays memorized DTC in lane camera unit. Refer to ACS-146, "DTC Index". Lane Camera Unit

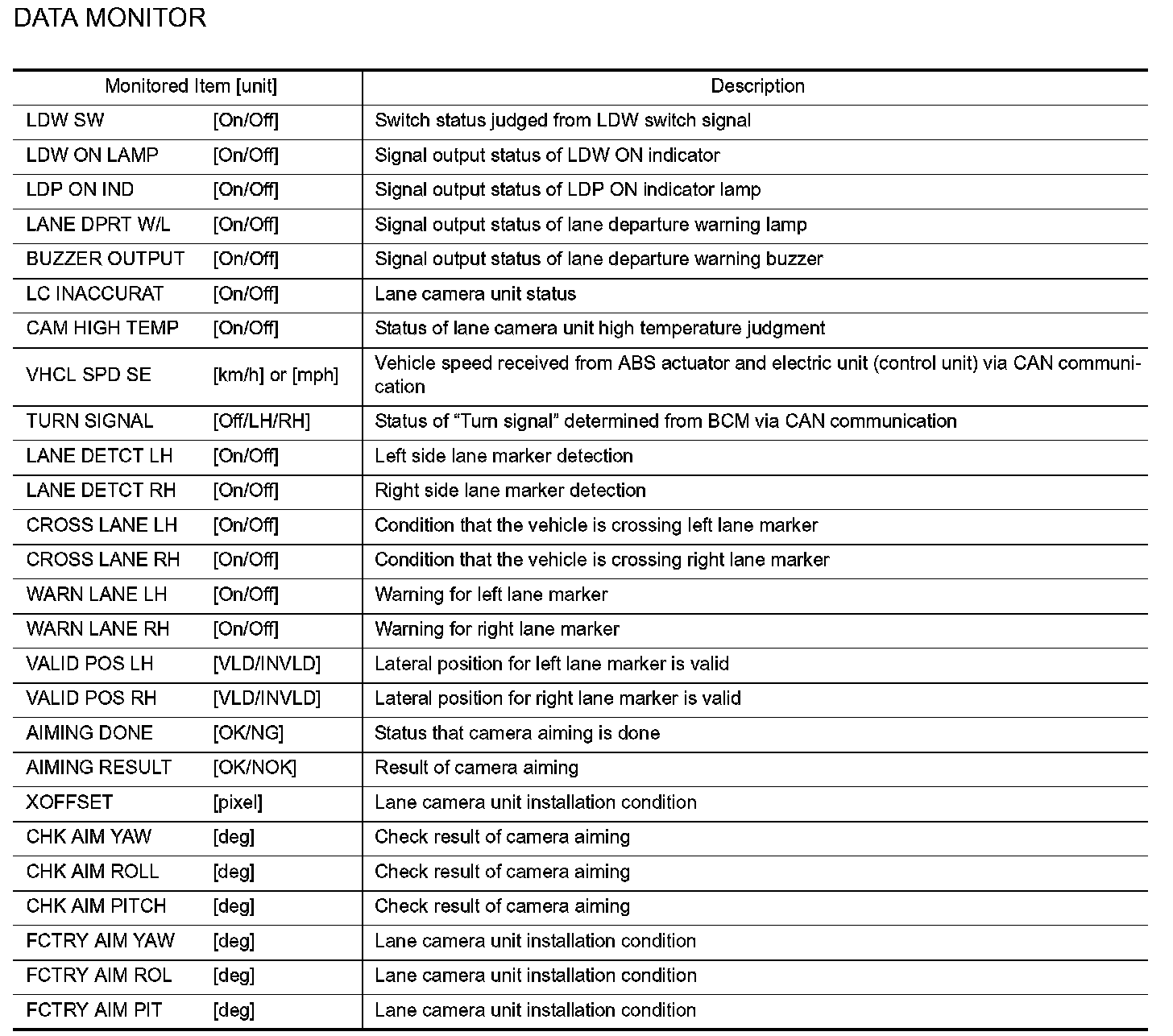

DATA MONITOR

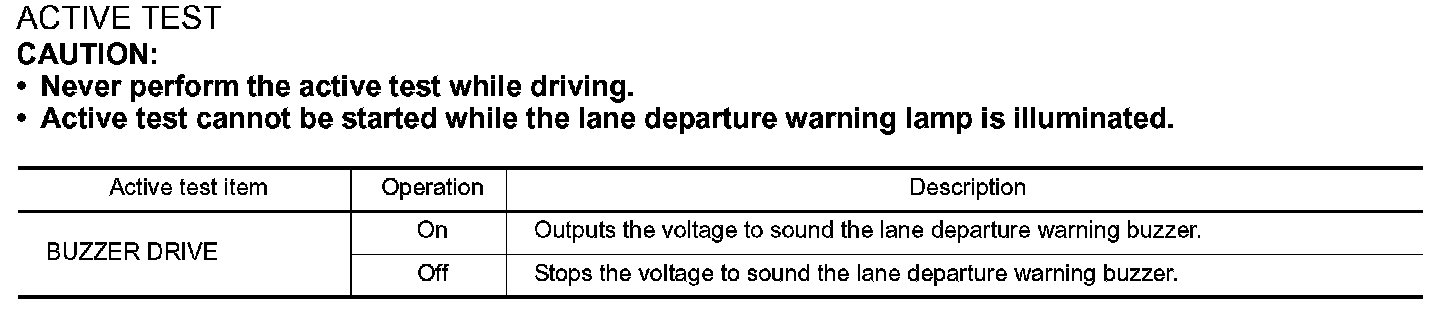

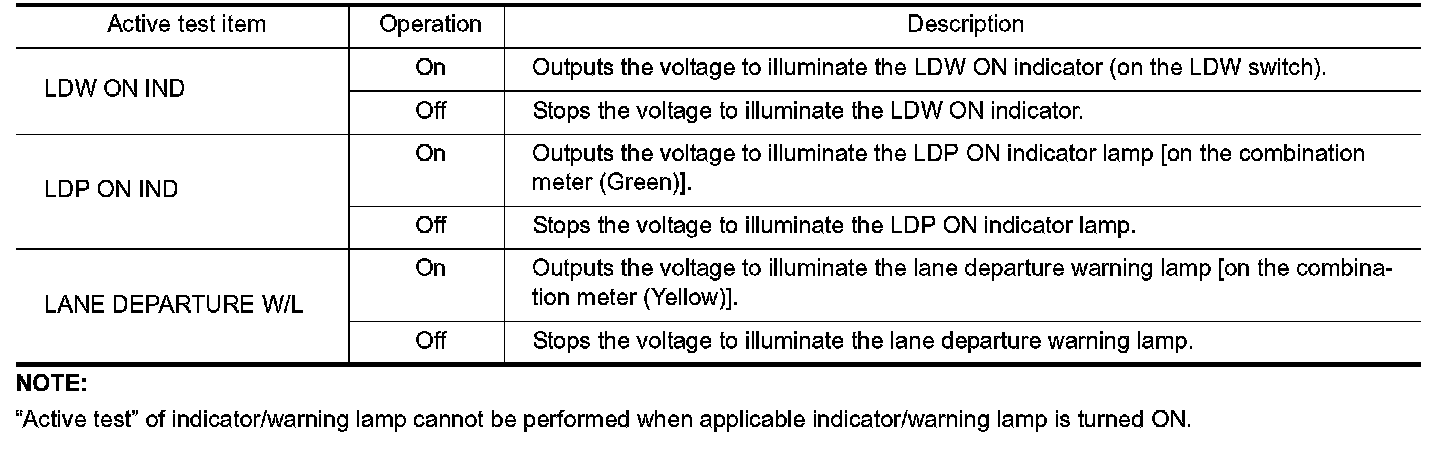

ACTIVE TEST
