Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

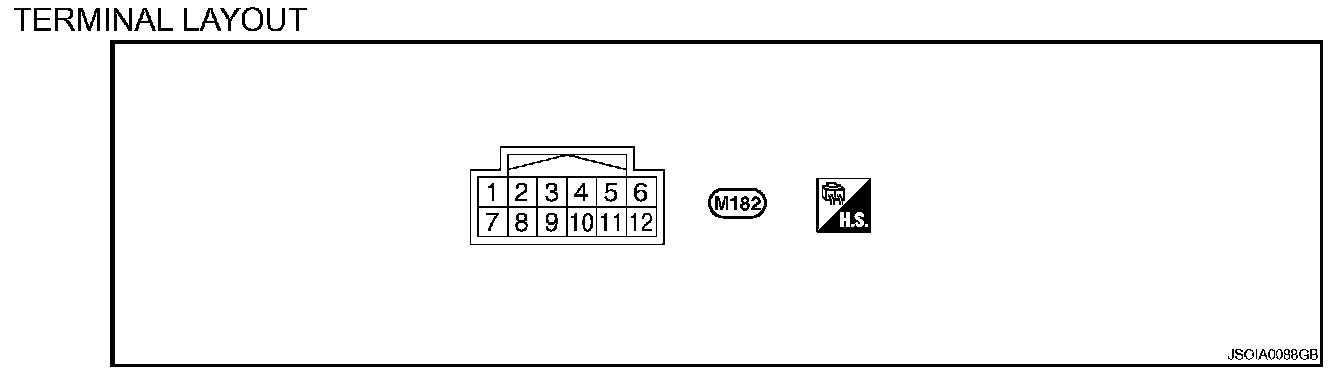

TERMINAL LAYOUT

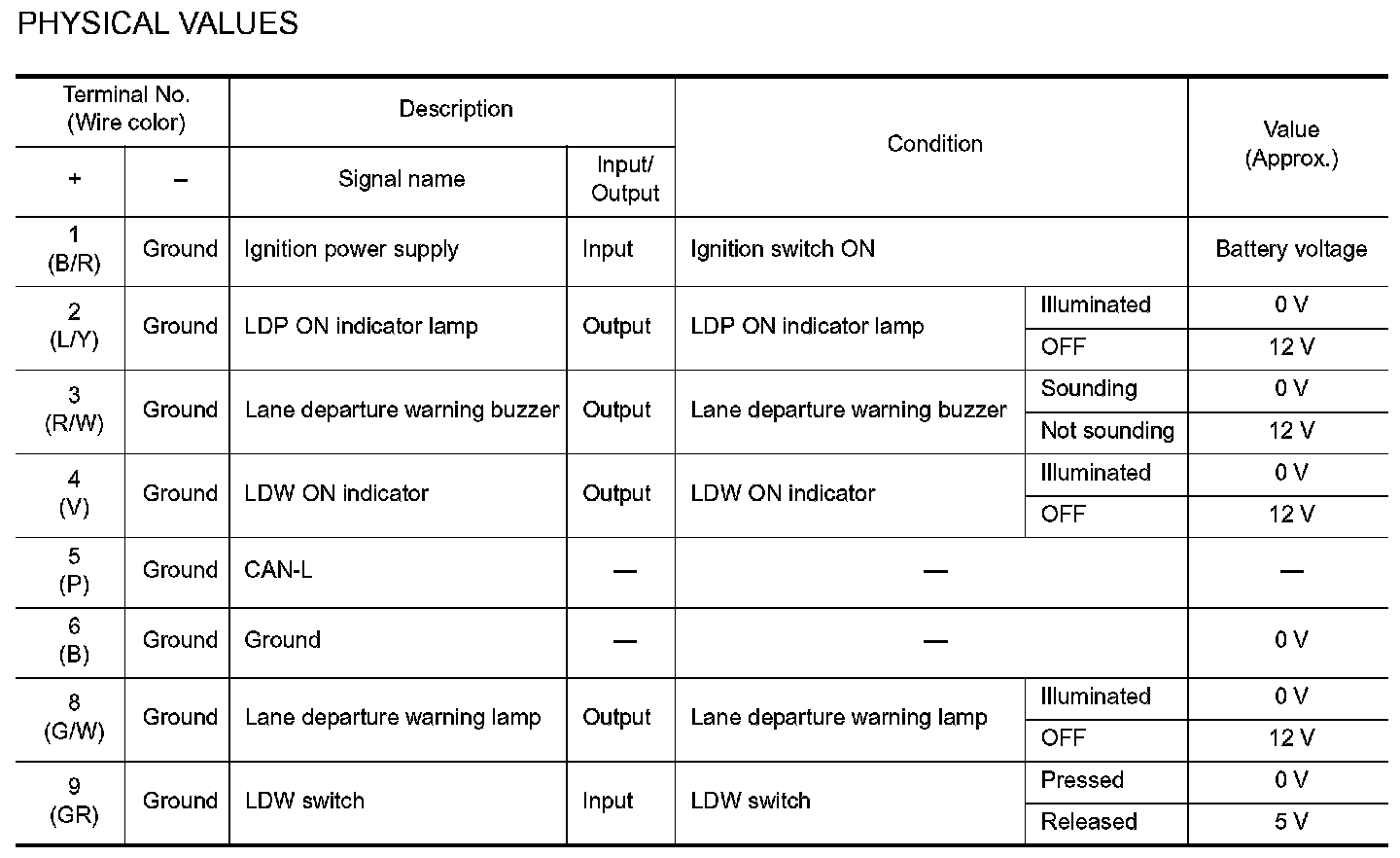

PHYSICAL VALUES

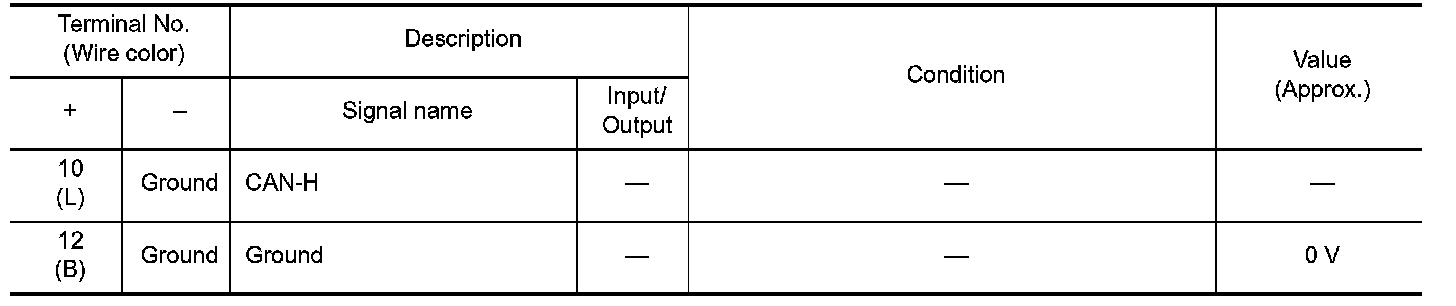

Terminals And Reference Values (Part 1):
Terminals And Reference Values (Part 2):
