Camera Aiming Adjustment

CAMERA AIMING ADJUSTMENT

CAMERA AIMING ADJUSTMENT : Description

OUTLINE
Perform the camera aiming every time the lane camera unit is removed and installed.

CAUTION:
- Place the vehicle on level ground when the camera aiming adjustment is operated.
- Follow the CONSULT-III when performing the camera aiming. (Camera aiming adjustment cannot be operated without CONSULT-III.)

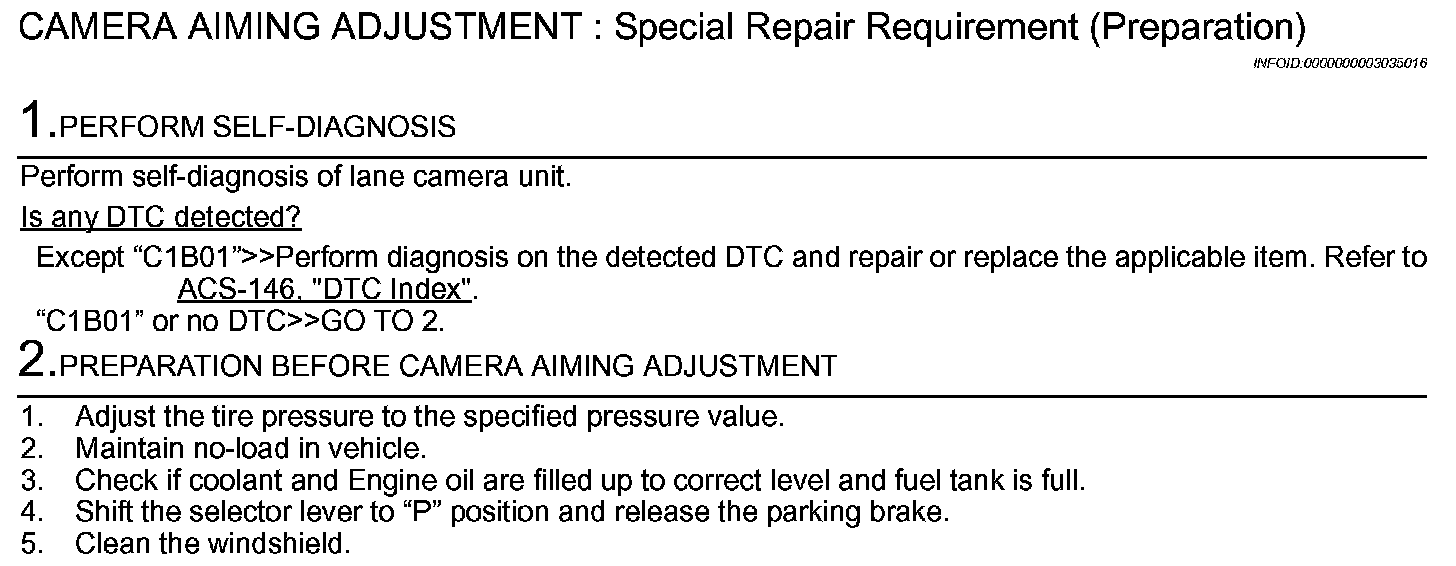

CAMERA AIMING ADJUSTMENT : Special Repair Requirement (Preparation)

Step 1-2:

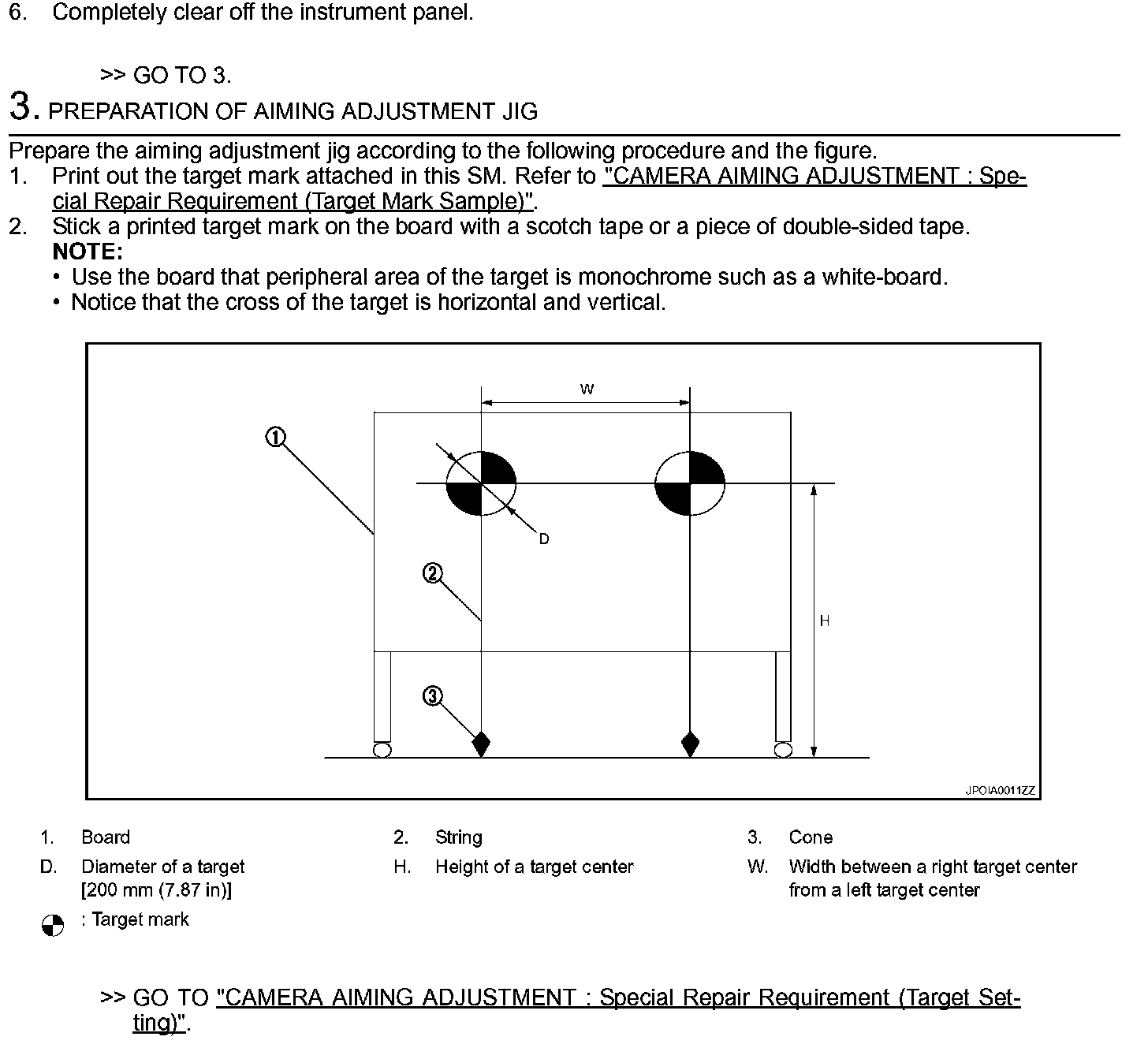

Step 2 (Continued)-3:

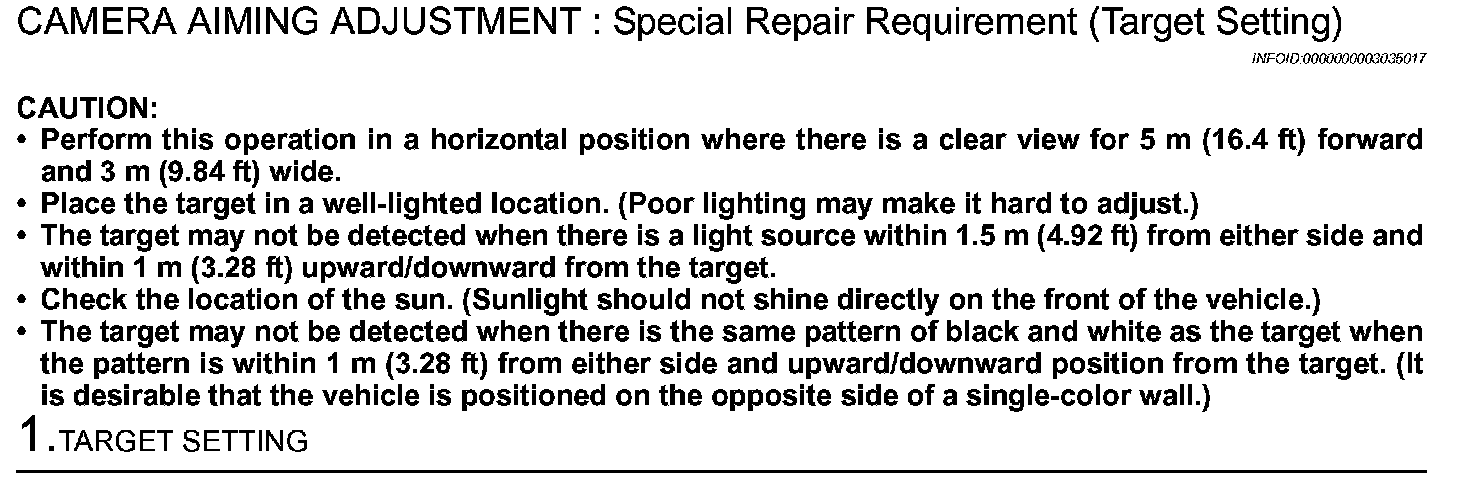

CAMERA AIMING ADJUSTMENT : Special Repair Requirement (Target Setting)

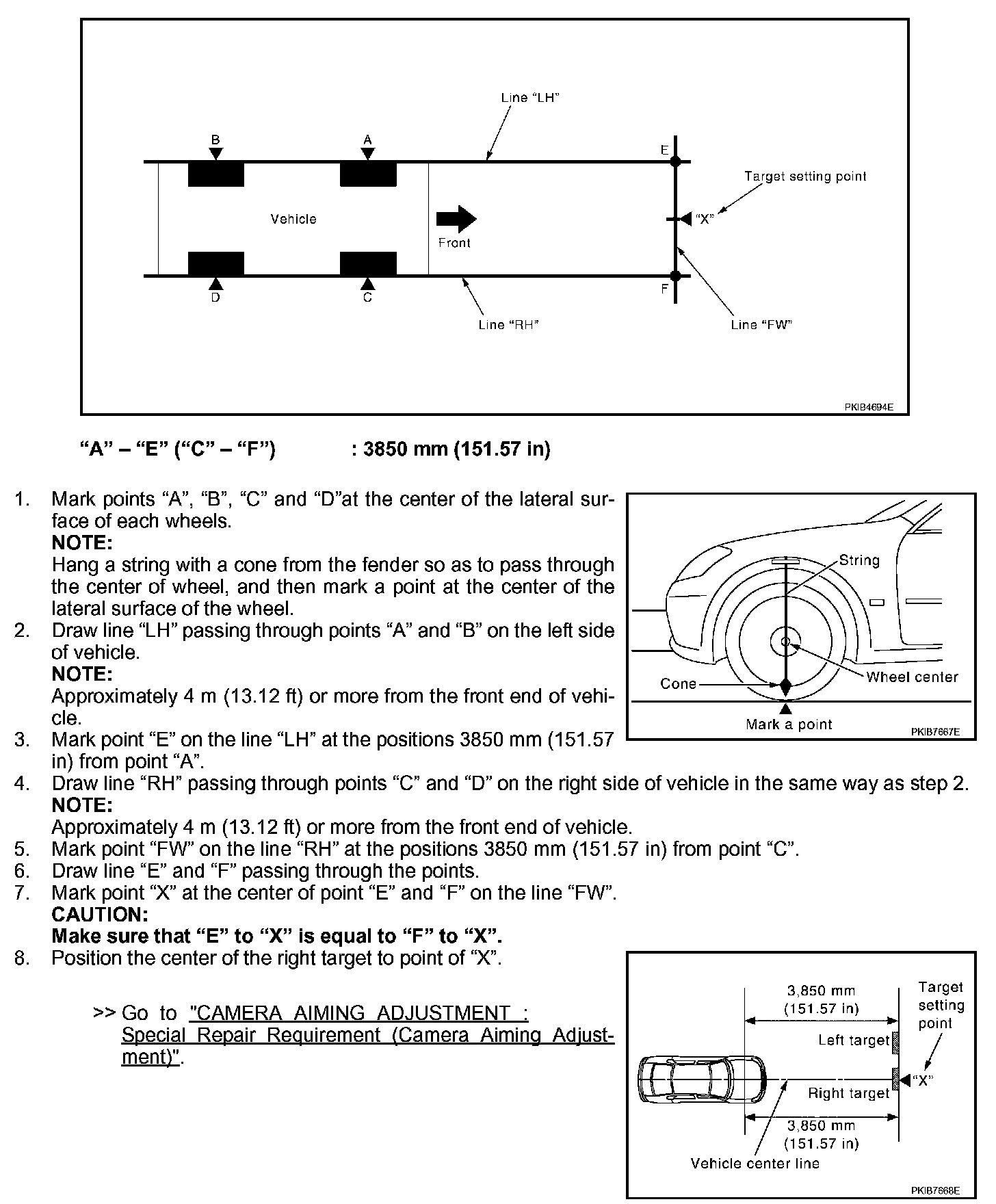

Step 1:

Step 1 (Continued):

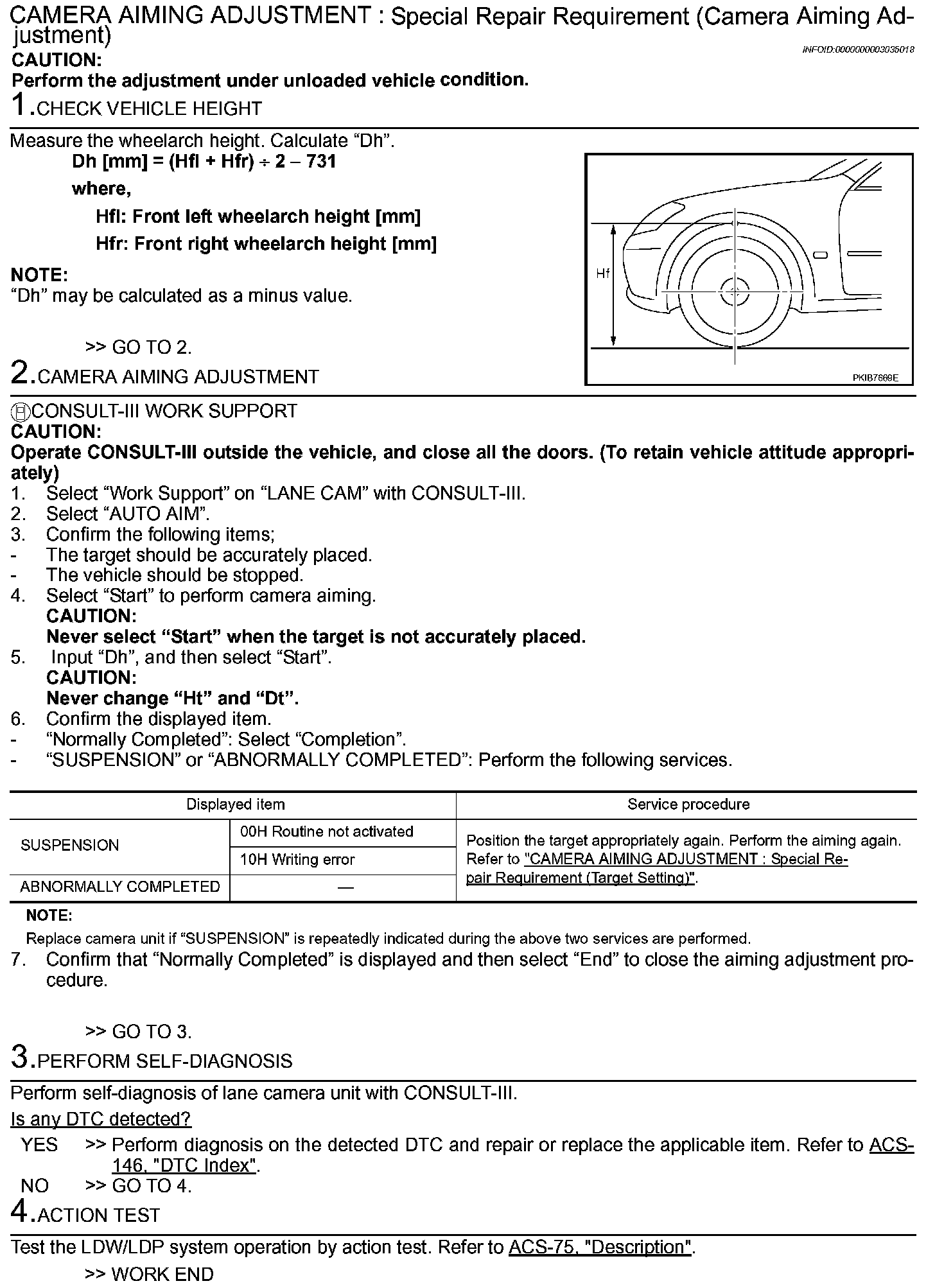

CAMERA AIMING ADJUSTMENT : Special Repair Requirement (Camera Aiming Adjustment)

Step 1-4:

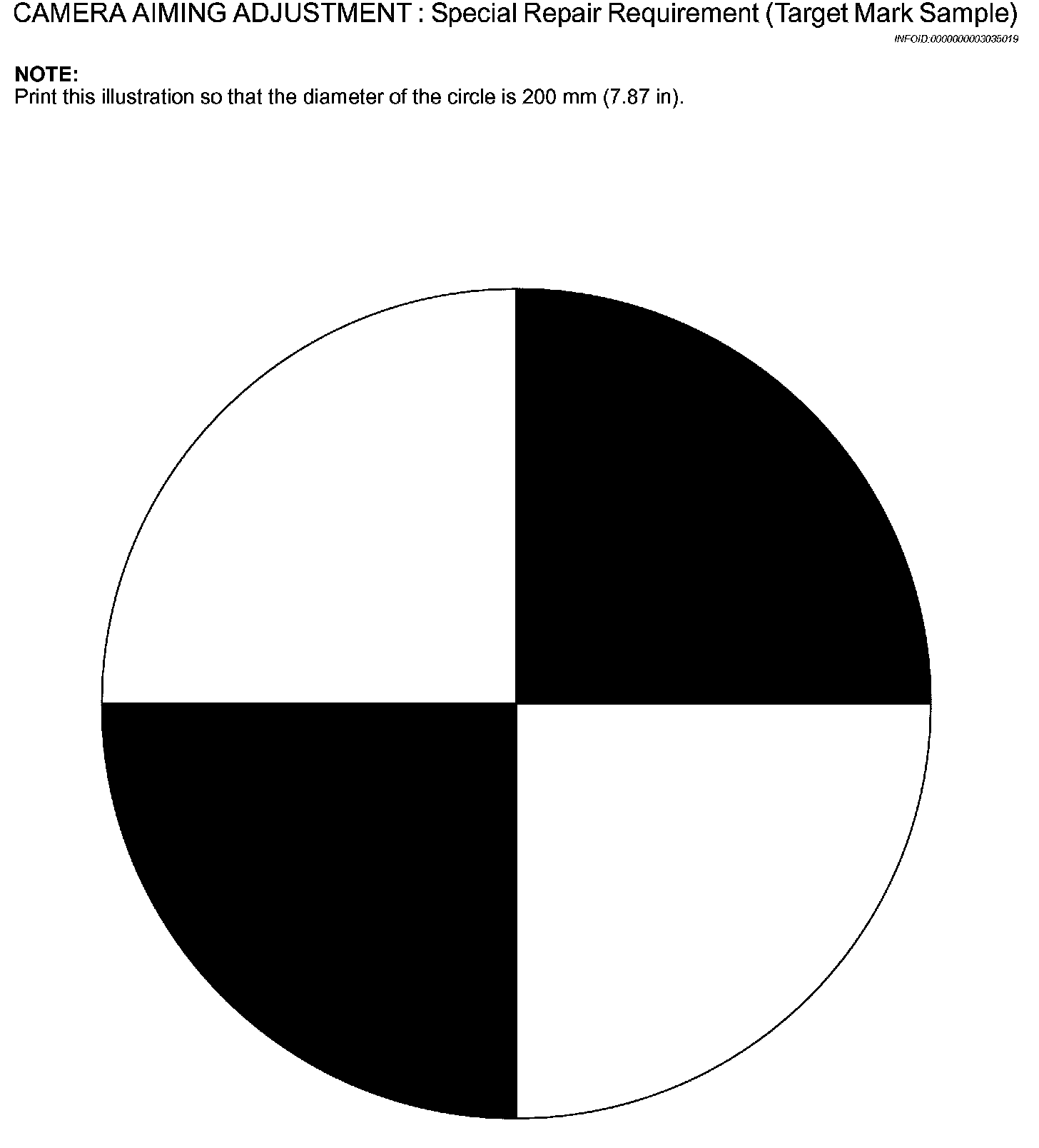

CAMERA AIMING ADJUSTMENT : Special Repair Requirement (Target Mark Sample)
