Lane Camera Unit

ON-VEHICLE REPAIR

LANE CAMERA UNIT

Exploded View

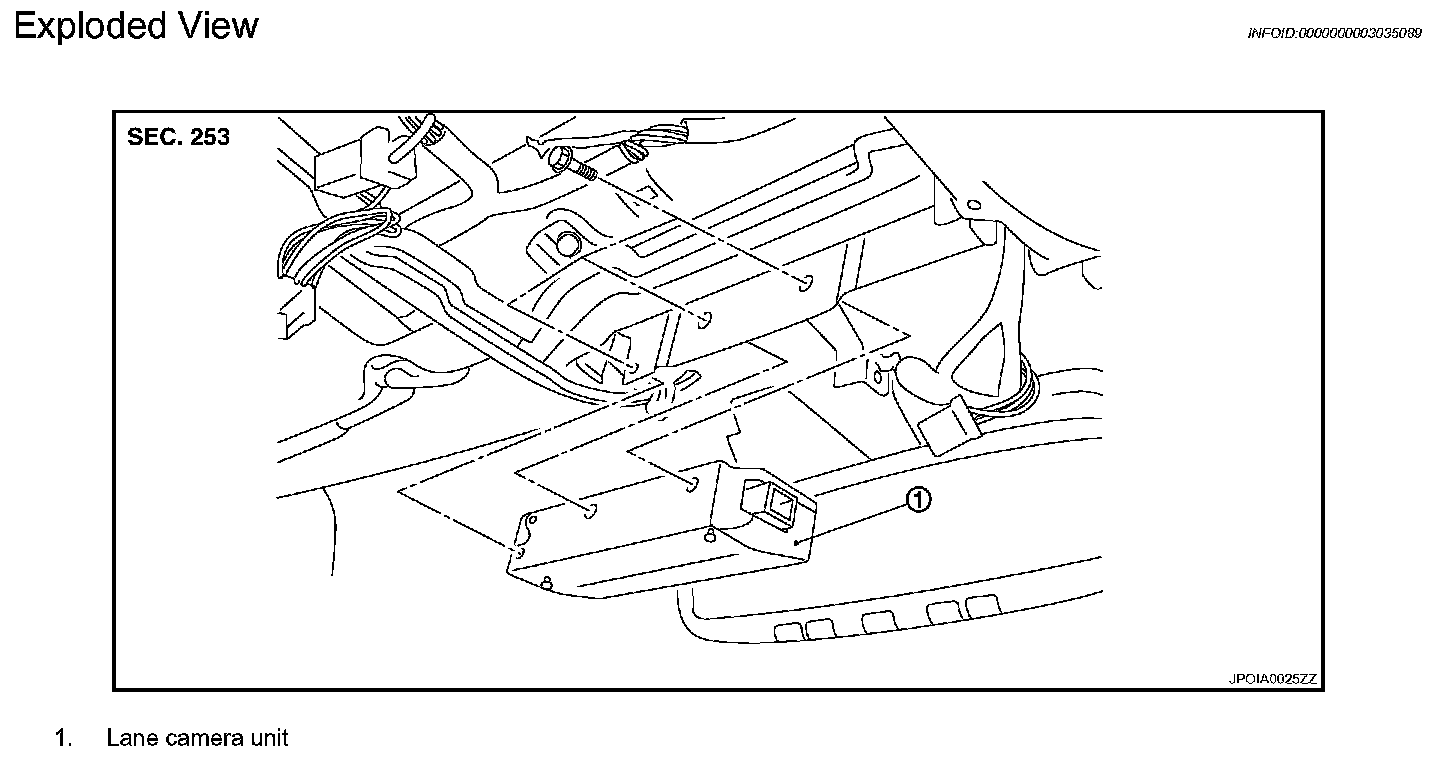

ACS-167 Exploded View:

Removal and Installation

REMOVAL
1. Remove map lamp assembly.
2. Disconnect lane camera unit connector.
3. Remove the bolts, and remove lane camera unit.

INSTALLATION
Installation is the reverse order of removal.

CAUTION:
- Remove the camera lens cap for replacement.
- Never give an impact to the lane camera unit.
- Perform the camera aiming every time the lane camera unit is removed and installed. Refer to ACS-77, "CAMERA AIMING ADJUSTMENT : Description".
