Lane Departure Warning Buzzer

LANE DEPARTURE WARNING

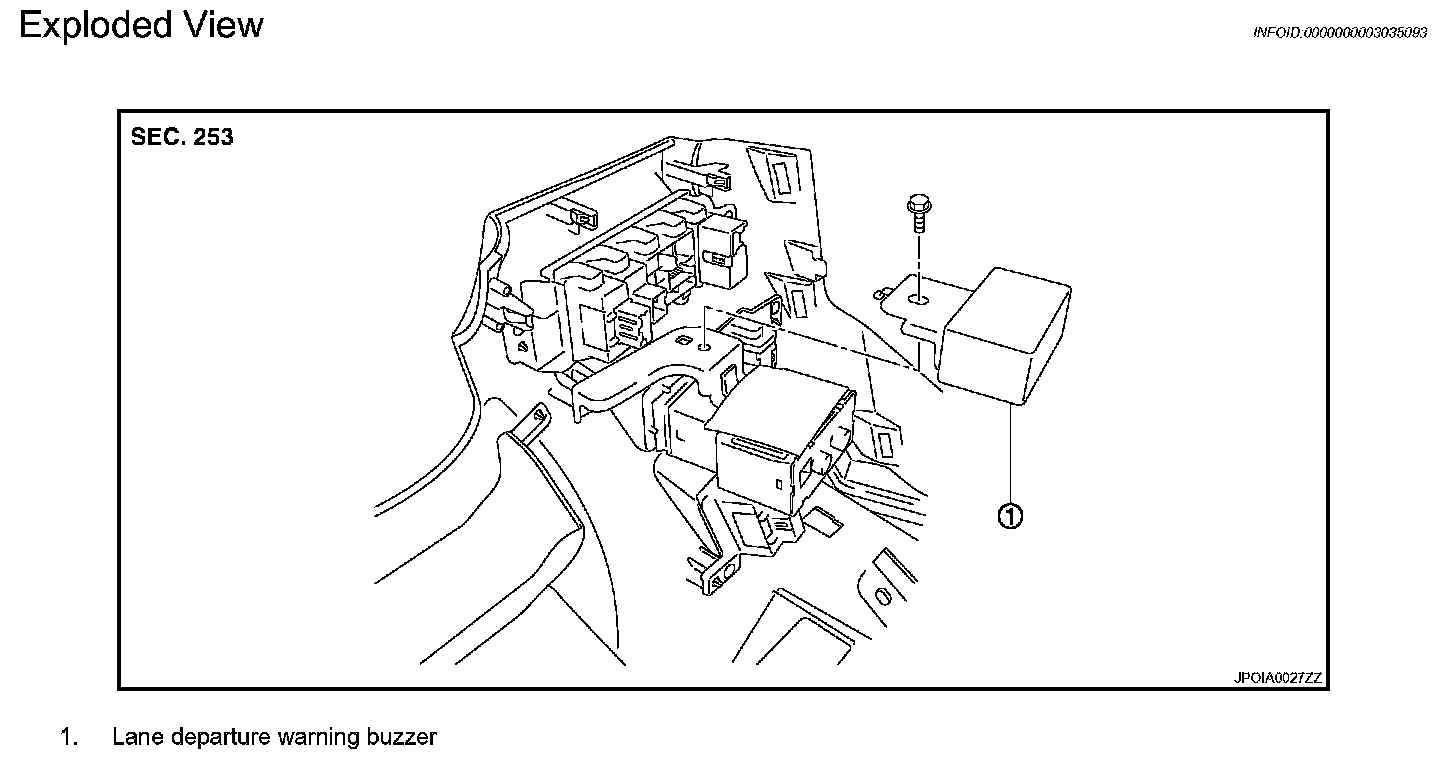

BUZZER Exploded View

ACS-169 Exploded View:

Removal and Installation

REMOVAL
1. Remove the instrument driver lower panel.
2. Remove the bolt.
3. Disconnect the connector and remove lane departure warning buzzer.

INSTALLATION
Installation is the reverse order of removal.
