LDW Switch

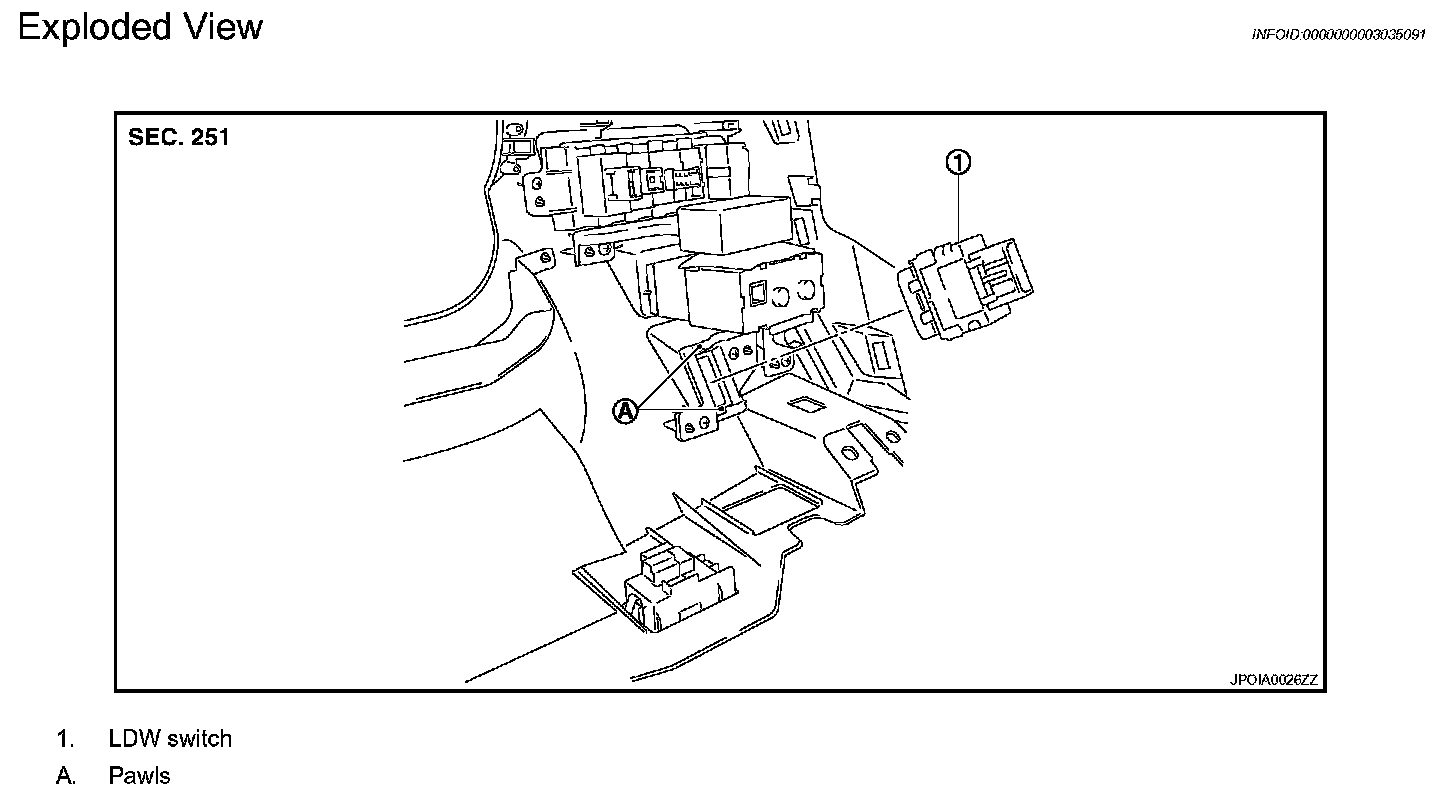

LDW SWITCHExploded View
ACS-168 Exploded View:
Removal and Installation
REMOVAL
1. Remove the instrument driver lower panel.
2. Widen the pawl. Then remove LDW switch.
INSTALLATION
Install in the reverse order of removal.
Exploded View
Removal and Installation
REMOVAL
1. Remove the instrument driver lower panel.
2. Widen the pawl. Then remove LDW switch.
INSTALLATION
Install in the reverse order of removal.
