Initial Inspection and Diagnostic Overview
>>
With Mobile Entertainment System
>>
Diagnosis and Repair Work Flow
Diagnosis and Repair Work Flow
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work Flow
Work Flow:

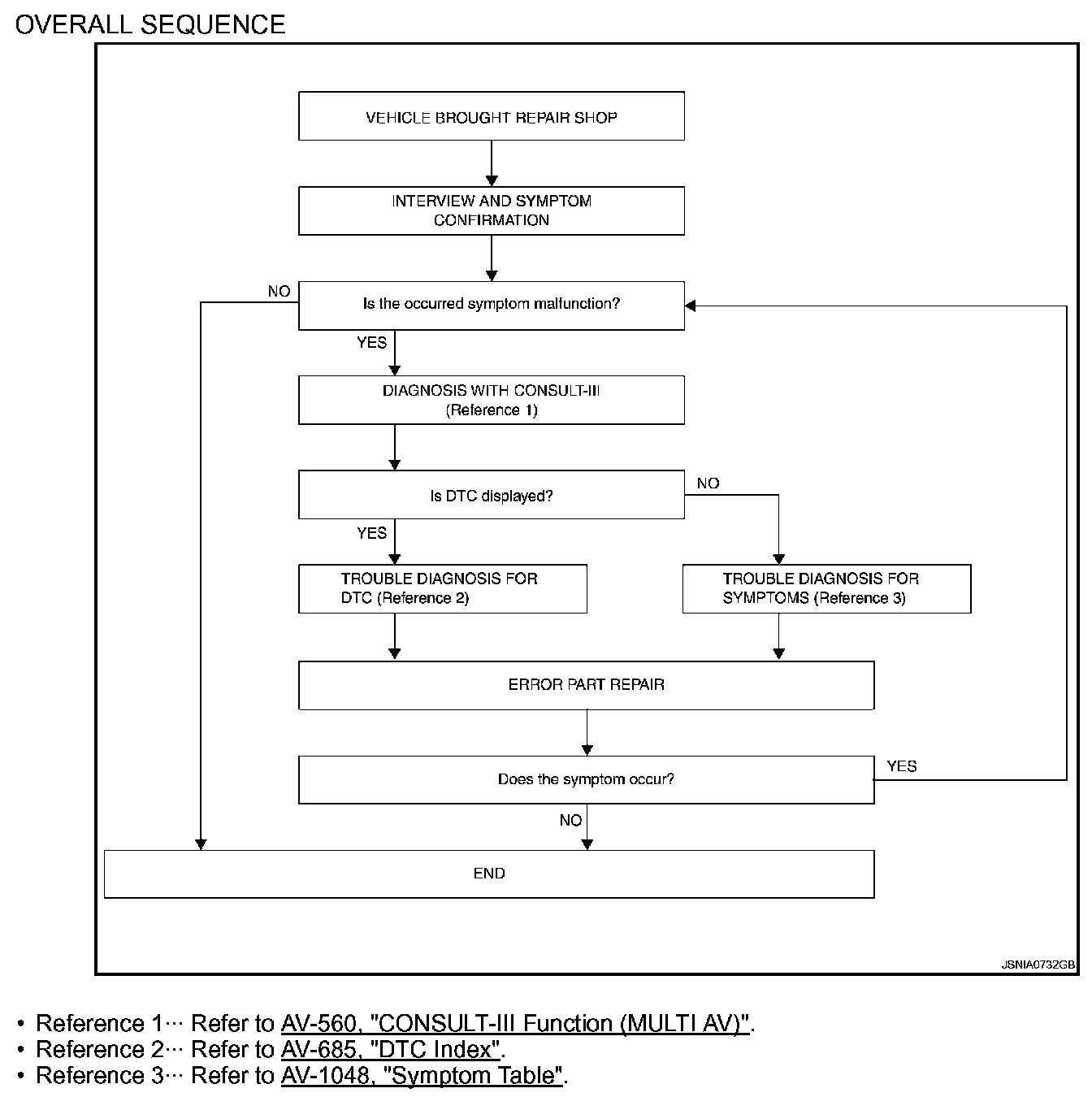

OVERALL SEQUENCE

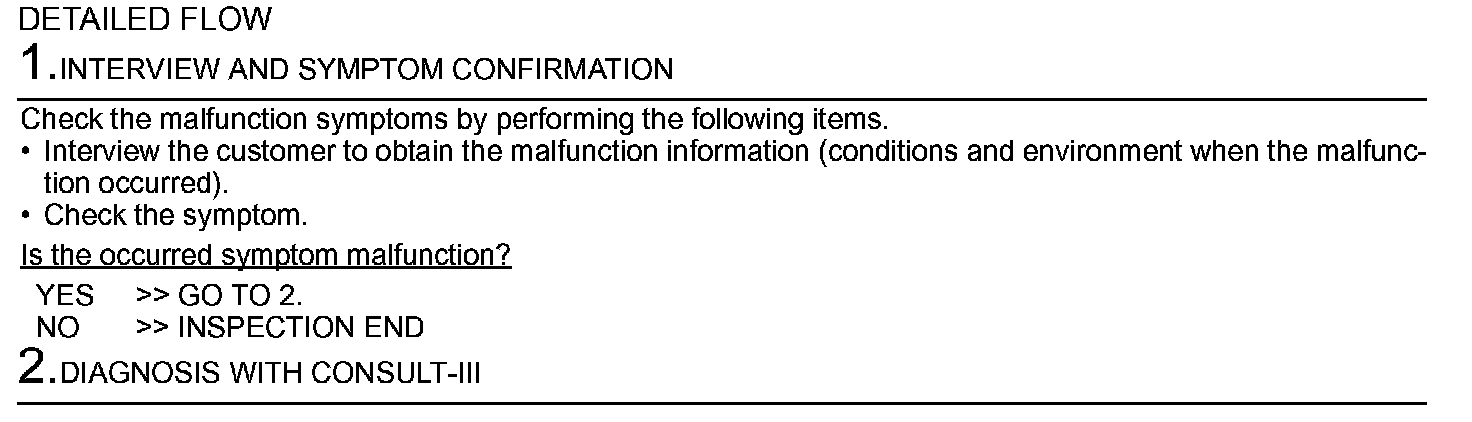

DETAILED FLOW
Step 1-2:

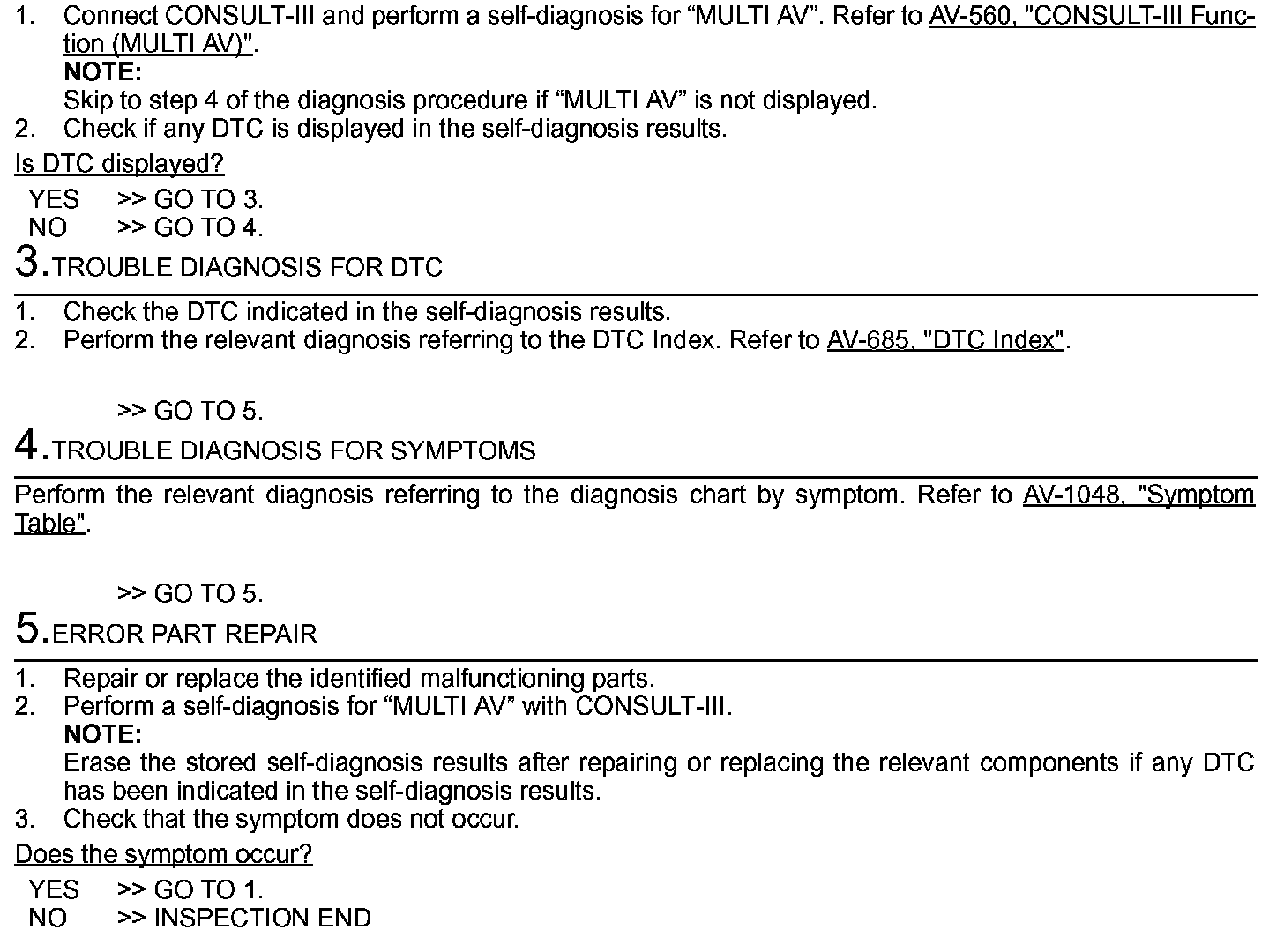

Step 2 (Continued)-5:
