AUX Image Signal Circuit

AUX IMAGE SIGNAL CIRCUIT

Description
Transmits the image signal of external device from auxiliary input jacks to video distributor.

Diagnosis Procedure

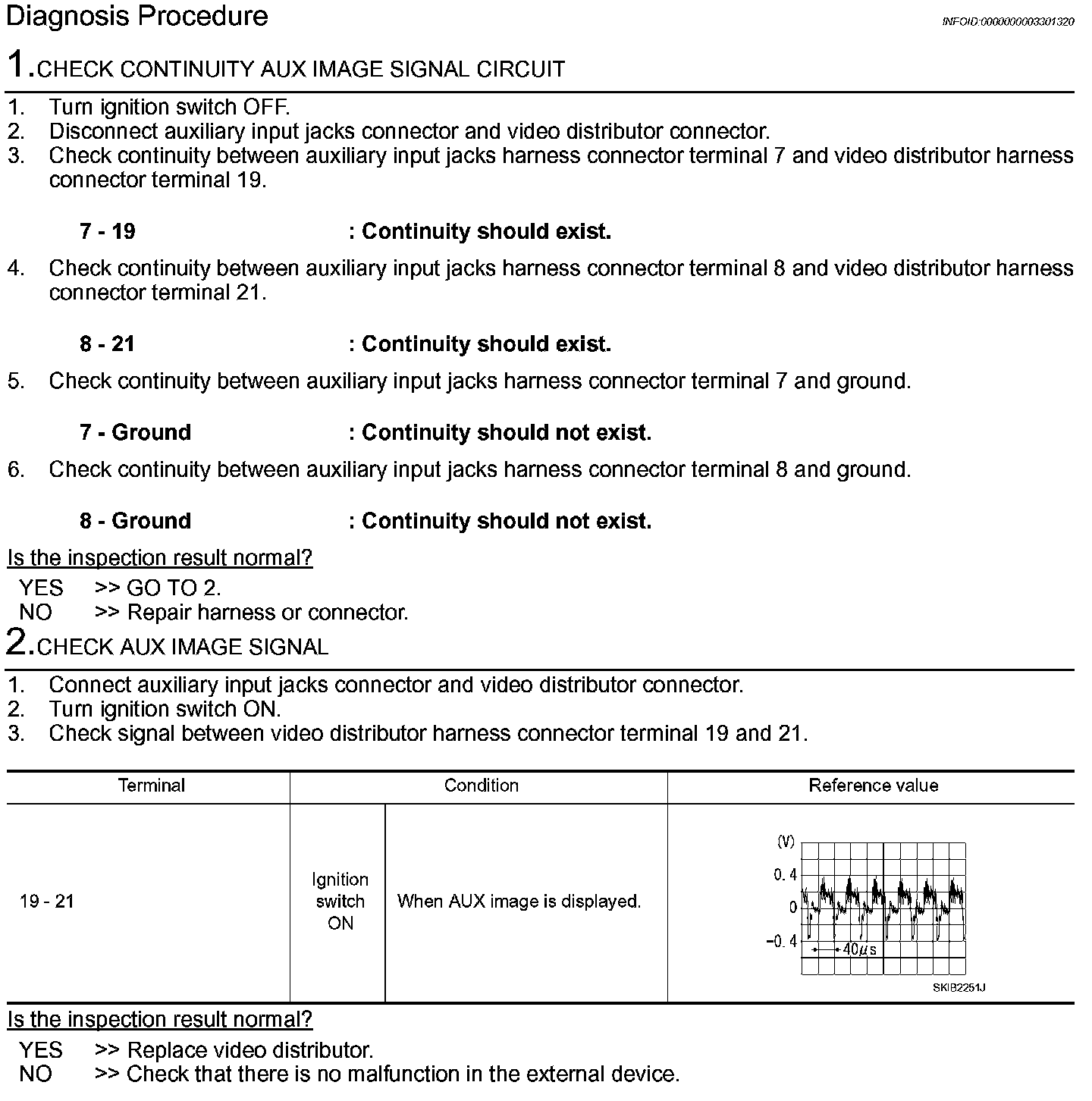

Step 1-2:
