Camera ON Signal Circuit

CAMERA ON SIGNAL CIRCUIT

Description
- Camera control unit outputs camera ON signal to rear view camera and inputs rear view camera image signal from rear view camera when the reverse signal is input.
- The camera control unit that inputs the camera image signal transmits the camera image signal to the front display unit.

Diagnosis Procedure

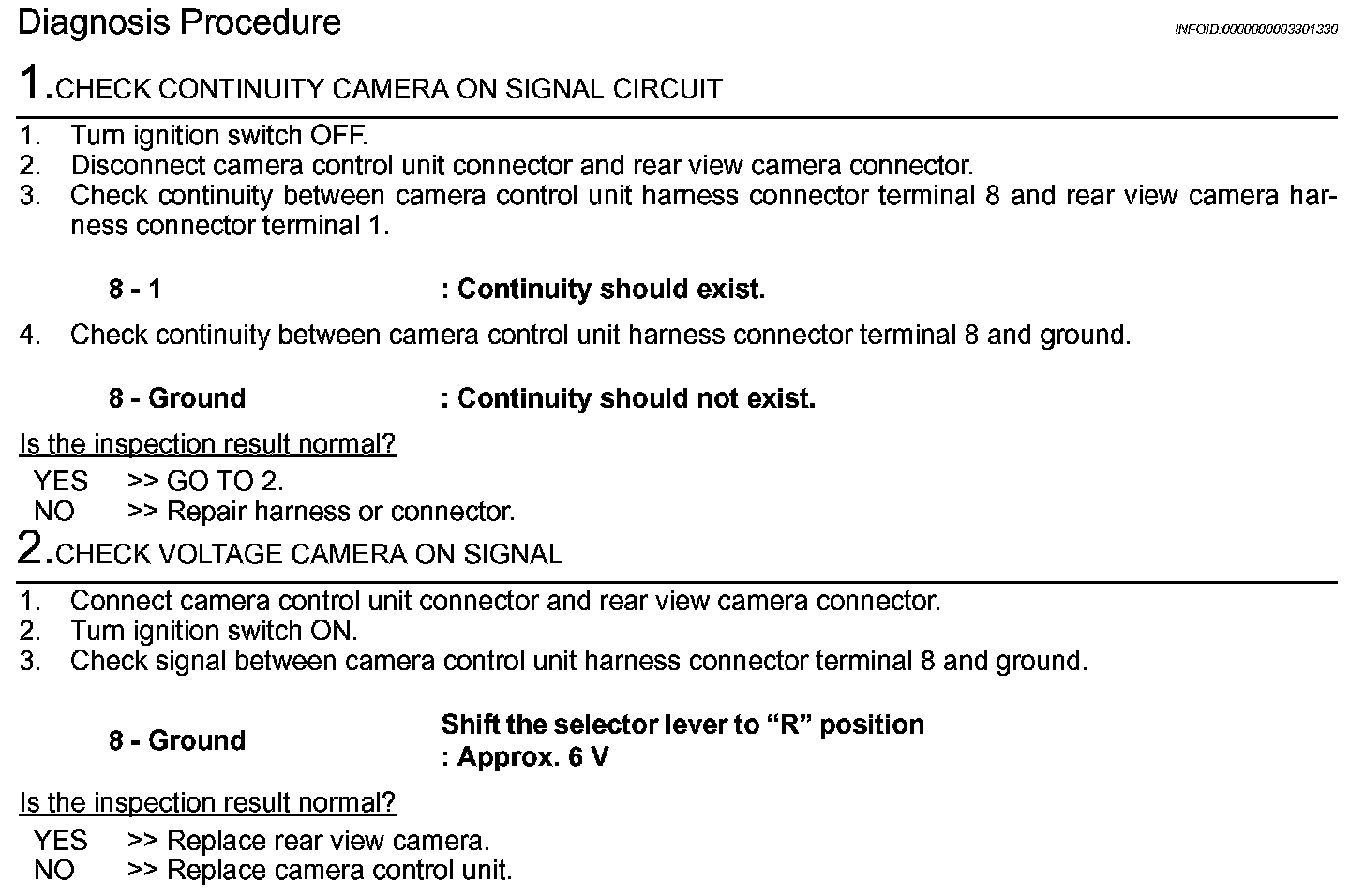

Step 1-2:
