Composite Image Signal Circuit (Video Distributor to Front Display Unit)

COMPOSITE IMAGE SIGNAL CIRCUIT (VIDEO DISTRIBUTOR TO FRONT DISPLAY UNIT)

Description
Video distributor receives the image signal from the DVD player, and auxiliary input jack, and then transmits it to the front display unit and rear display unit.

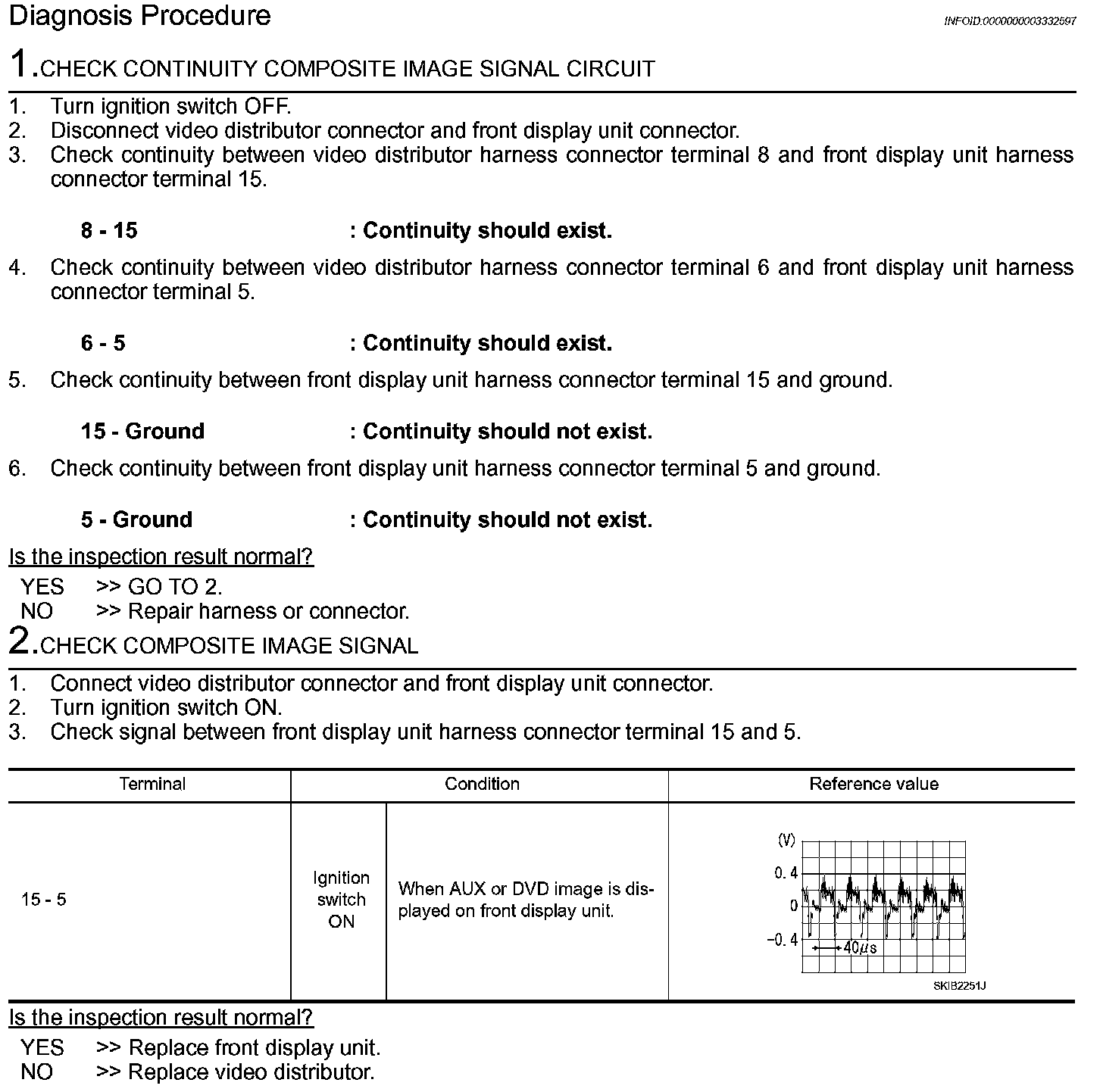

Diagnosis Procedure

Step 1-2:
