Composite Synchronizing Signal Circuit (Video Distributor to Rear Display Unit)

COMPOSITE SYNCHRONIZING SIGNAL CIRCUIT (VIDEO DISTRIBUTOR TO REAR DISPLAY UNIT)

Description
Transmit the composite synchronizing signal to the rear display unit so as to synchronize the composite image displayed with video distributor.

Diagnosis Procedure

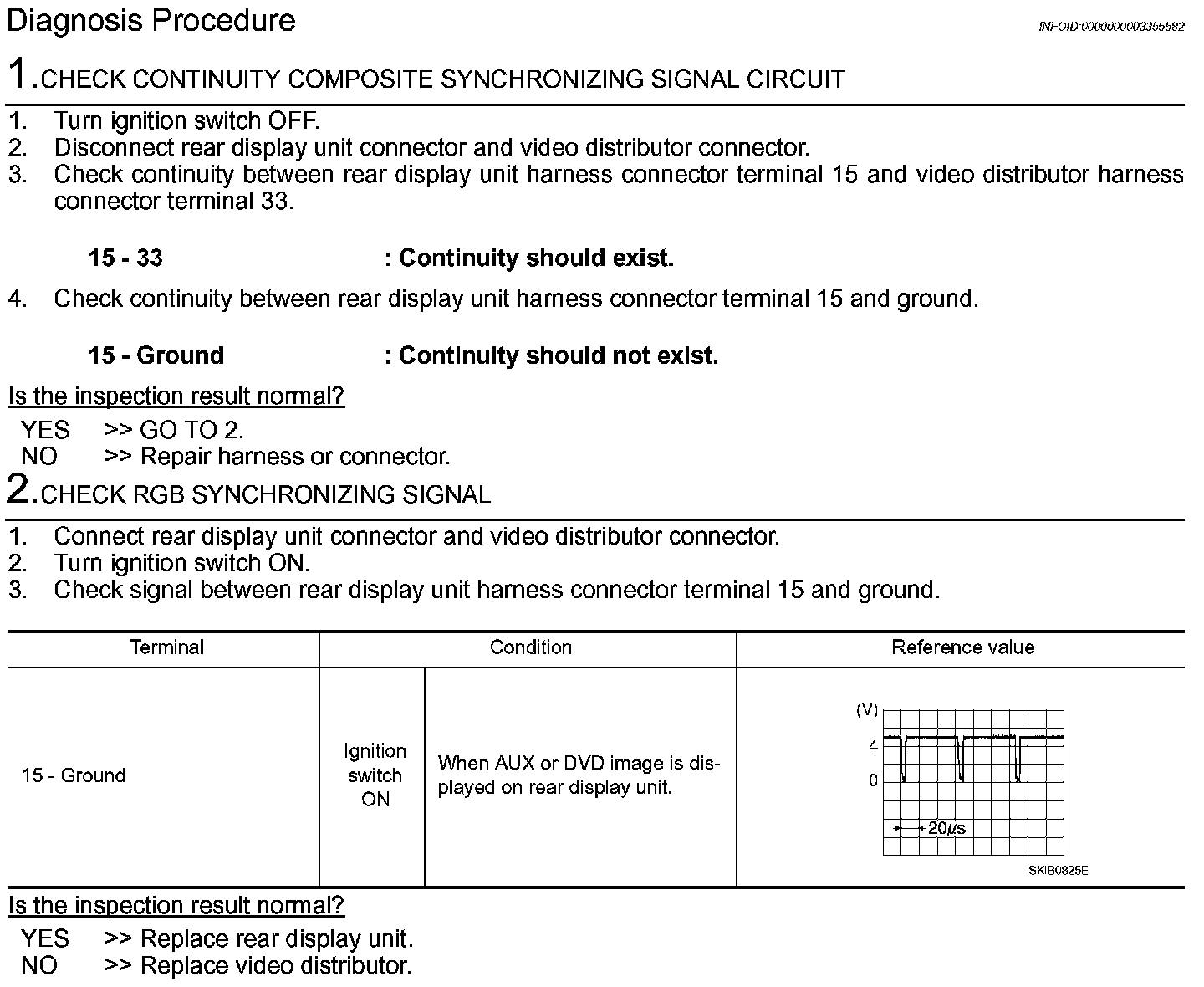

Step 1-2:
