DVD Image Signal Circuit

DVD IMAGE SIGNAL CIRCUIT

Description
The DVD player transmits the playback DVD image signal to the video distributor. The video distributor receives the image signal from the DVD player, and auxiliary input jack, and then transmits it to the front display and rear display.

Diagnosis Procedure

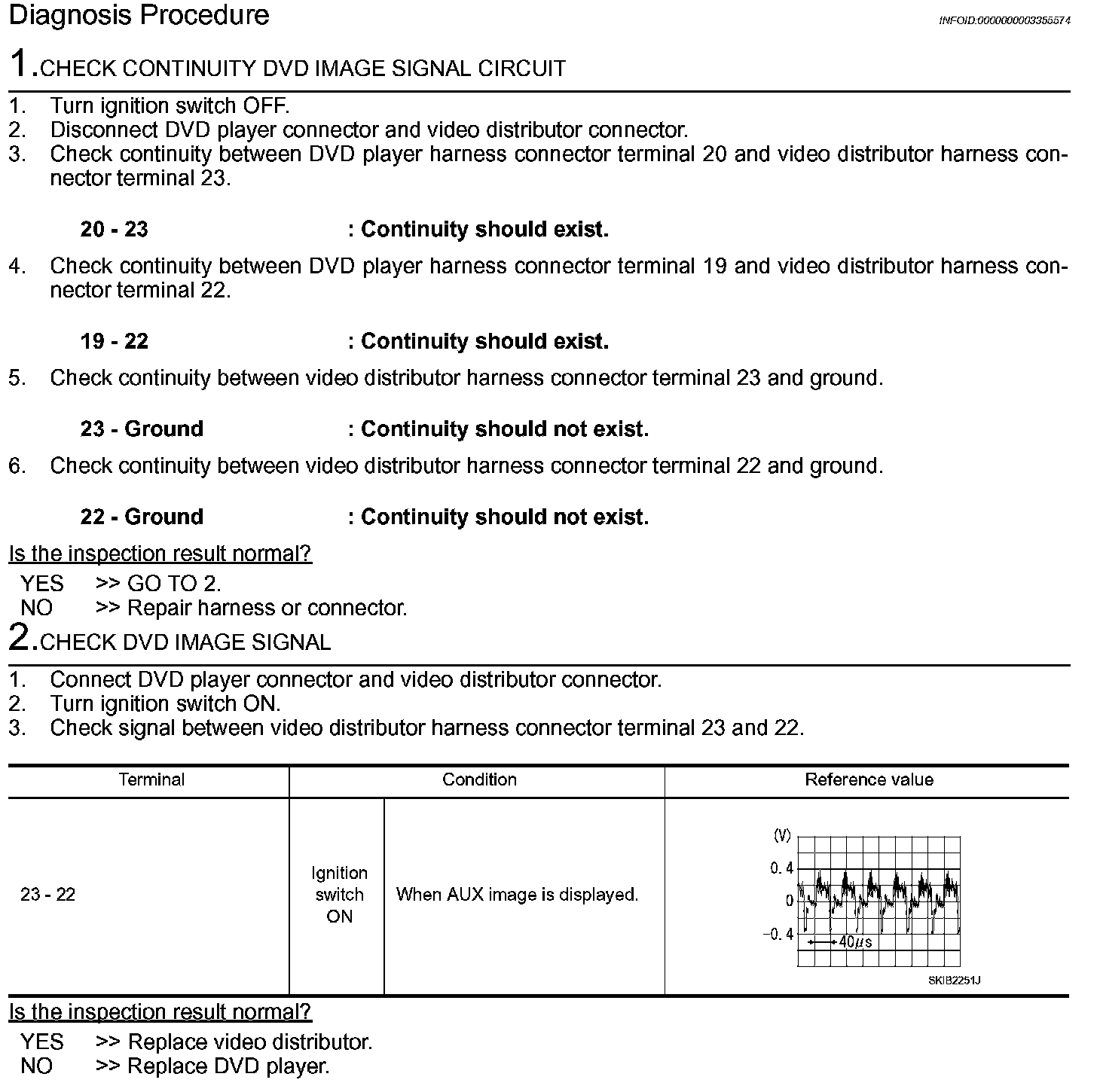

Step 1-2:
