Microphone Signal Circuit

MICROPHONE SIGNAL CIRCUIT

Description
Supply power from AV control unit to microphone. The microphone transmits the sound/voice to the AV control unit.

Diagnosis Procedure

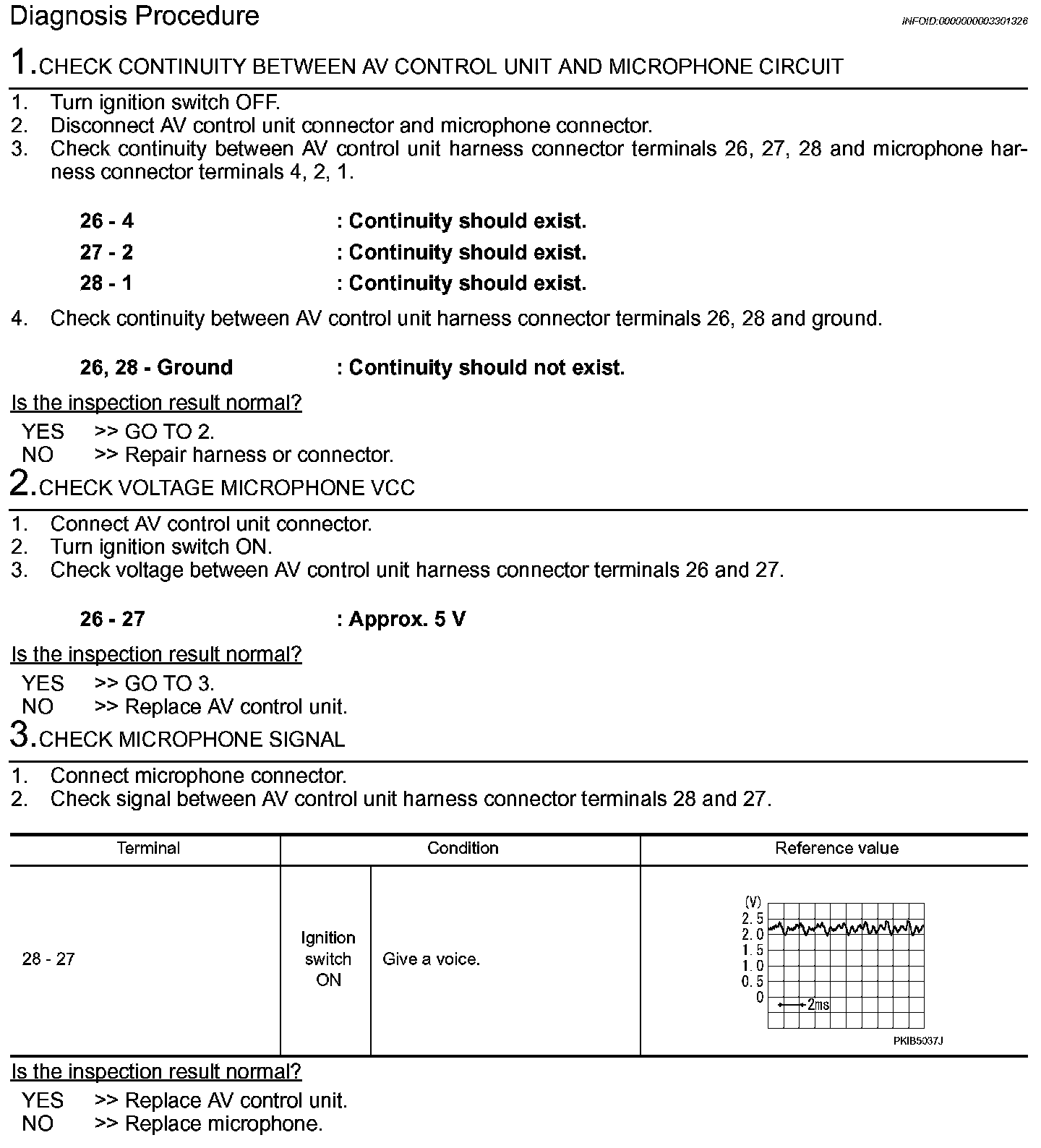

Step 1-3:
