RGB (G: Green) Signal Circuit (Video Distributor to Rear Display Unit)

RGB (G: GREEN) SIGNAL CIRCUIT (VIDEO DISTRIBUTOR TO REAR DISPLAY UNIT)

Description
Transmit the image displayed with video distributor with RGB signal to the rear display unit.

Diagnosis Procedure

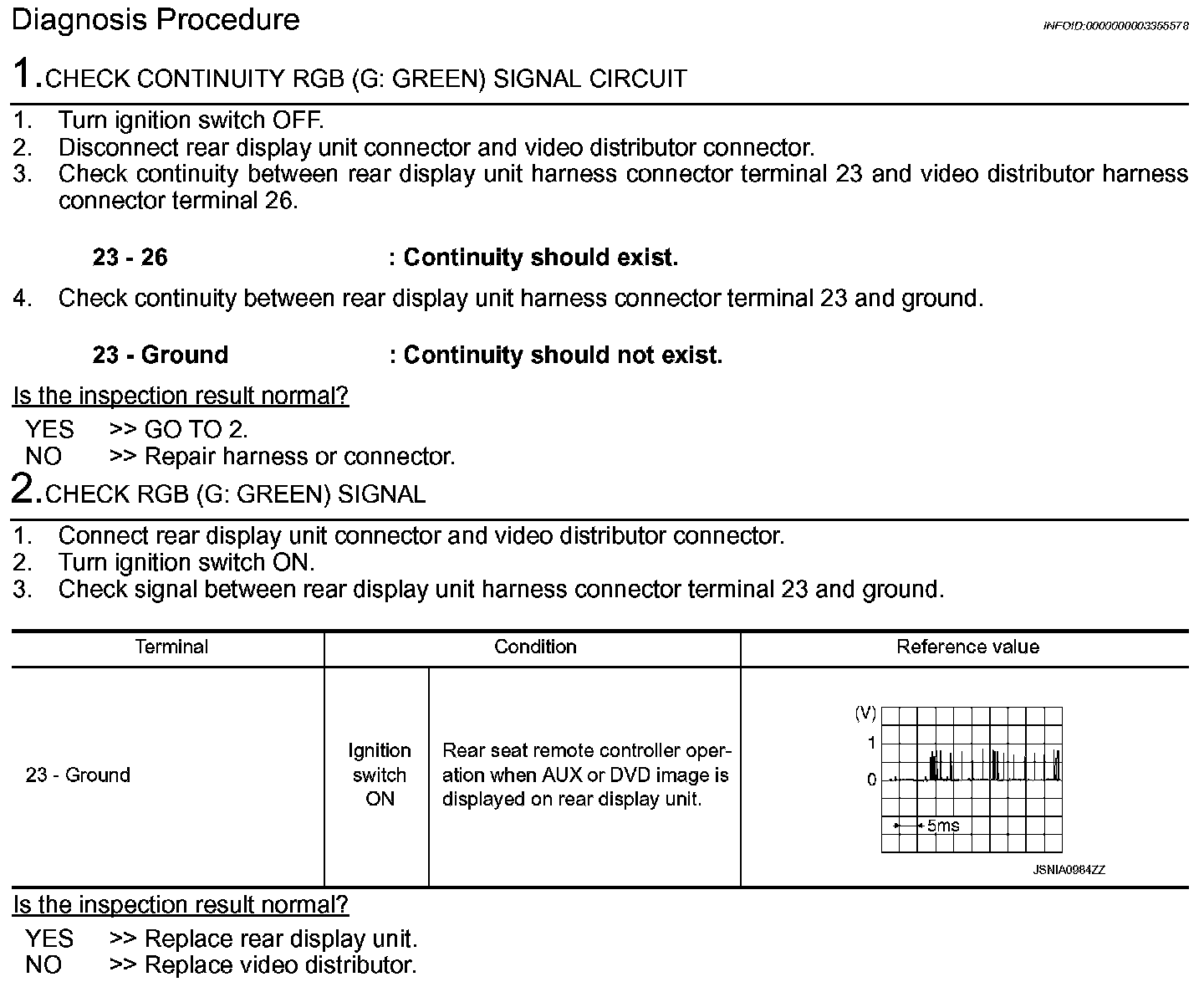

Step 1-2:
