RGB (G: Green) Signal Circuit (AV Control Unit To Front Display Unit)

RGB (G: GREEN) SIGNAL CIRCUIT (AV CONTROL UNIT TO FRONT DISPLAY UNIT)

Description
Transmit the image displayed with AV control unit with RGB signal to the front display unit.

Diagnosis Procedure

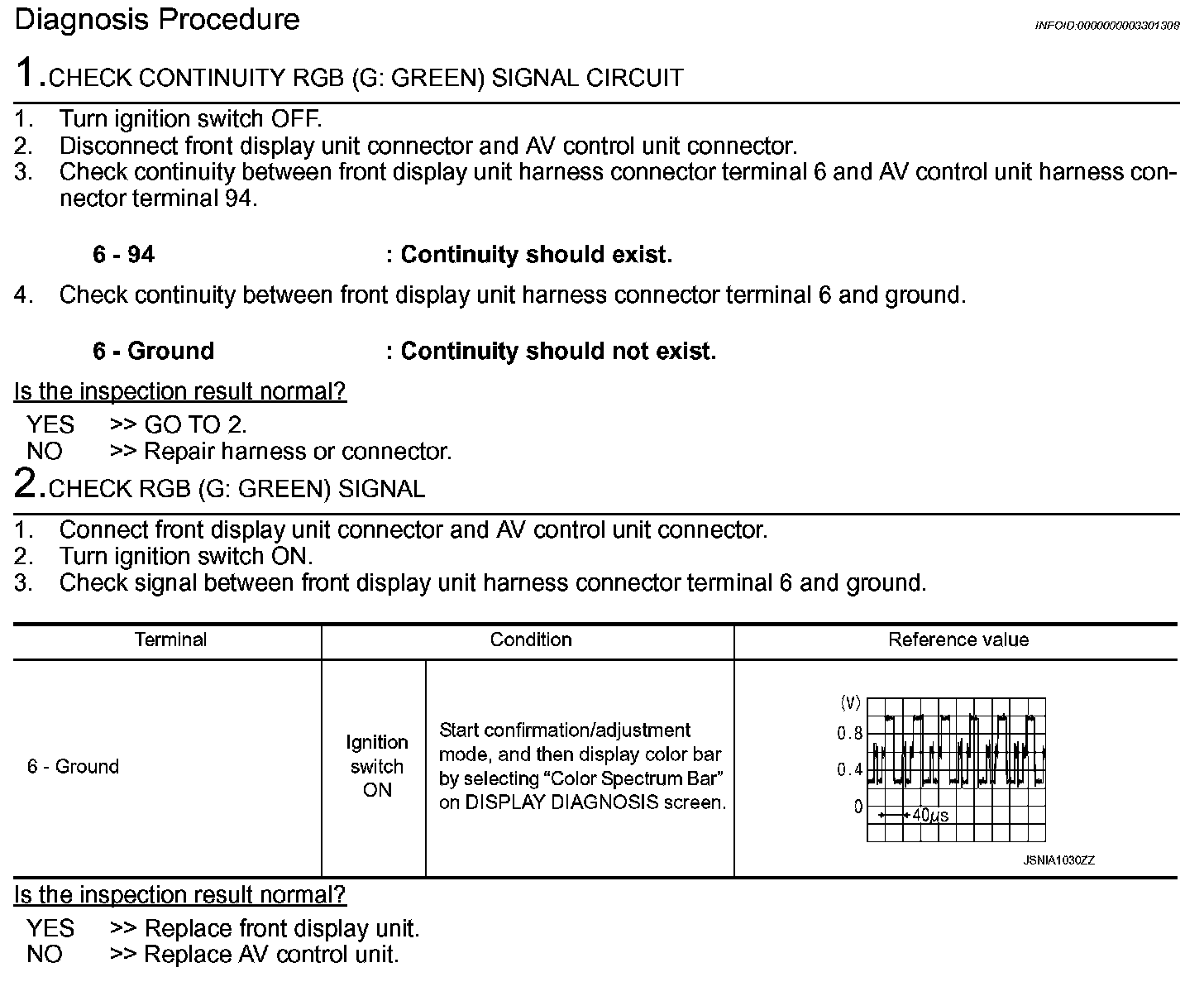

Step 1-2:
