RGB Area (YS) Signal Circuit (AV Control Unit to Front Display Unit)

RGB AREA (YS) SIGNAL CIRCUIT (AV CONTROL UNIT TO FRONT DISPLAY UNIT)

Description
Transmits the front display area of RGB image displayed by AV control unit with RGB area (YS) signal to front display unit.

Diagnosis Procedure

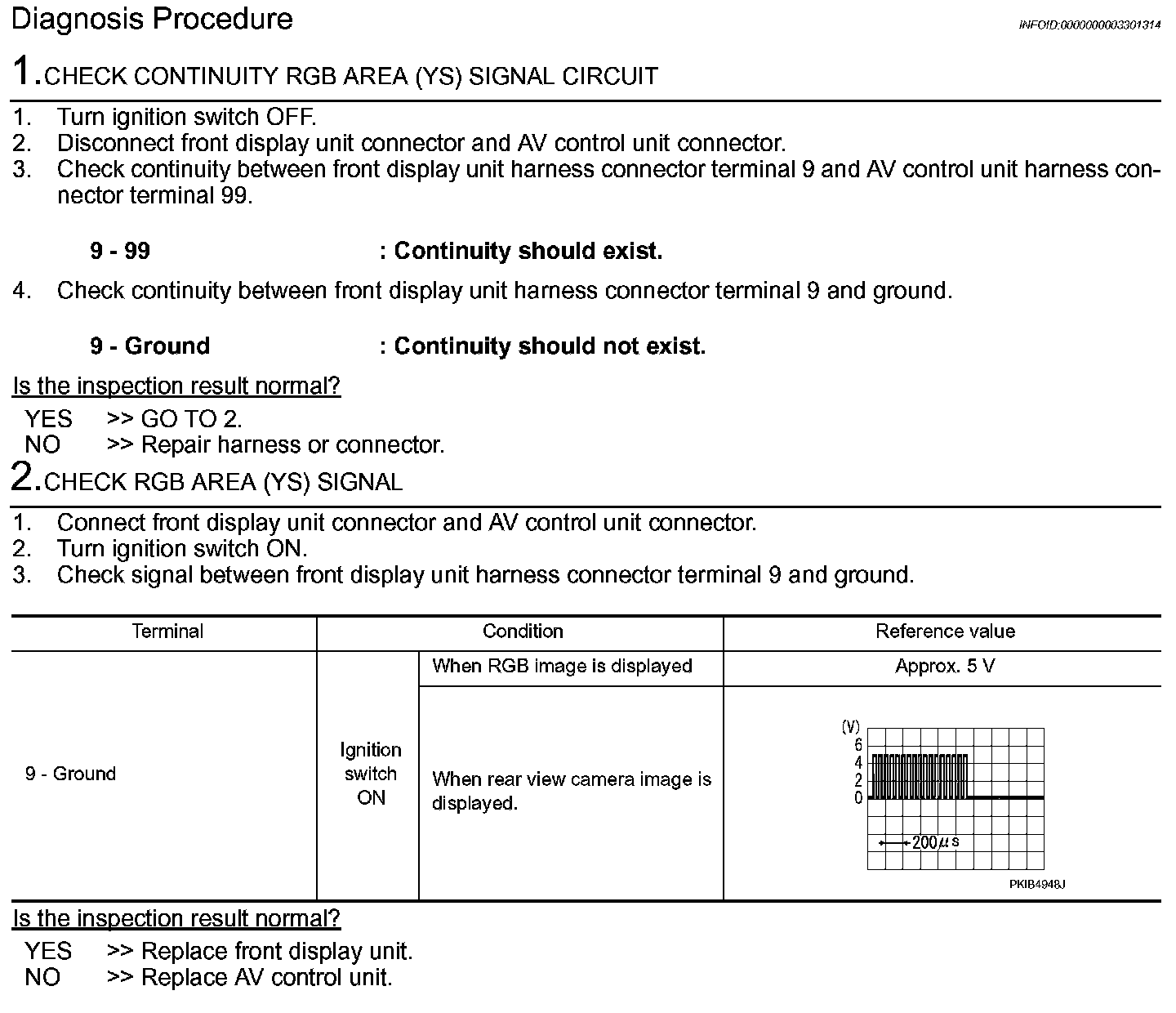

Step 1-2:
