RGB Area (YS) Signal Circuit (Video Distributor to Rear Display Unit)

RGB AREA (YS) SIGNAL CIRCUIT (VIDEO DISTRIBUTOR TO REAR DISPLAY UNIT)

Description
Transmits the rear display area of RGB image displayed by video distributor with RGB area (YS) signal to rear display unit.

Diagnosis Procedure

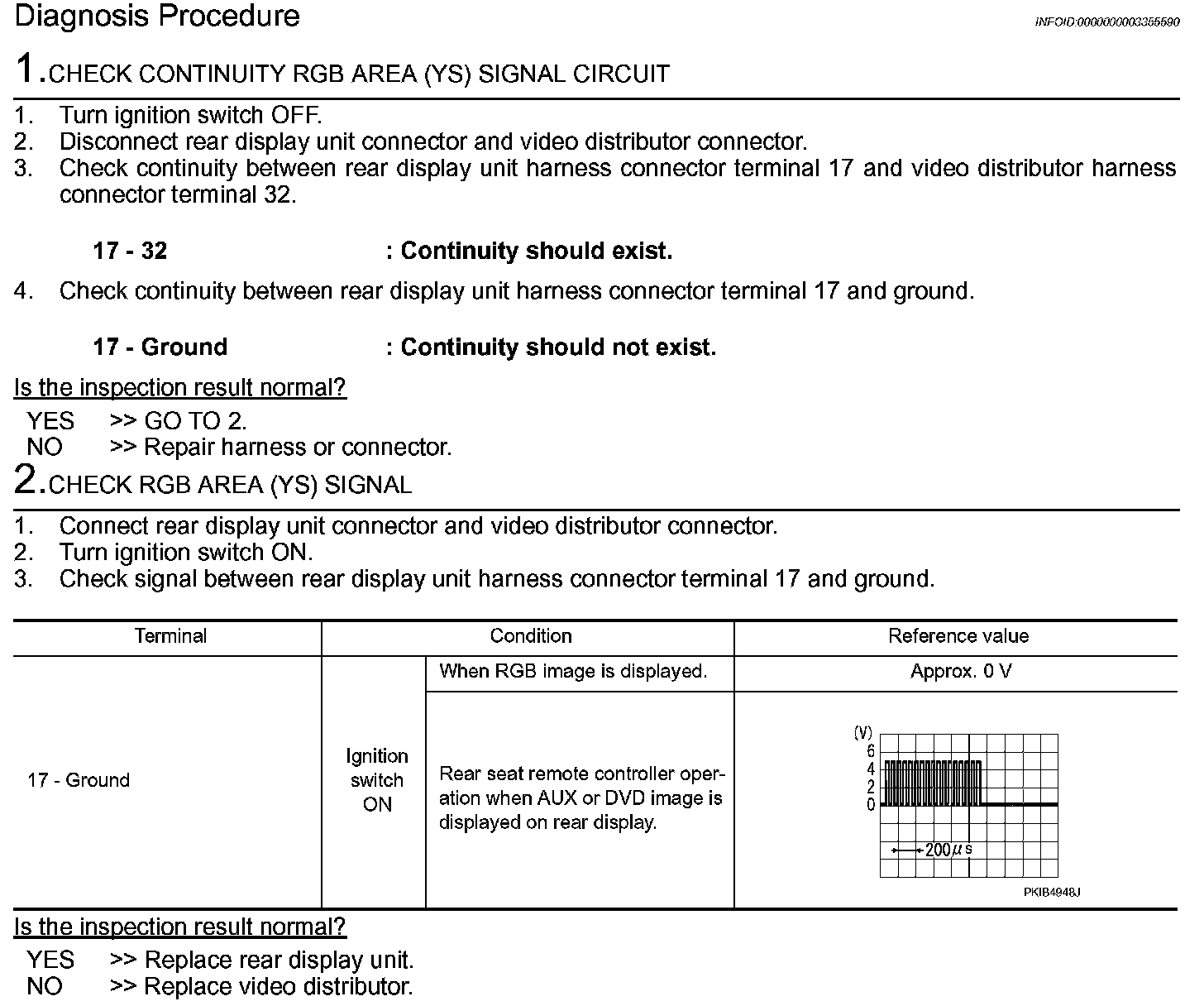

Step 1-2:
