Steering Switch Signal B Circuit

STEERING SWITCH SIGNAL B CIRCUIT

Description
Transmits the steering switch signal to AV control unit.

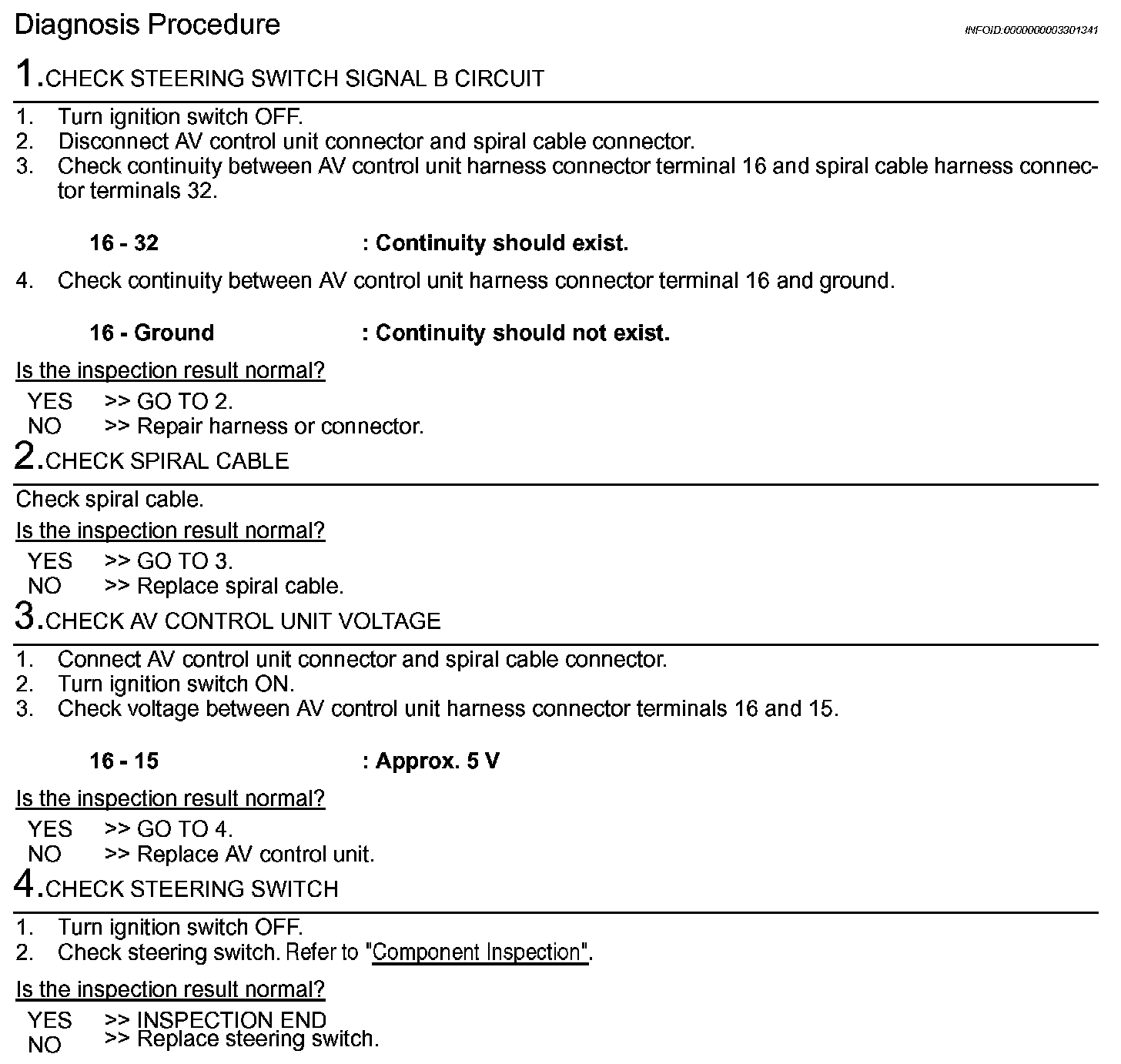

Diagnosis Procedure

Step 1-4:






Component Inspection

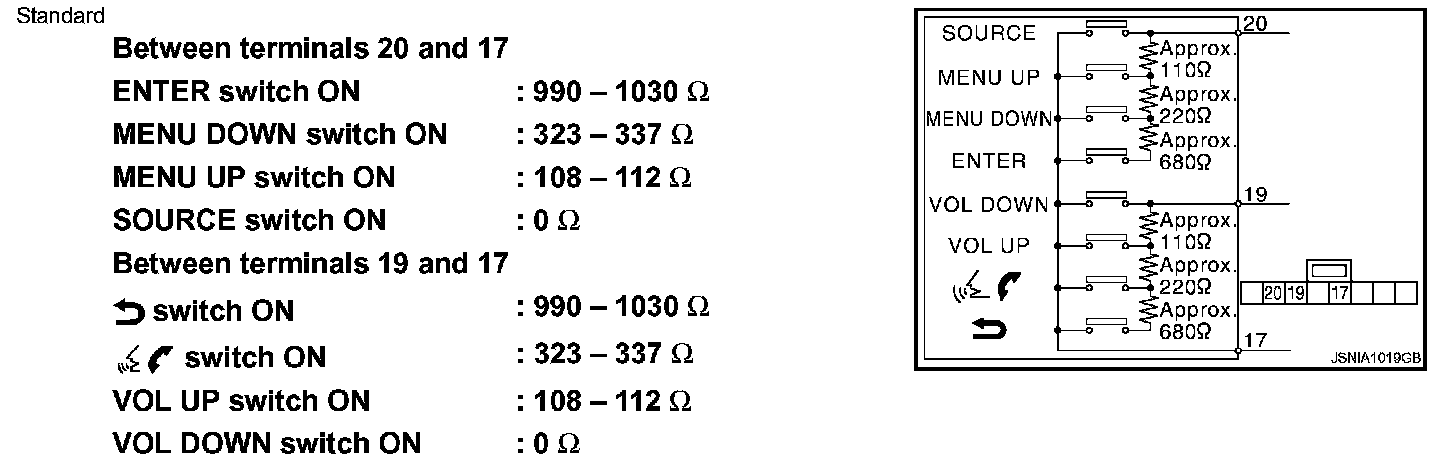

Measure the resistance between the steering switch connector terminals 20 to 17 and 19 to 17.
