Bose Surround Audio 5.1CH System

BOSE SURROUND AUDIO 5.1CH SYSTEM

BOSE SURROUND AUDIO 5.1CH SYSTEM : Description
The microphone transmits the microphone signal to the BOSE amp.

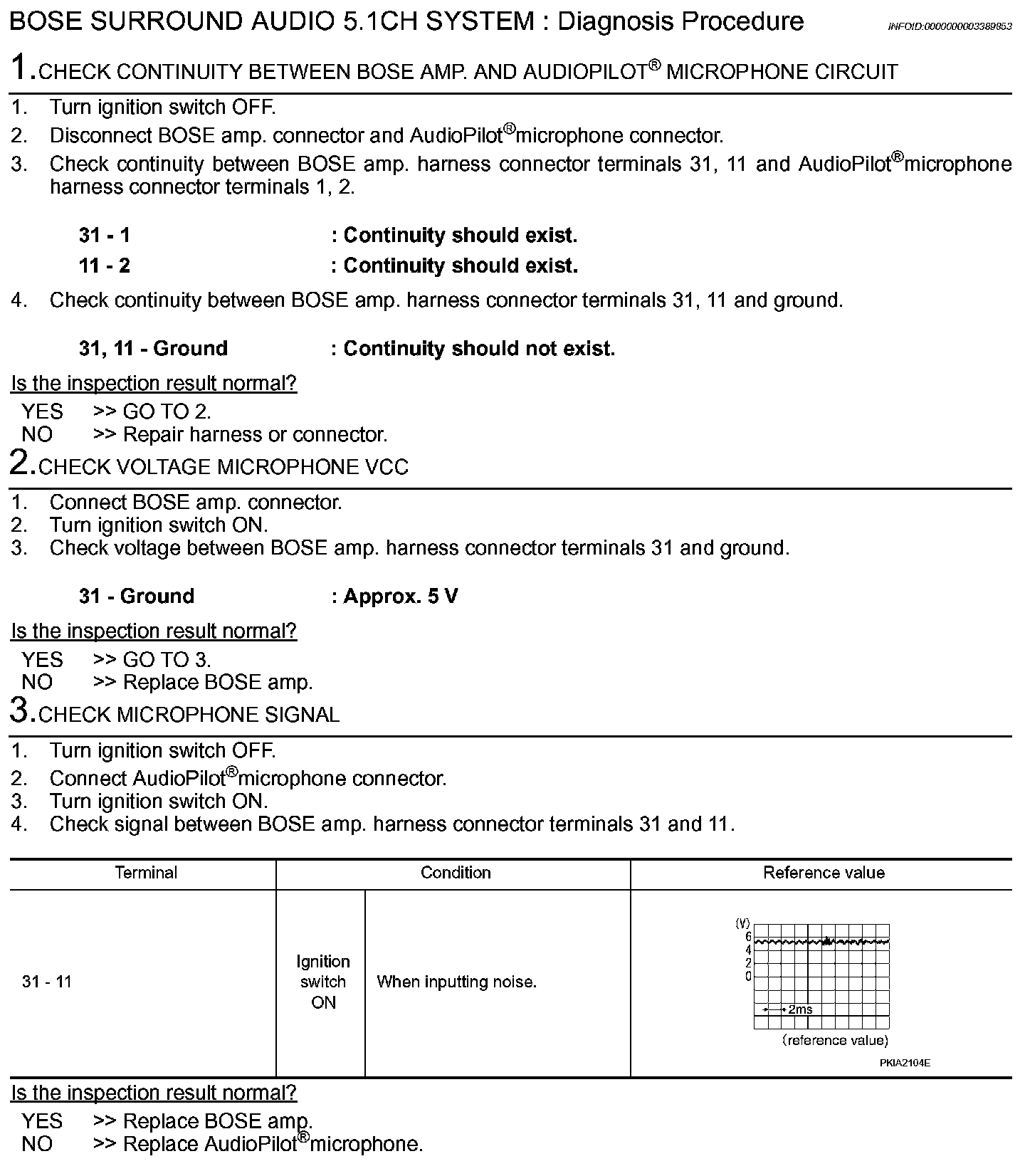

BOSE SURROUND AUDIO 5.1CH SYSTEM : Diagnosis Procedure

Step 1-3:
