AUX IMAGE SIGNAL CIRCUIT

WITHOUT NAVIGATION

WITHOUT NAVIGATION : Description
- Transmits the image signal of AUX device from auxiliary input jacks to AV control unit.
- AV control unit transmits the image signal that is input to the front display unit.

WITHOUT NAVIGATION : Diagnosis Procedure

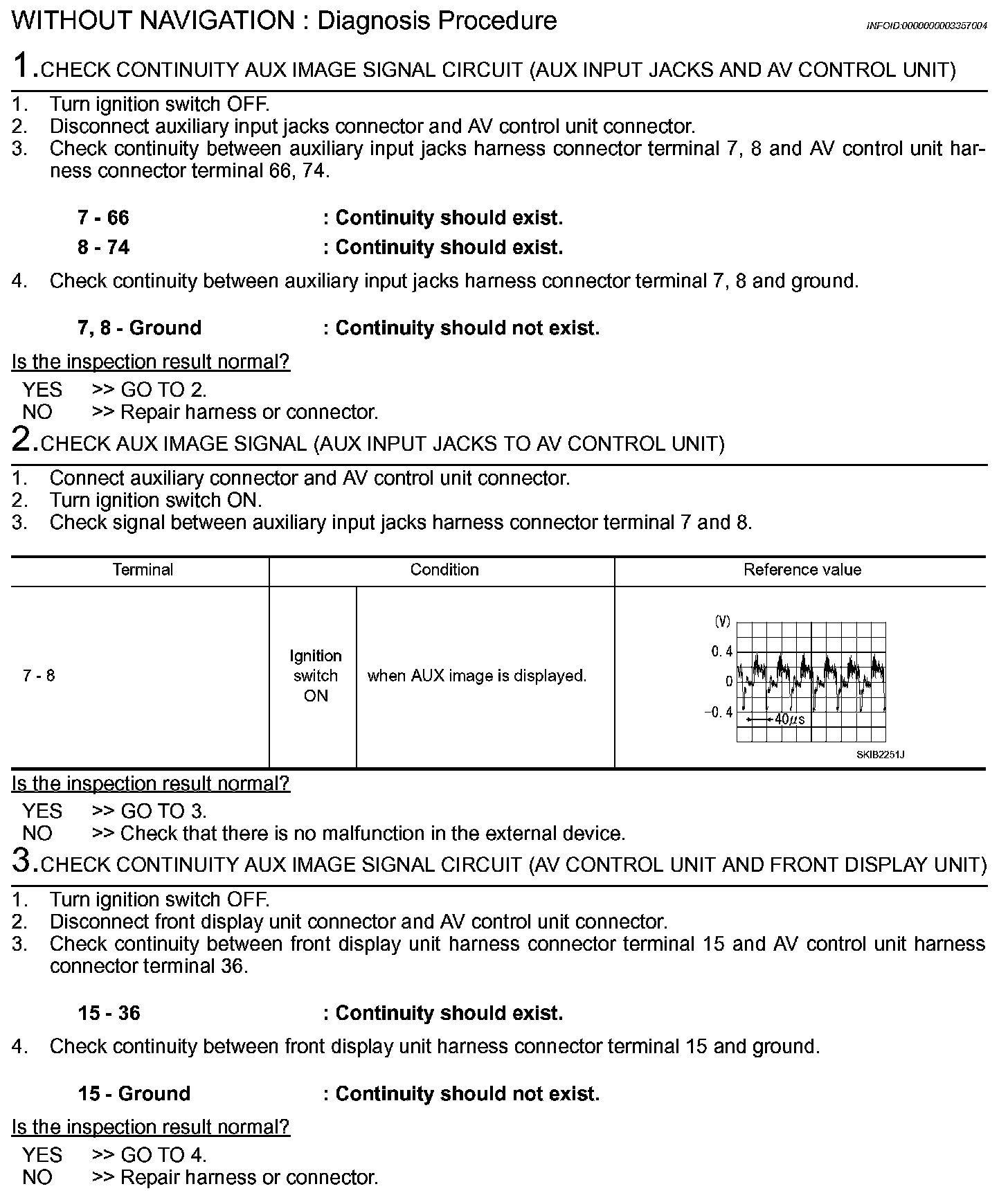

Step 1-3:

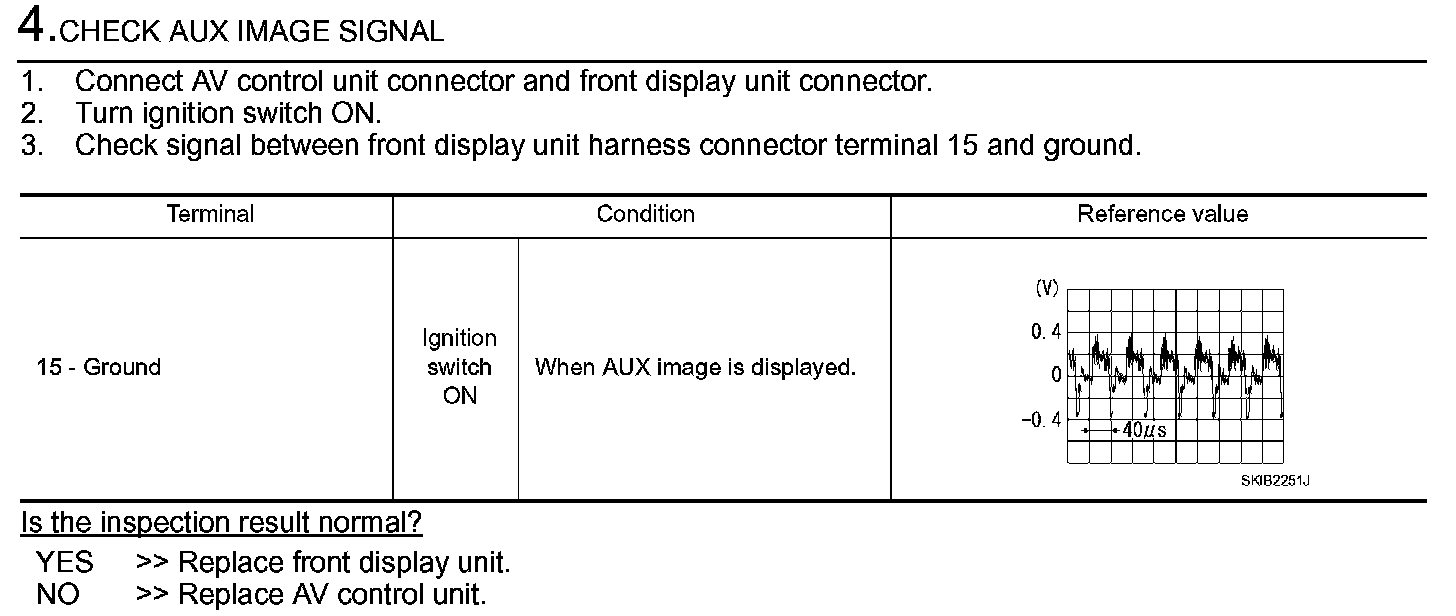

Step 4:
