Composite Image Signal Circuit

COMPOSITE IMAGE SIGNAL CIRCUIT

Description
DVD player transmits the playback DVD image signal and the input AUX image signal to the front display unit.

Diagnosis Procedure

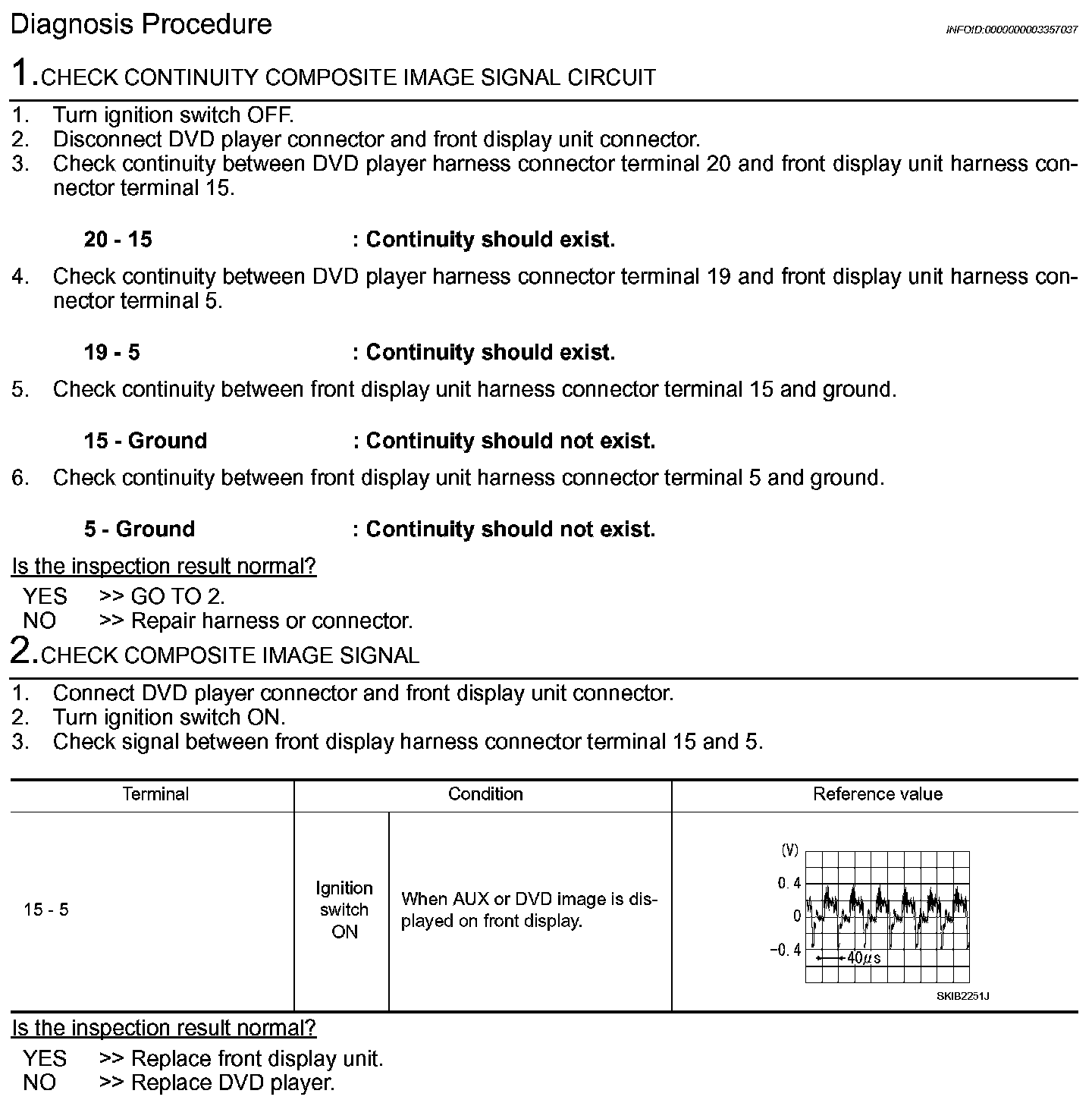

Step 1-2:
