Control Signal Circuit

CONTROL SIGNAL CIRCUIT

Description
TEL adapter unit identifies the vehicle model according to the control signal and performs the control.

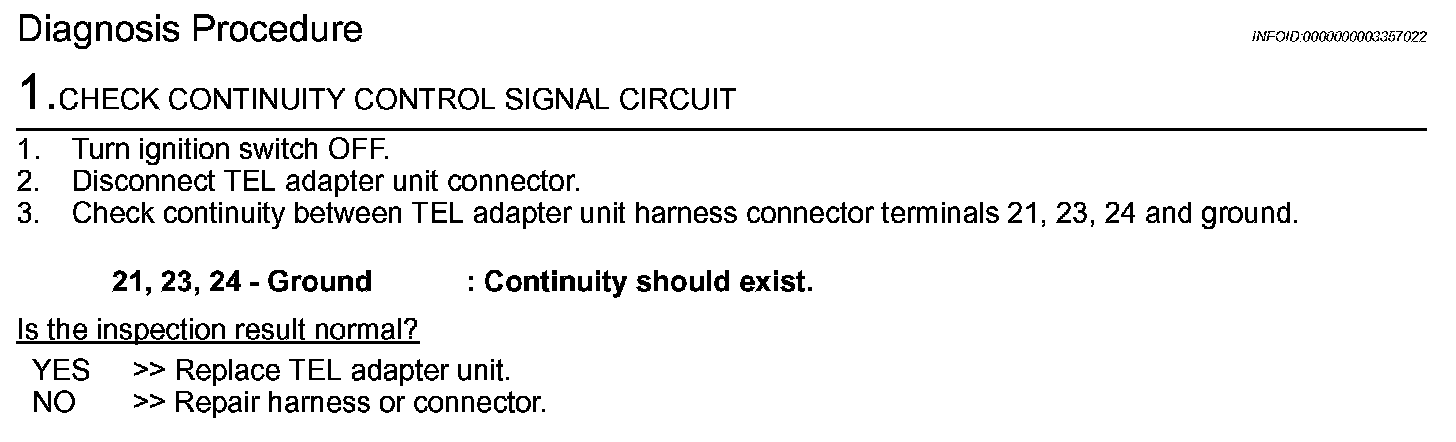

Diagnosis Procedure

Step 1:
