Without Navigation

MICROPHONE SIGNAL CIRCUIT

WITHOUT NAVIGATION

WITHOUT NAVIGATION : Description
Supply power from TEL adapter unit to microphone. The microphone transmits the sound/voice to the microphone.

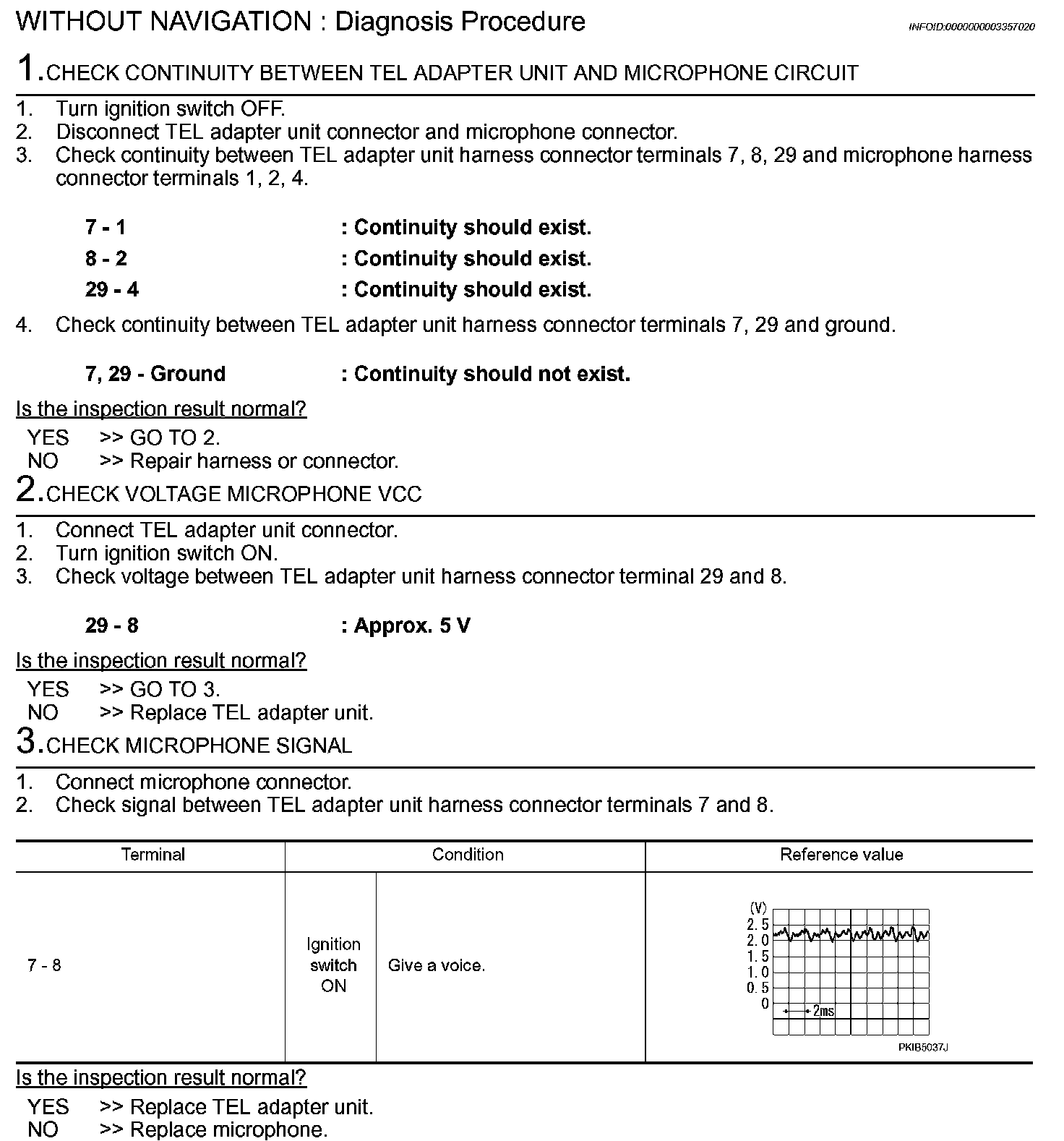

WITHOUT NAVIGATION : Diagnosis Procedure

Step 1-3:
