RGB (B: BLUE) SIGNAL CIRCUIT (AV CONTROL UNIT TO FRONT DISPLAY UNIT)

WITHOUT NAVIGATION

WITHOUT NAVIGATION : Description
Transmit the image displayed with AV control unit with RGB image signal to the front display unit.

WITHOUT NAVIGATION : Diagnosis Procedure

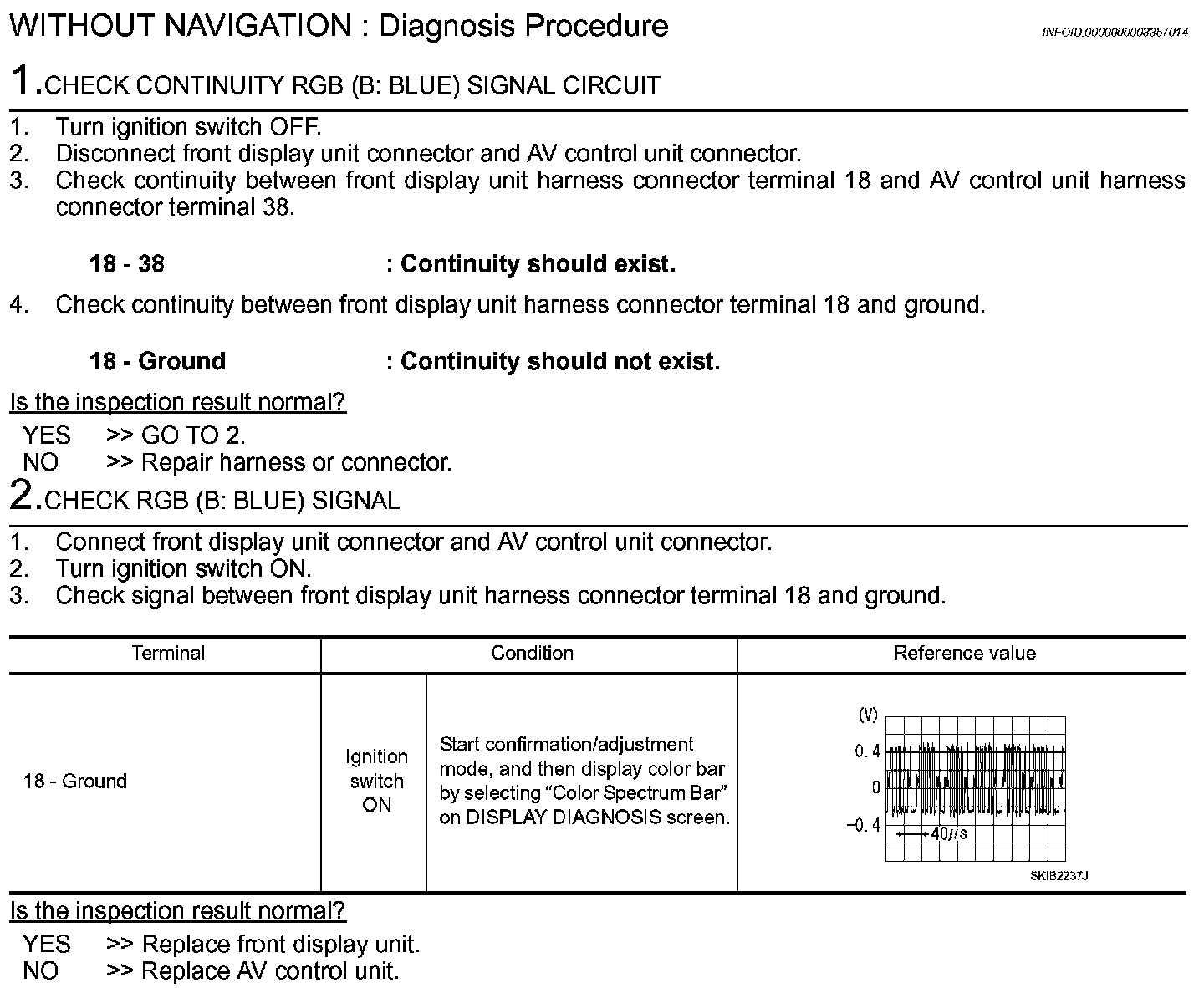

Step 1-2:
