Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Component Tests and General Diagnostics >> Without Mobile Entertainment System >> RGB (G: Green) Signal Circuit (AV Control Unit to Front Display Unit) >> With Navigation

With Navigation

WITH NAVIGATION

WITH NAVIGATION : Description
Transmit the image displayed with AV control unit with RGB image signal to the front display unit.

WITH NAVIGATION : Diagnosis Procedure

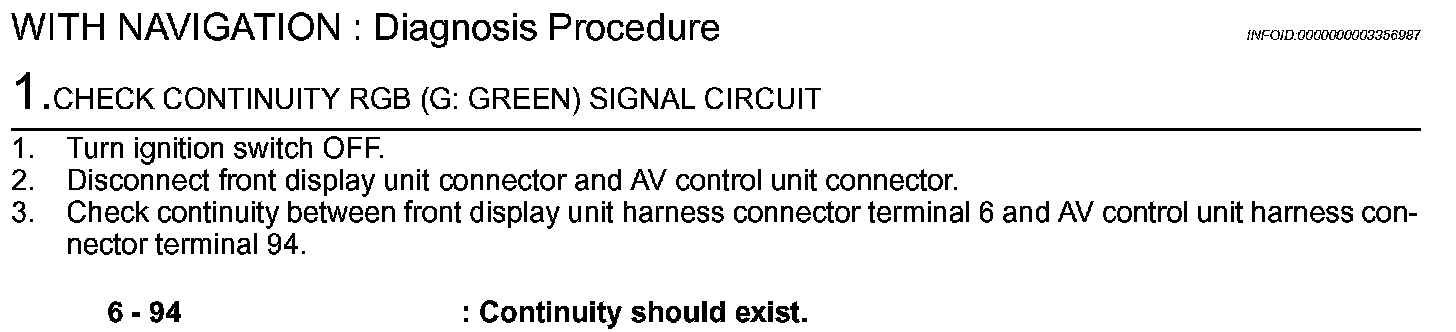

Step 1:

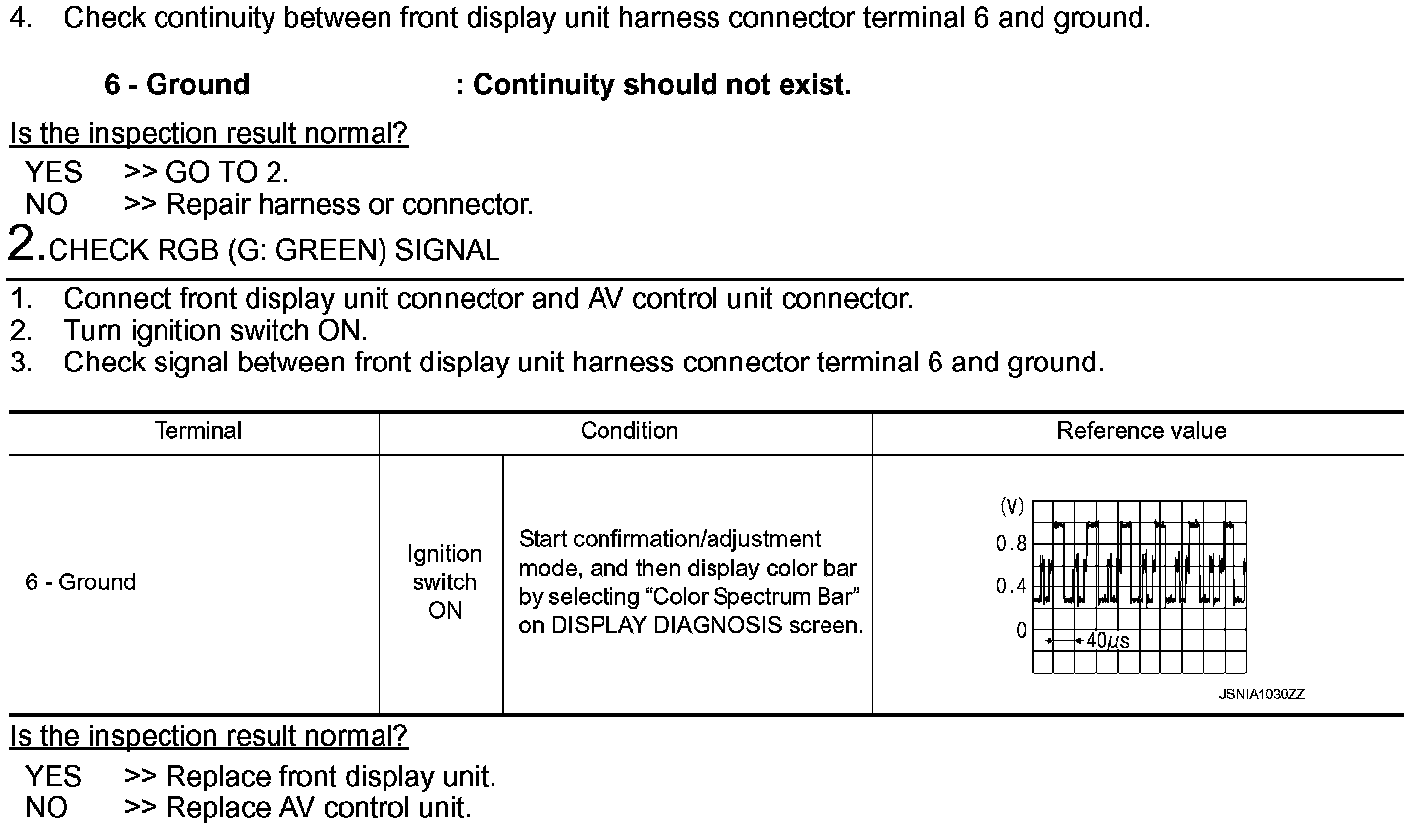

Step 1 (Continued)-2:
