RGB AREA (YS) SIGNAL CIRCUIT (AV CONTROL UNIT TO FRONT DISPLAY UNIT)

WITHOUT NAVIGATION

WITHOUT NAVIGATION : Description
Transmits the display area of RGB image displayed by AV control unit with RGB area (YS) signal to front display unit.

WITHOUT NAVIGATION : Diagnosis Procedure

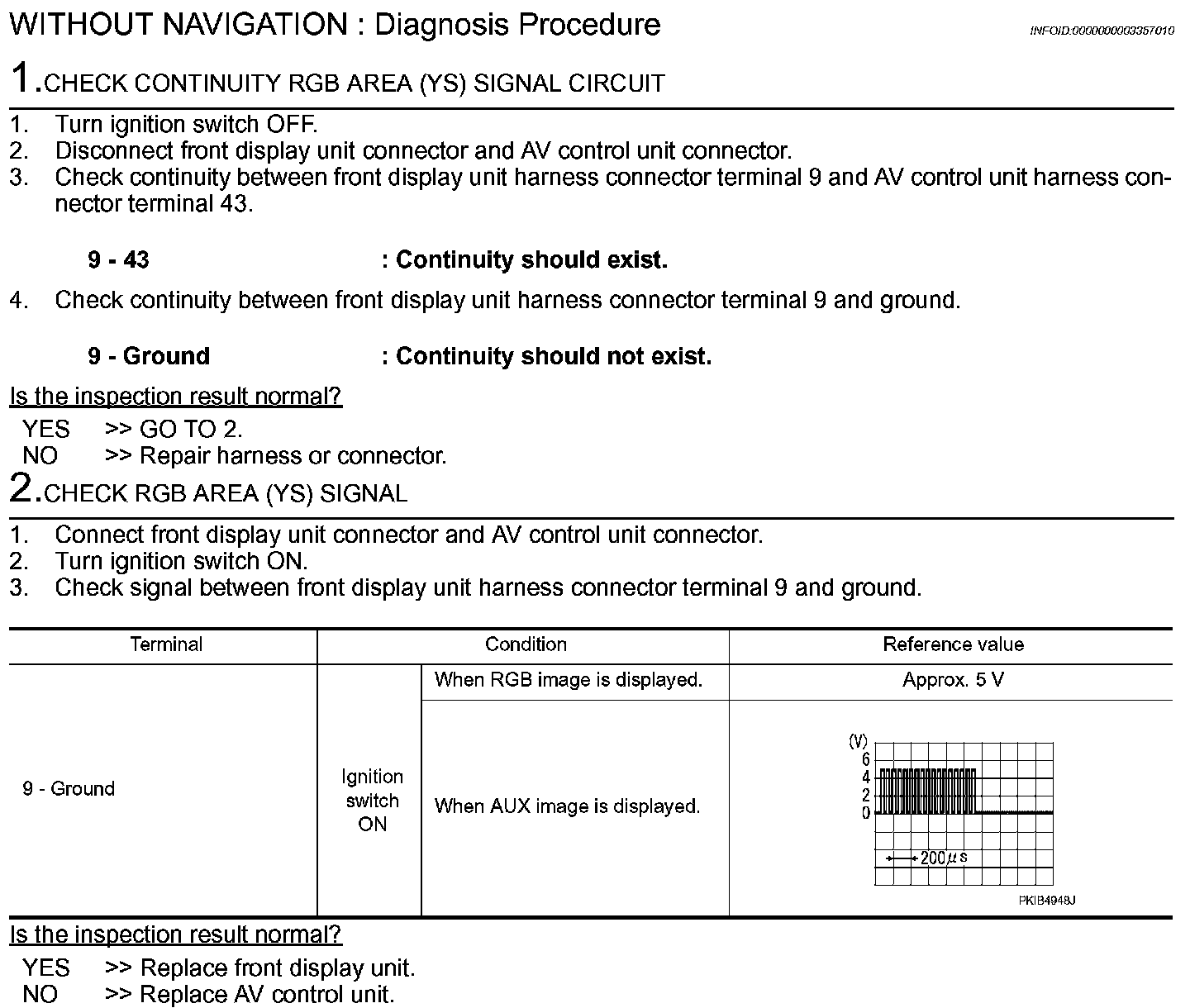

Step 1-2:
