Without Navigation

RGB SYNCHRONIZING SIGNAL CIRCUIT

WITHOUT NAVIGATION

WITHOUT NAVIGATION : Description
Transmit the RGB synchronizing signal to the front display unit so as to synchronize the RGB image displayed with AV control unit.

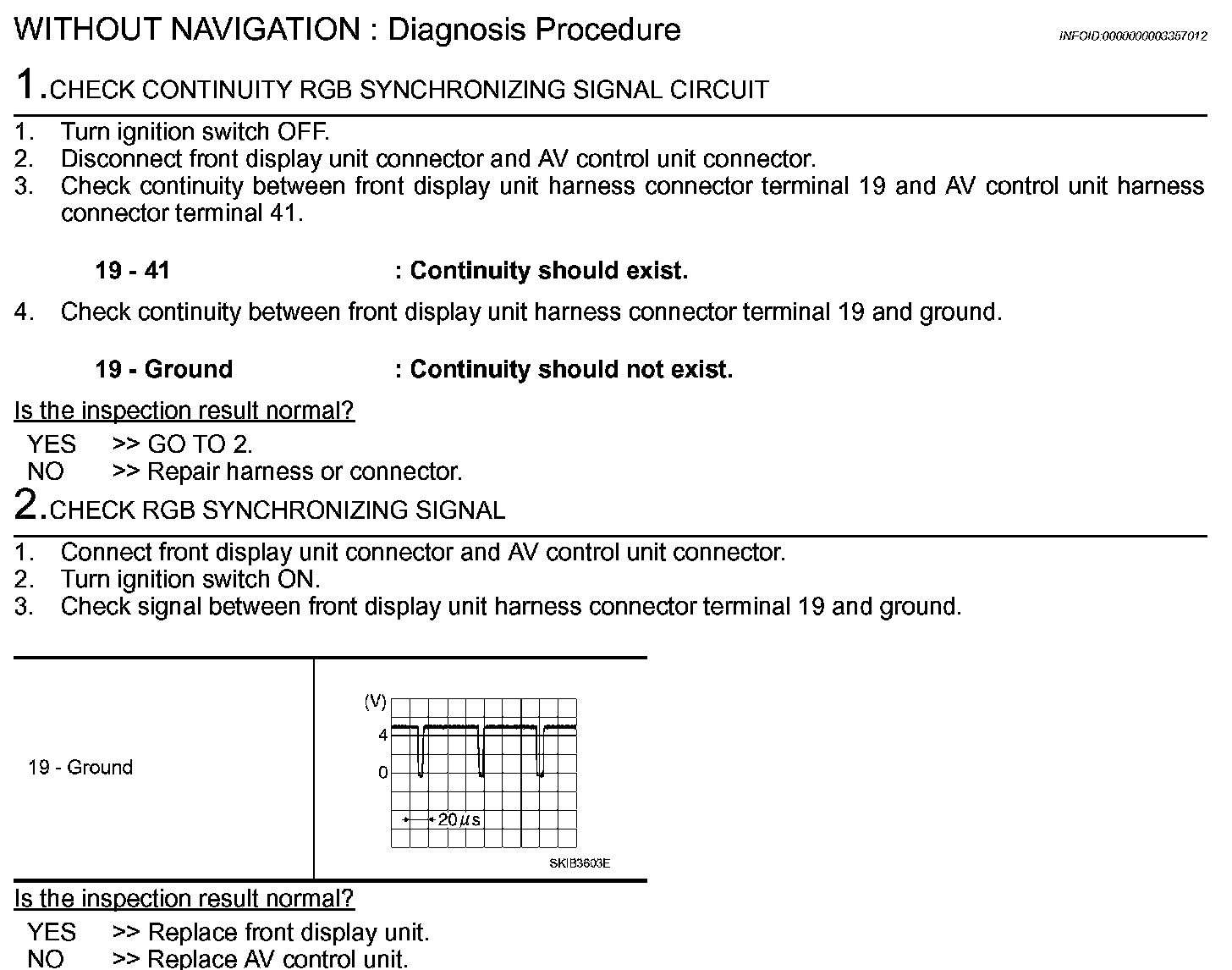

WITHOUT NAVIGATION : Diagnosis Procedure

Step 1-2:
