With Navigation

WITH NAVIGATION

WITH NAVIGATION : Description
Transmit the RGB synchronizing signal to the front display unit so as to synchronize the RGB image displayed with AV control unit.

WITH NAVIGATION : Diagnosis Procedure

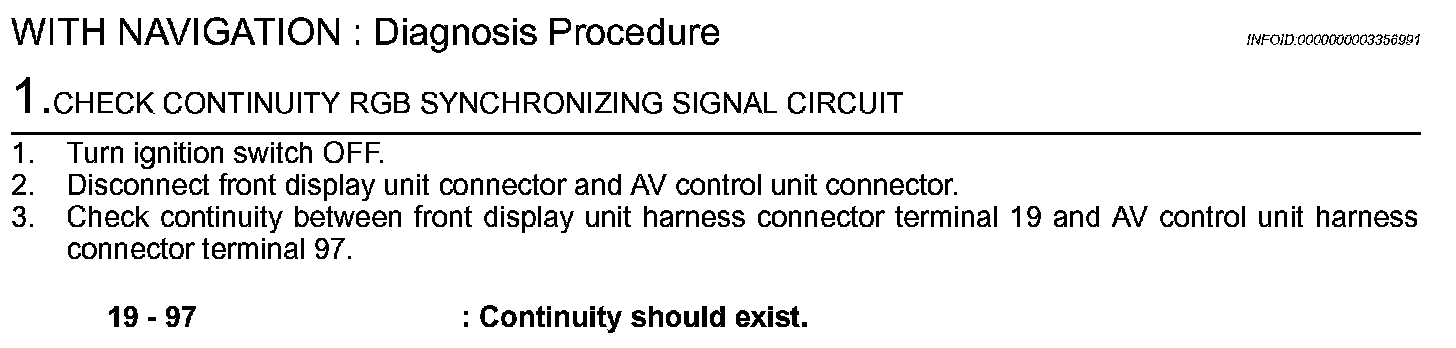

Step 1:

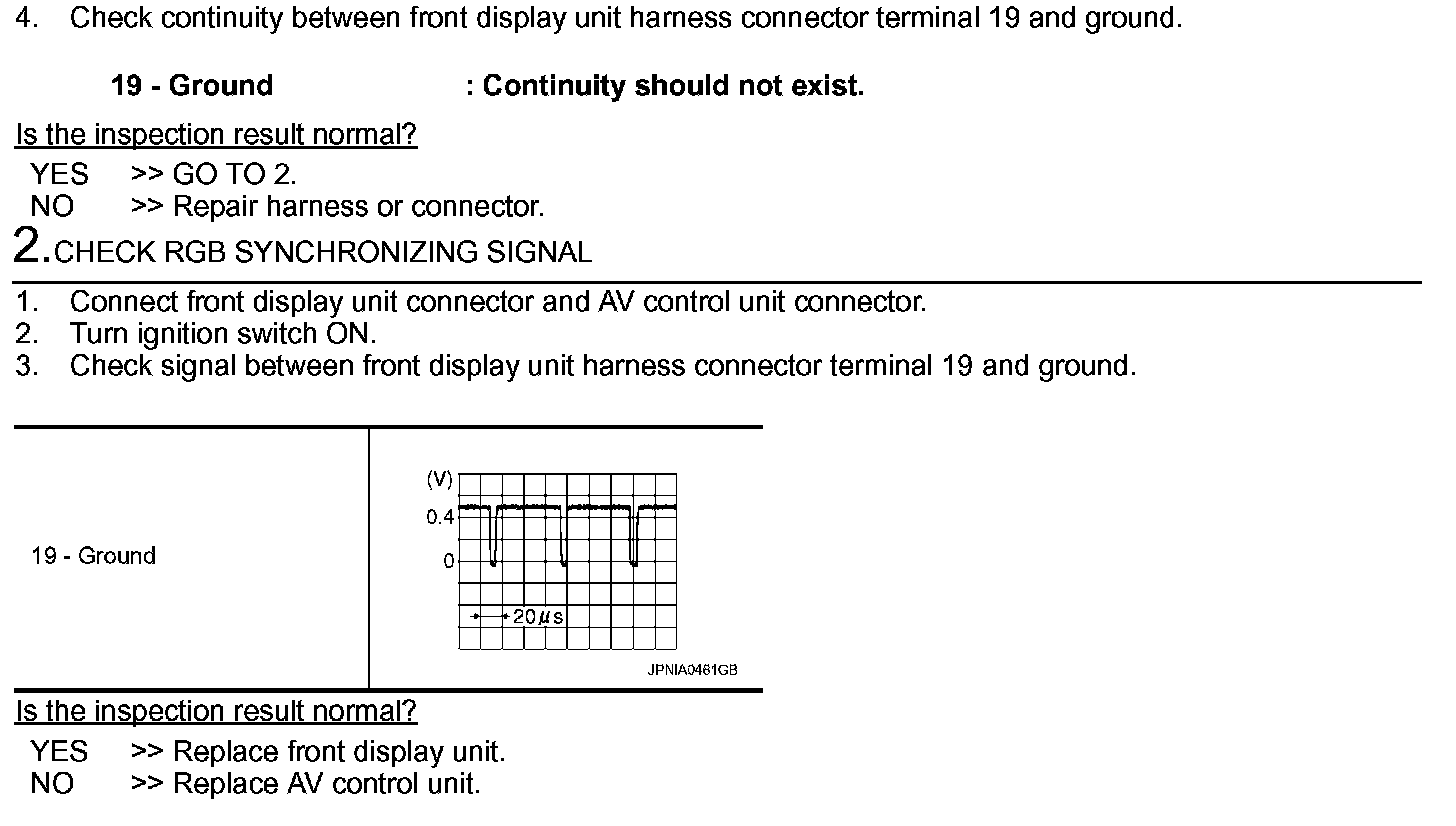

Step 1 (Continued)-2:
