Without Navigation

STEERING SWITCH SIGNAL B CIRCUIT

WITHOUT NAVIGATION

WITHOUT NAVIGATION : Description
Transmits the steering switch signal to AV control unit.

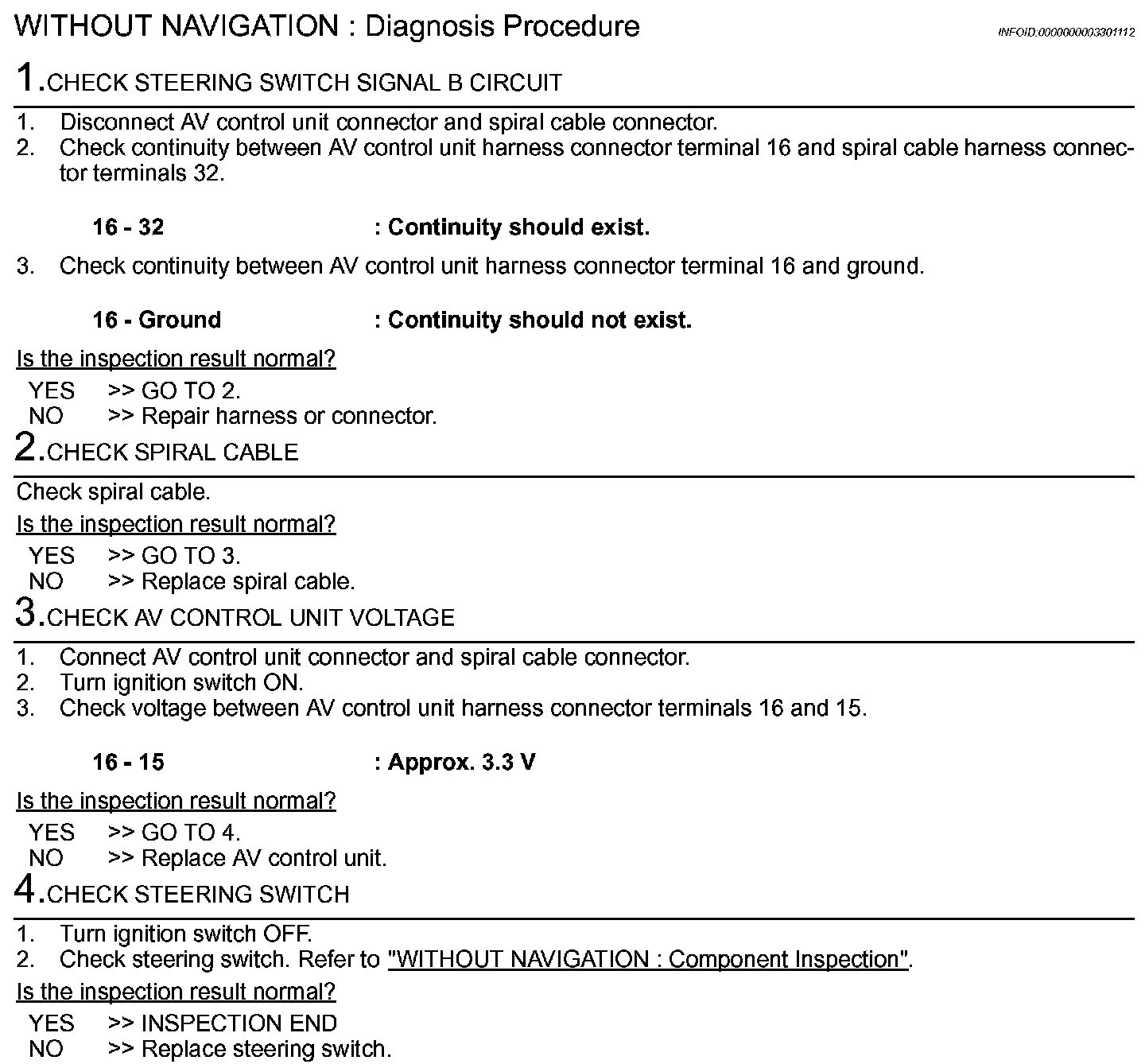

WITHOUT NAVIGATION : Diagnosis Procedure

Step 1-4:

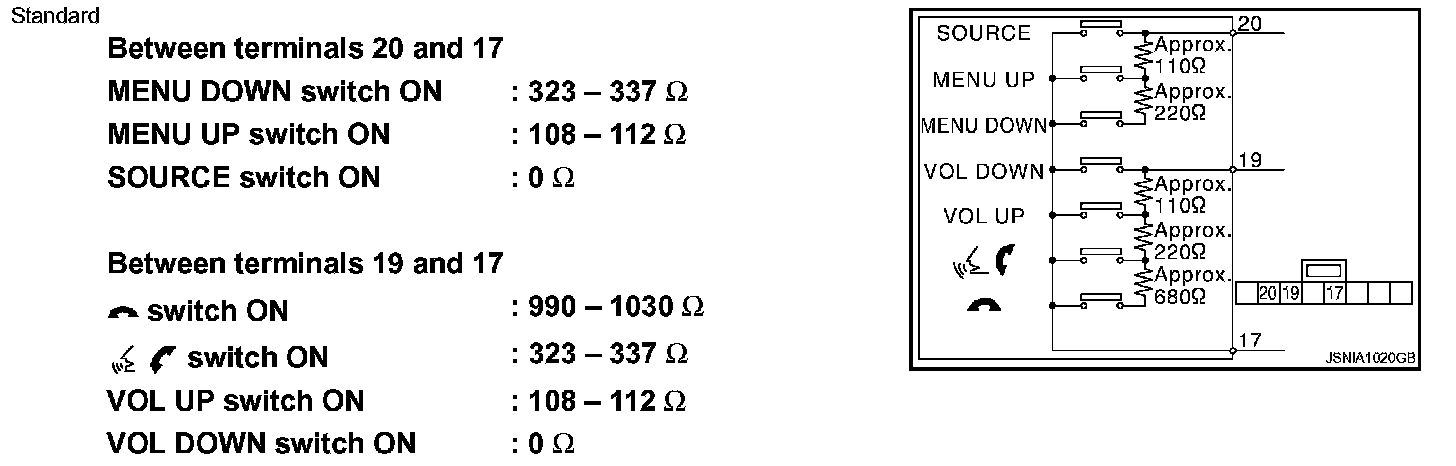

WITHOUT NAVIGATION : Component Inspection
Measure the resistance between the steering switch connector terminals 20 to 17 and 19 to 17.
