With Navigation

WITH NAVIGATION

WITH NAVIGATION : Description
Transmits the steering switch signal to AV control unit.

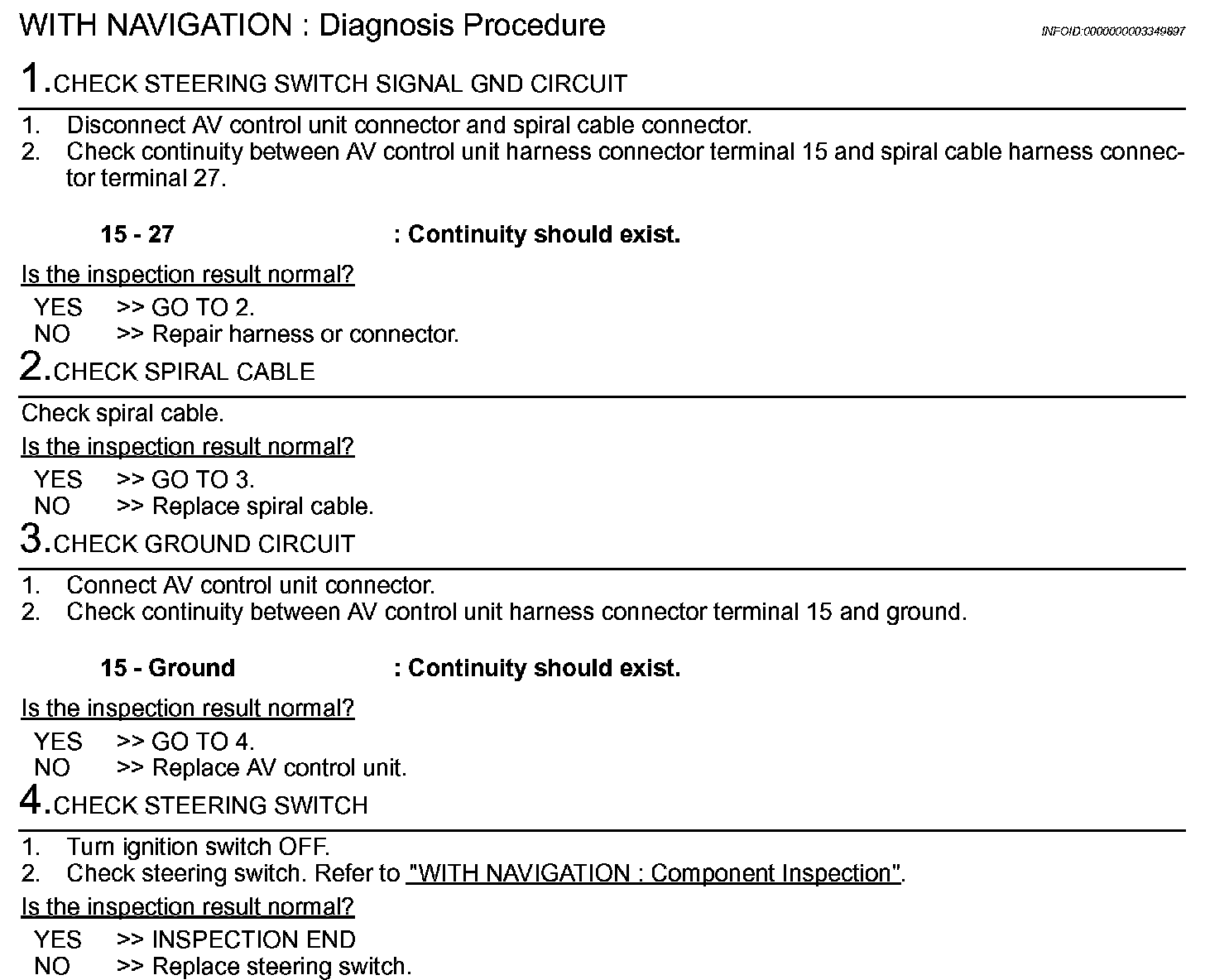

WITH NAVIGATION : Diagnosis Procedure

Step 1-4:






WITH NAVIGATION : Component Inspection

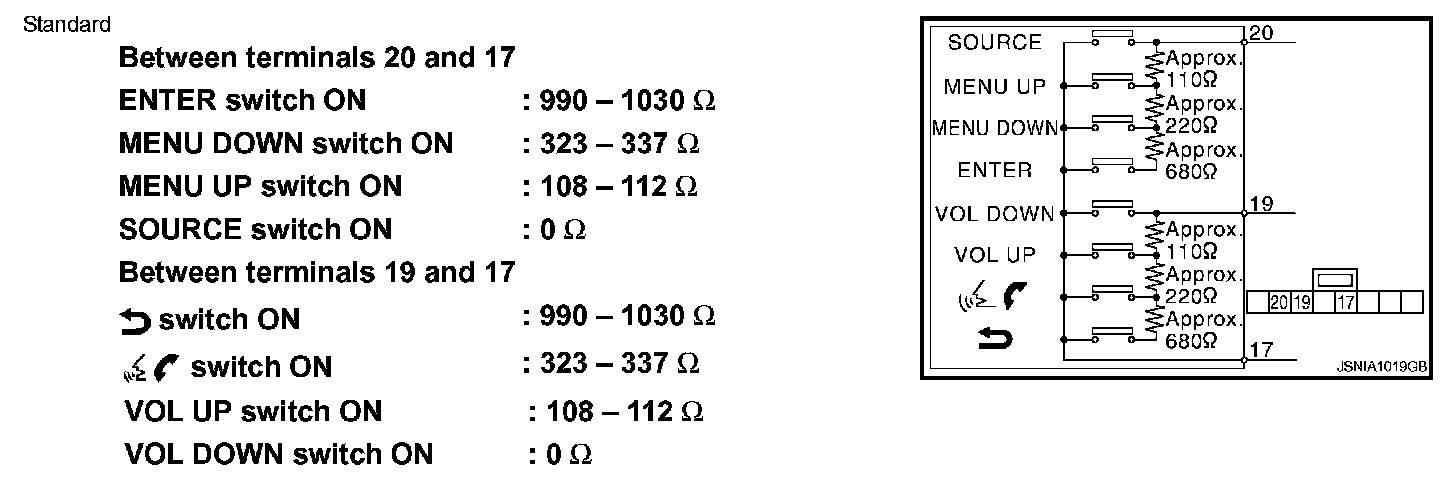

Measure the resistance between the steering switch connector terminals 20 to 17 and 19 to 17.
