With Navigation

WITH NAVIGATION

WITH NAVIGATION : Description
In composite image (DVD and AUX images, camera image), transmit the vertical synchronizing (VP) signal and horizontal synchronizing (HP) signal from front display unit to AV control unit so as to synchronize the RGB images displayed with AV control unit such as the image quality adjusting menu, etc.

WITH NAVIGATION : Diagnosis Procedure

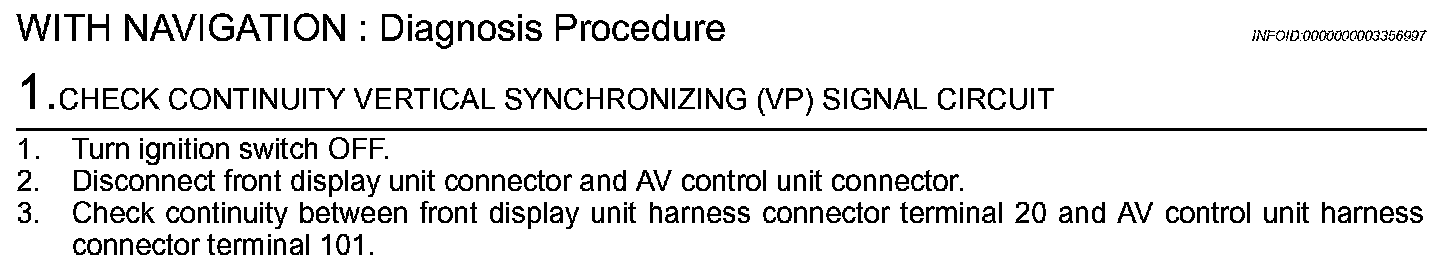

Step 1:

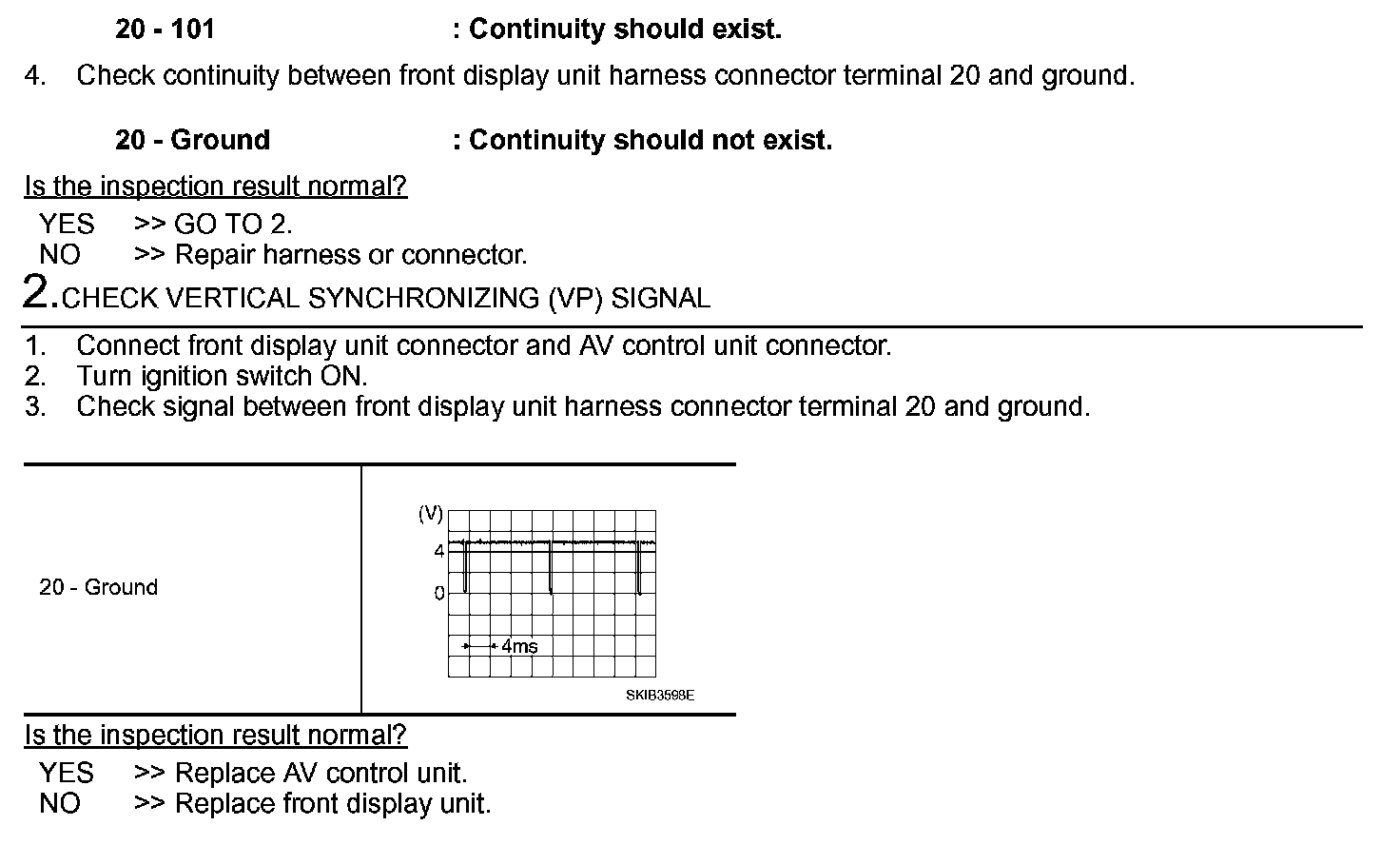

Step 1 (Continued)-2:
