Without Navigation

AV CONTROL UNIT

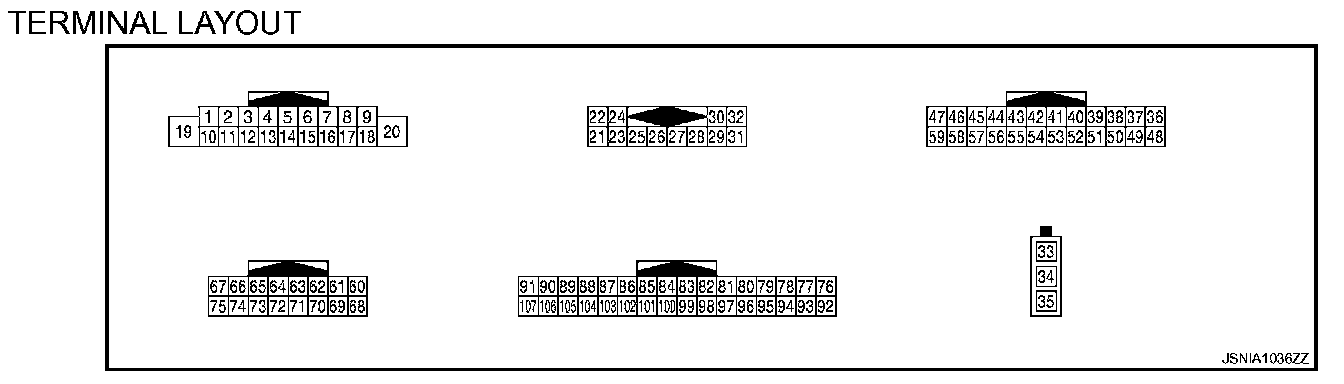

TERMINAL LAYOUT

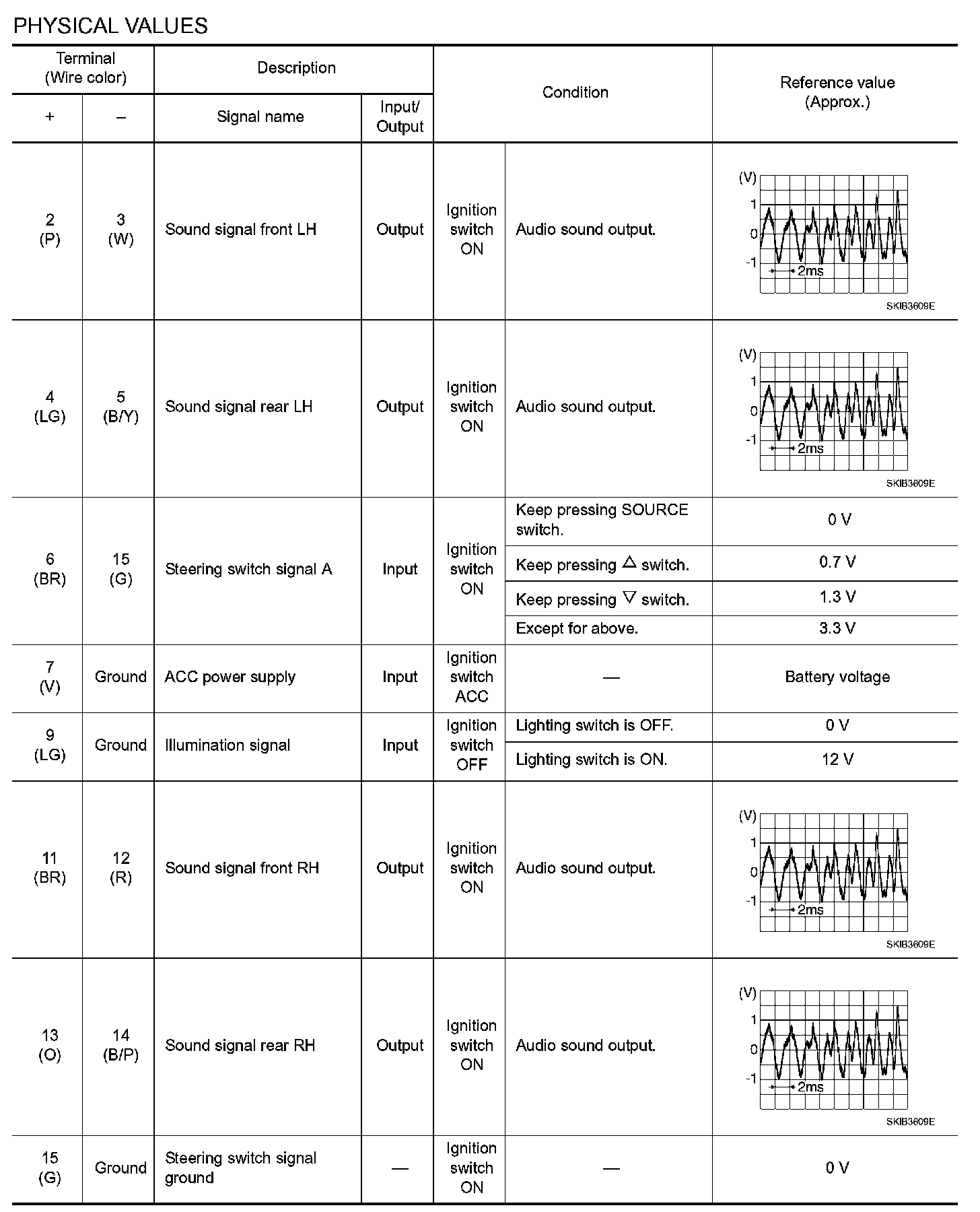

PHYSICAL VALUES

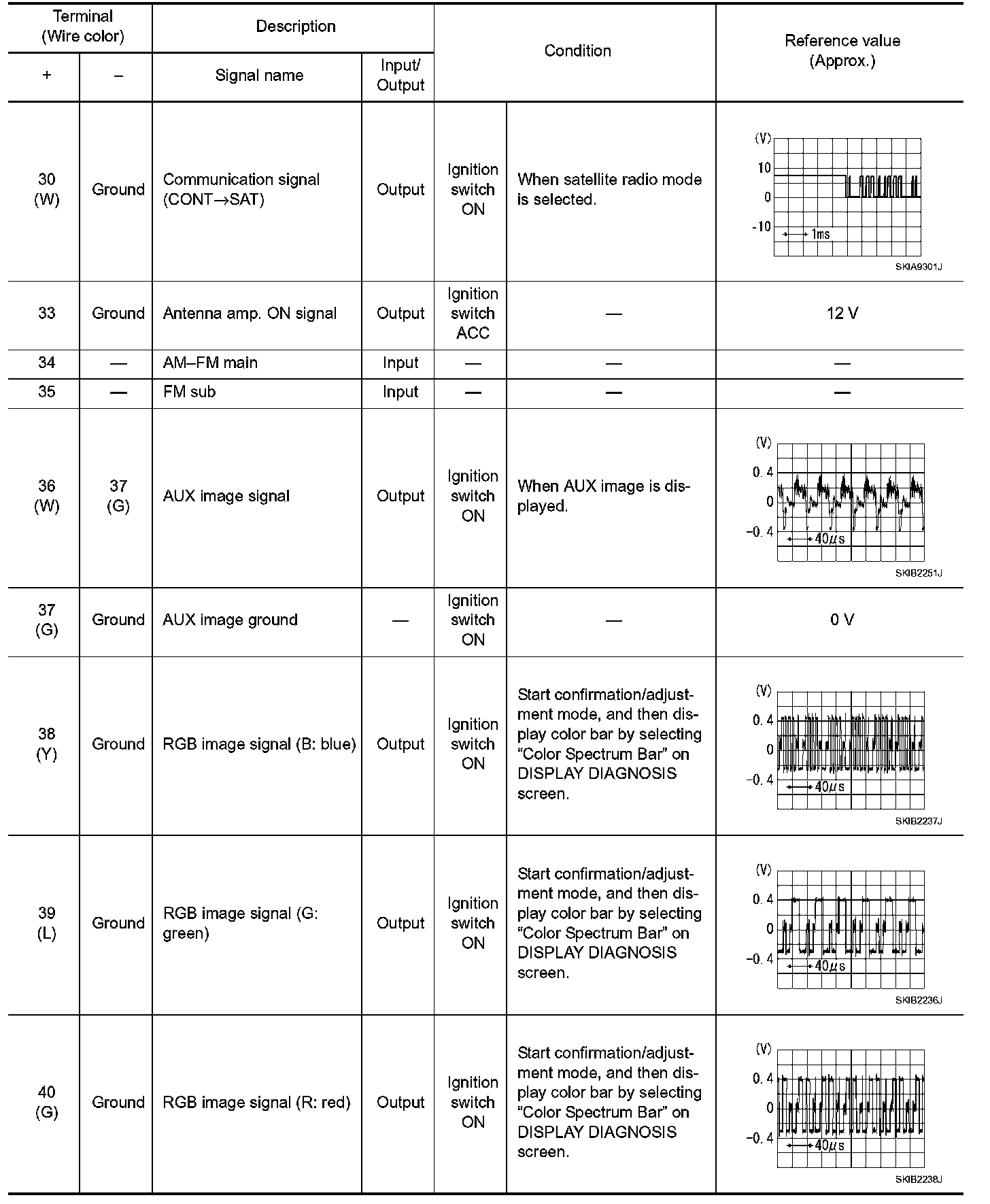

Terminals And Reference Values (Part 1):

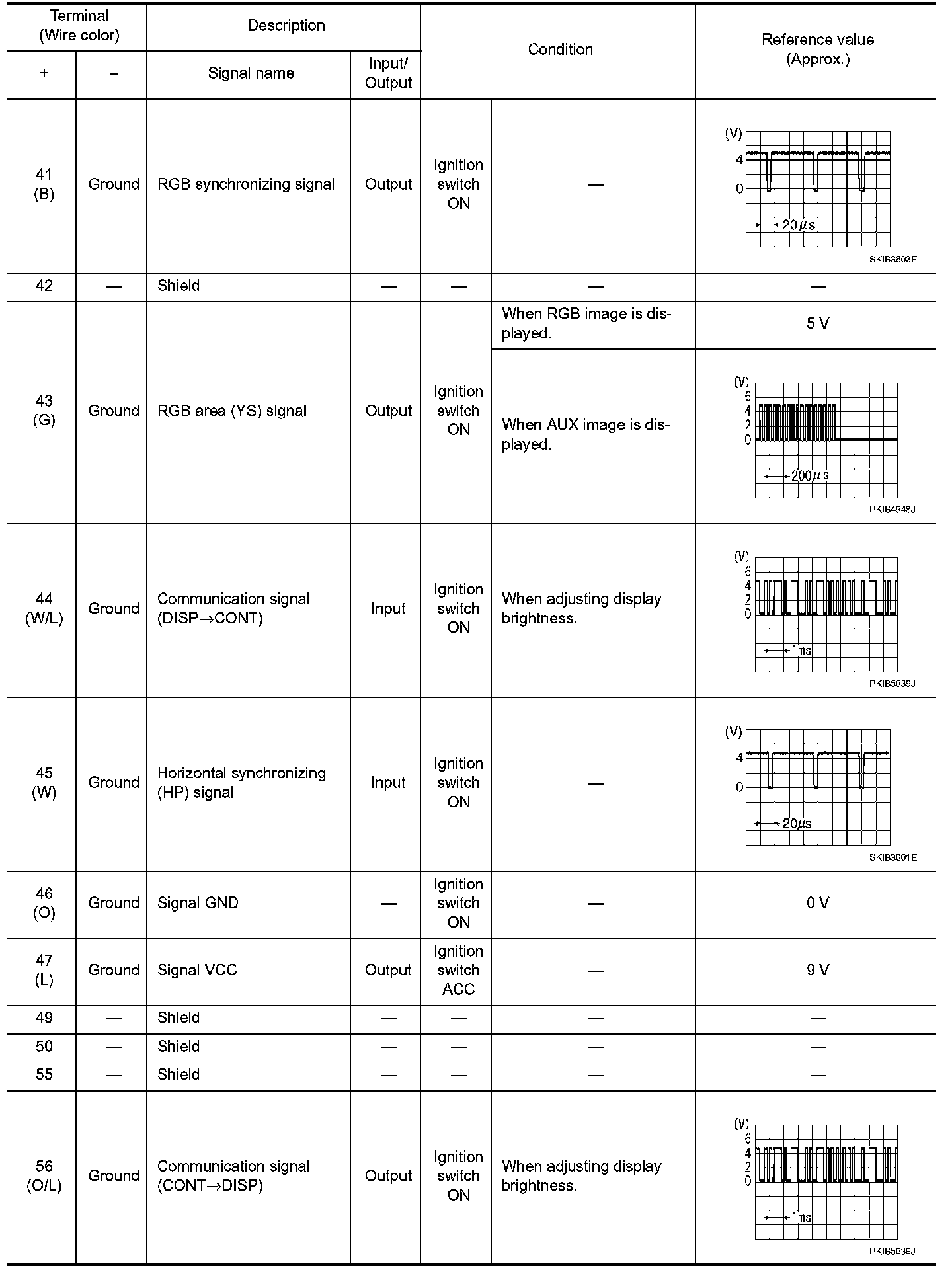

Terminals And Reference Values (Part 2):

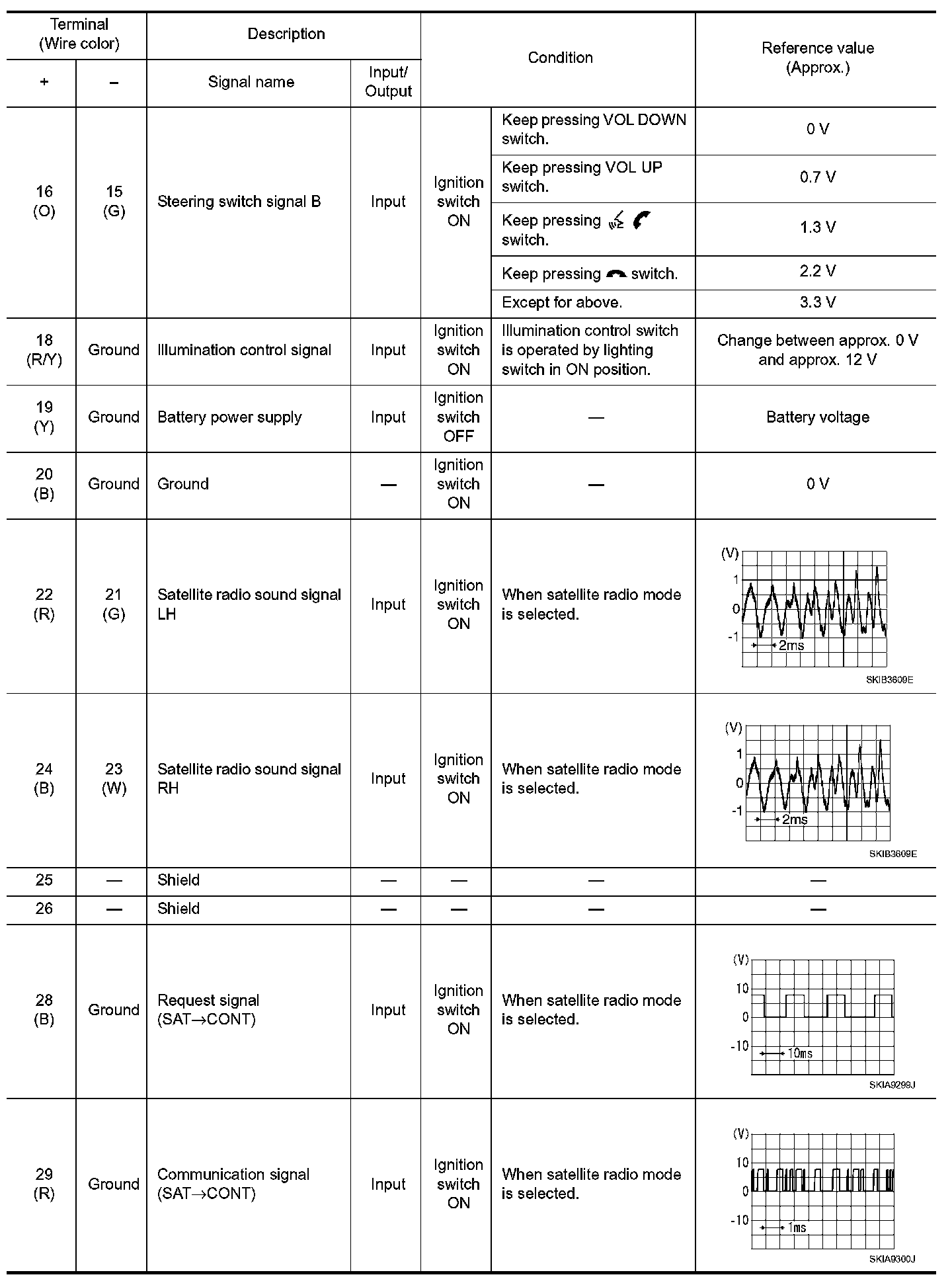

Terminals And Reference Values (Part 3):




Terminals And Reference Values (Part 4):

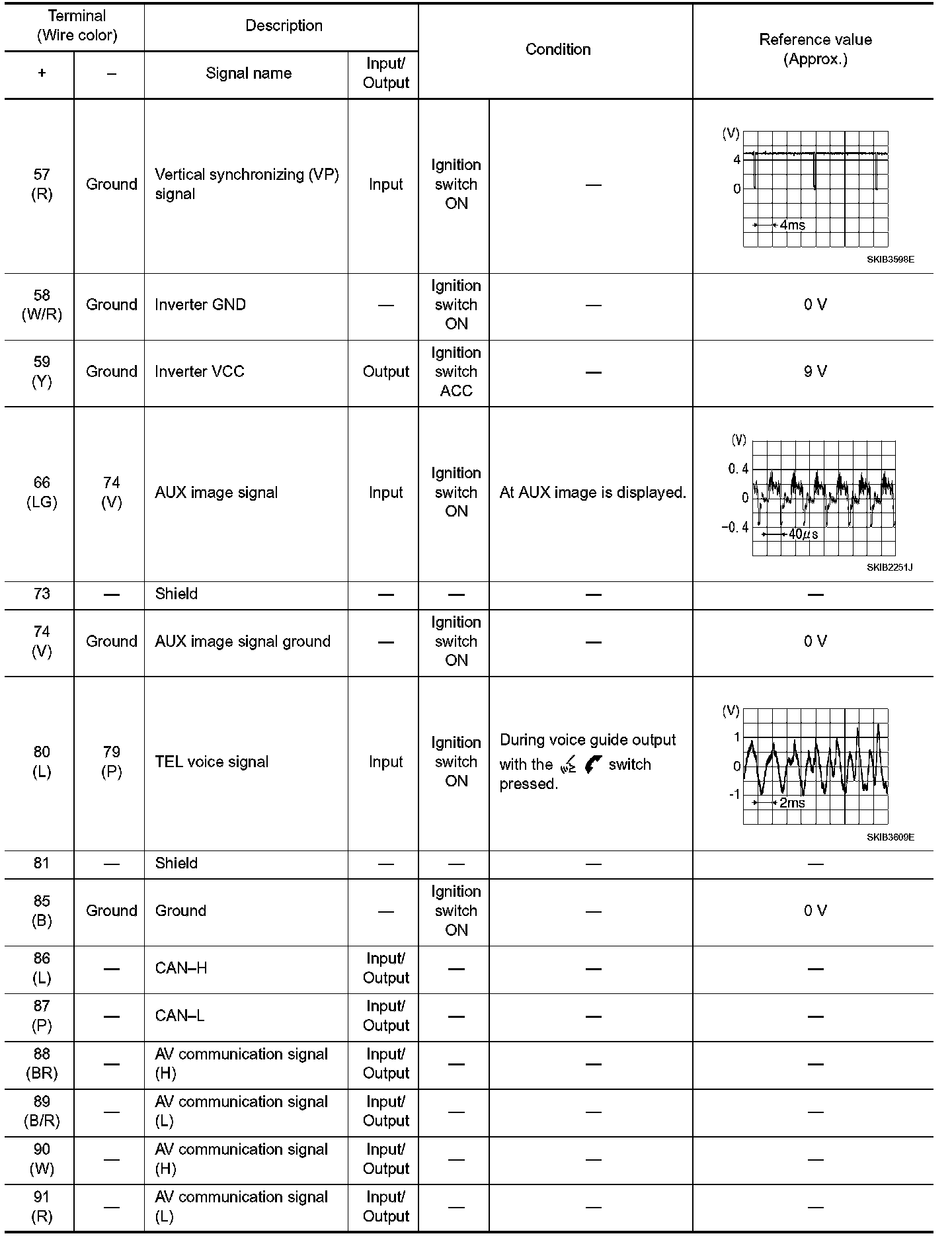

Terminals And Reference Values (Part 5):

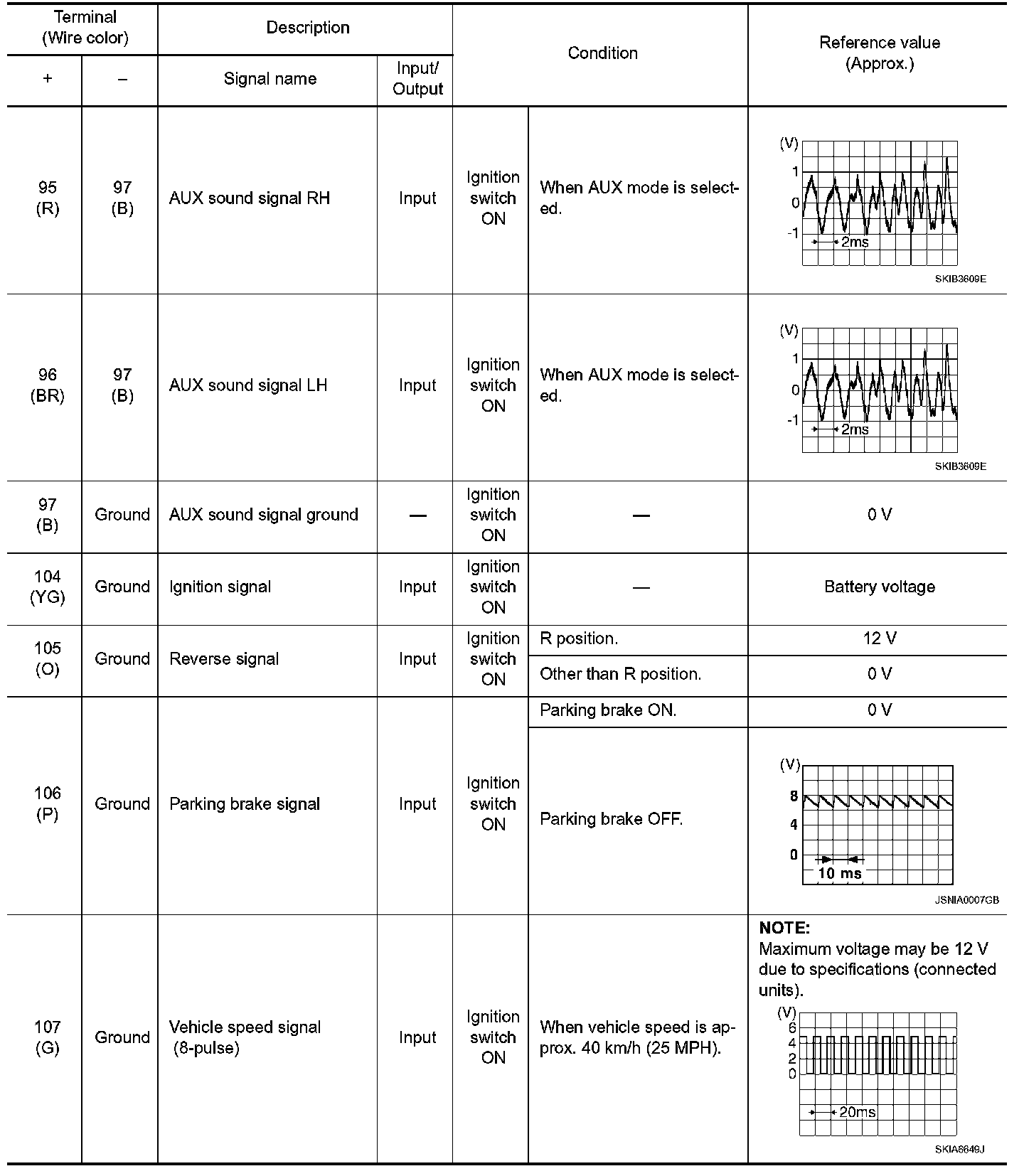

Terminals And Reference Values (Part 6):
