IPOD ADAPTER
Reference Value

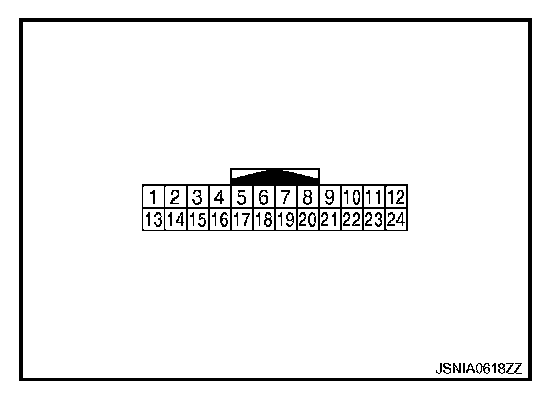

TERMINAL LAYOUT

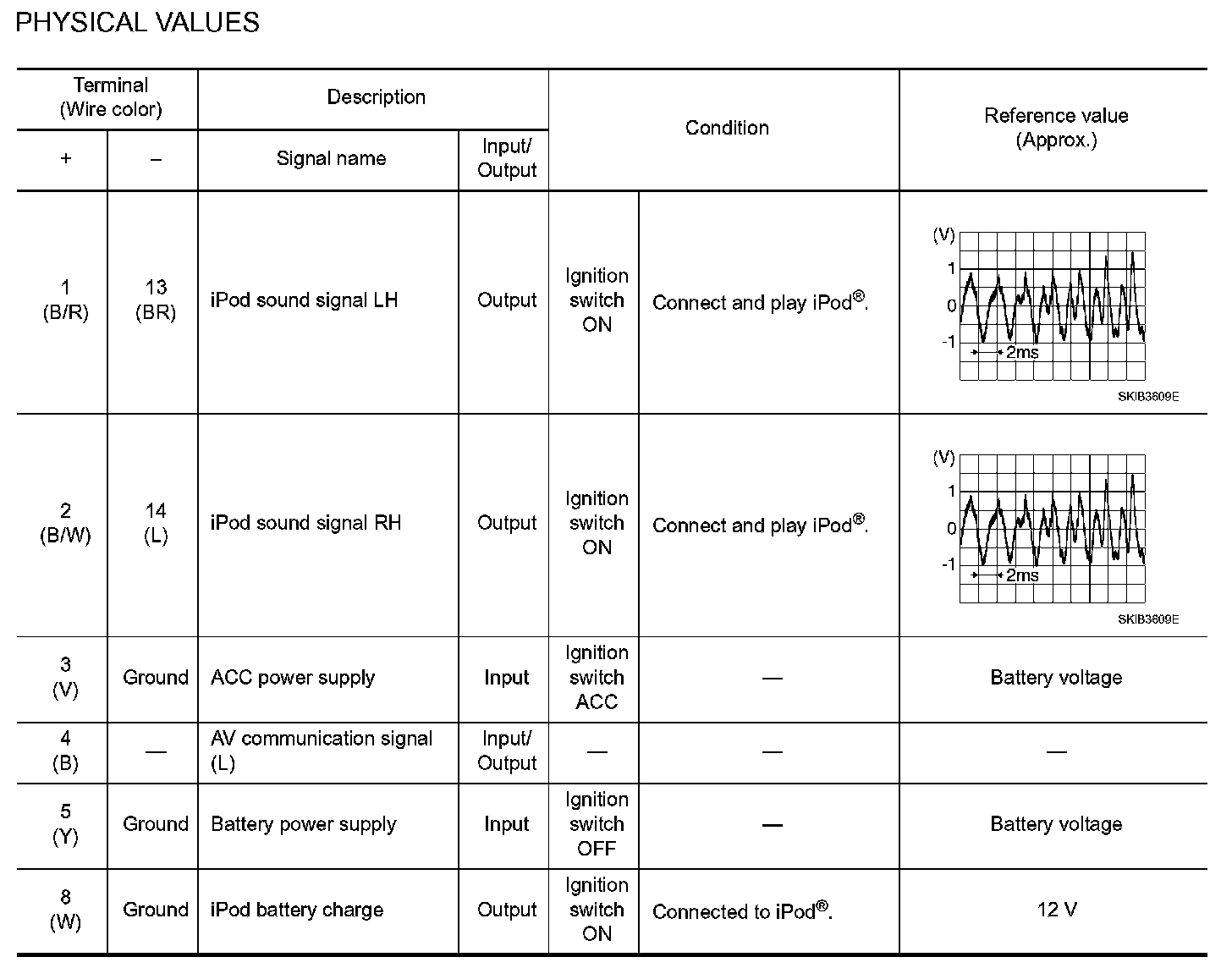

PHYSICAL VALUES
Terminals And Reference Values (Part 1):

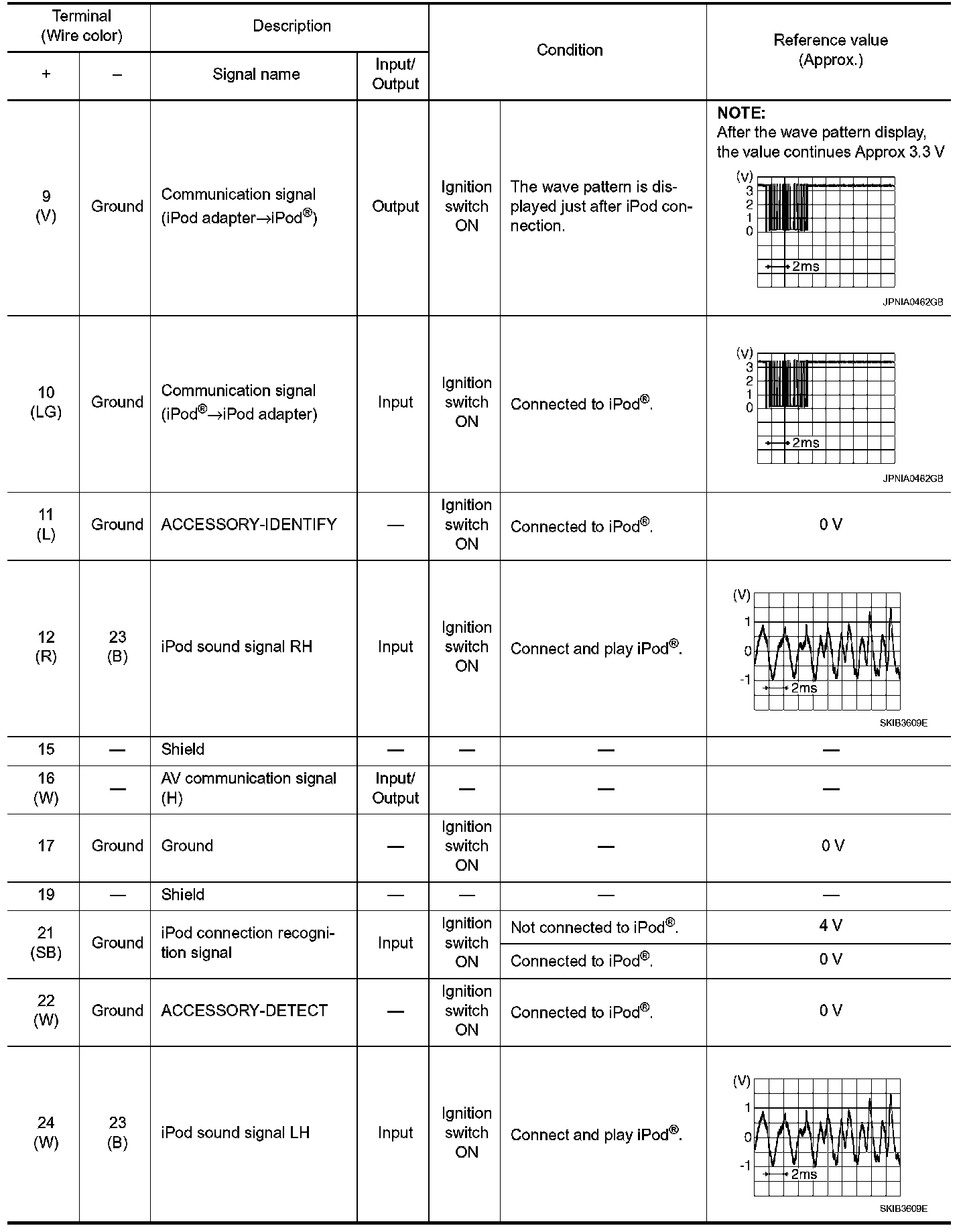

Terminals And Reference Values (Part 2):
