AV Control Unit

AV CONTROL UNIT

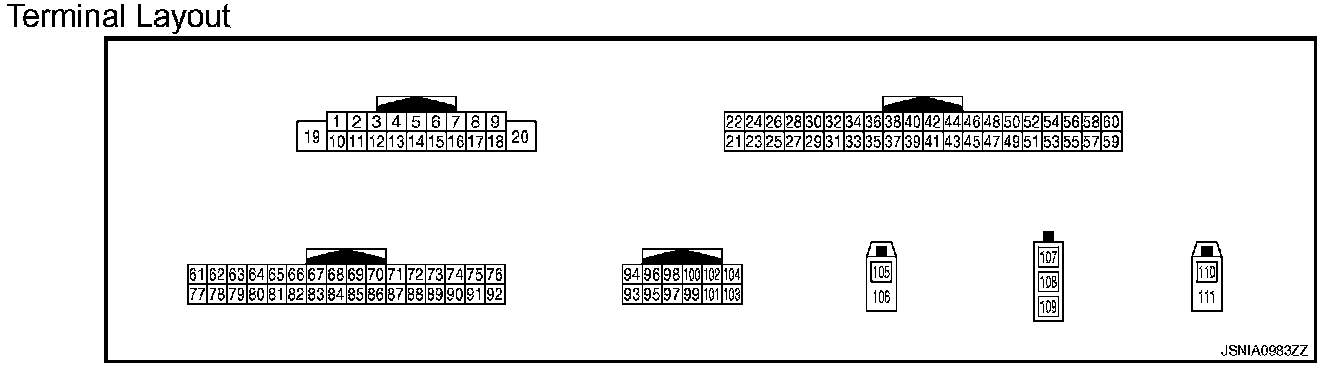

Terminal Layout

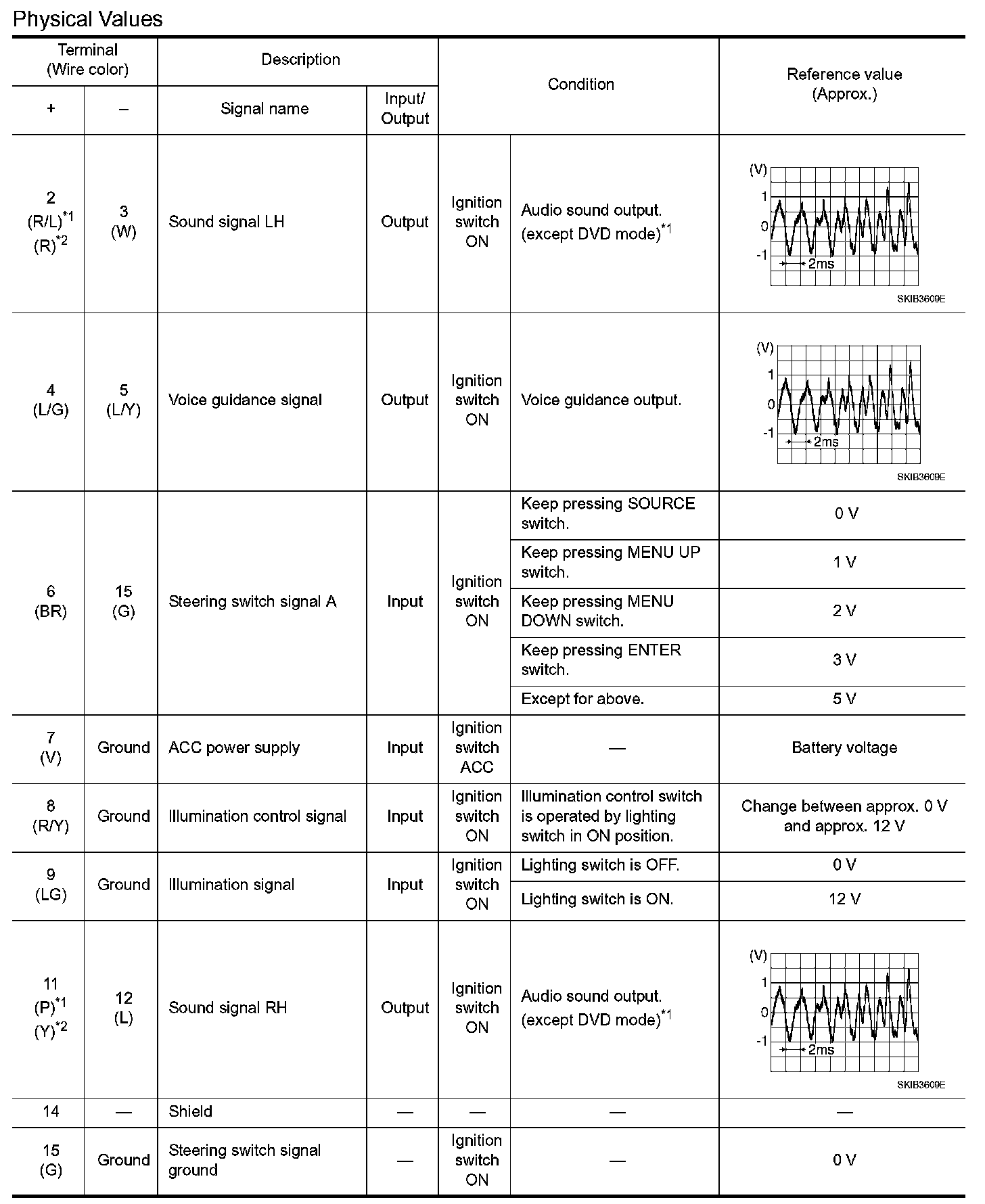

Physical Values

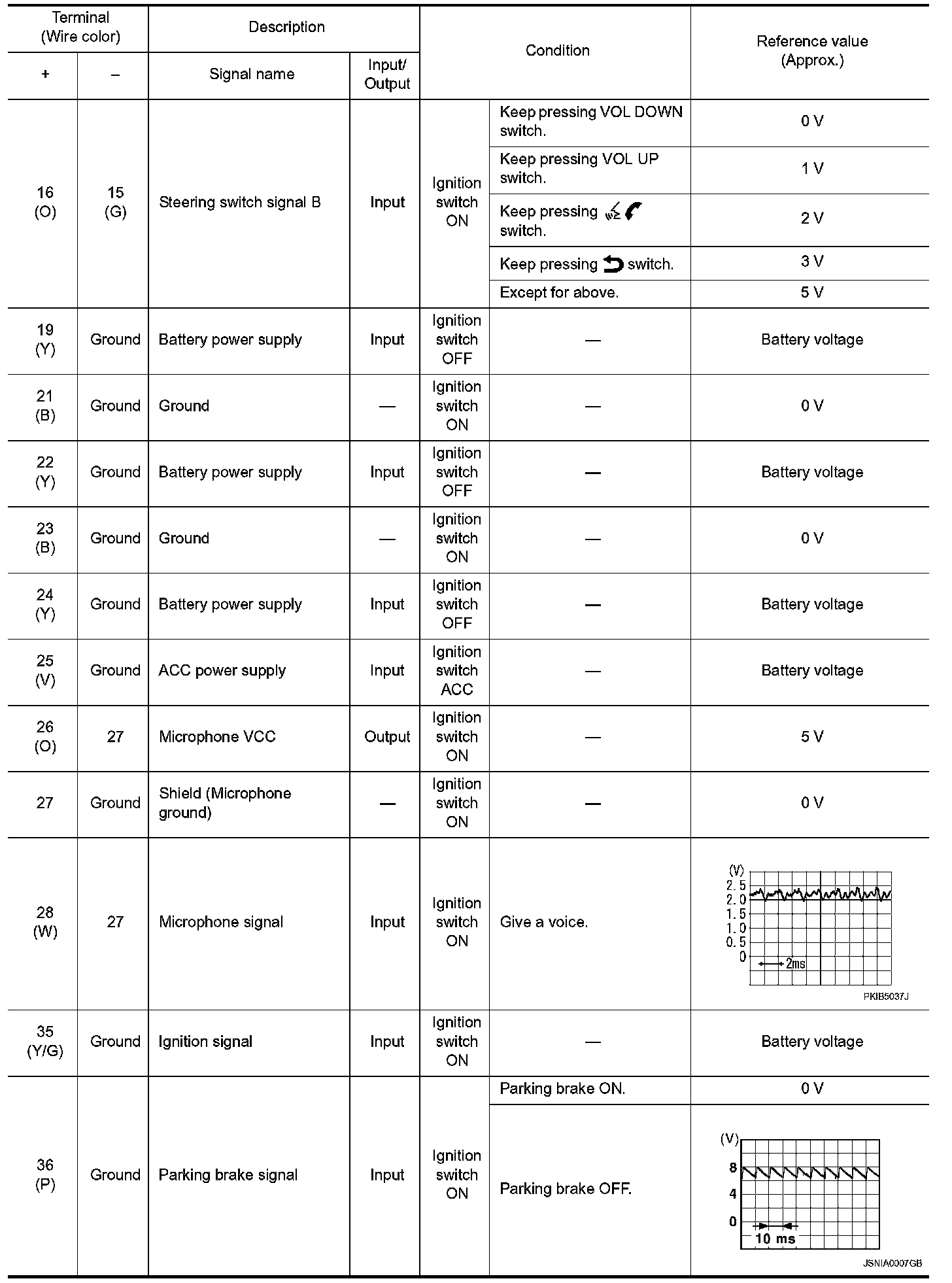

Terminals And Reference Values (Part 1):




Terminals And Reference Values (Part 2):

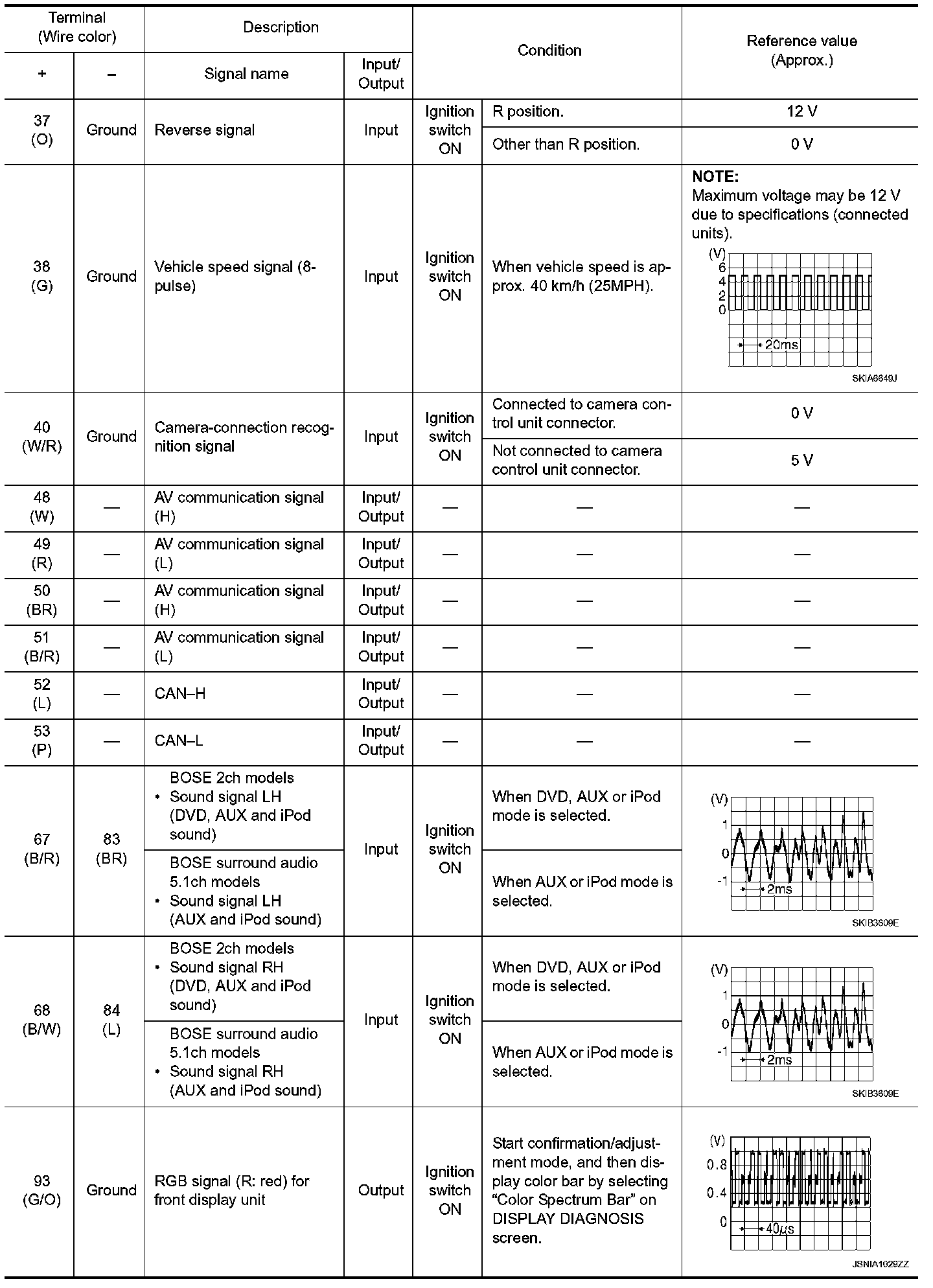

Terminals And Reference Values (Part 3):

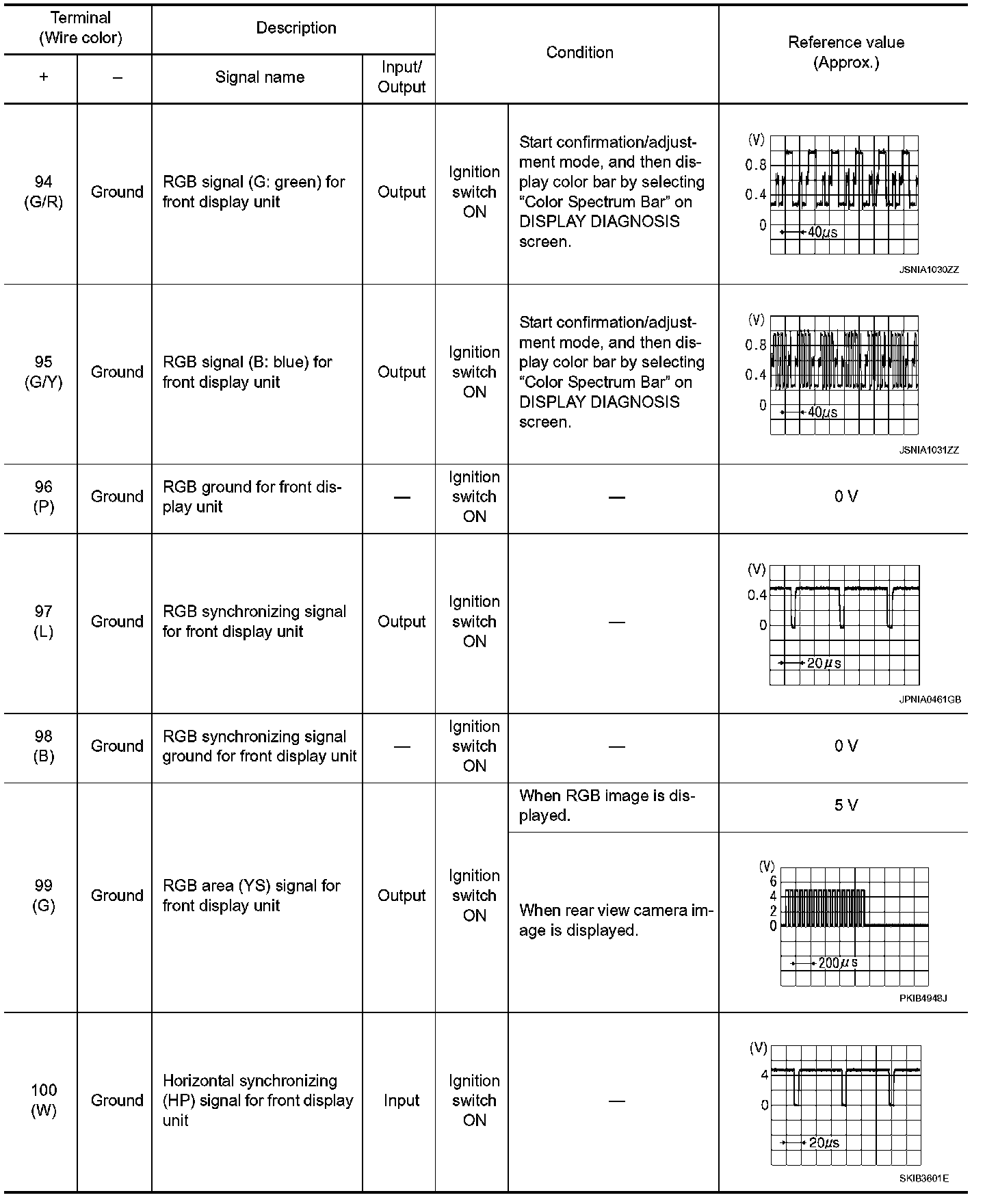

Terminals And Reference Values (Part 4):

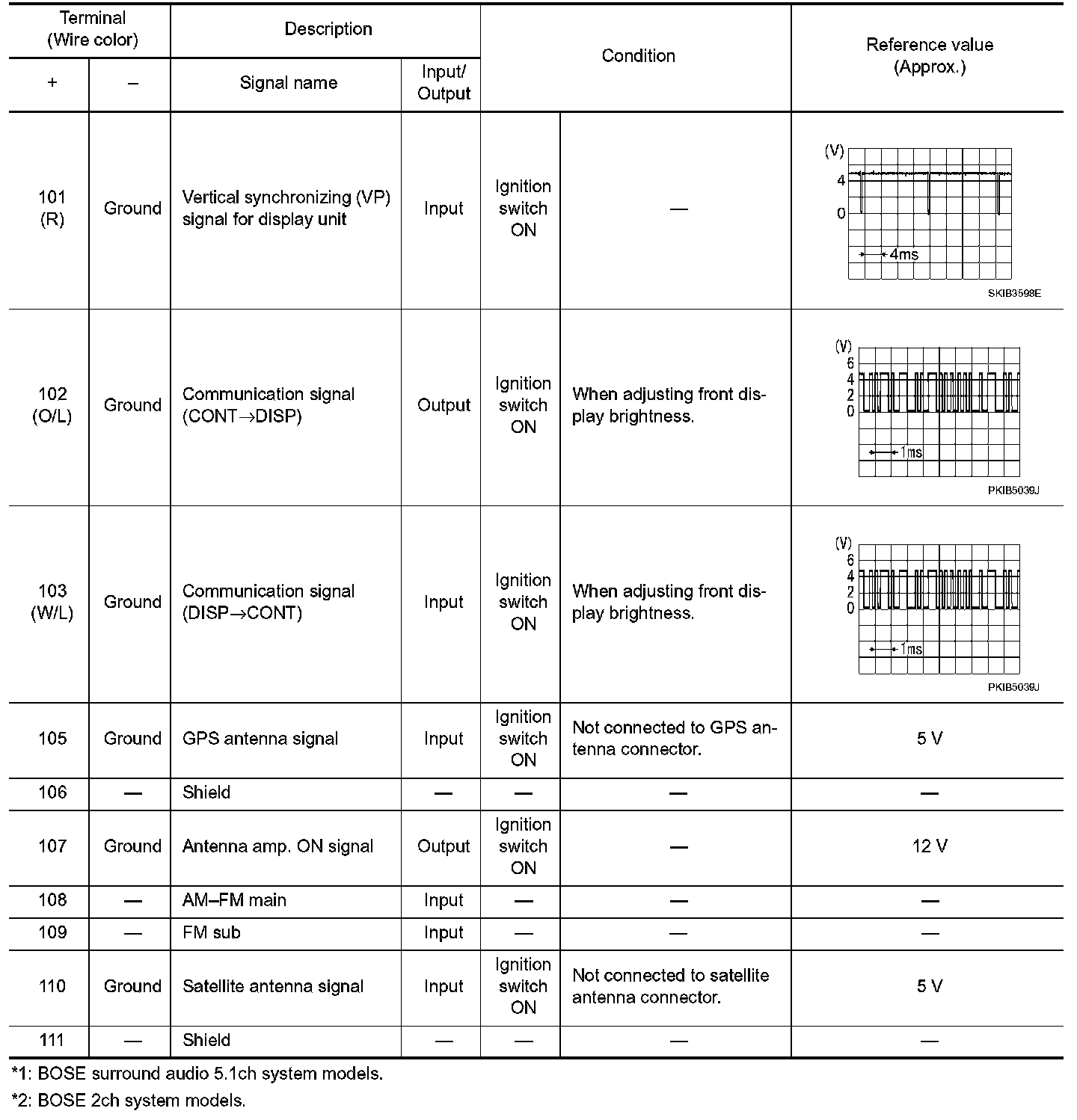

Terminals And Reference Values (Part 5):
