Bose Audio 2ch System
BOSE AMP.BOSE AUDIO 2CH SYSTEM
BOSE AUDIO 2CH SYSTEM : Reference Value

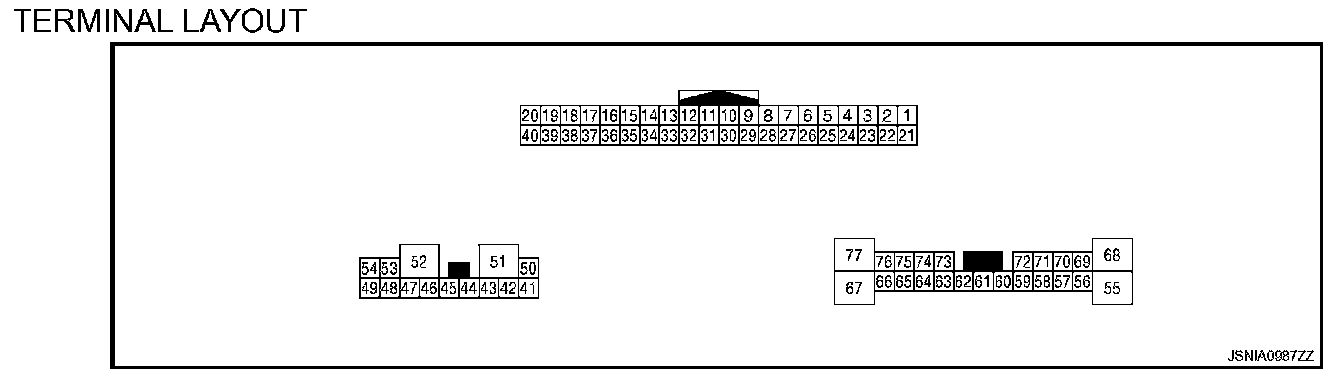

TERMINAL LAYOUT

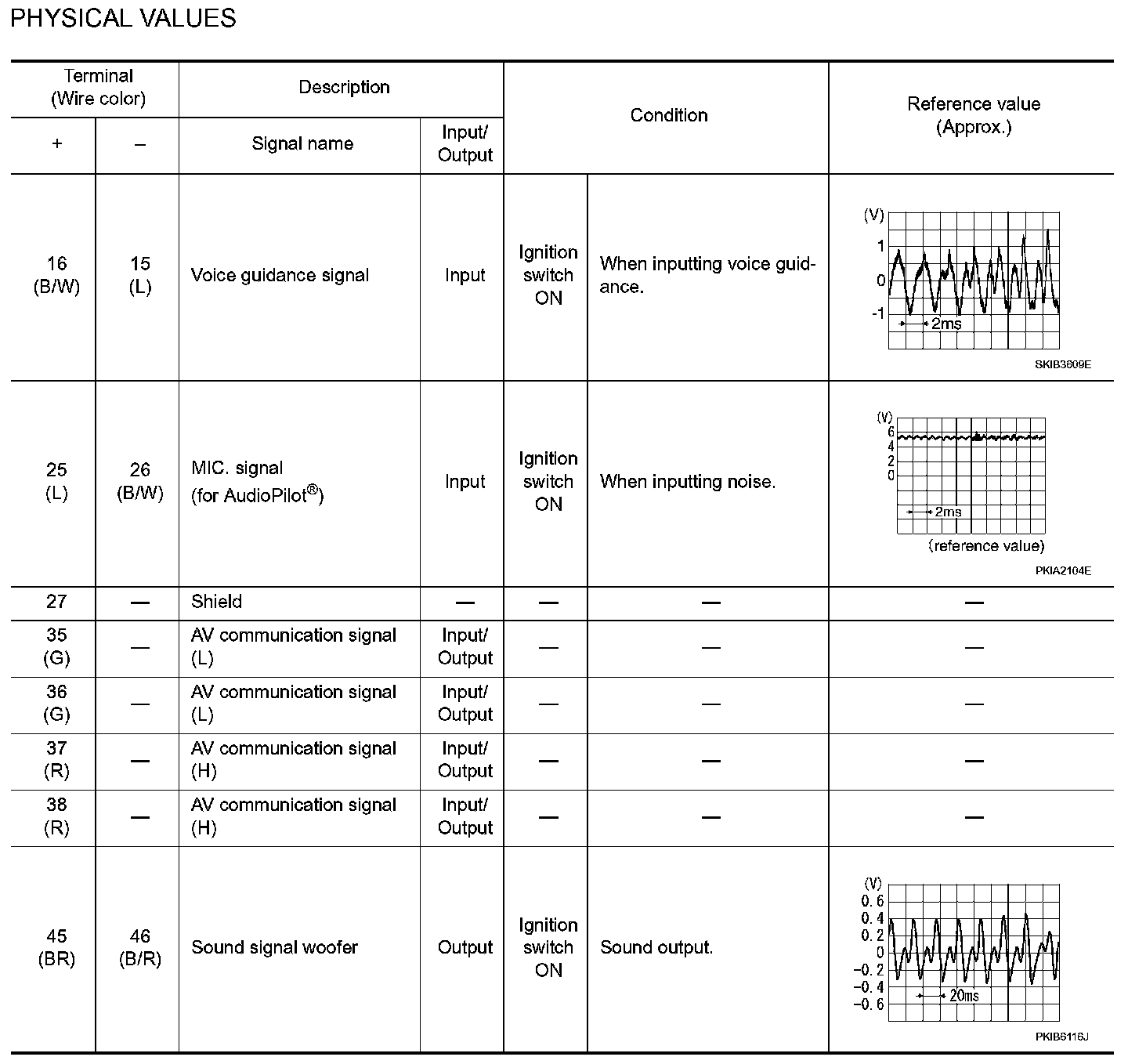

PHYSICAL VALUES
Terminals And Reference Values (Part 1):

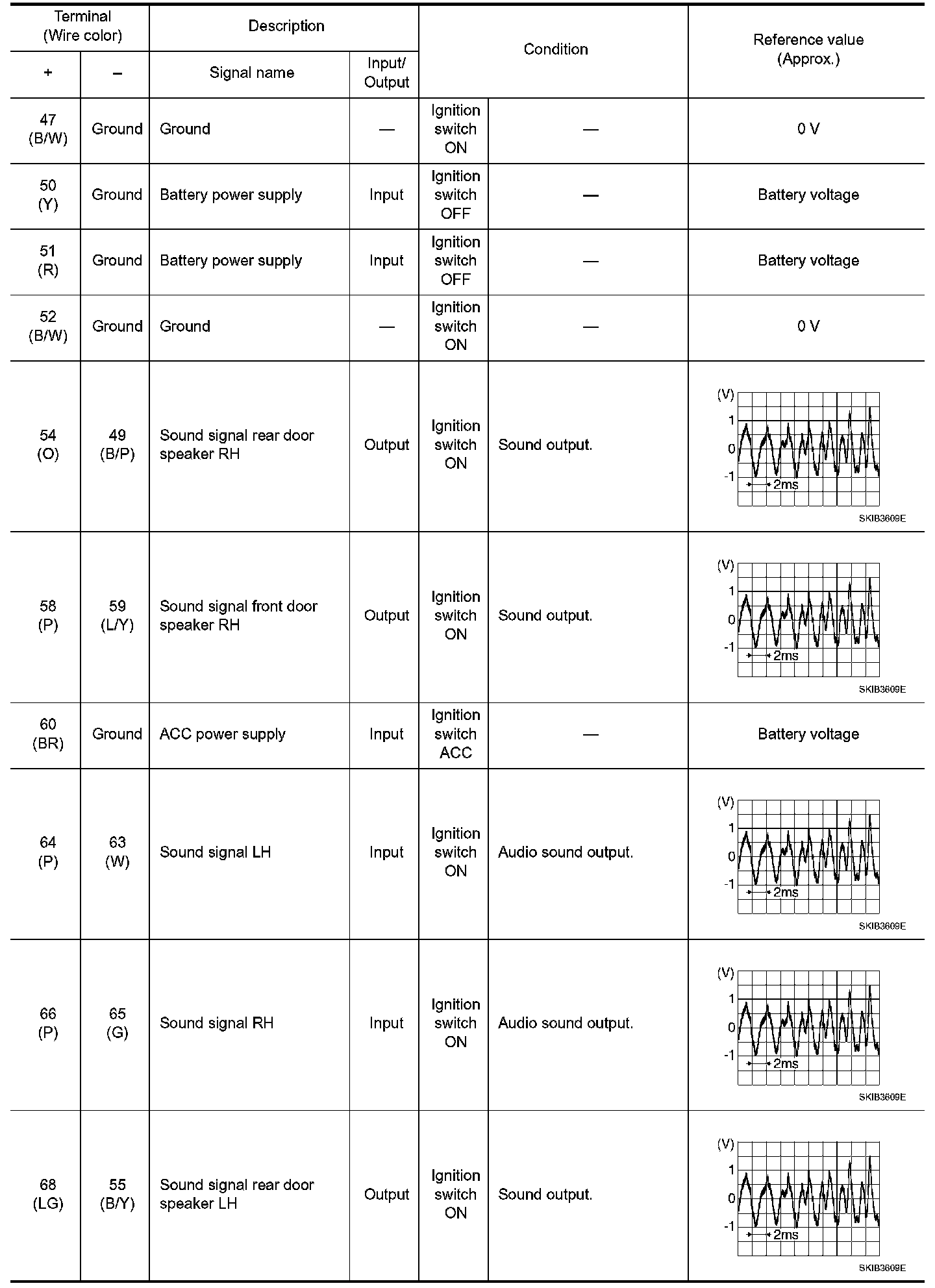

Terminals And Reference Values (Part 2):

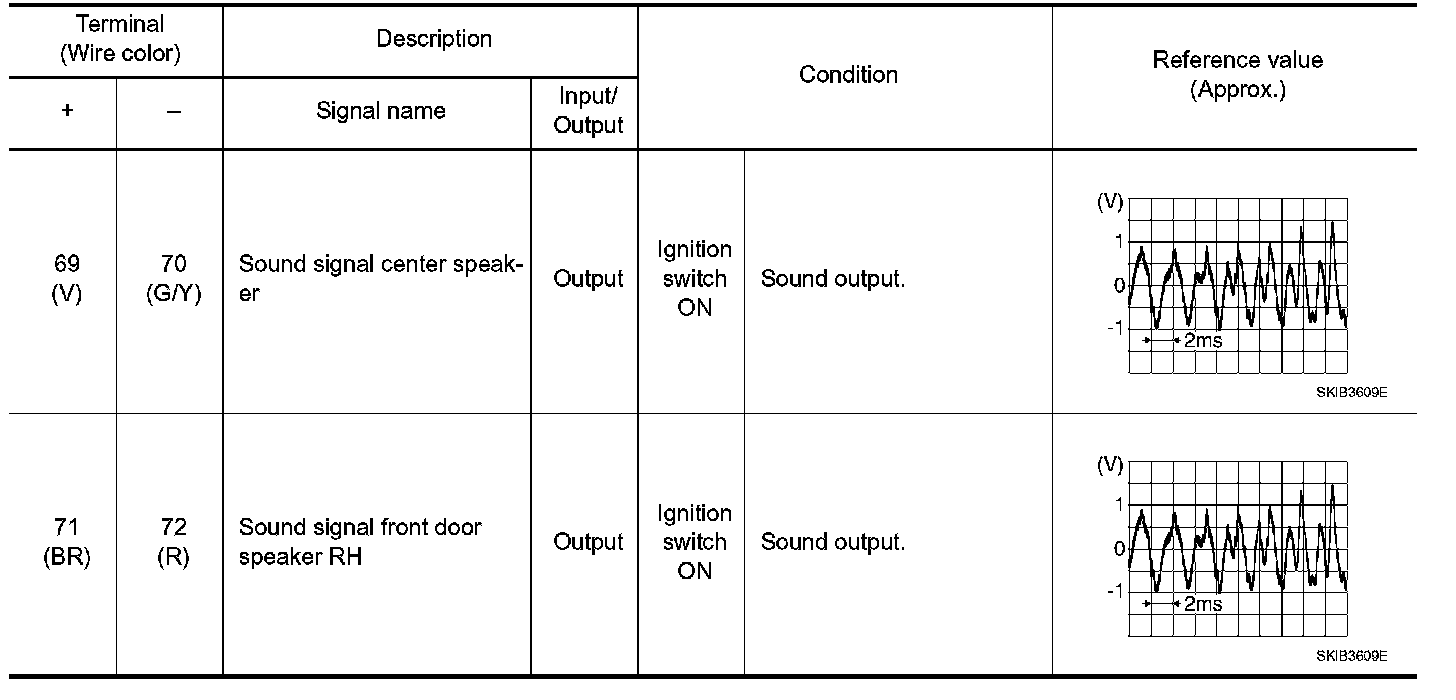

Terminals And Reference Values (Part 3):
BOSE AUDIO 2CH SYSTEM
BOSE AUDIO 2CH SYSTEM : Reference Value
TERMINAL LAYOUT
PHYSICAL VALUES
