Bose Surround Audio 5.1ch System
BOSE AMP.BOSE SURROUND AUDIO 5.1CH SYSTEM
BOSE SURROUND AUDIO 5.1CH SYSTEM : Reference Value

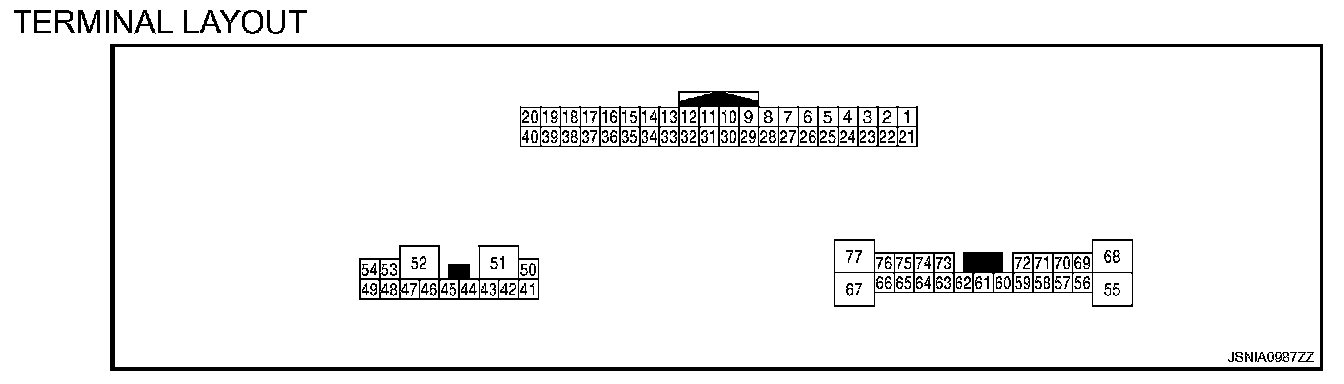

TERMINAL LAYOUT

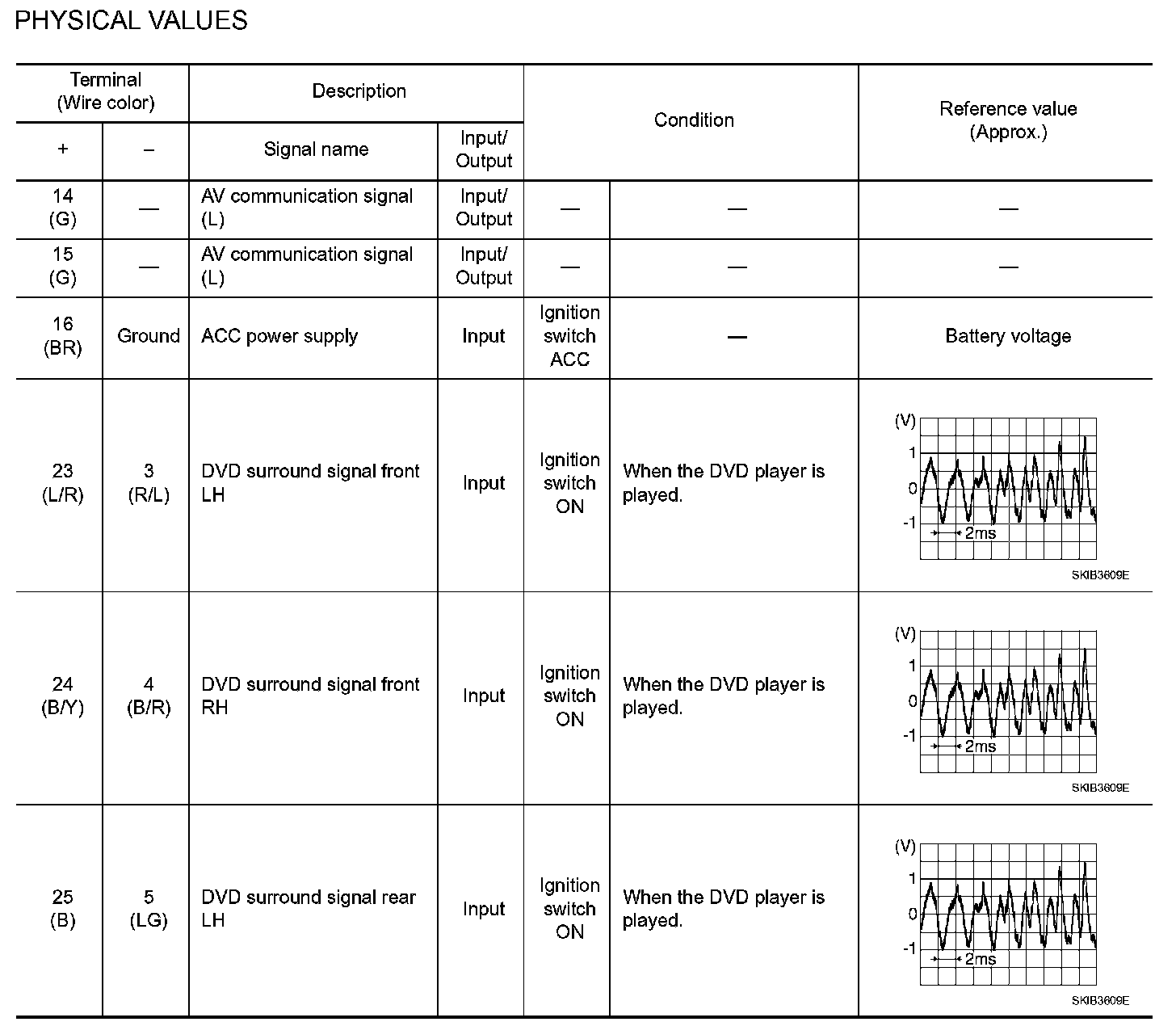

PHYSICAL VALUES

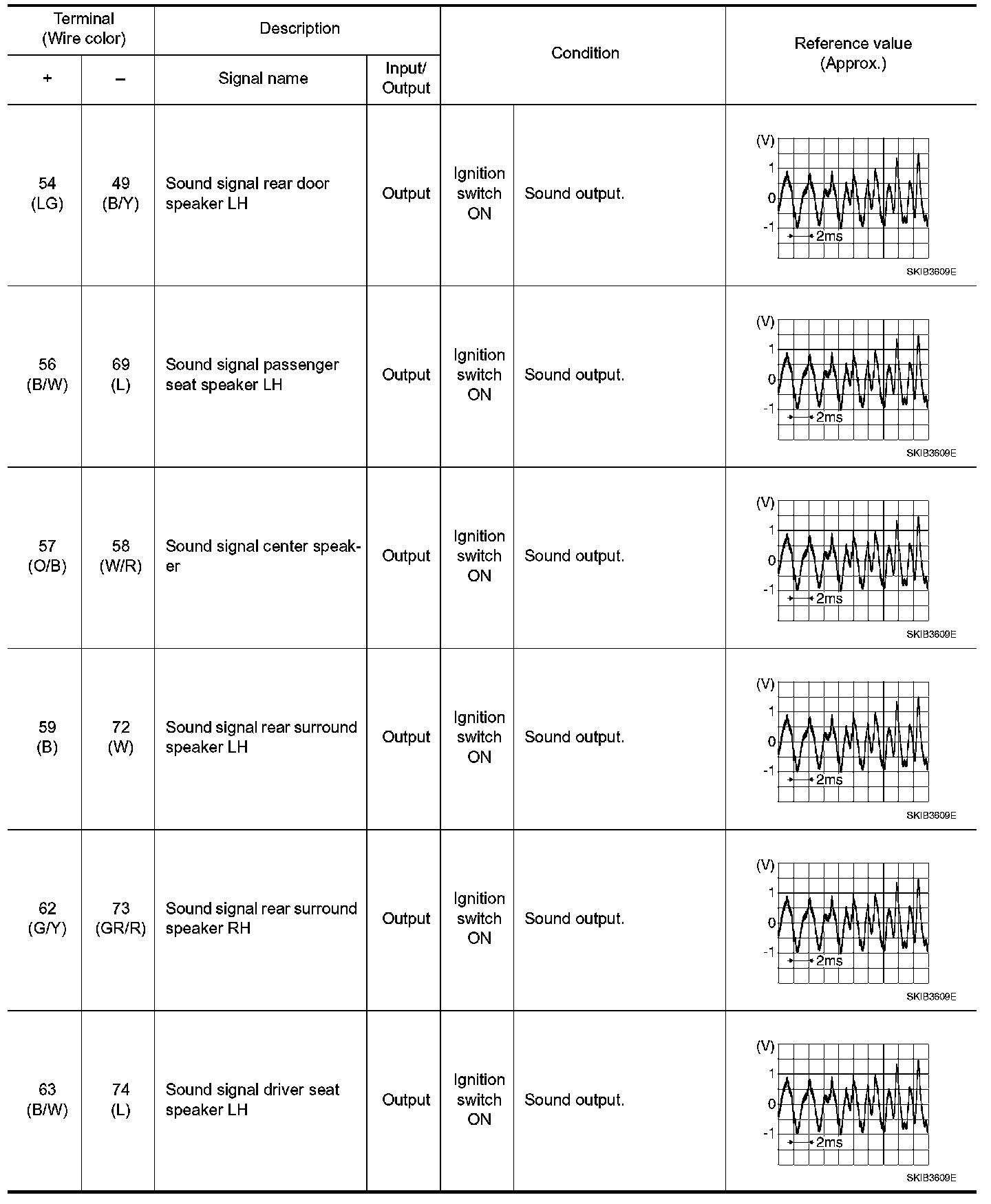

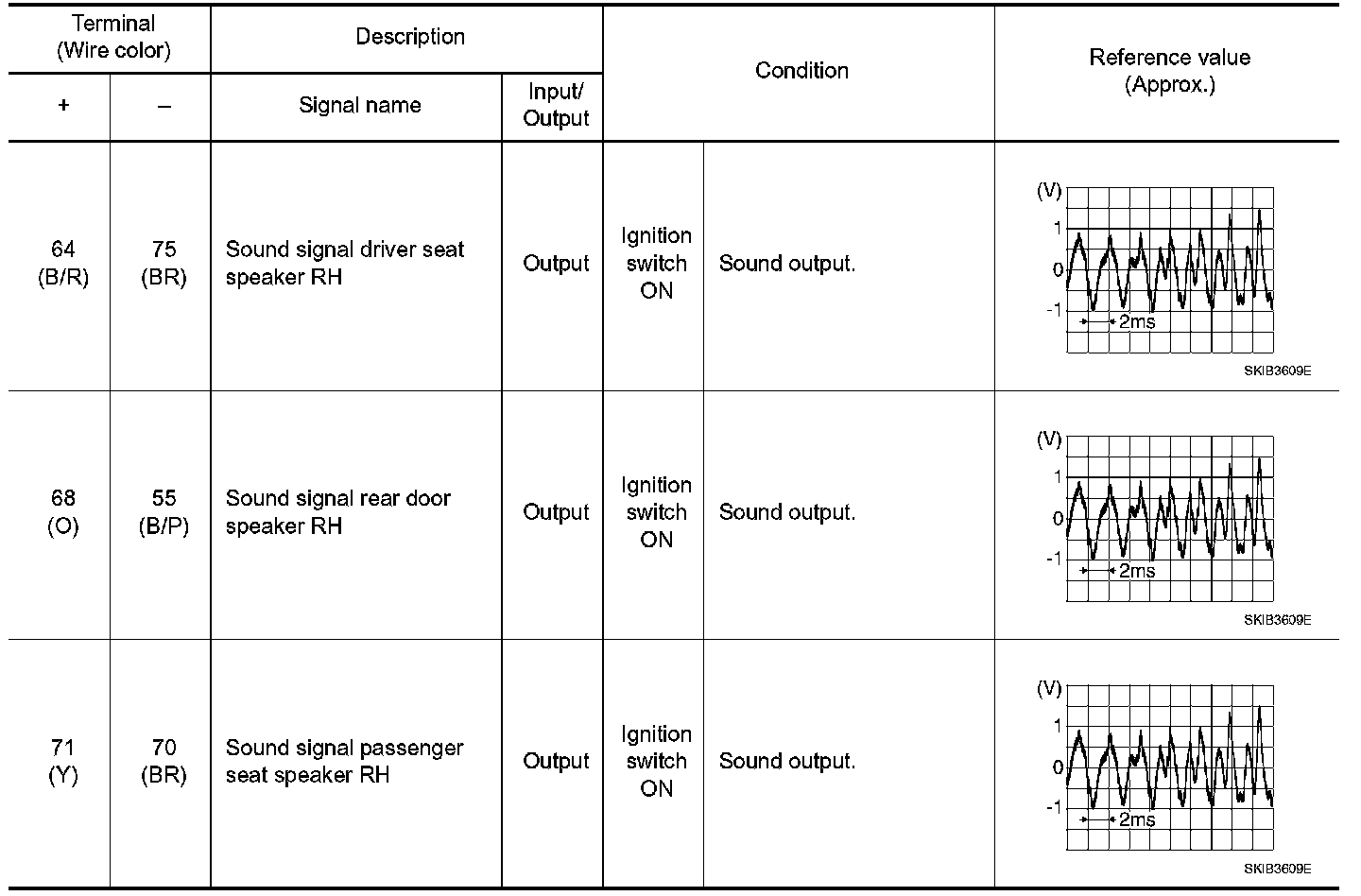

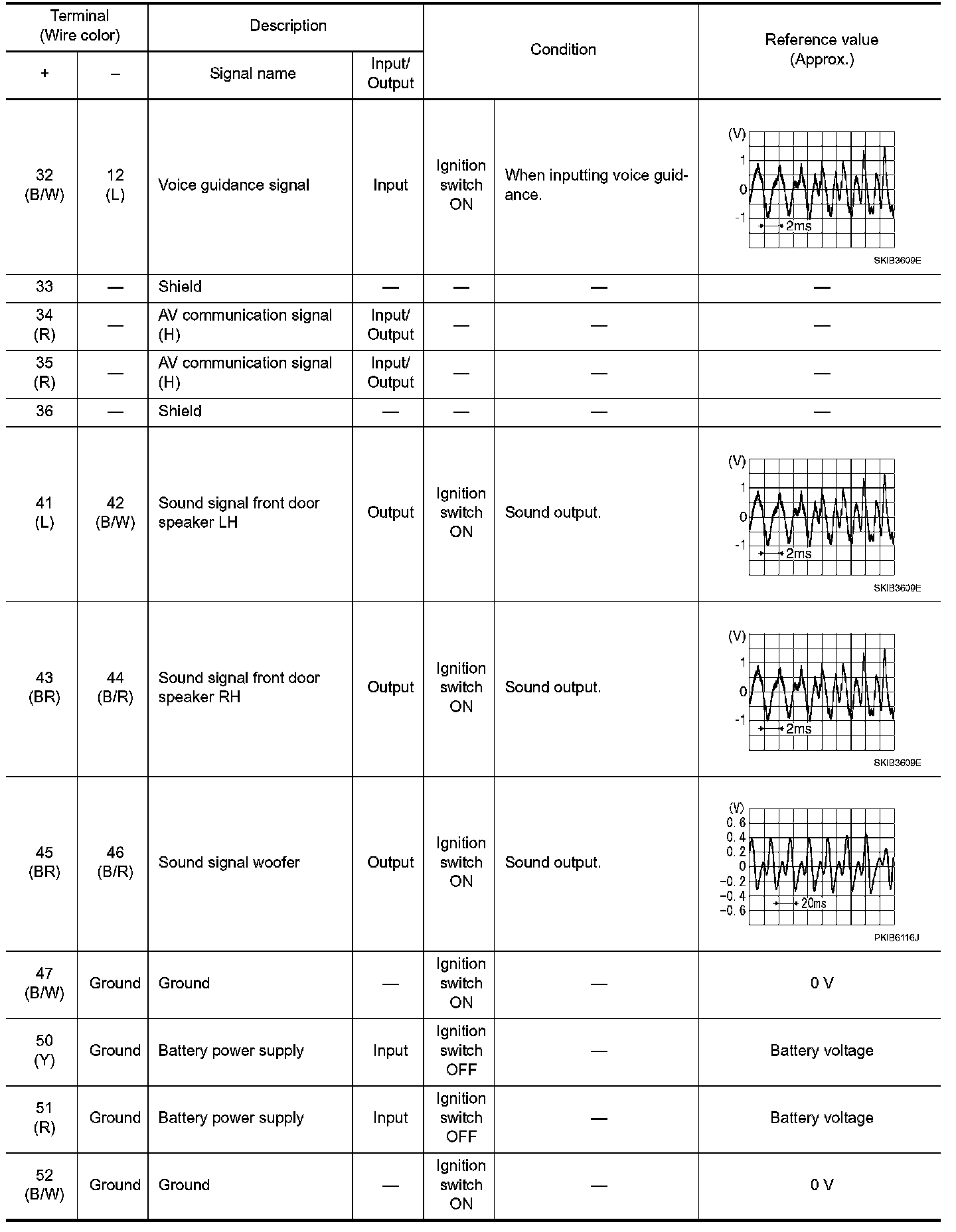

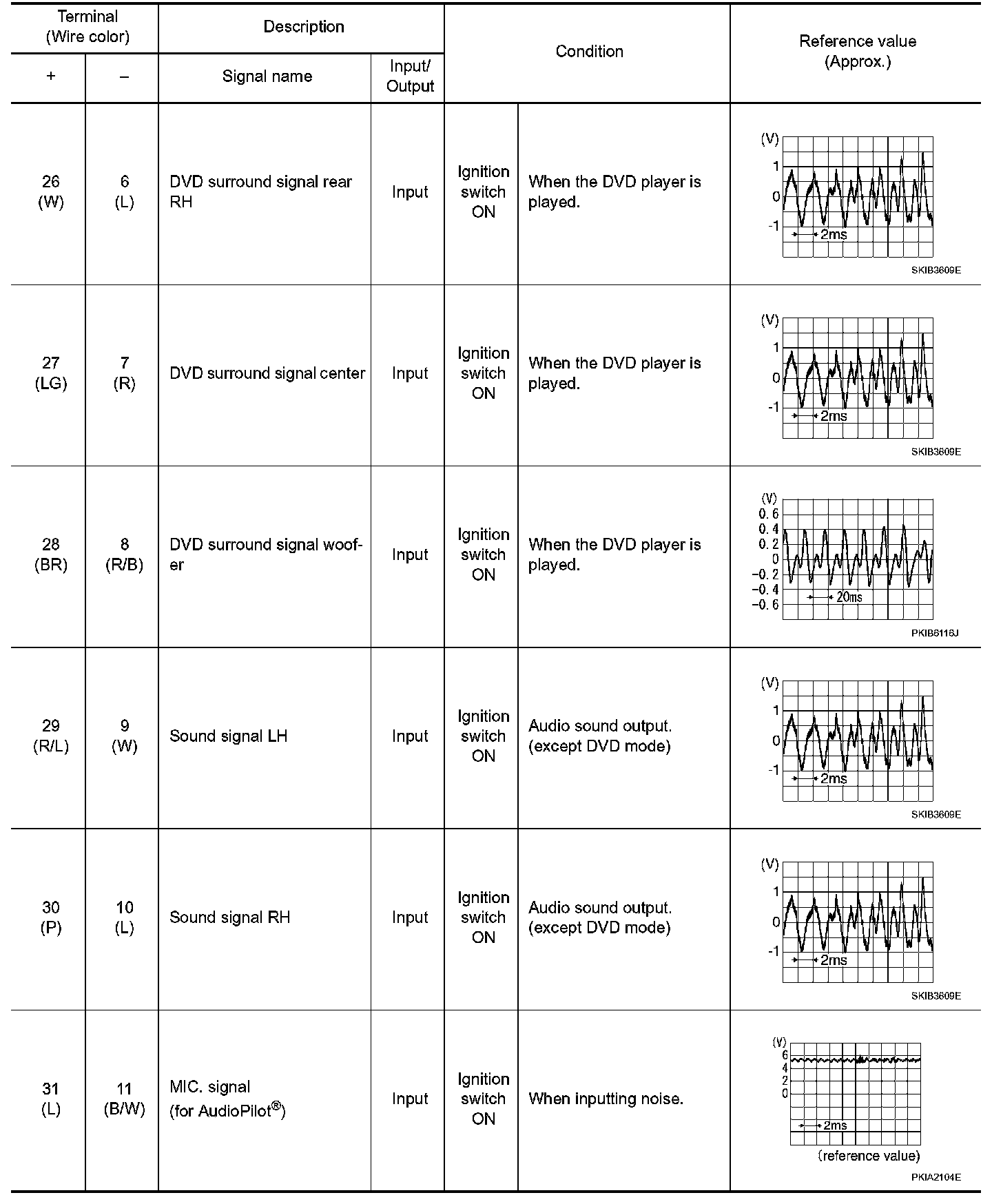

Terminals And Reference Values (Part 1):
Terminals And Reference Values (Part 2):
Terminals And Reference Values (Part 3):
Terminals And Reference Values (Part 4):
Terminals And Reference Values (Part 5):
