Video Distributor

VIDEO DISTRIBUTOR

Reference Value

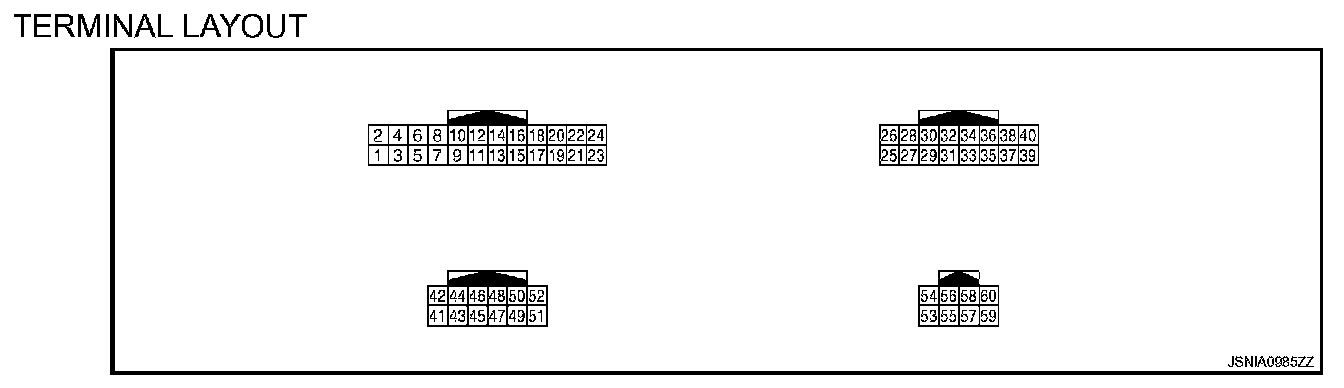

TERMINAL LAYOUT

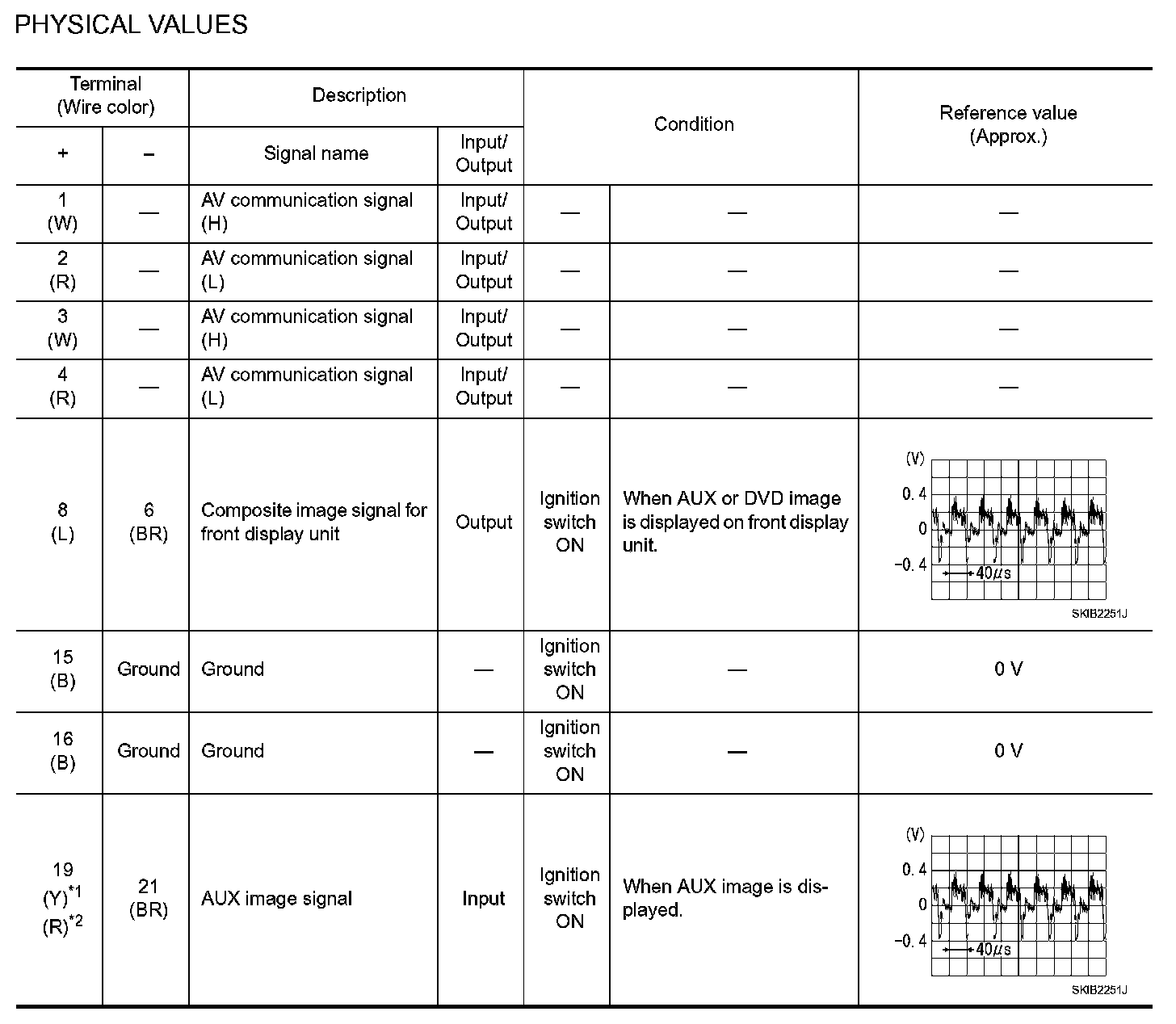

PHYSICAL VALUES

Terminals And Reference Values (Part 1):

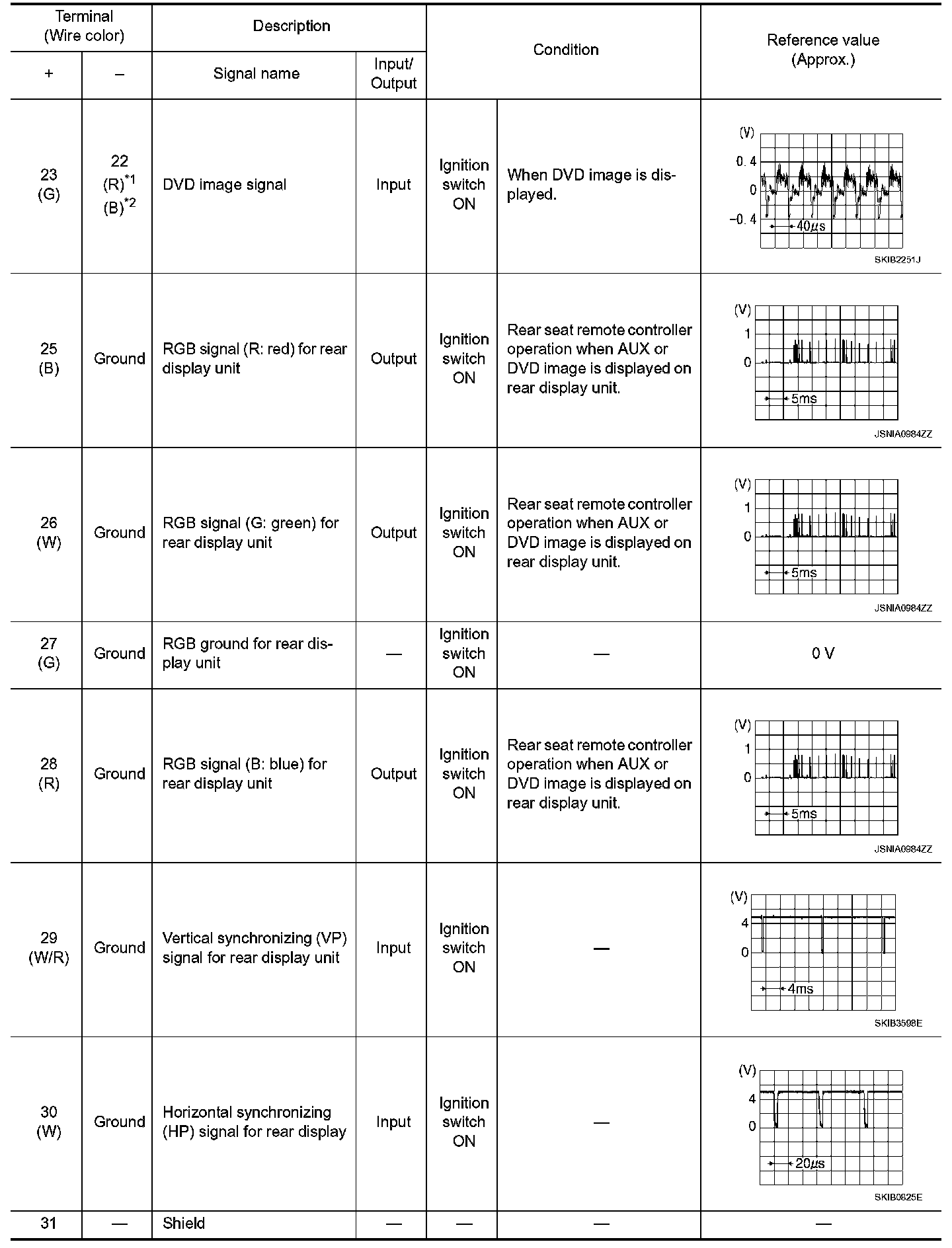

Terminals And Reference Values (Part 2):

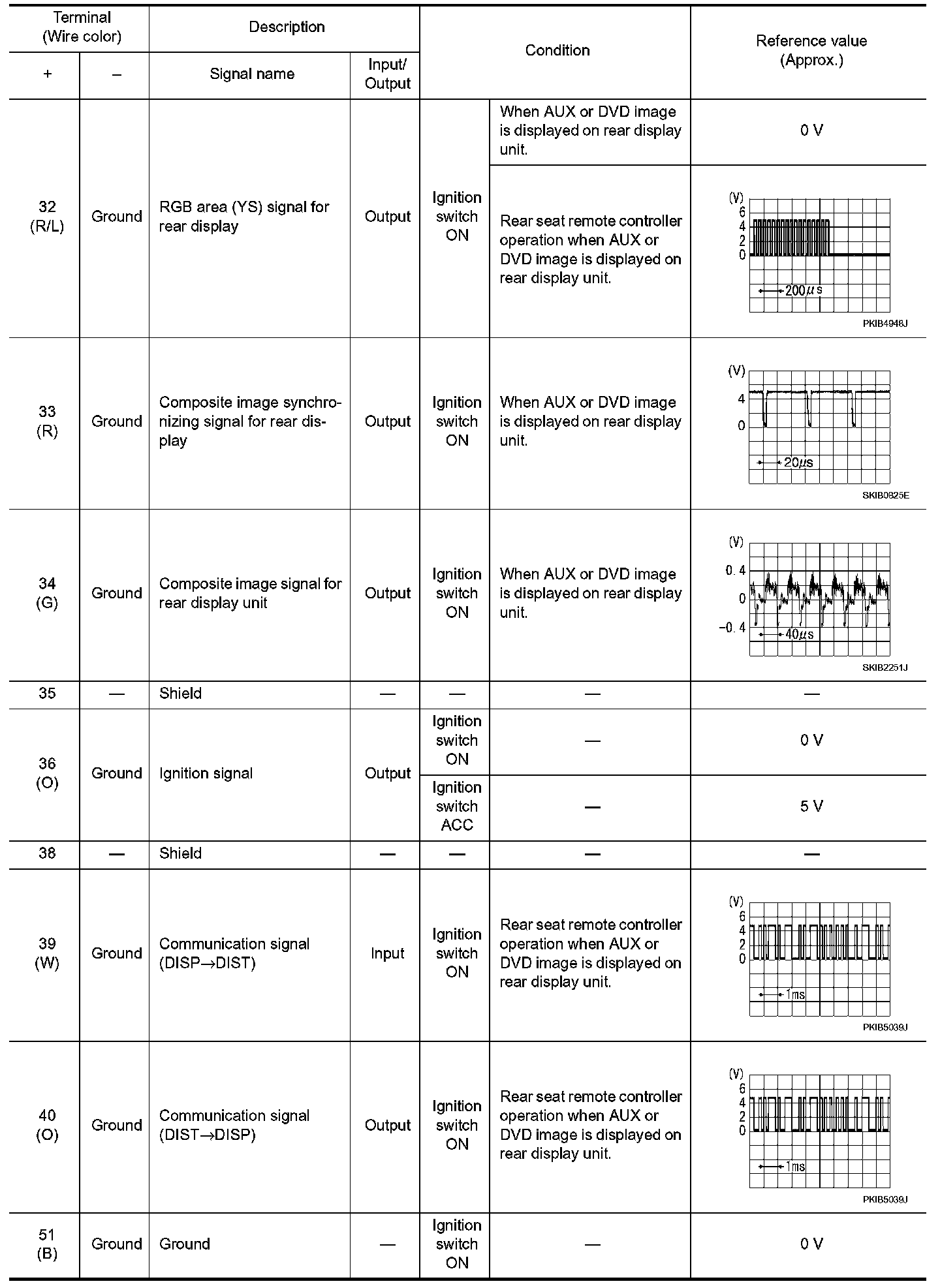

Terminals And Reference Values (Part 3):

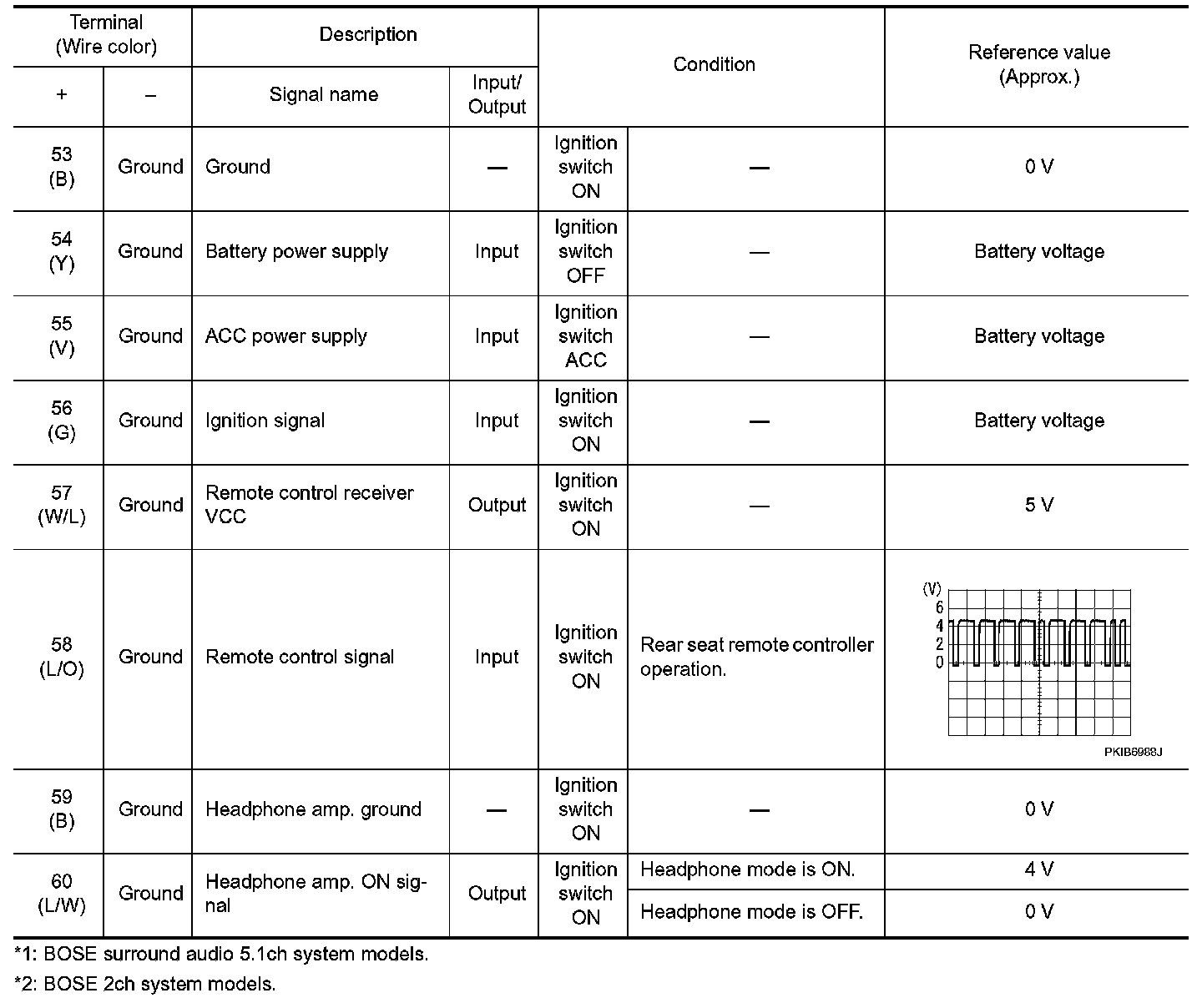

Terminals And Reference Values (Part 4):
