AV Control Unit

ON-VEHICLE REPAIR

AV CONTROL UNIT

Exploded View

DISASSEMBLY

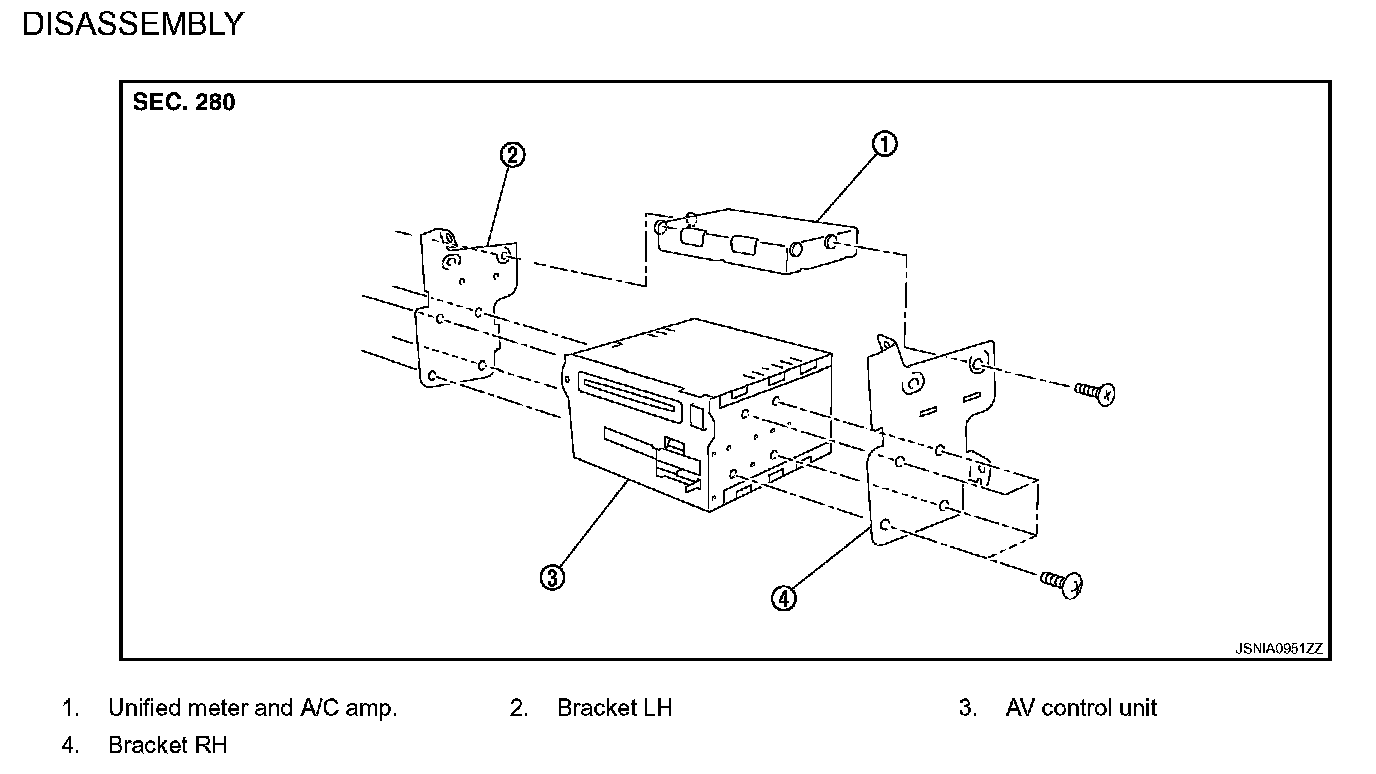

AV-482 Exploded View:

Removal and Installation

REMOVAL
1. Remove cluster lid C.

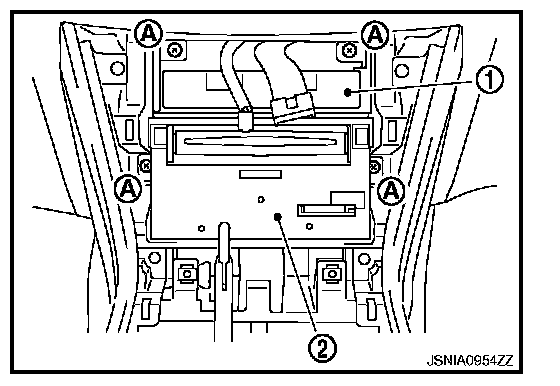

2. Remove screws (A) and remove AV control unit (2) in conjunction with unified meter and A/C amp. (1).
3. Remove bracket screws, and then remove AV control unit.

INSTALLATION
Install in the reverse order of removal.

CAUTION: Unified meter and A/C amp. screws are different from other securing screws. Never confuse them when installing.
