Multifunction Switch

MULTIFUNCTION SWITCH

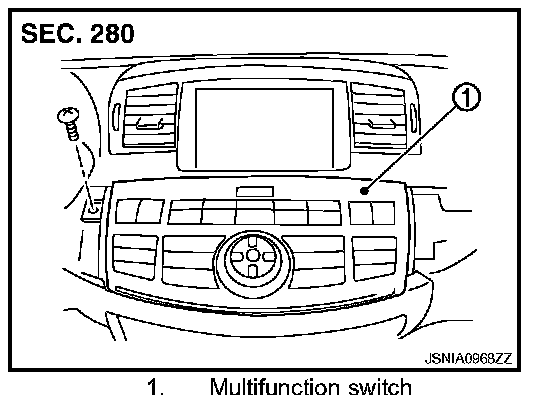

Exploded View

AV-493 Exploded View:






Removal and Installation

REMOVAL
1. Remove instrument panel finisher B and C.

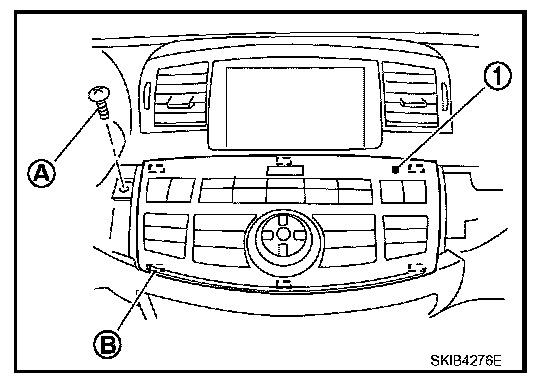

2. Remove screw (A).
3. Disengage tabs (B) and connector to separate multifunction switch (1) from instrument panel.

INSTALLATION
Install in the reverse order of removal.
