Front Display Unit

FRONT DISPLAY UNIT

Removal and Installation

REMOVAL
1. Remove center ventilator grille.
2. Remove multifunction switch.

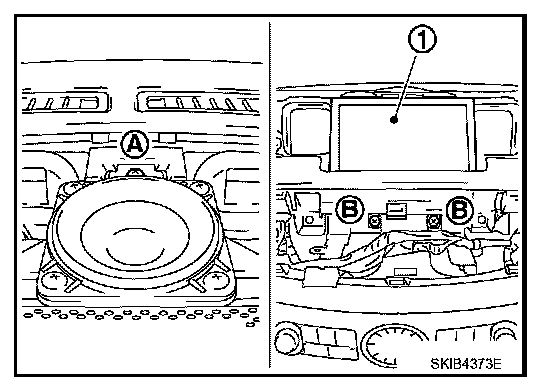

3. Remove screw (A).
4. Remove screws (B) and disconnect connector, and remove display (1) center speaker comes off accordingly.

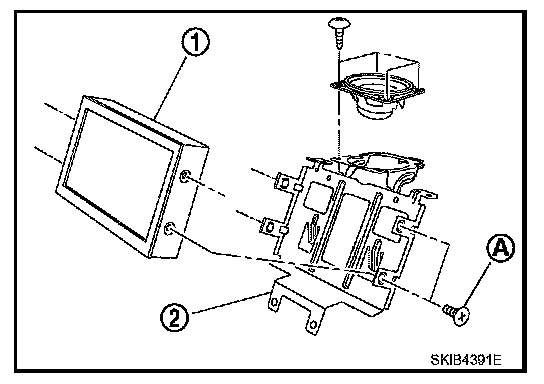

5. Remove screws (A) separate front display unit (1) from bracket (2).

INSTALLATION
Install in the reverse order of removal.
