Preset Switch

PRESET SWITCH

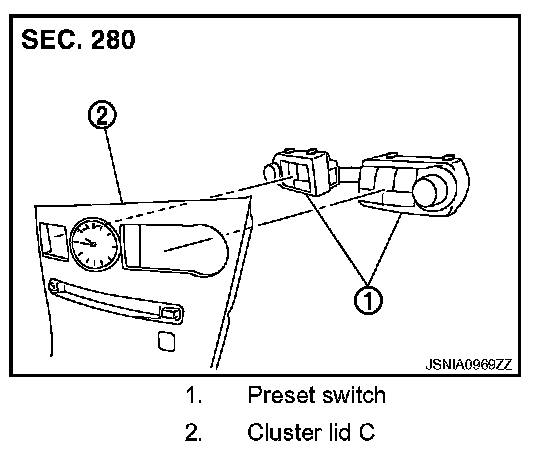

Exploded View

DISASSEMBLY

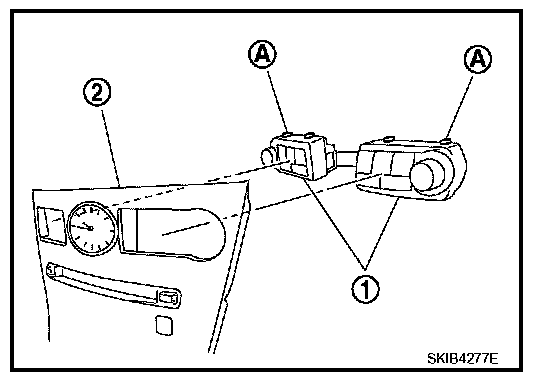

AV-1078 Exploded View:

Removal and Installation

REMOVAL
1. Remove cluster lid C.




2. Disengage tabs (A) to separate preset switch (1) from cluster lid C (2).

INSTALLATION
Install in the reverse order of removal.

NOTE: When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch to get caught in between AV control unit and preset switch.
