Rear Control Switch

REAR CONTROL SWITCH

Removal and Installation

REMOVAL
1. Remove tray box from armrest.

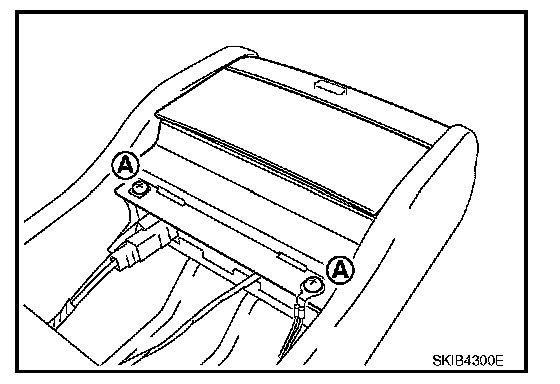

2. Remove screw (A).

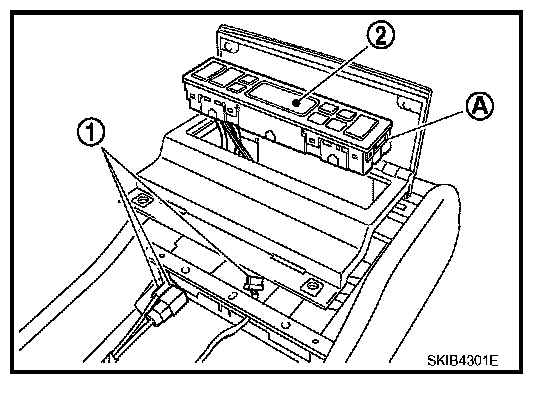

3. Disconnect connector (1) and disengage tabs (A) to separate rear control switch (2).

INSTALLATION
Install in the reverse order of removal.
