Rear Display Unit

REAR DISPLAY UNIT

Removal and Installation

REMOVAL

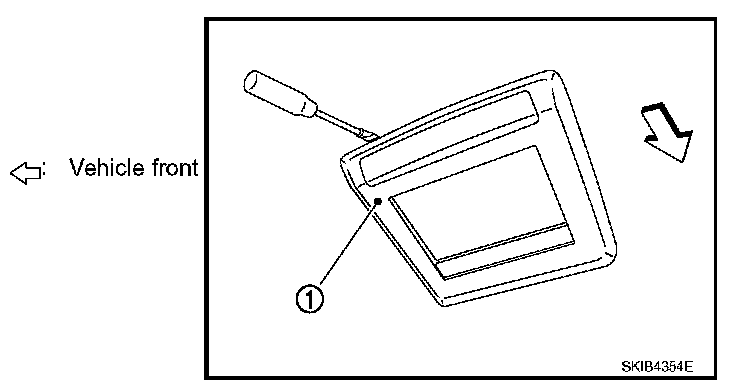

1. Insert cloth-covered driver into gaps between rear display cover (1) and headlining, and remove rear display cover.

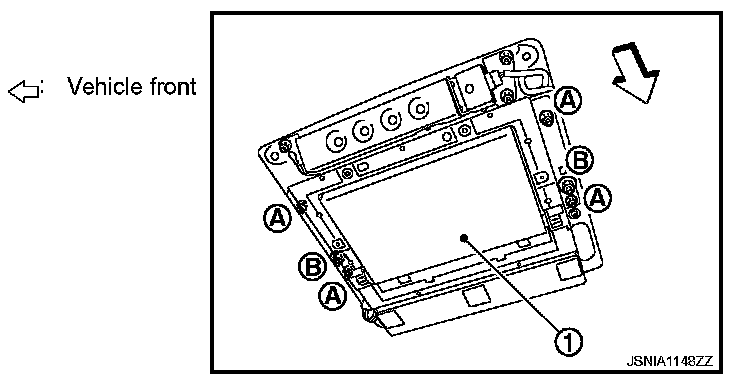

2. Remove nuts (A) and plastic nuts (B).
3. Disconnect connector, and remove rear display unit (1).

INSTALLATION
Install in the reverse order of removal.
