Bose Surround Audio 5.1ch System

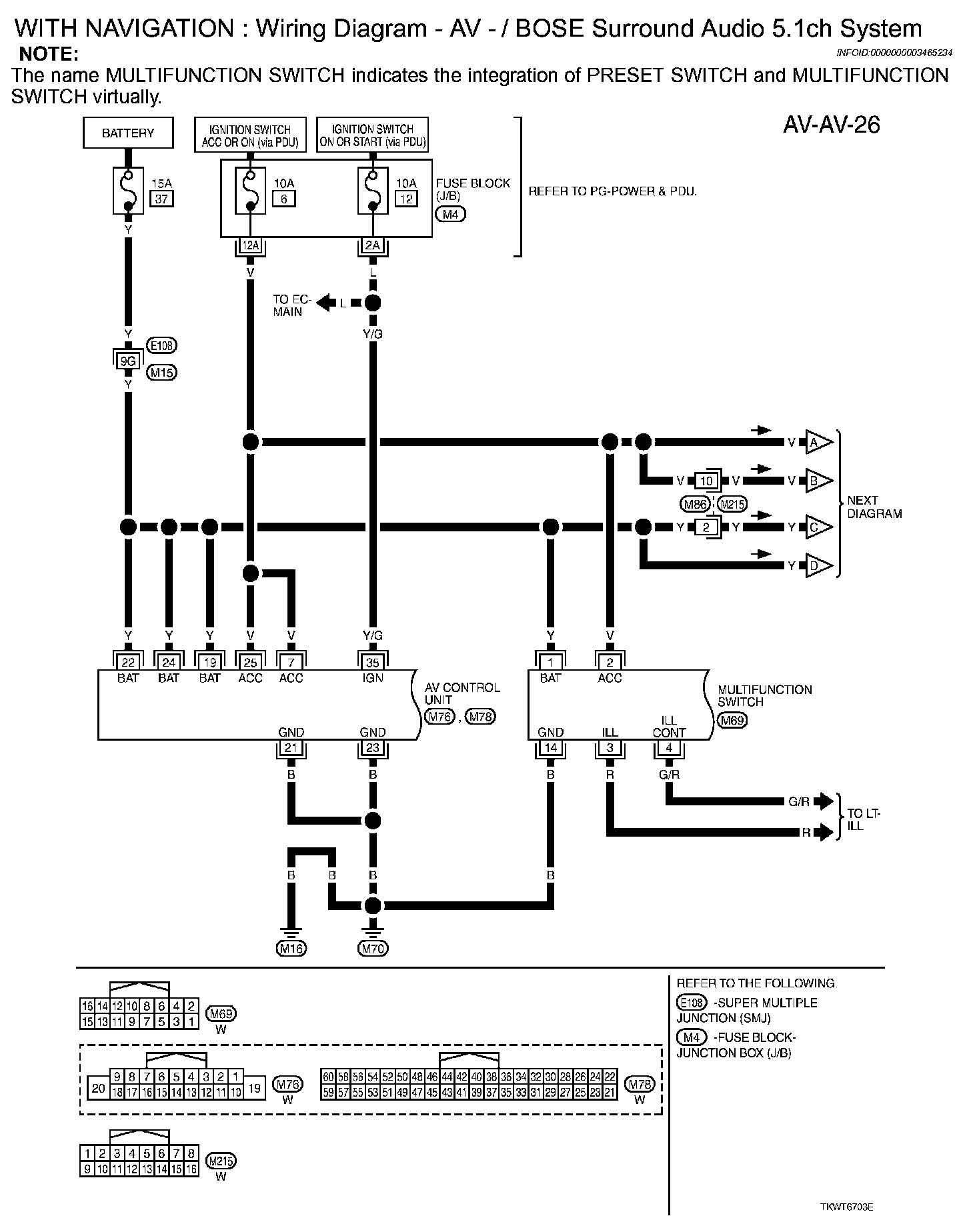

WITH NAVIGATION : Wiring Diagram - AV - / BOSE Surround Audio 5.1ch System

AV-AV-26:

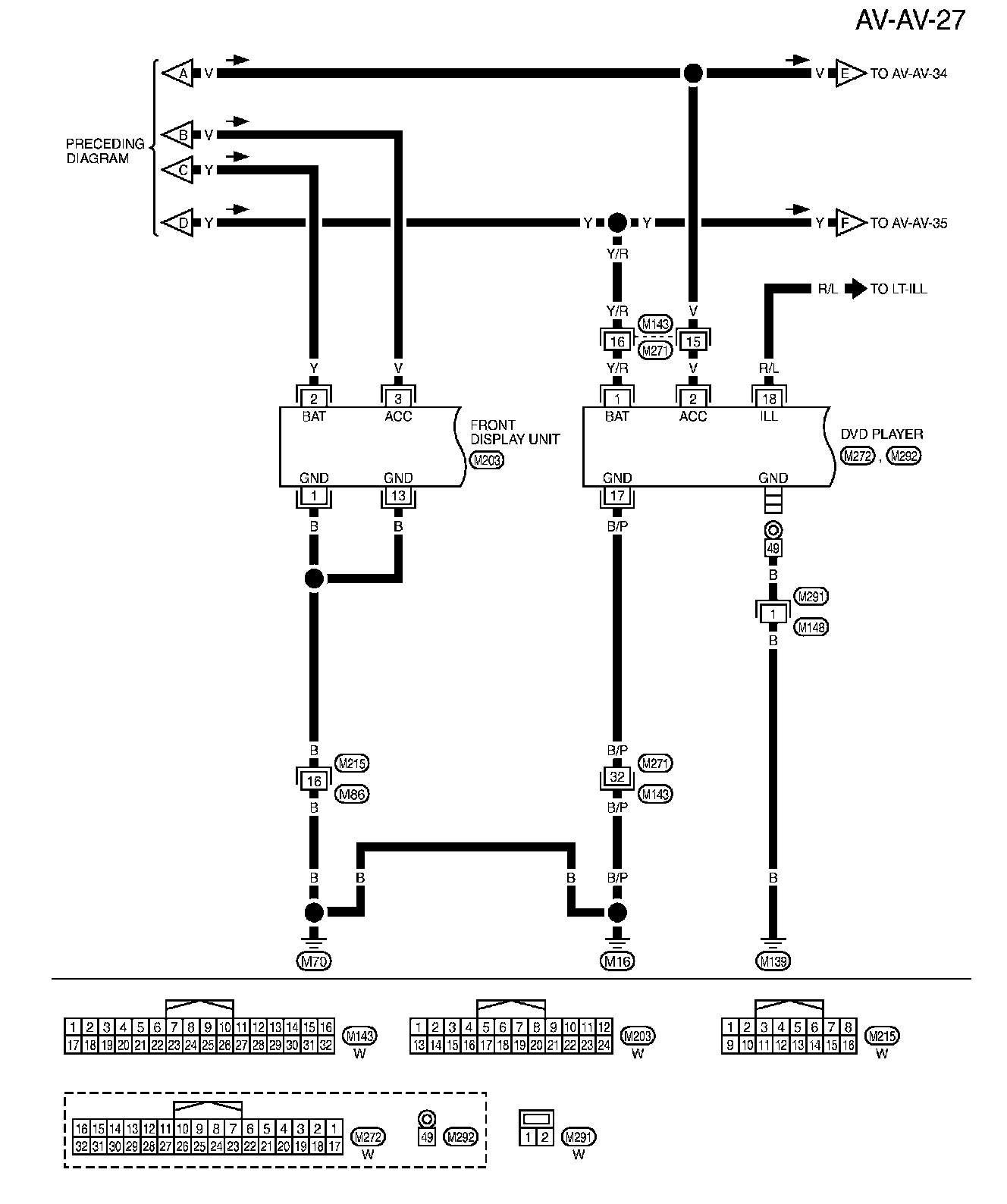

AV-AV-27:

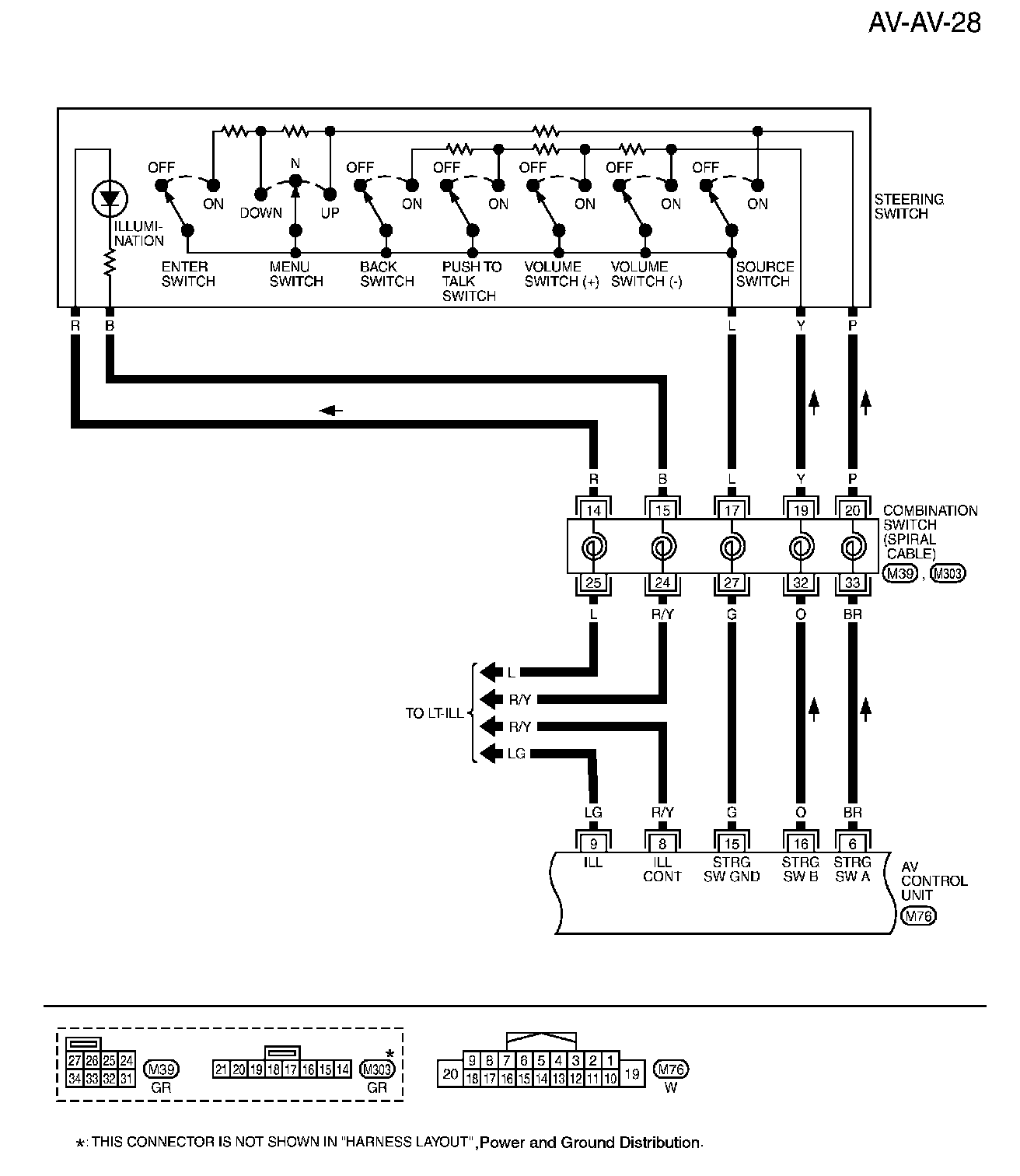

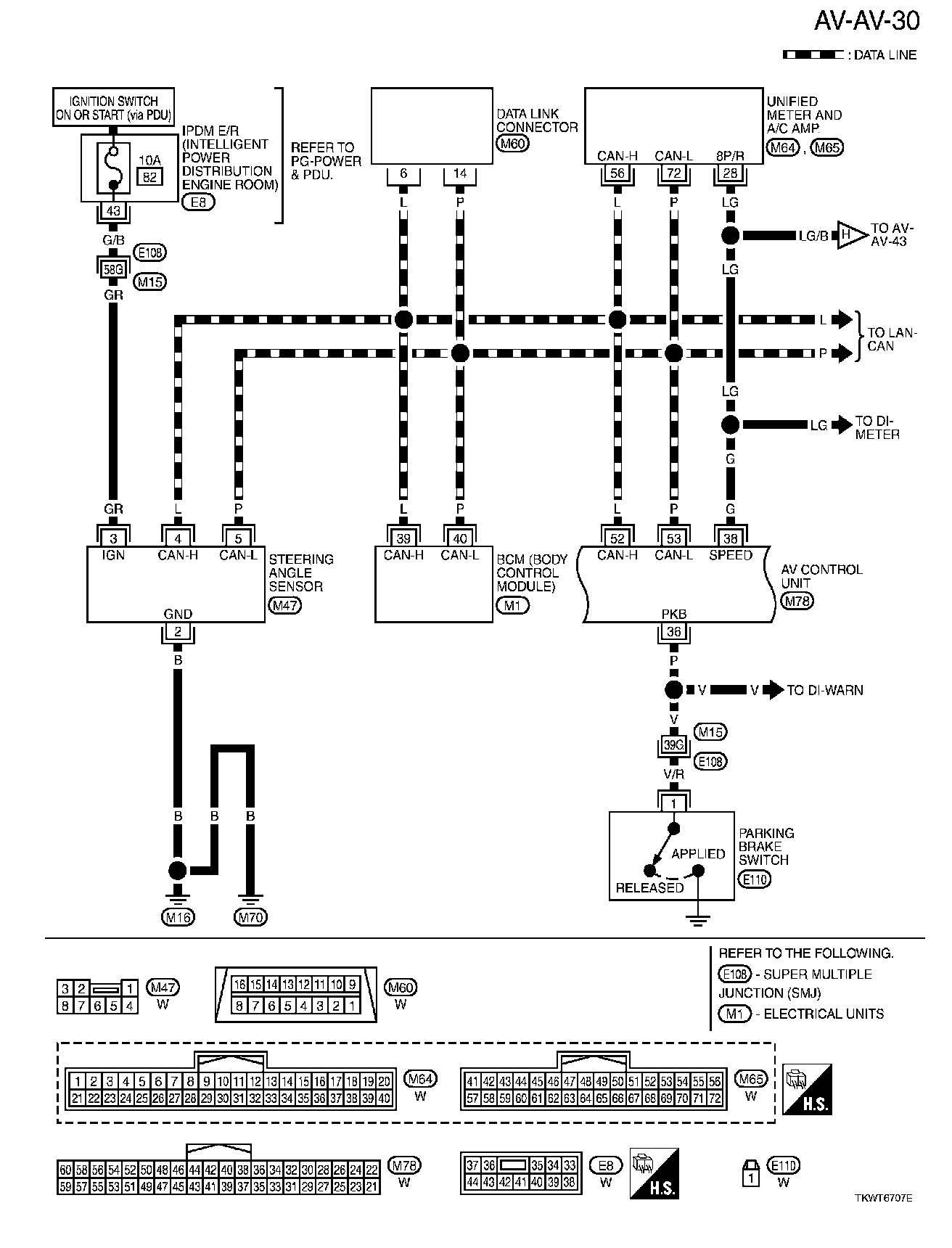

AV-AV-28:

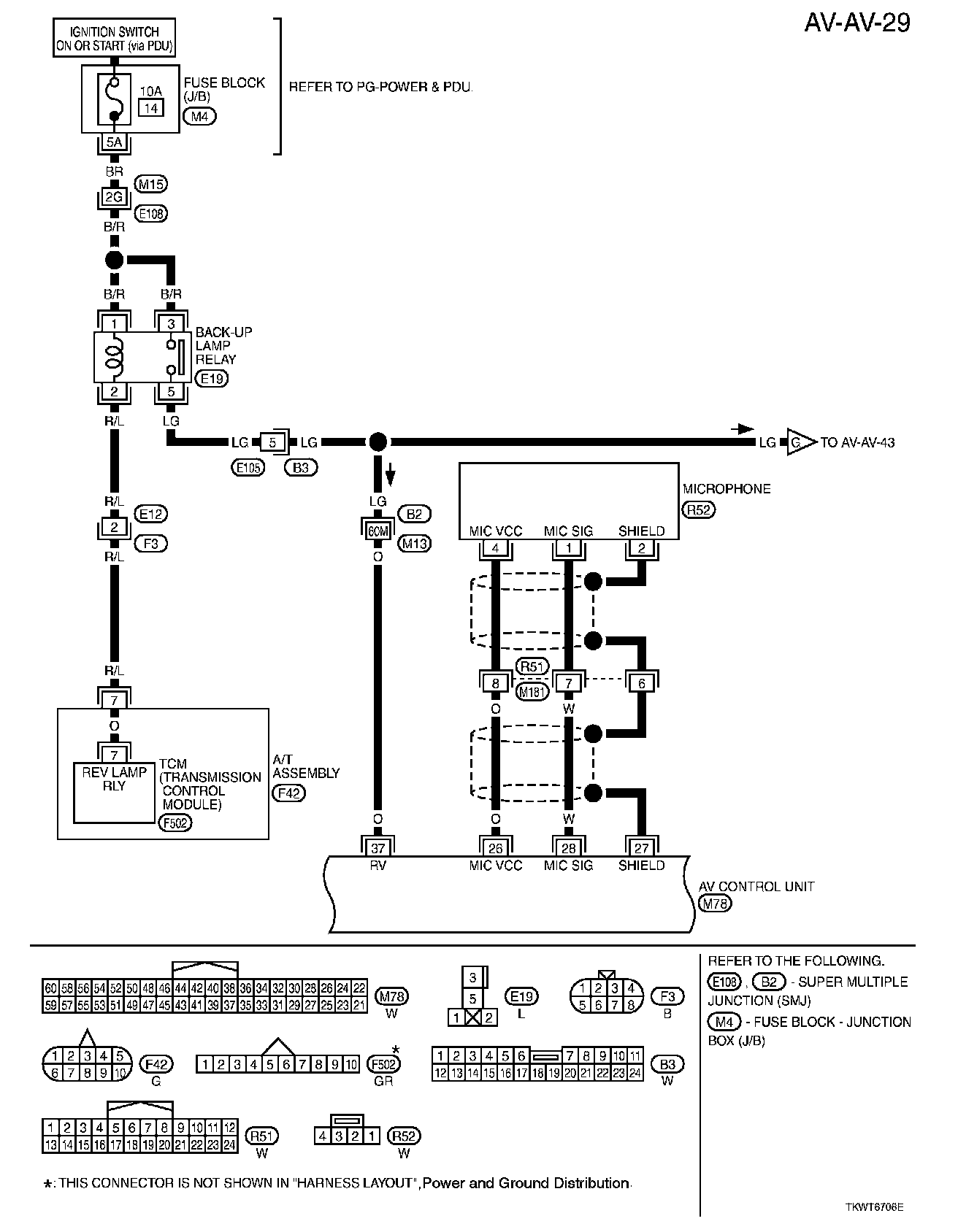

AV-AV-29:

AV-AV-30:

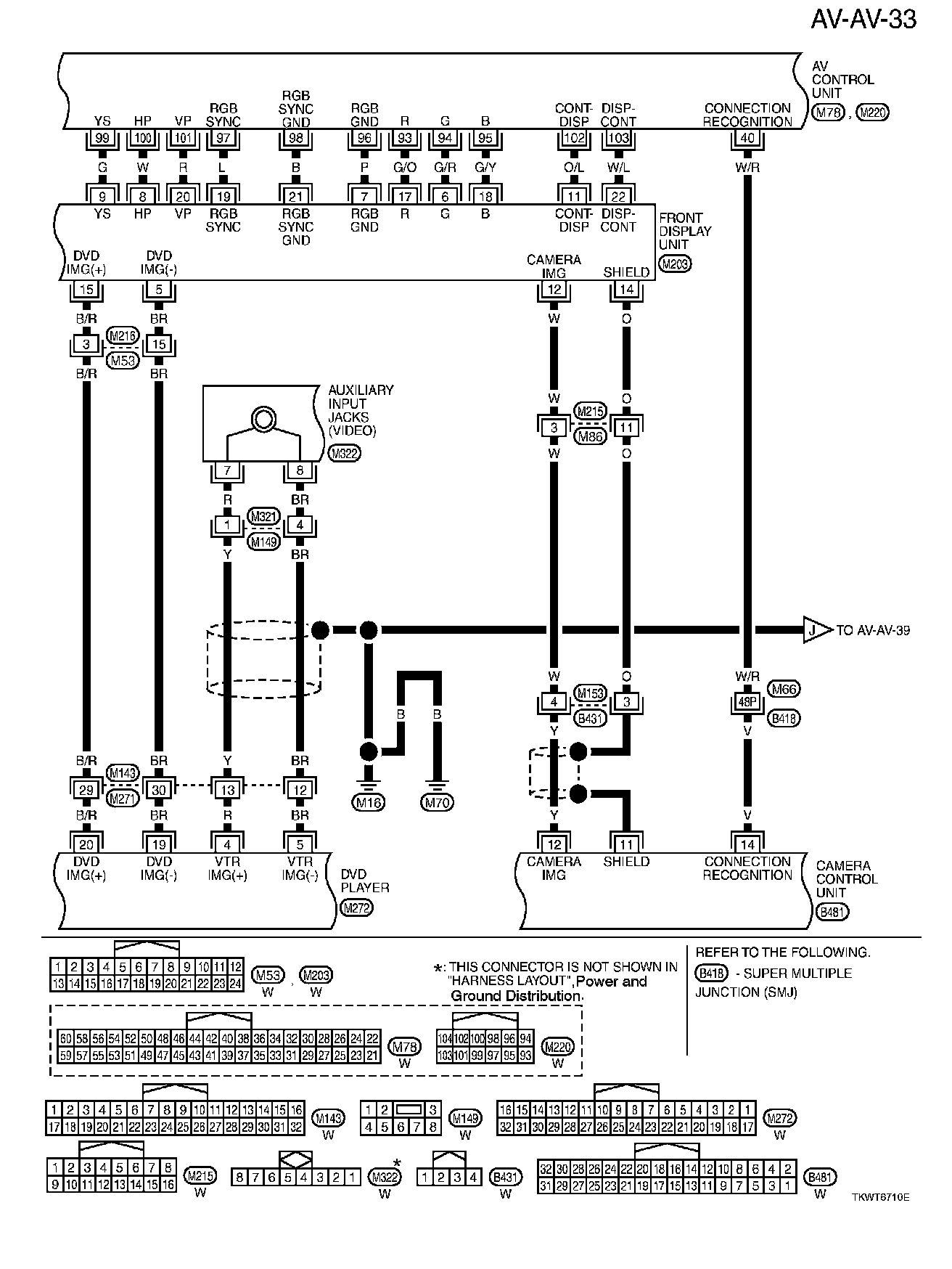

AV-AV-31:

AV-AV-32:

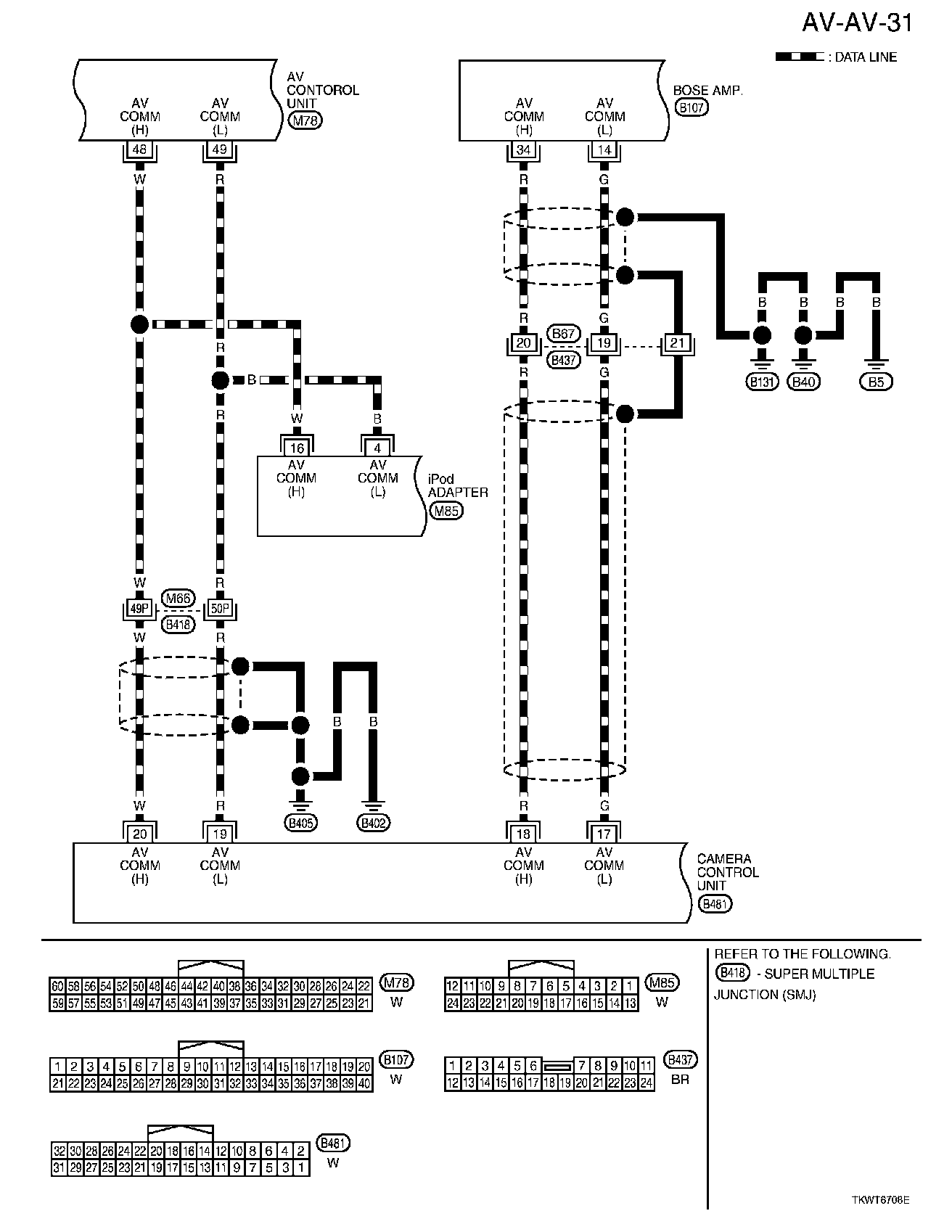

AV-AV-33:

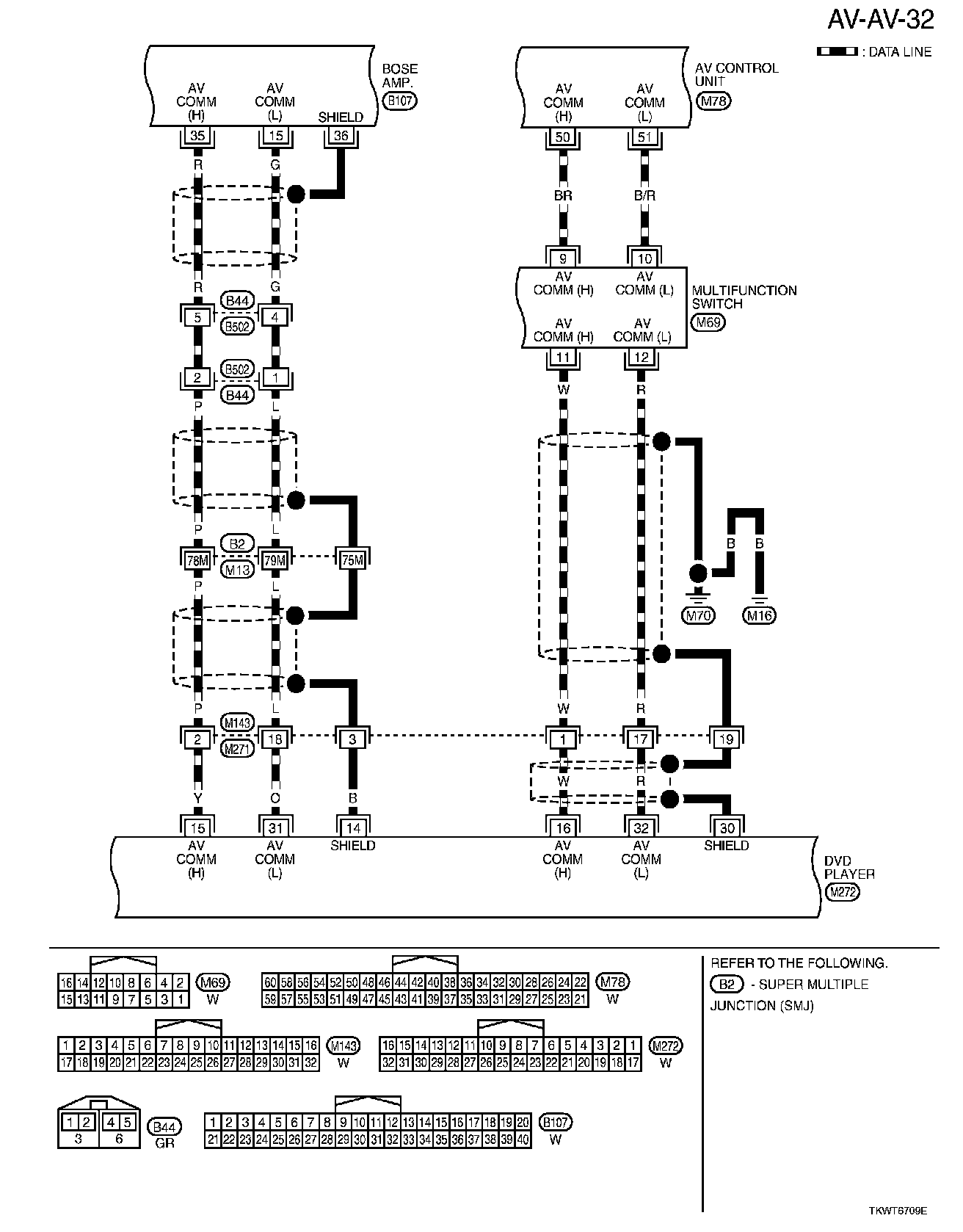

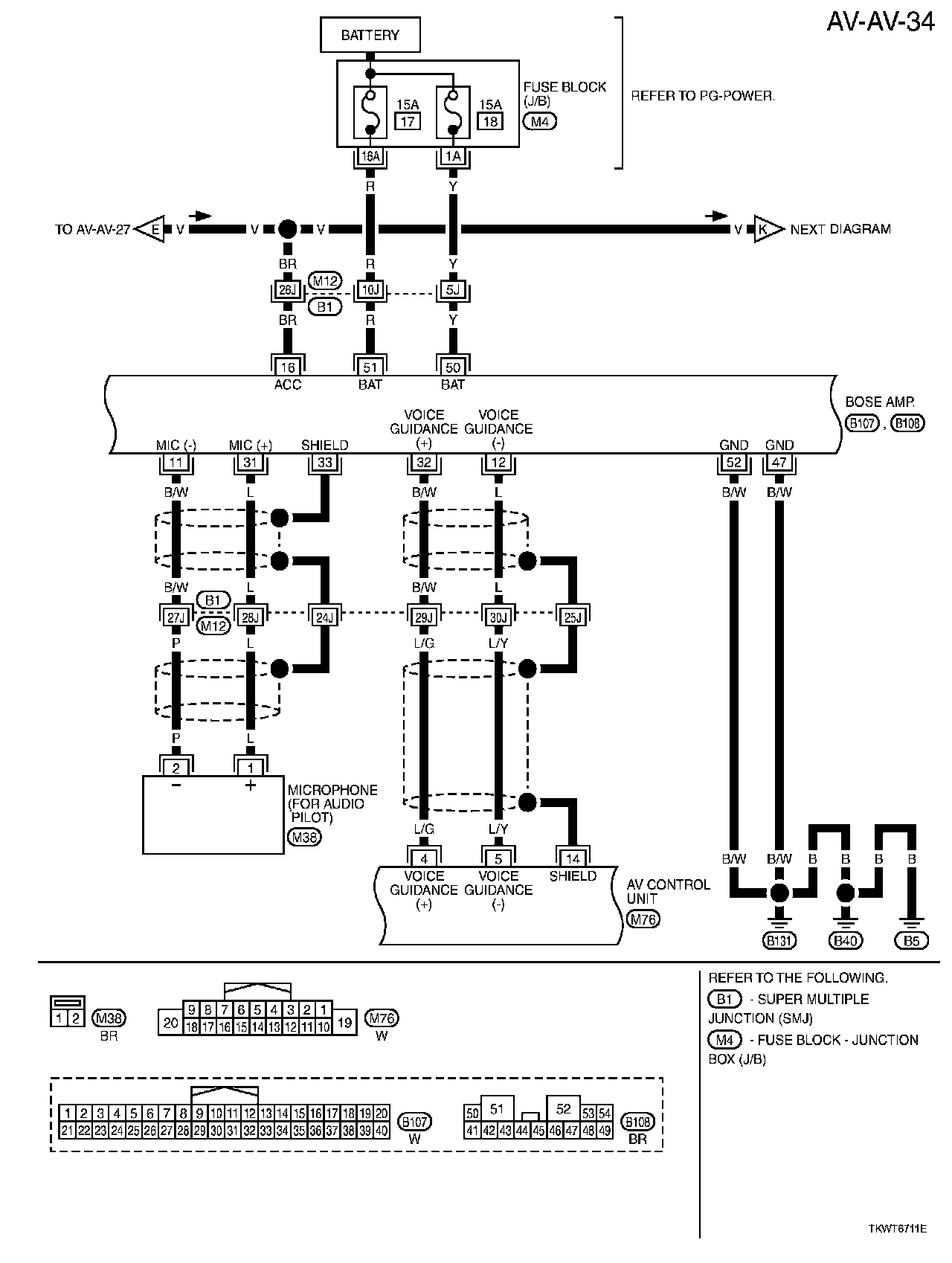

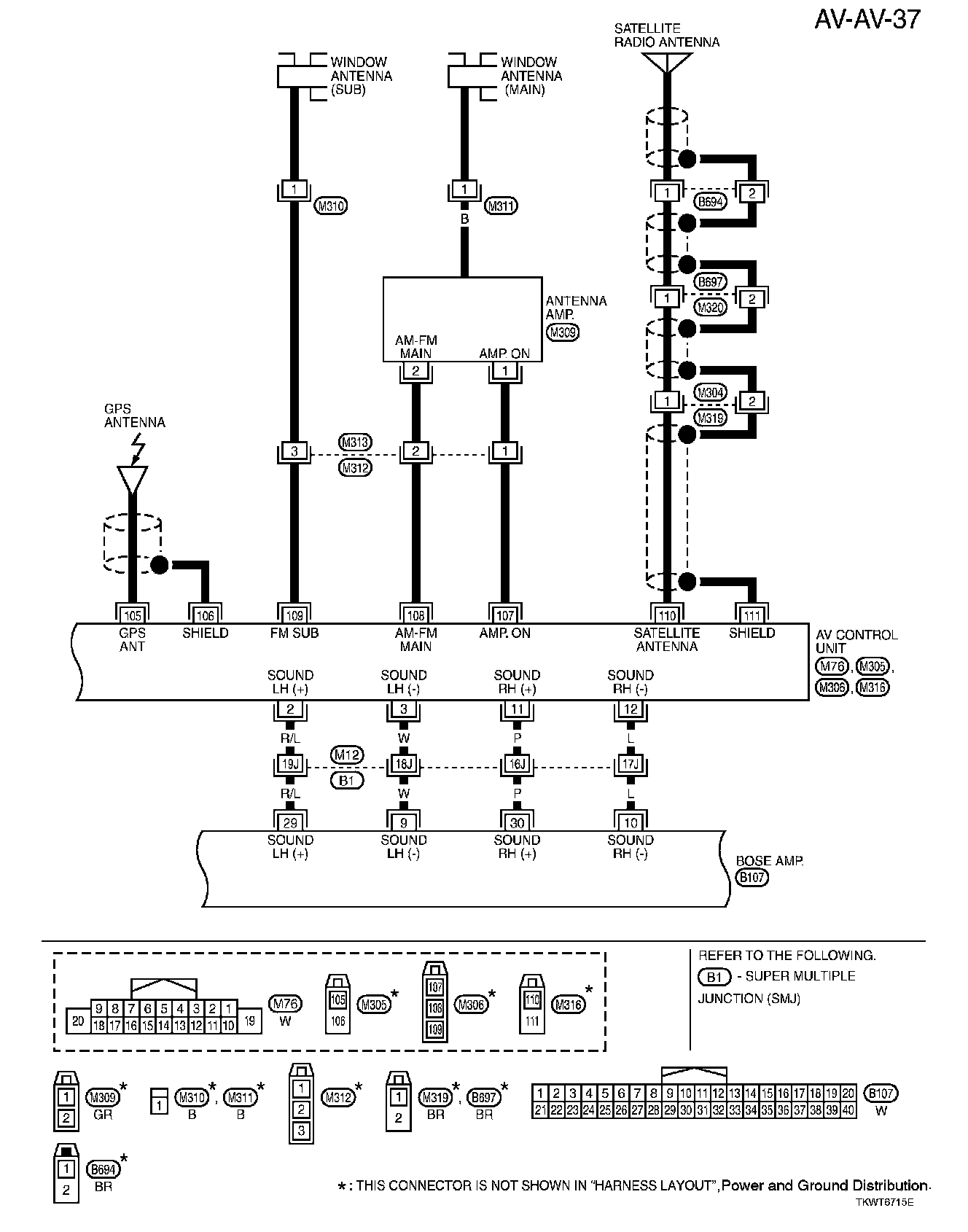

AV-AV-34:

AV-AV-35:

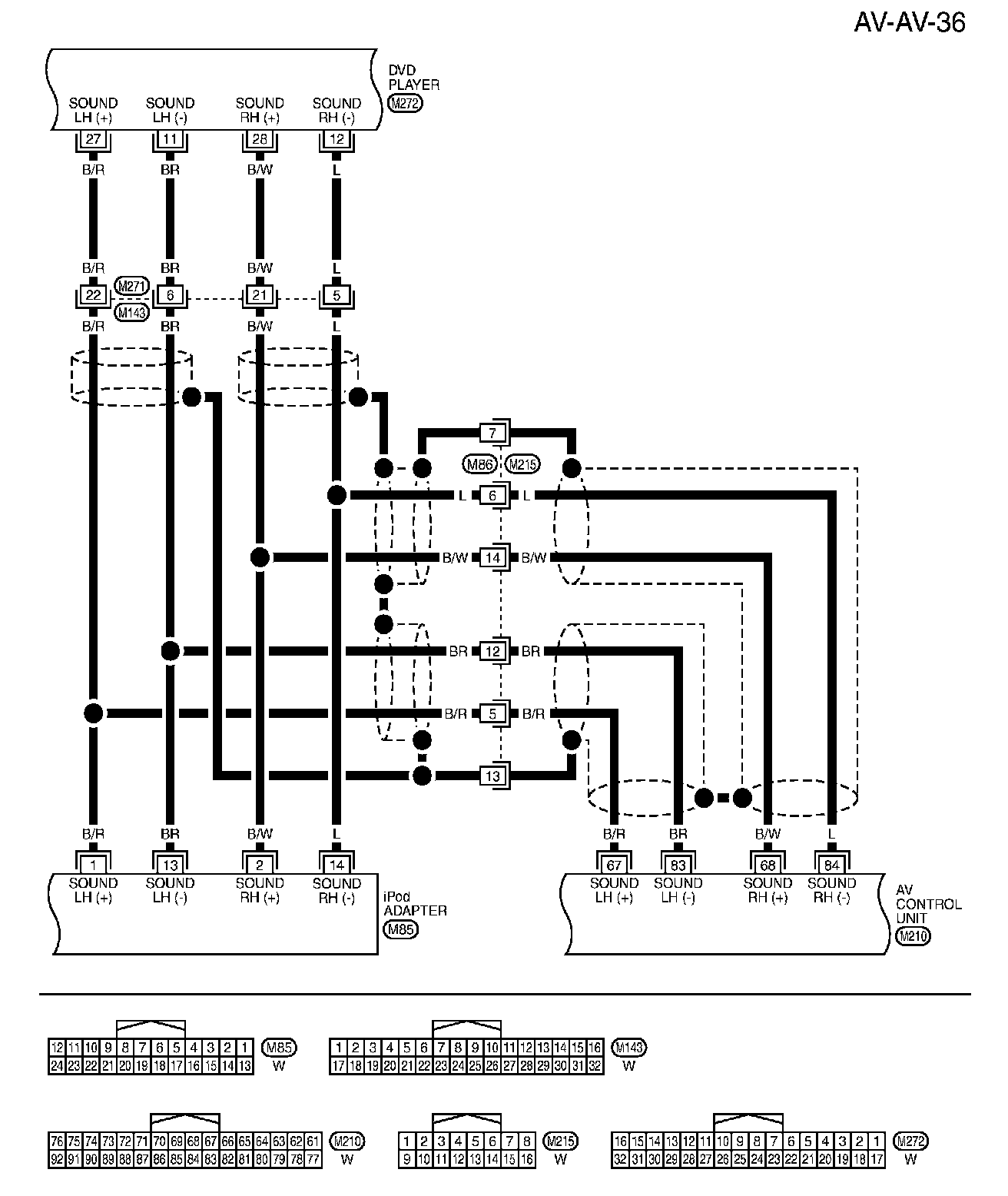

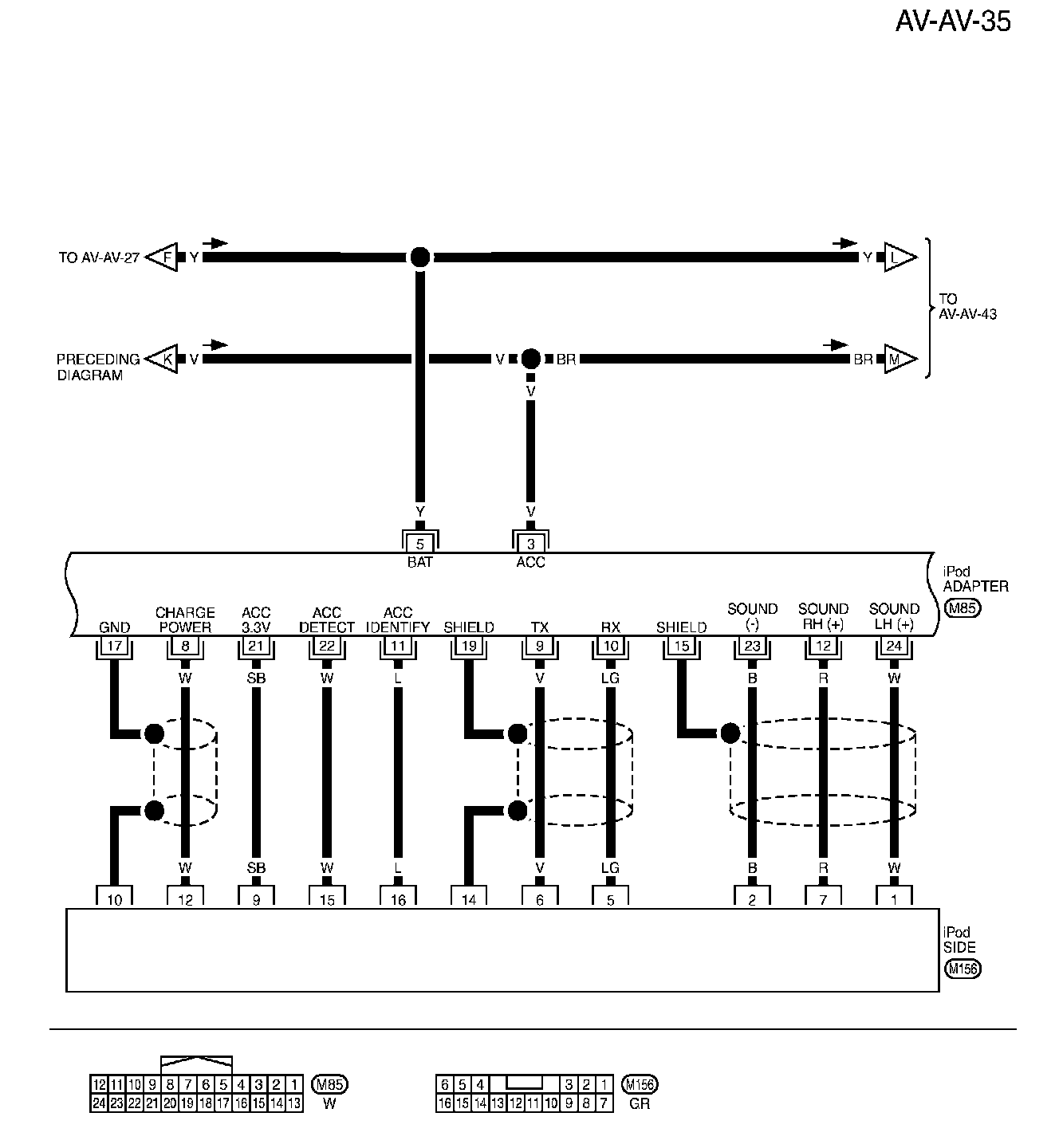

AV-AV-36:

AV-AV-37:

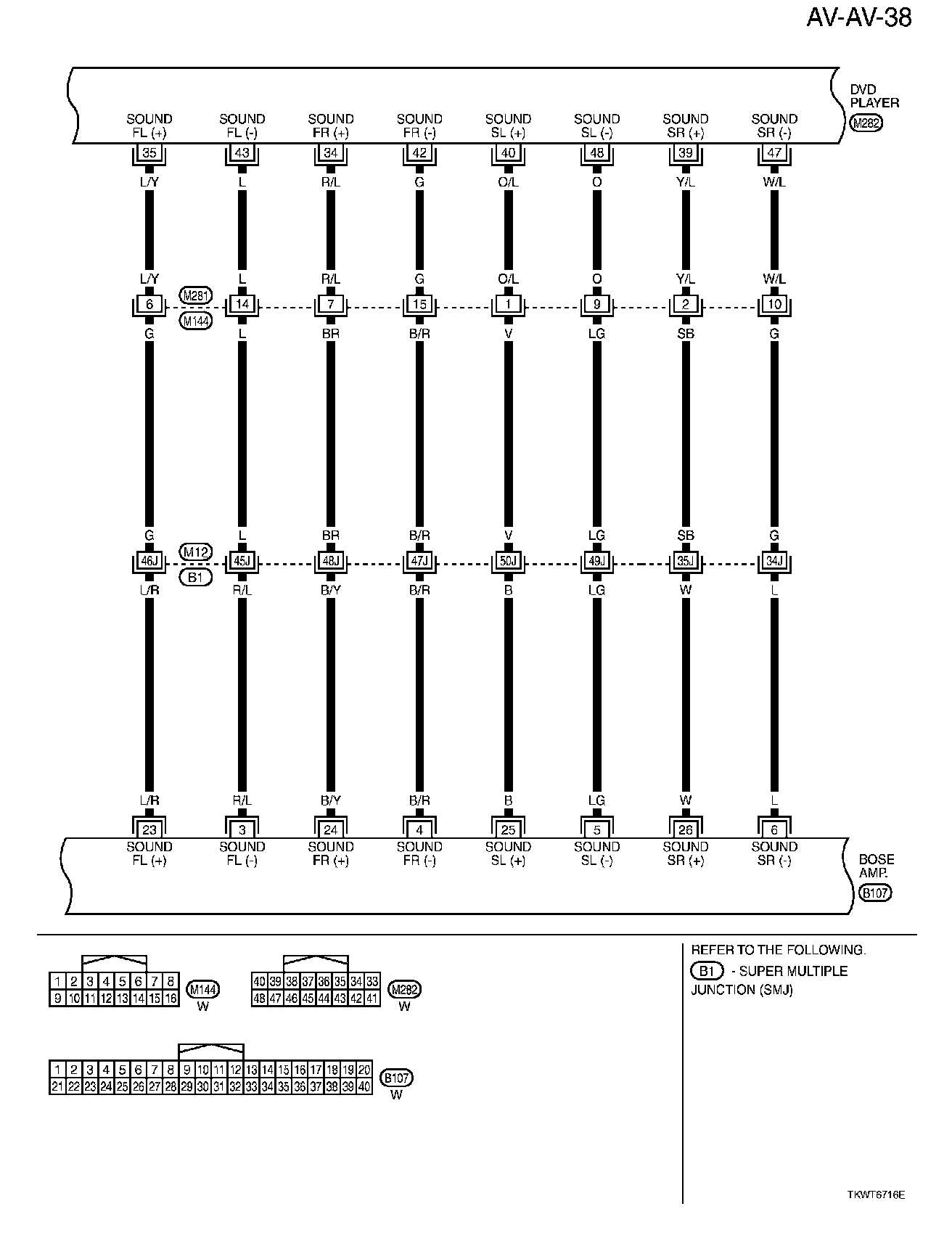

AV-AV-38:

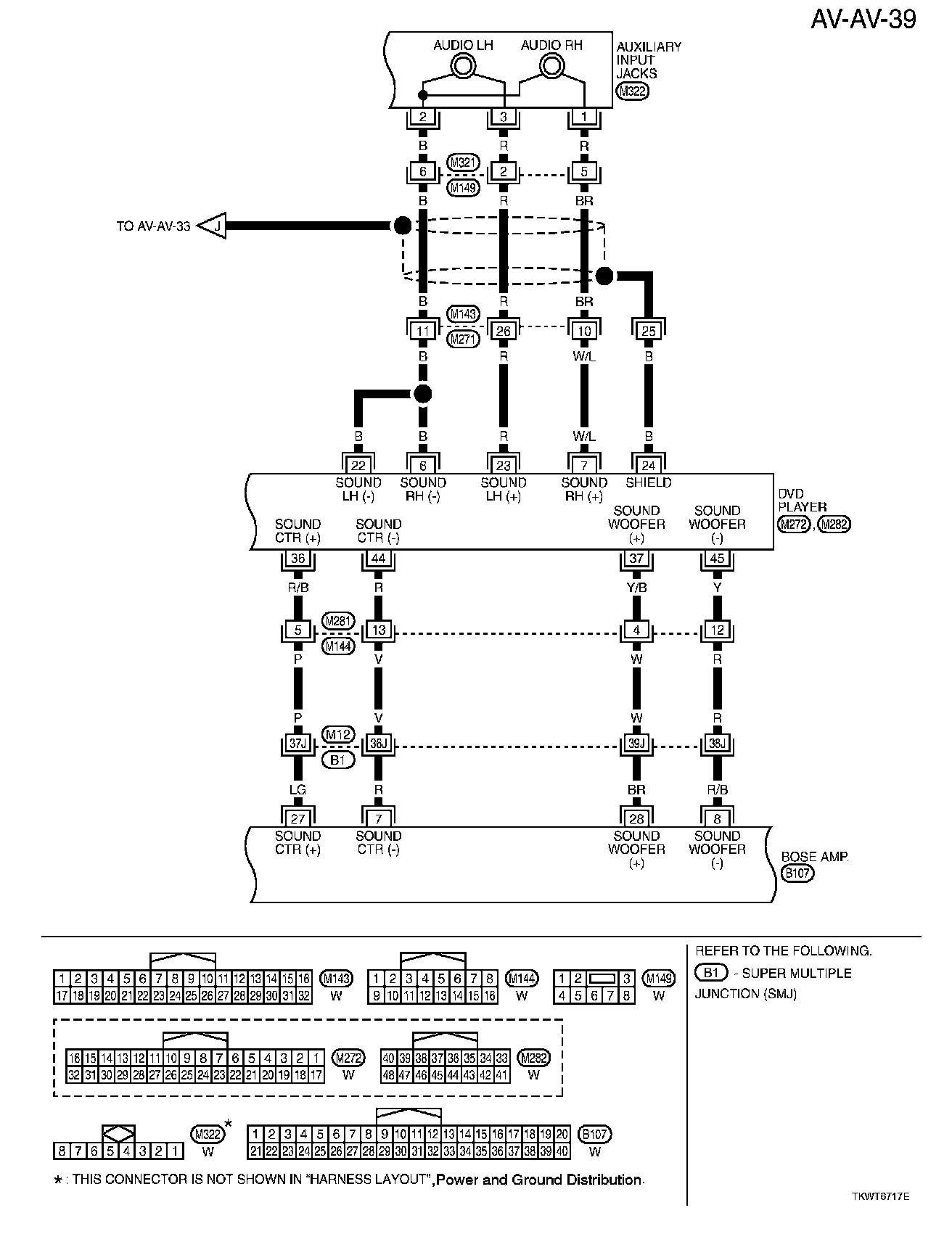

AV-AV-39:

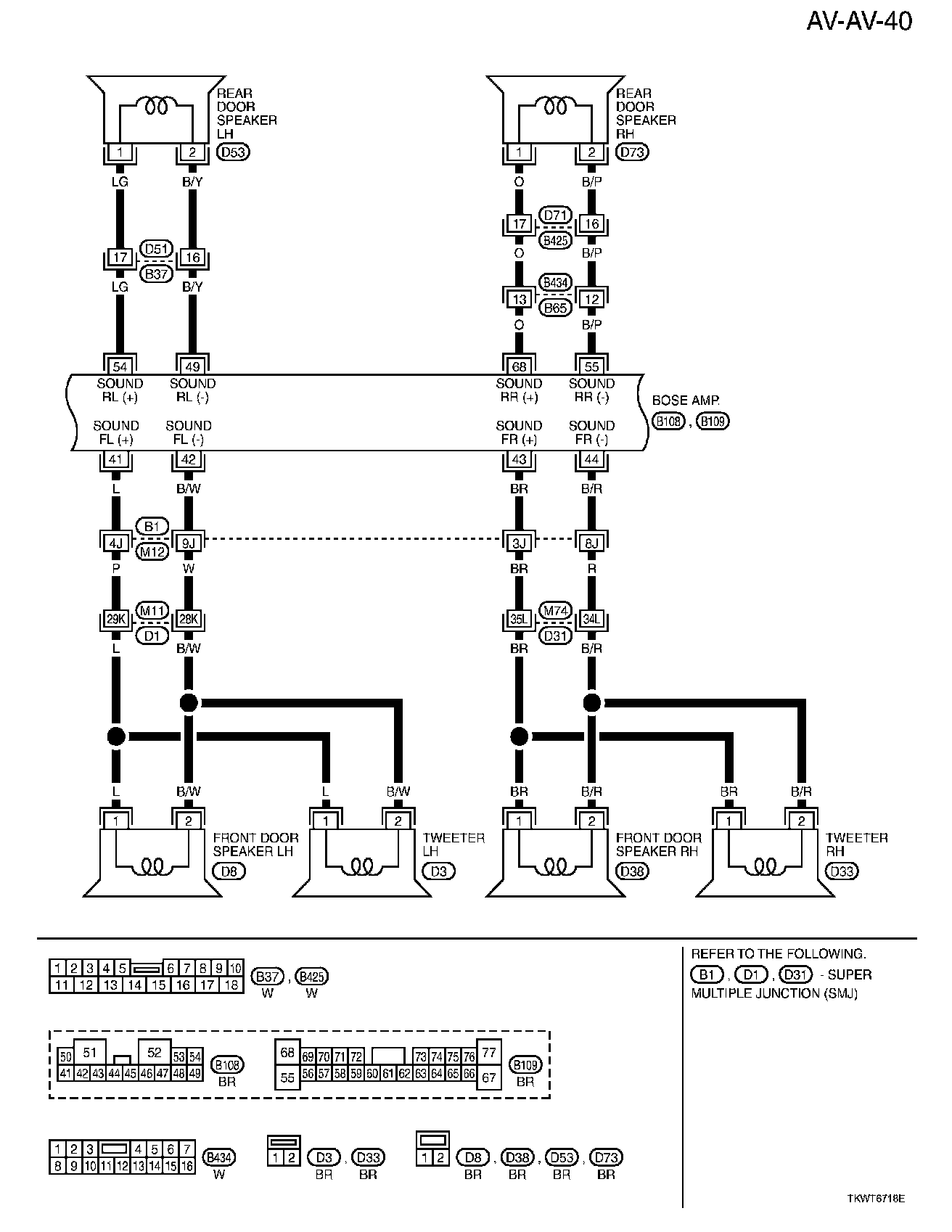

AV-AV-40:

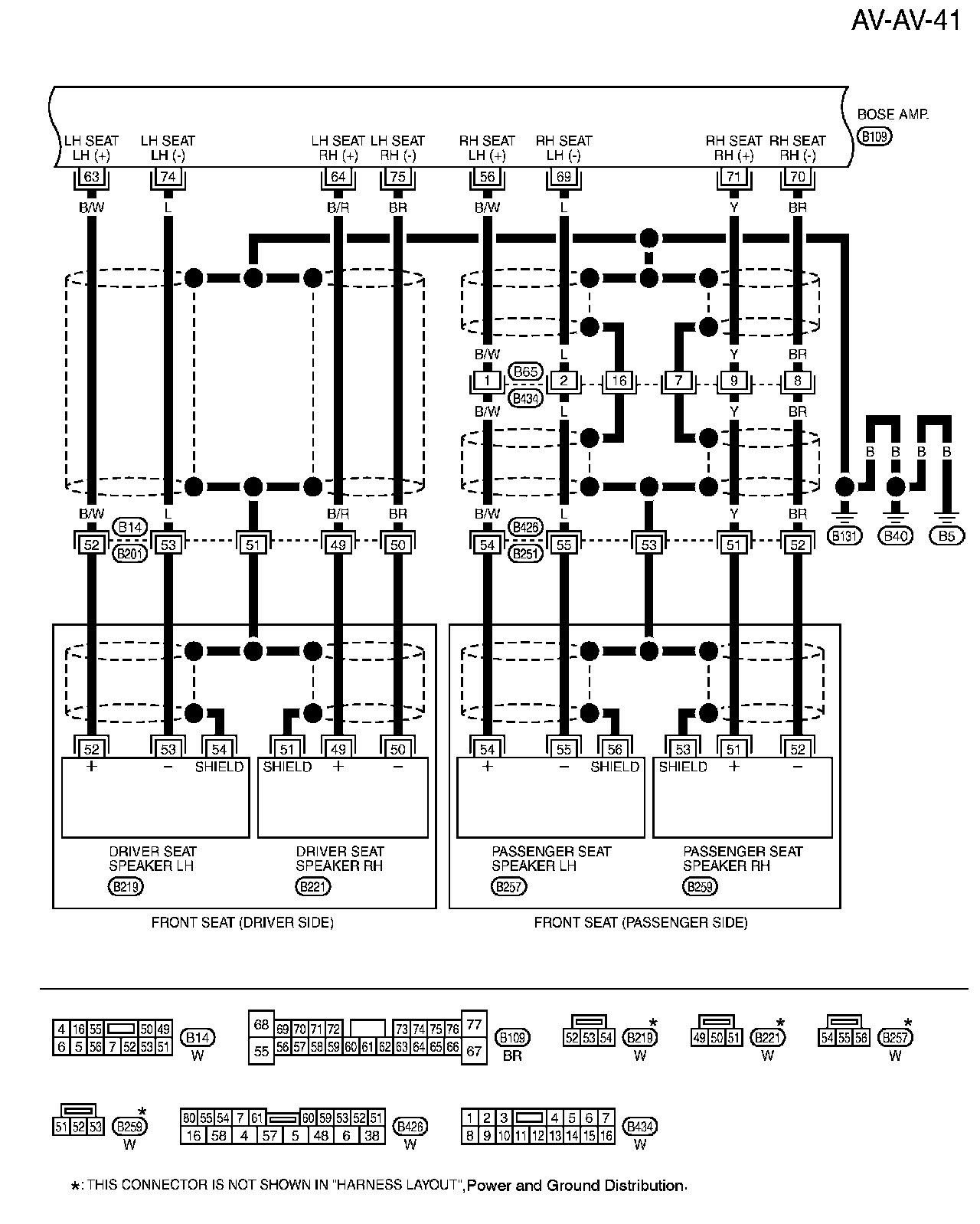

AV-AV-41:

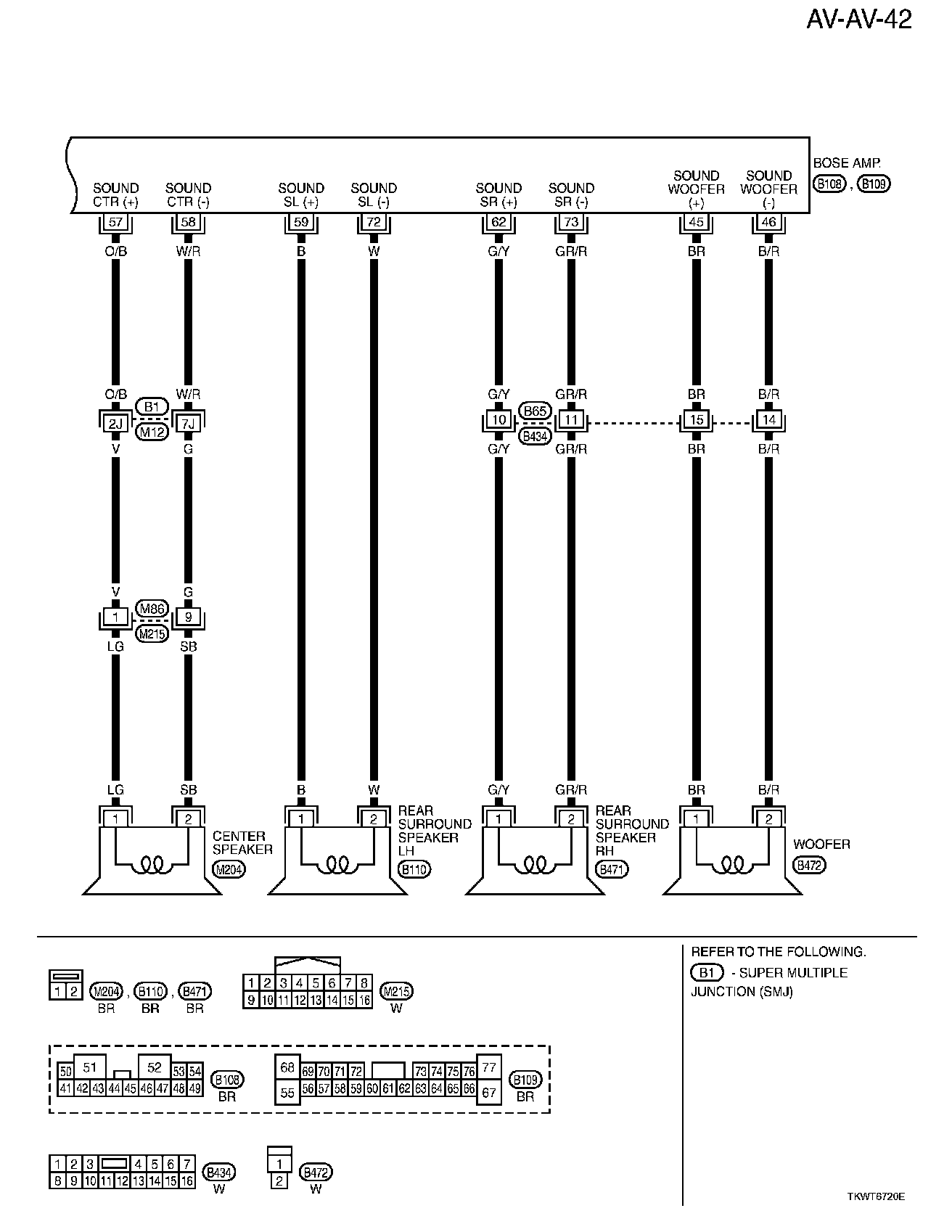

AV-AV-42:

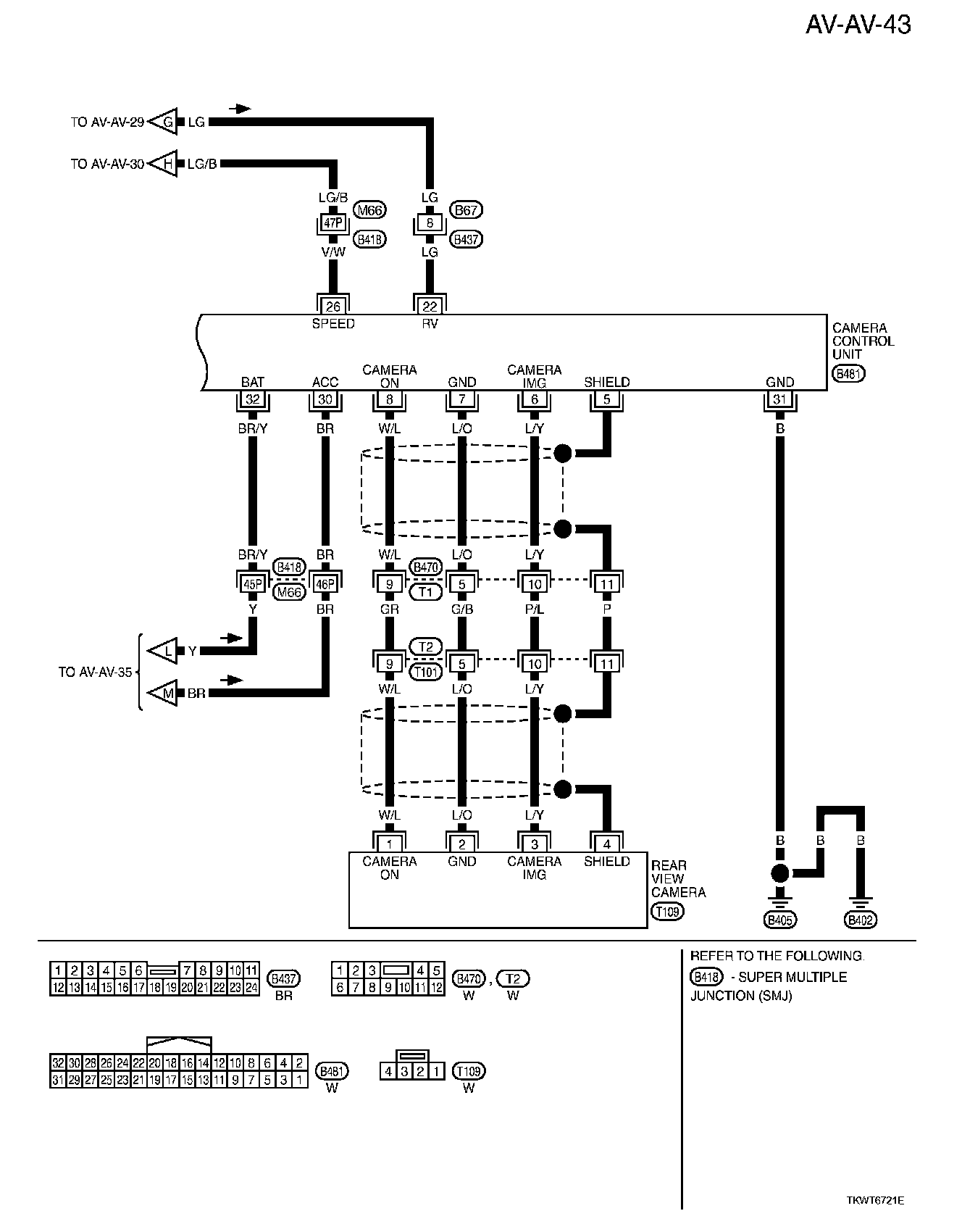

AV-AV-43:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
