Bose Surround Audio 5.1ch System

IPOD ADAPTER

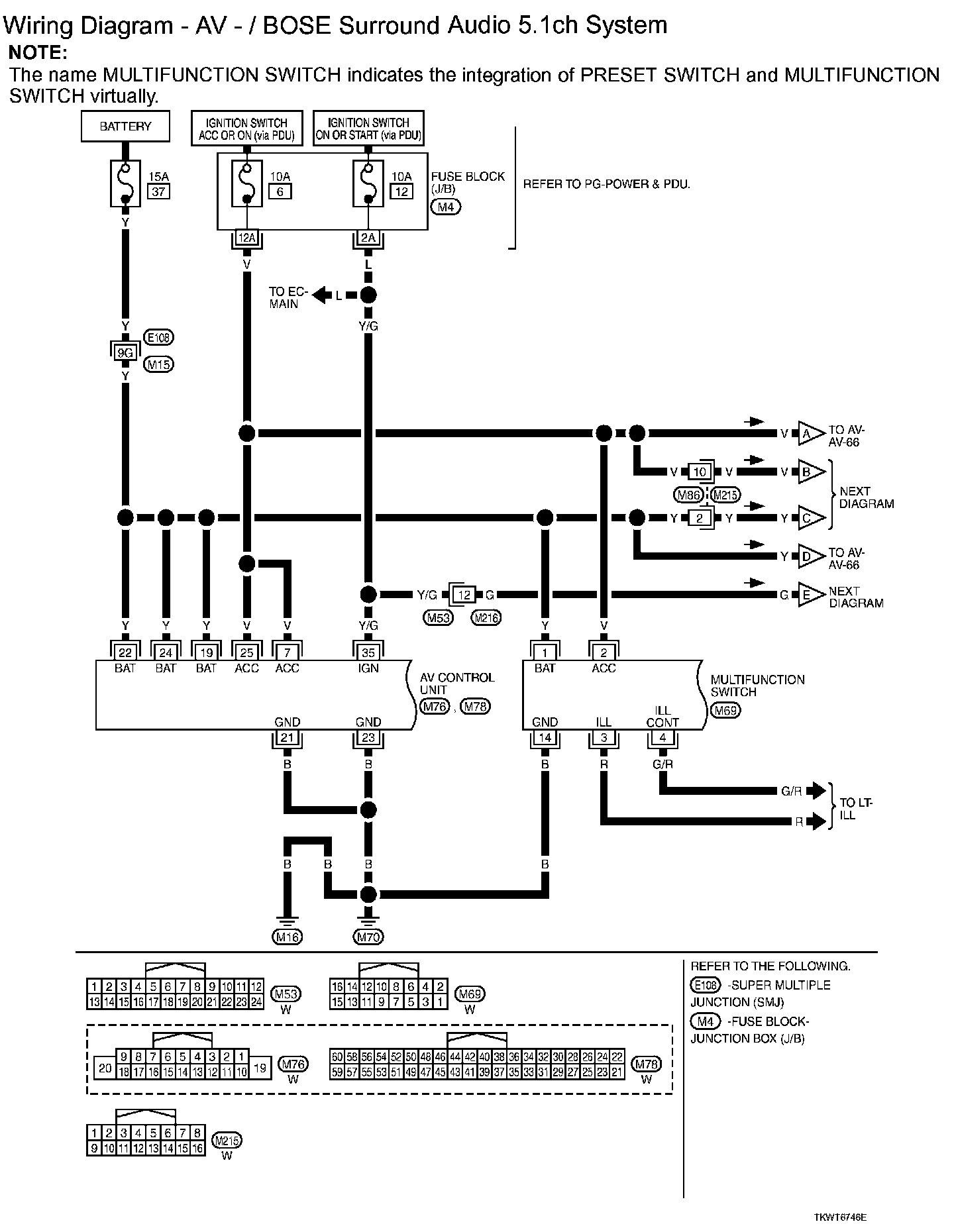

Wiring Diagram - AV - / BOSE Surround Audio 5.1ch System

AV-AV-64:

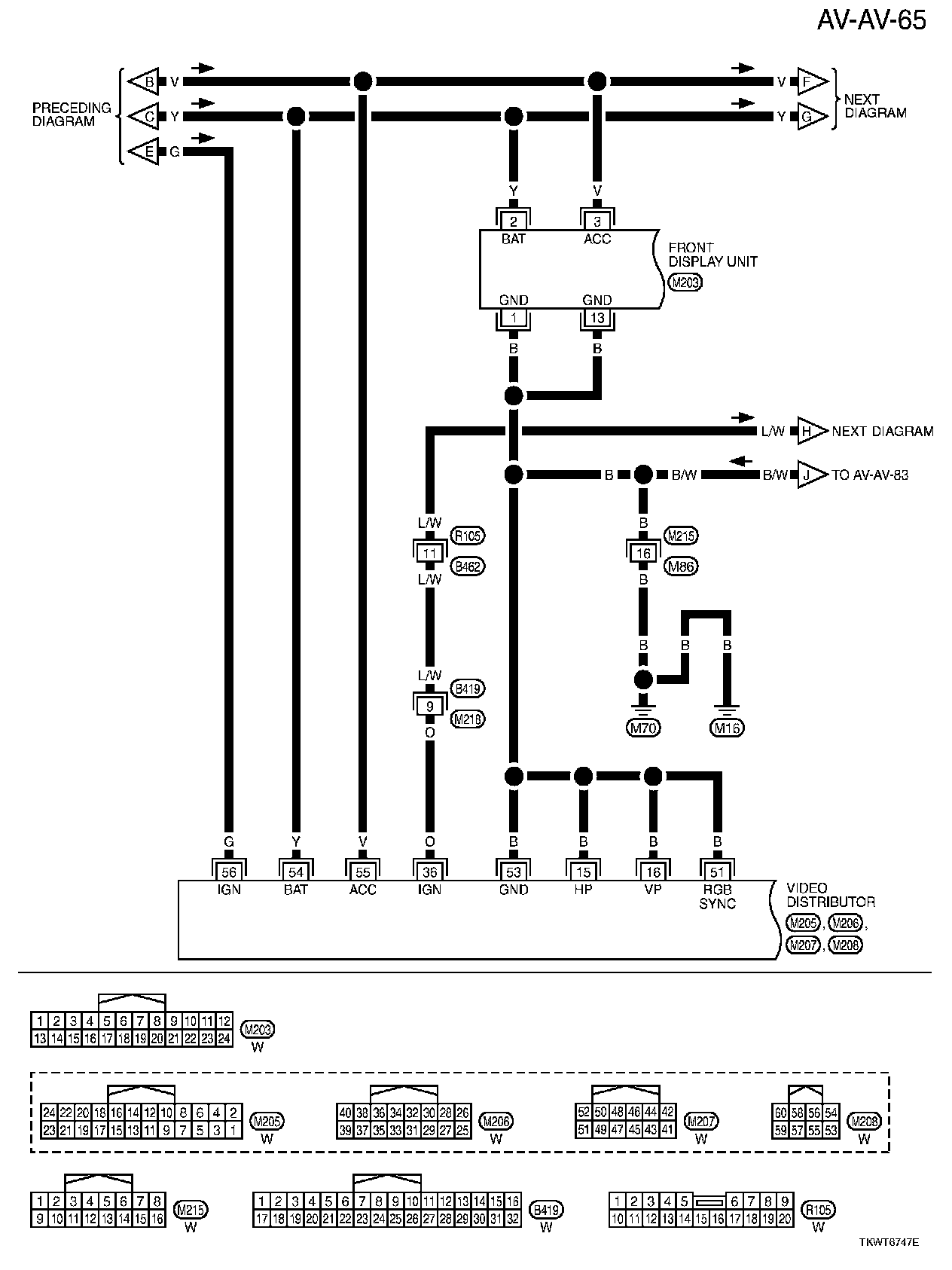

AV-AV-65:

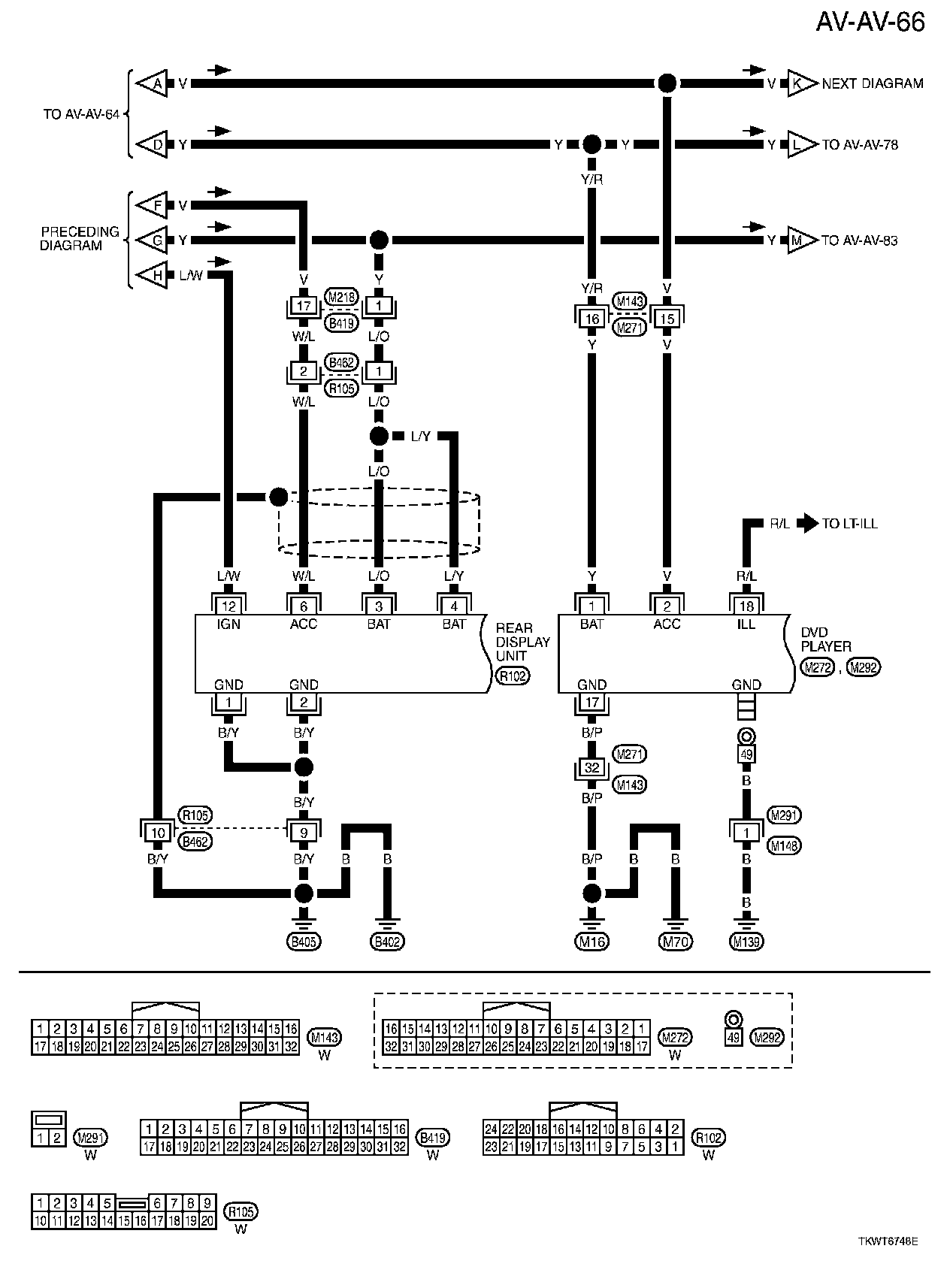

AV-AV-66:

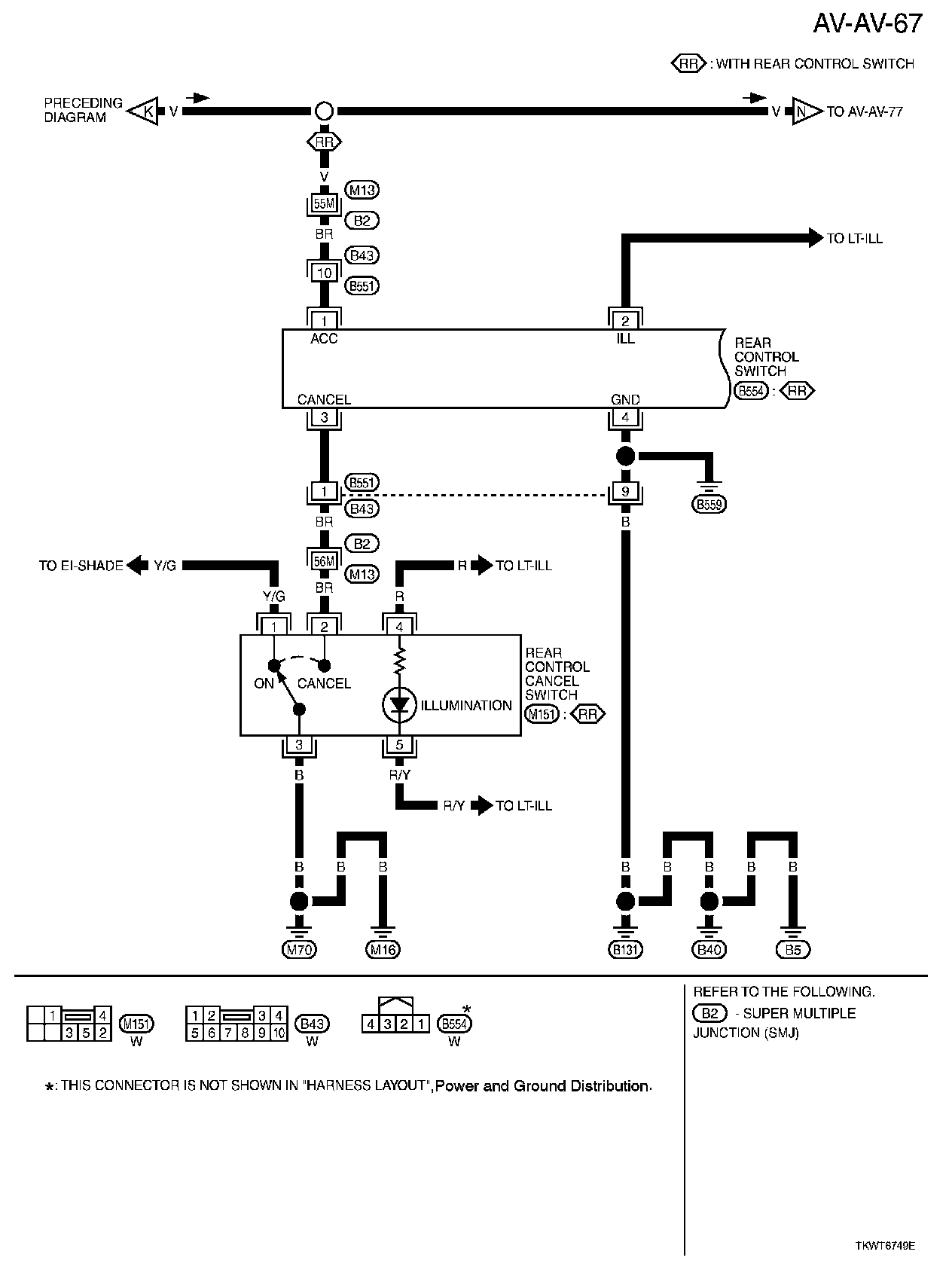

AV-AV-67:

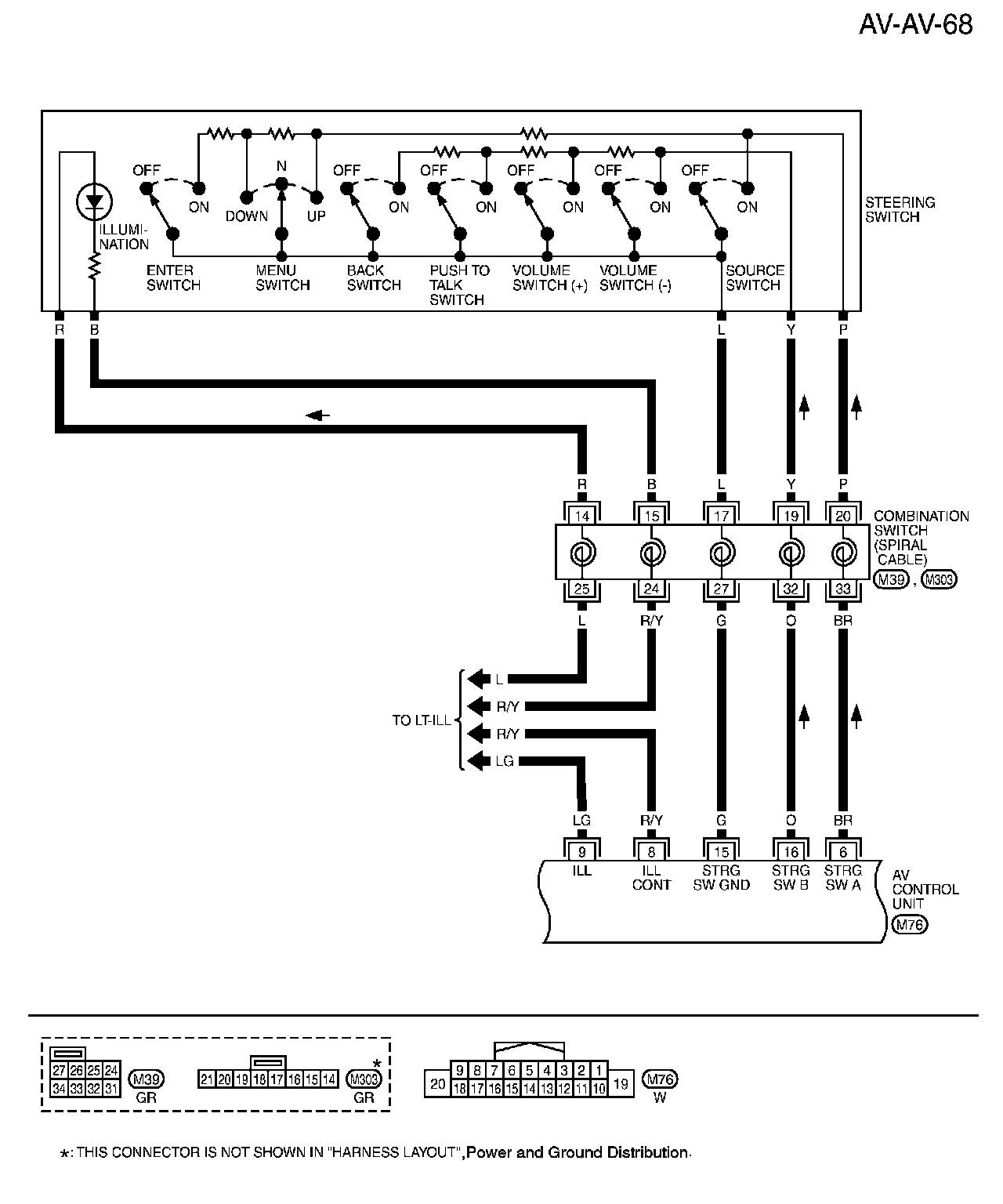

AV-AV-68:

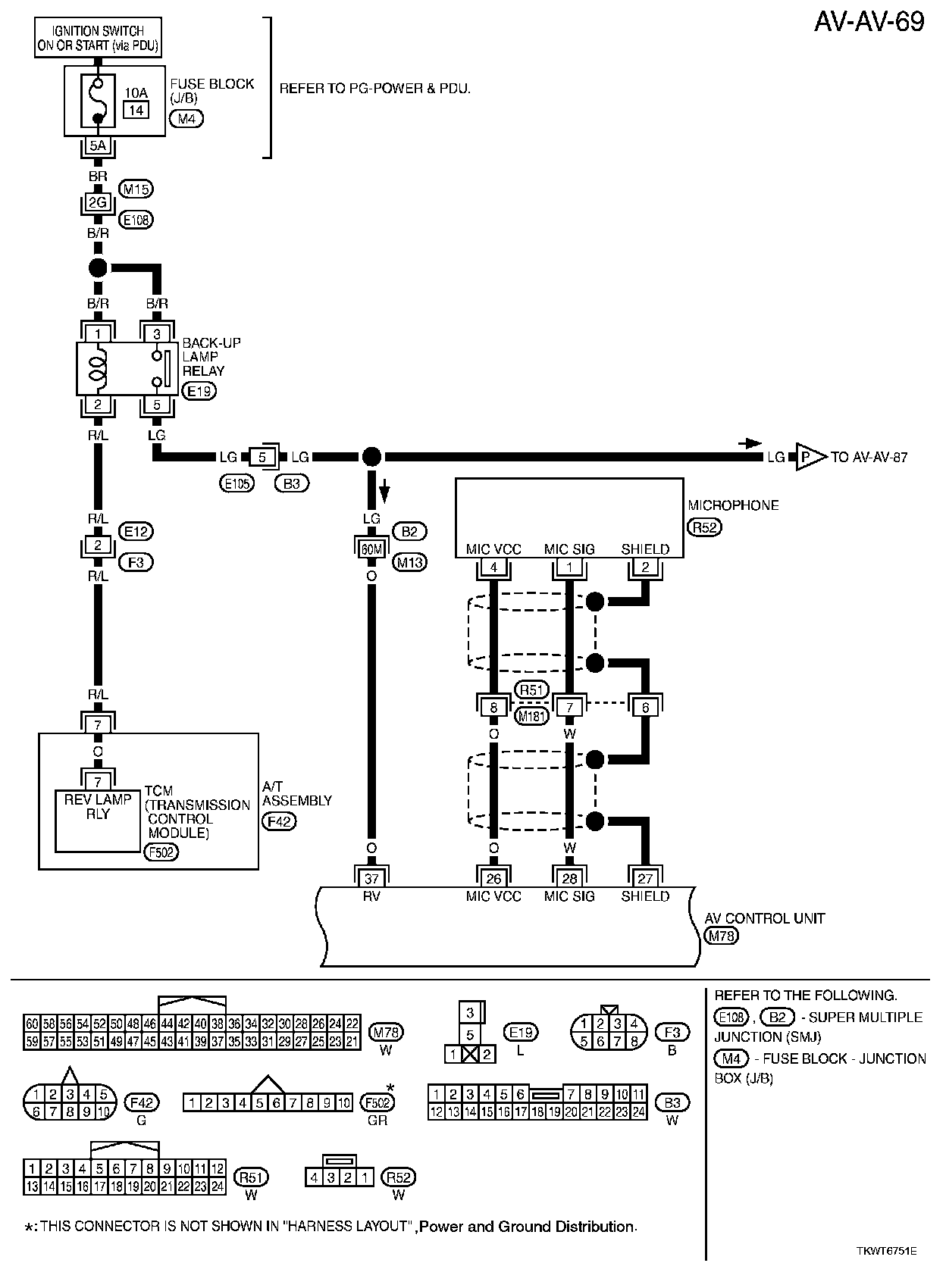

AV-AV-69:

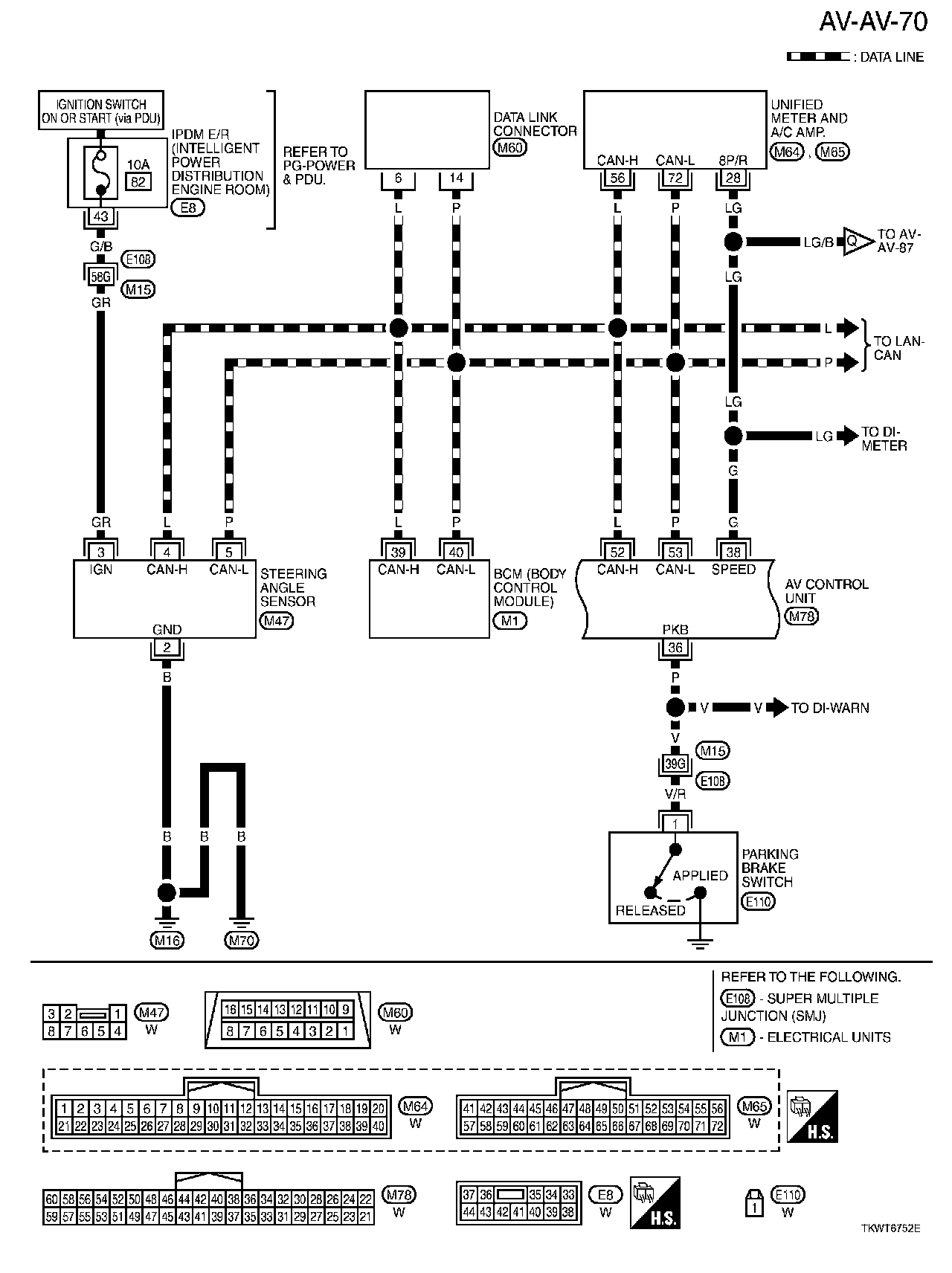

AV-AV-70:

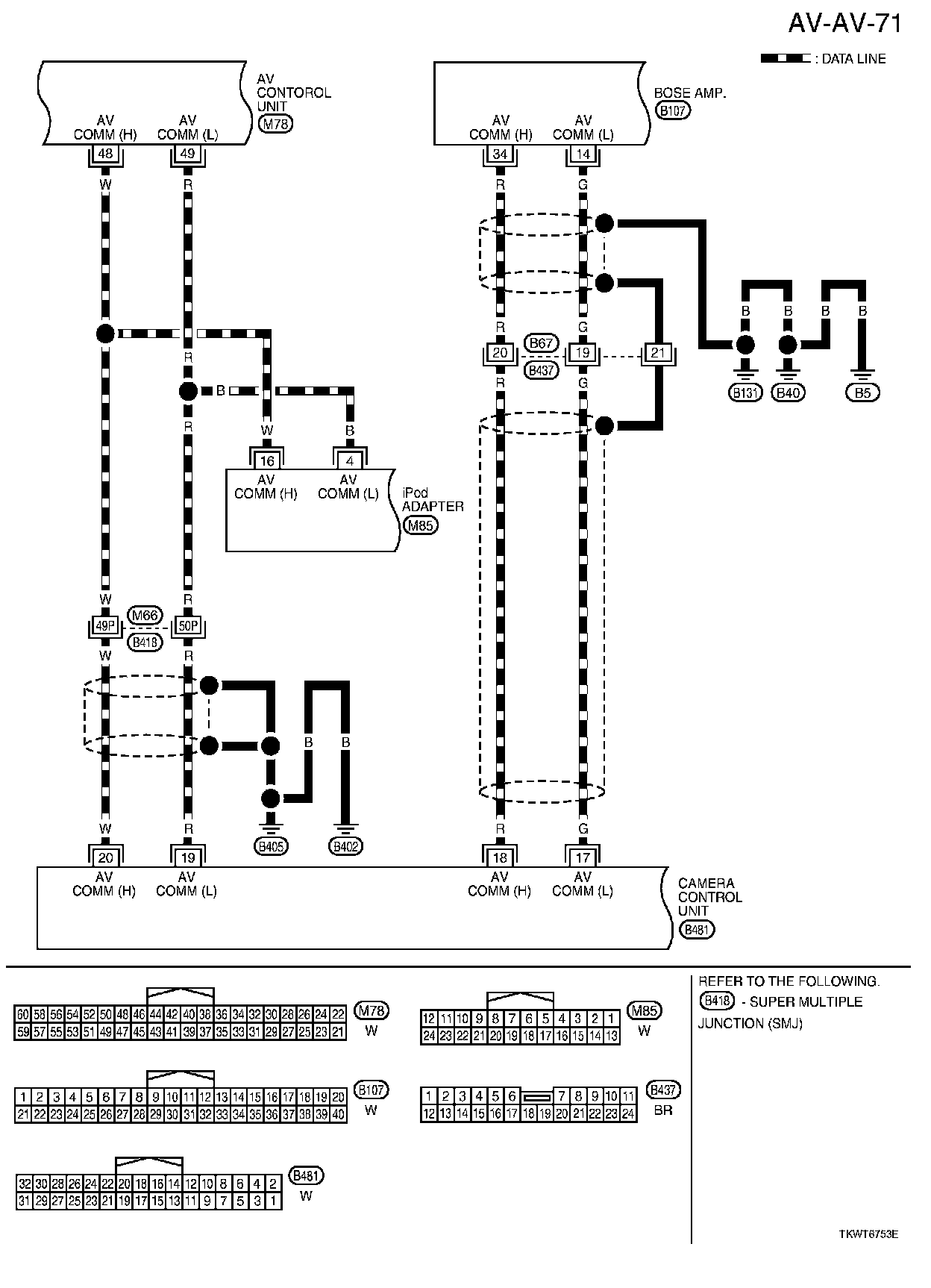

AV-AV-71:

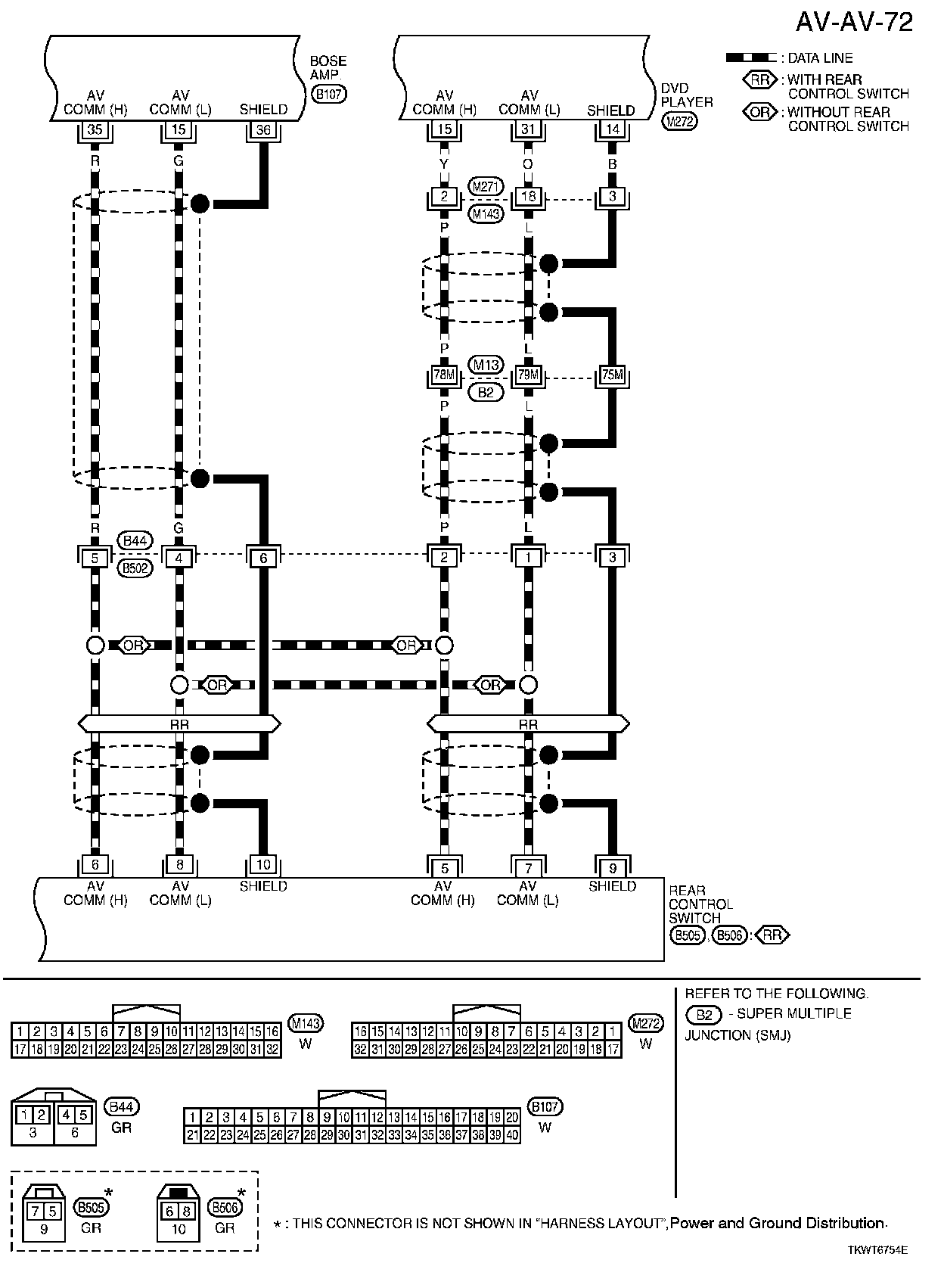

AV-AV-72:

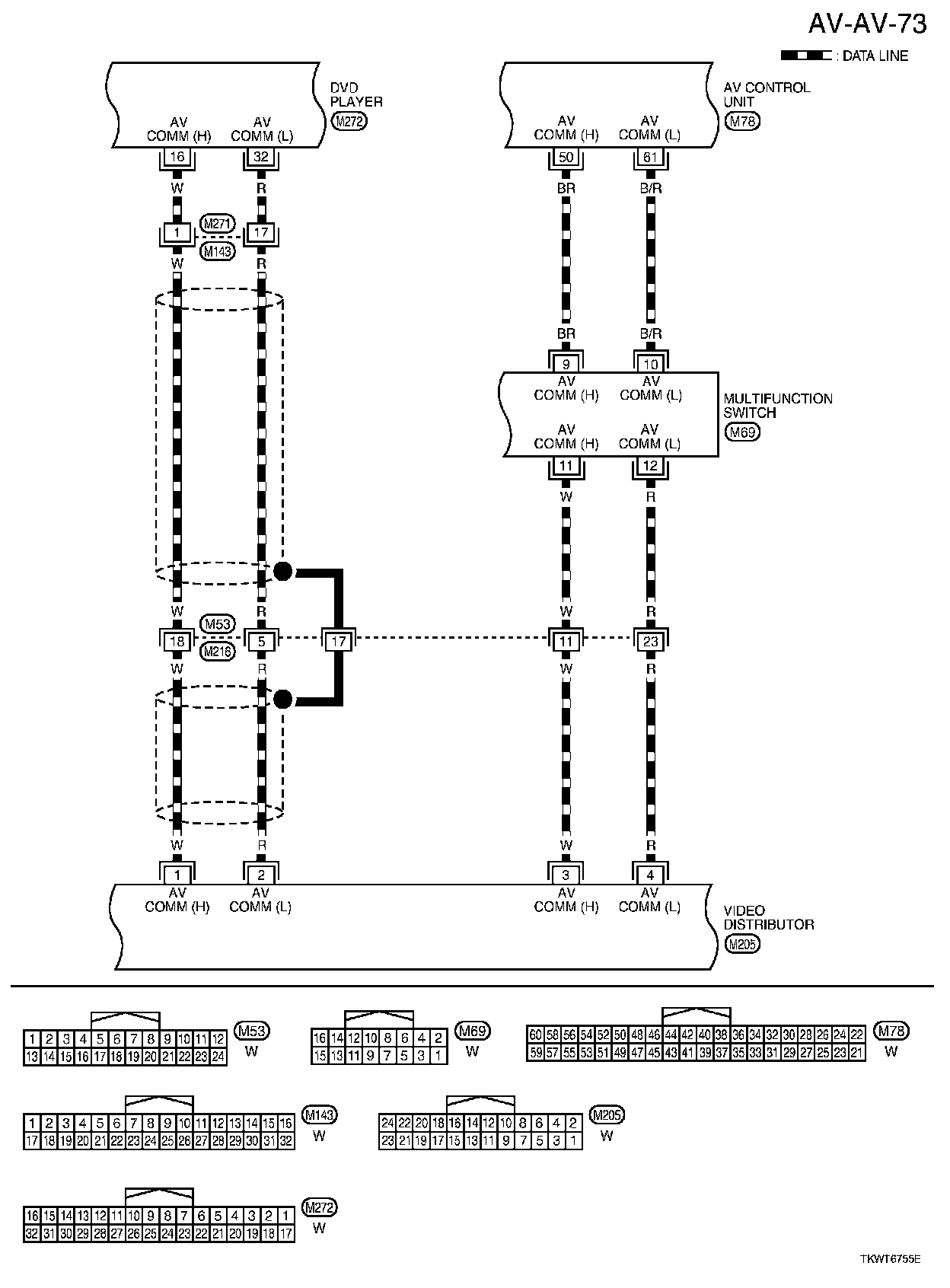

AV-AV-73:

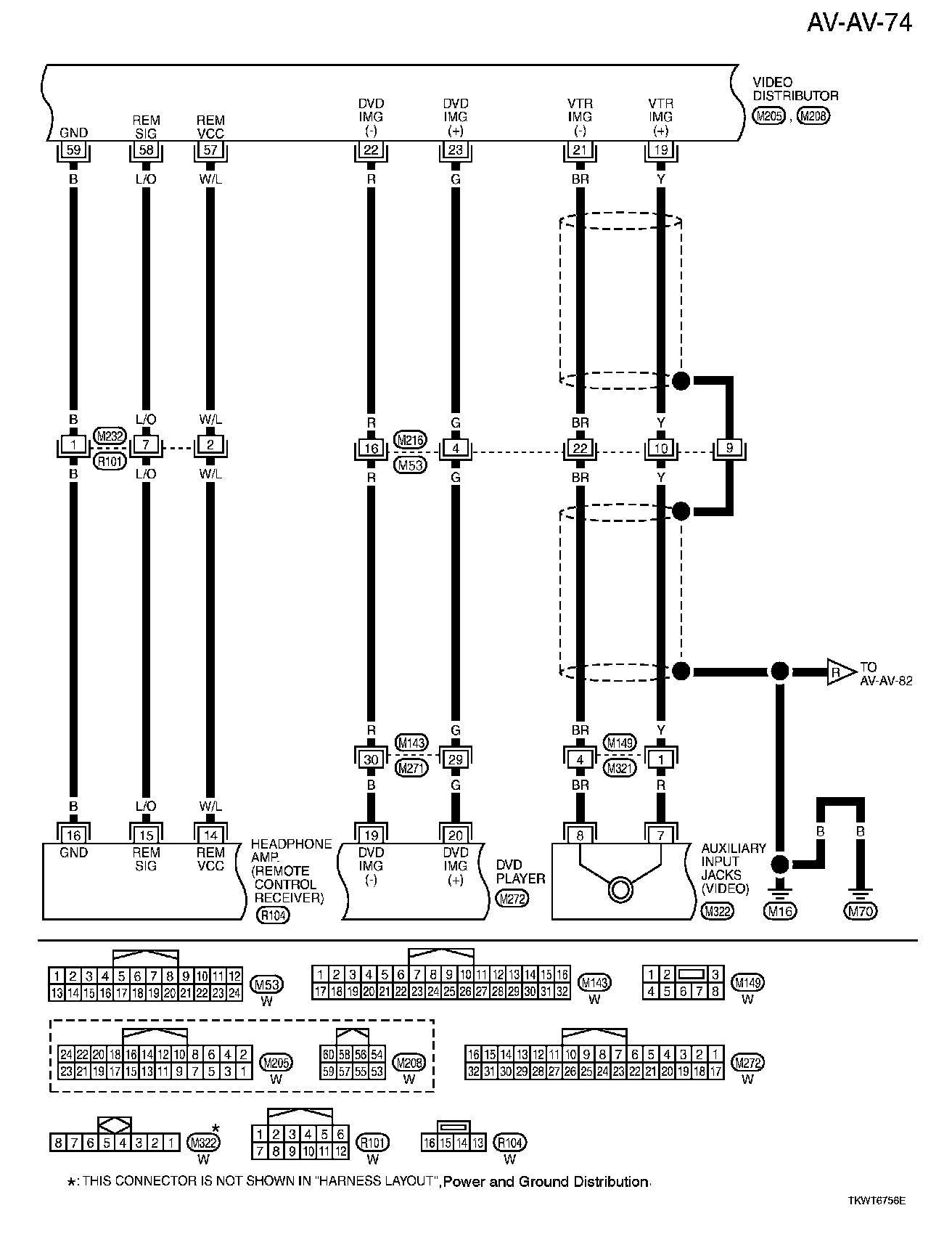

AV-AV-74:

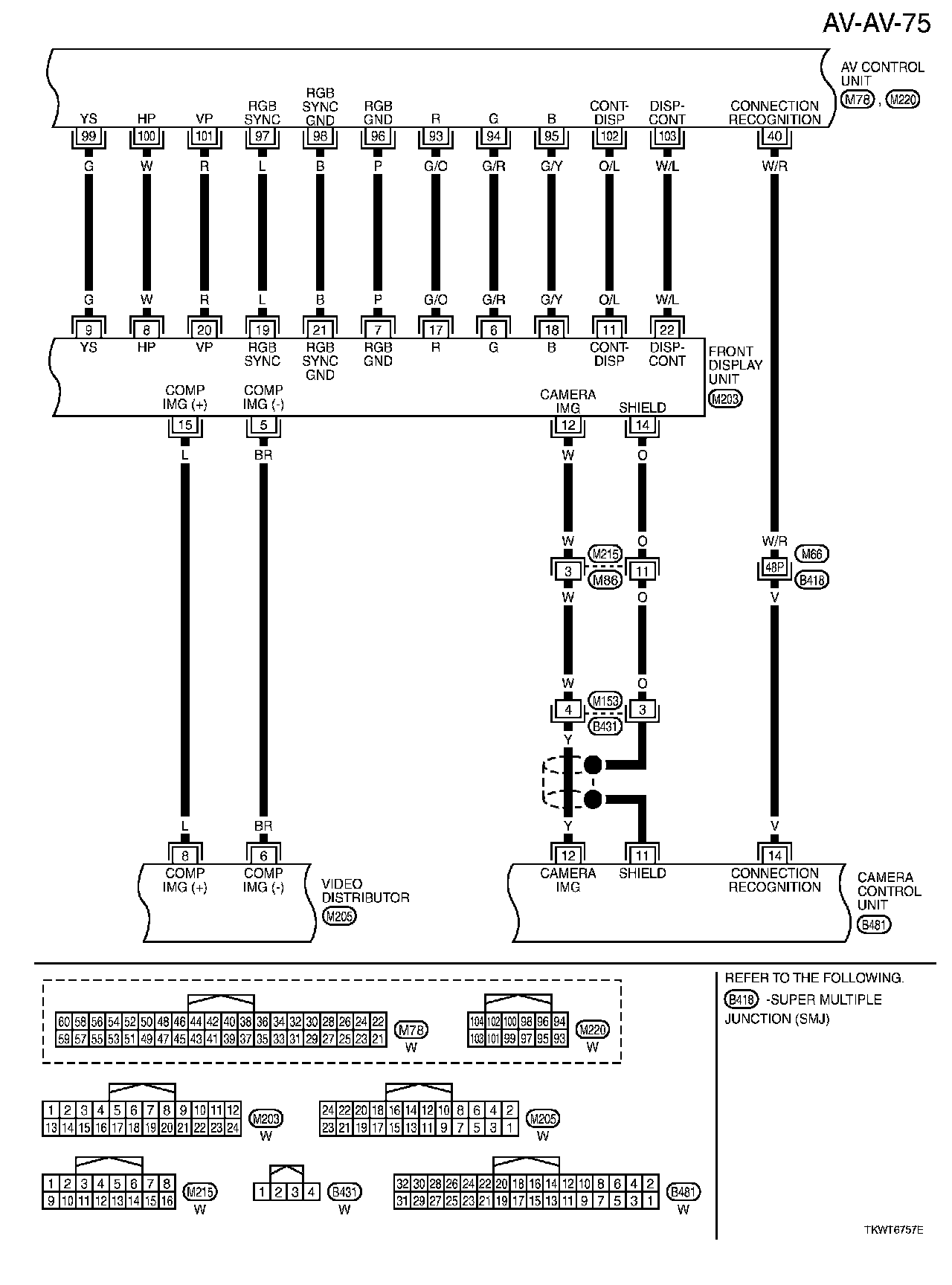

AV-AV-75:

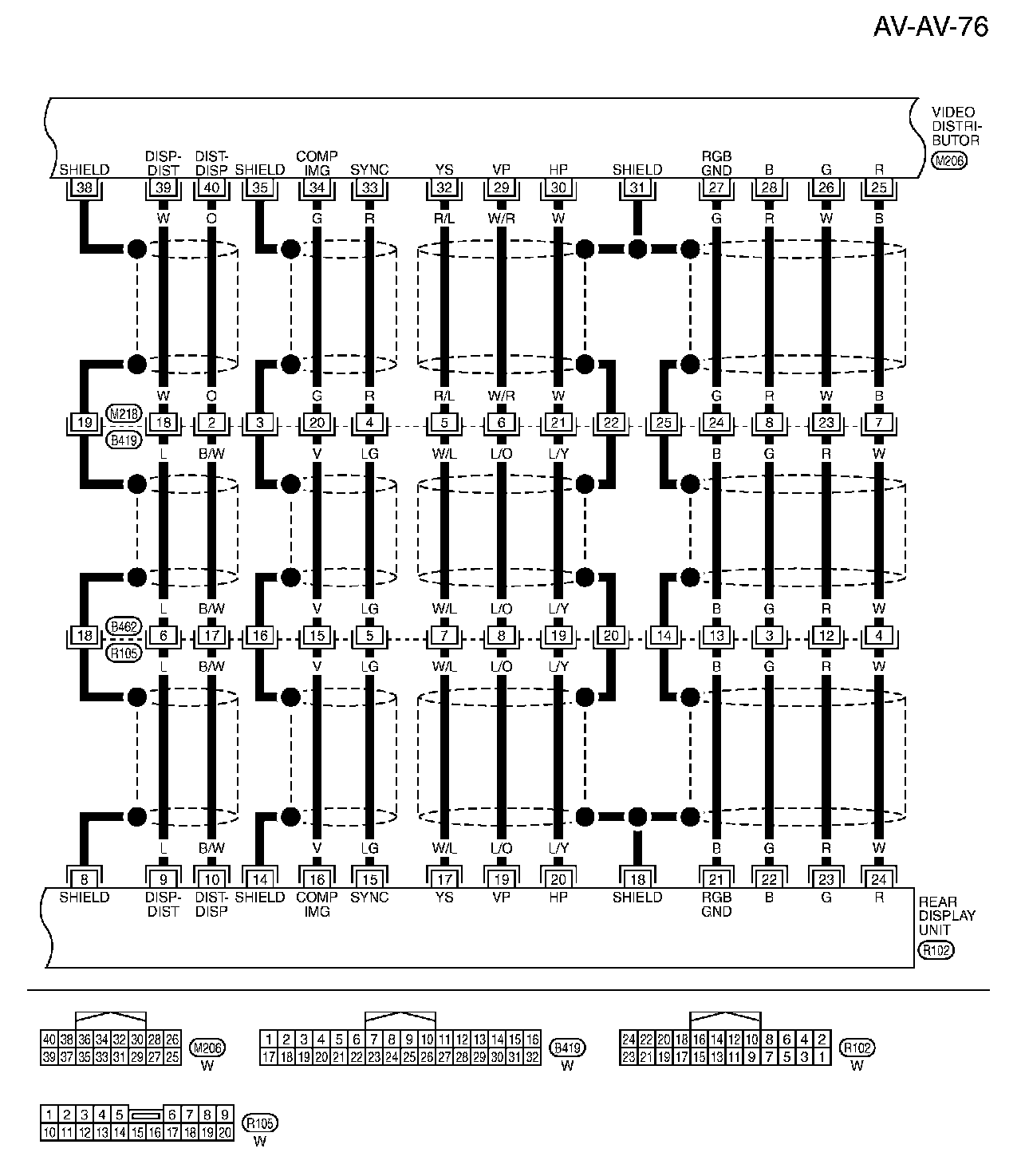

AV-AV-76:

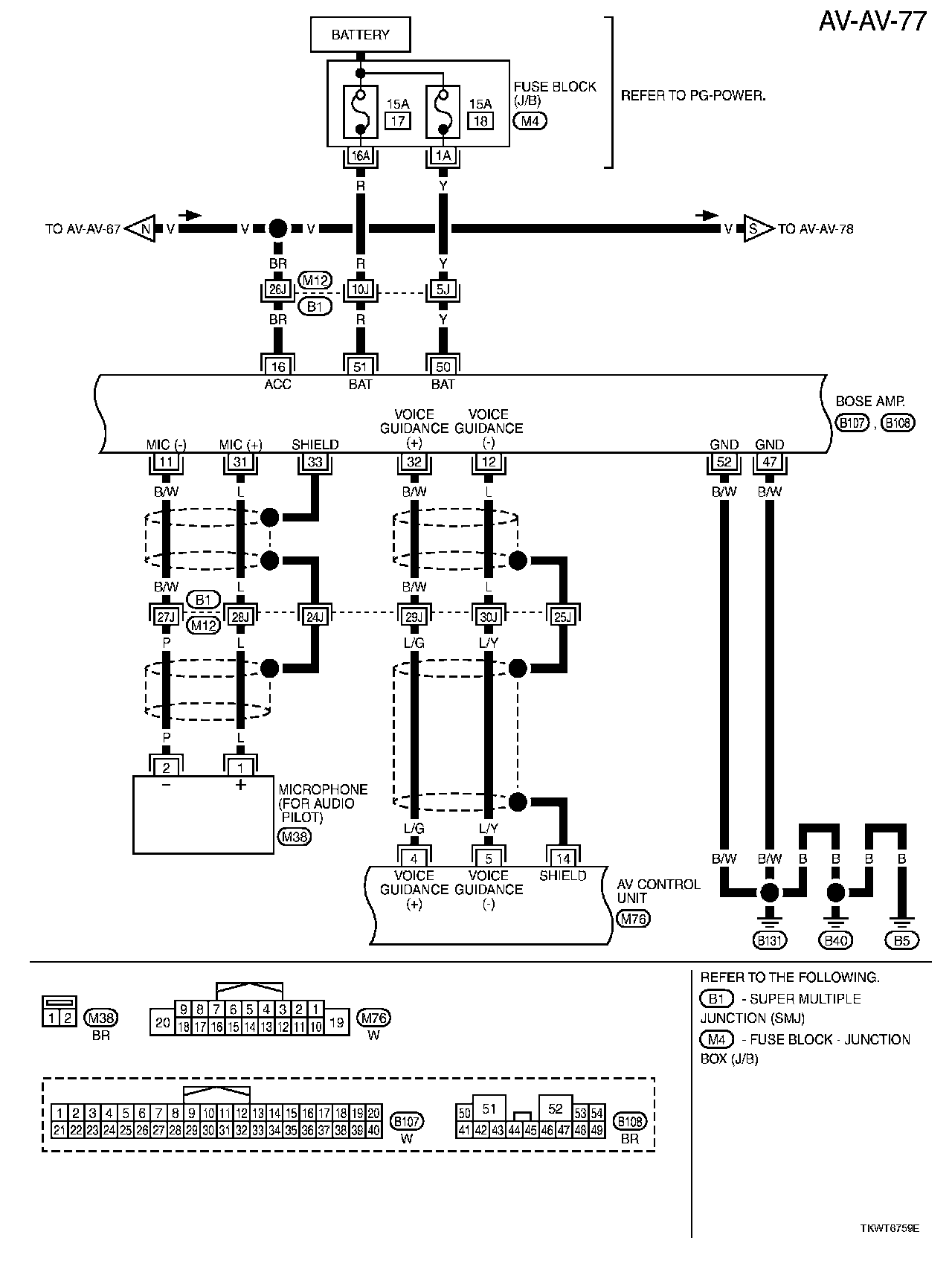

AV-AV-77:

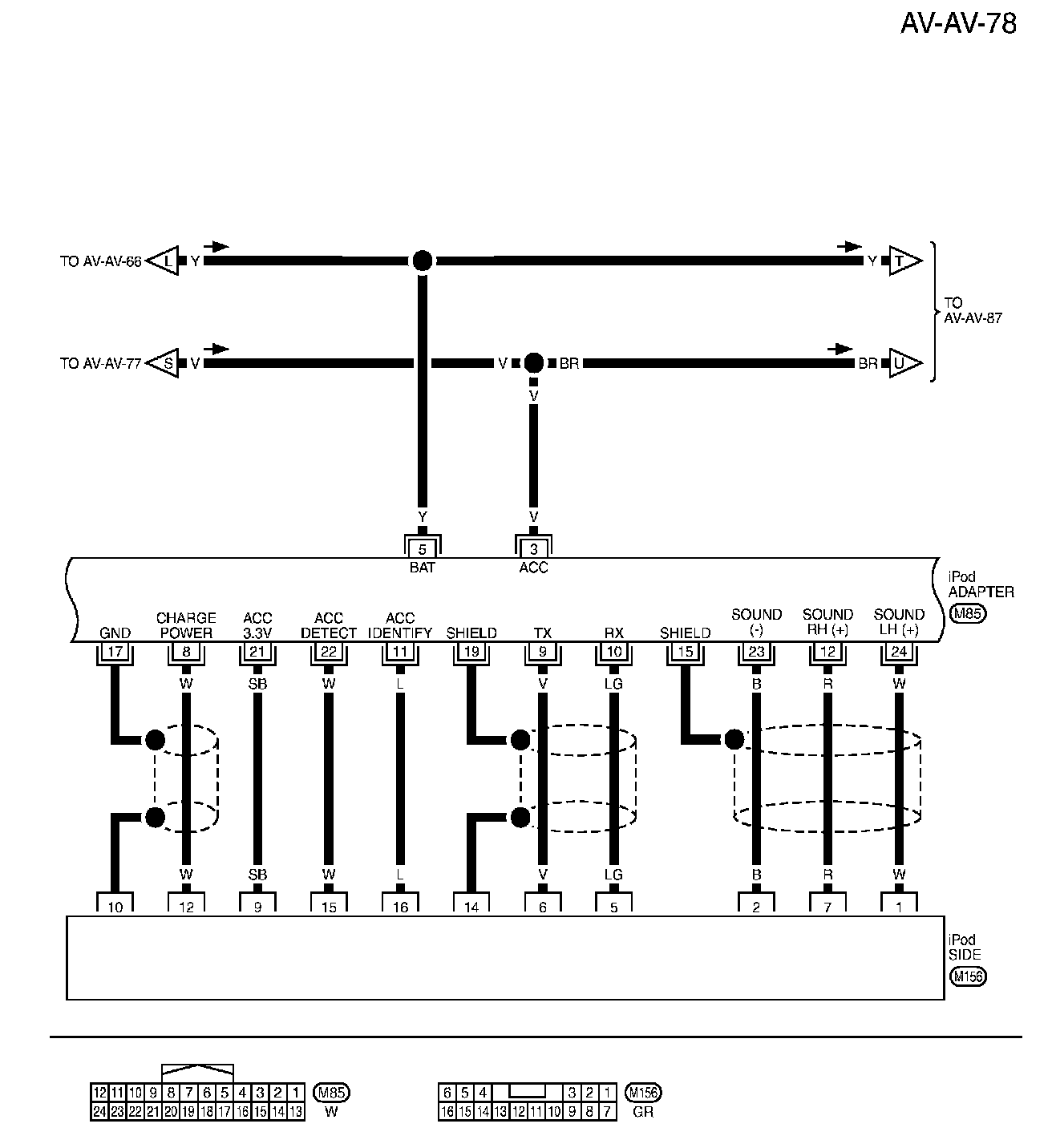

AV-AV-78:

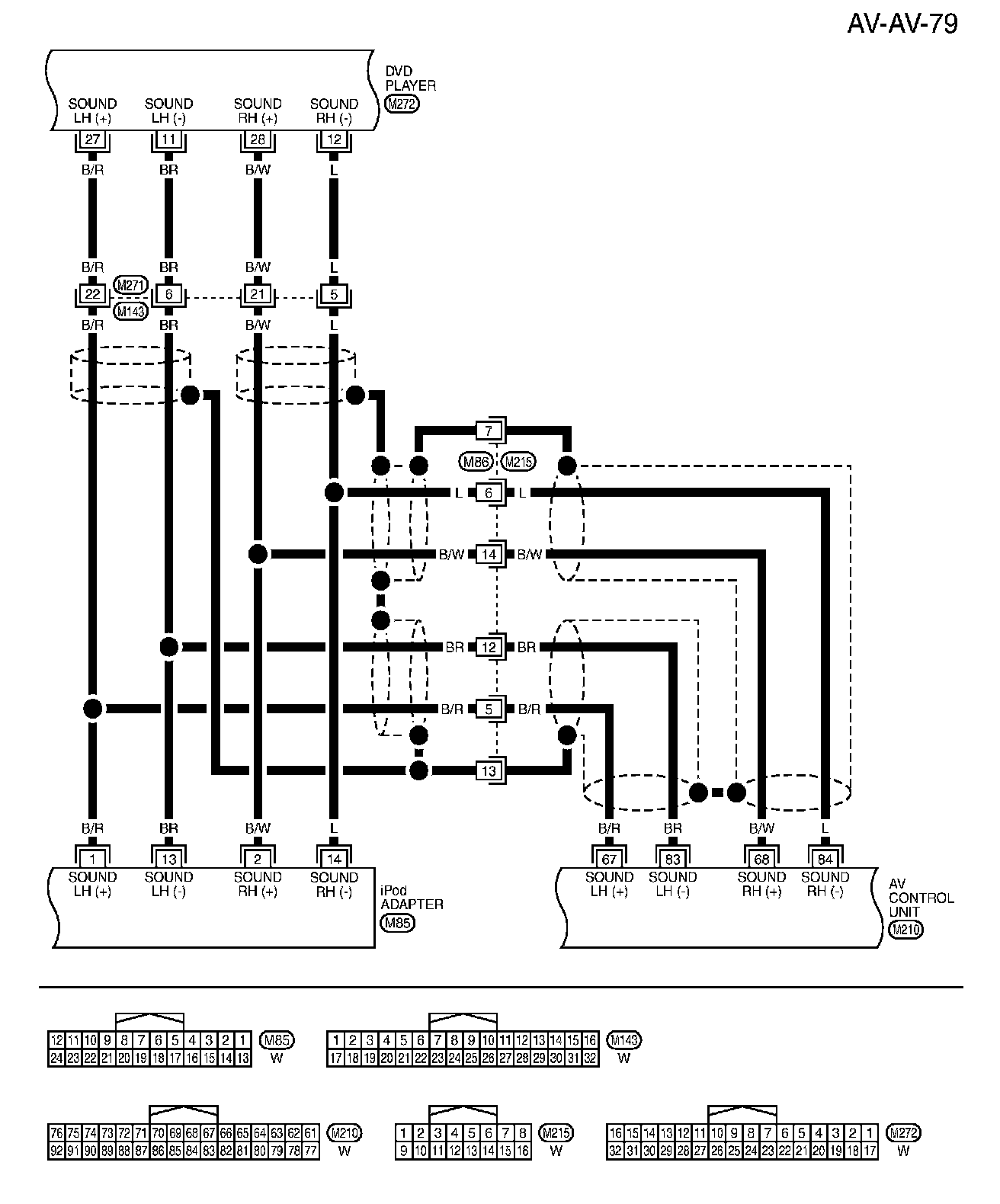

AV-AV-79:

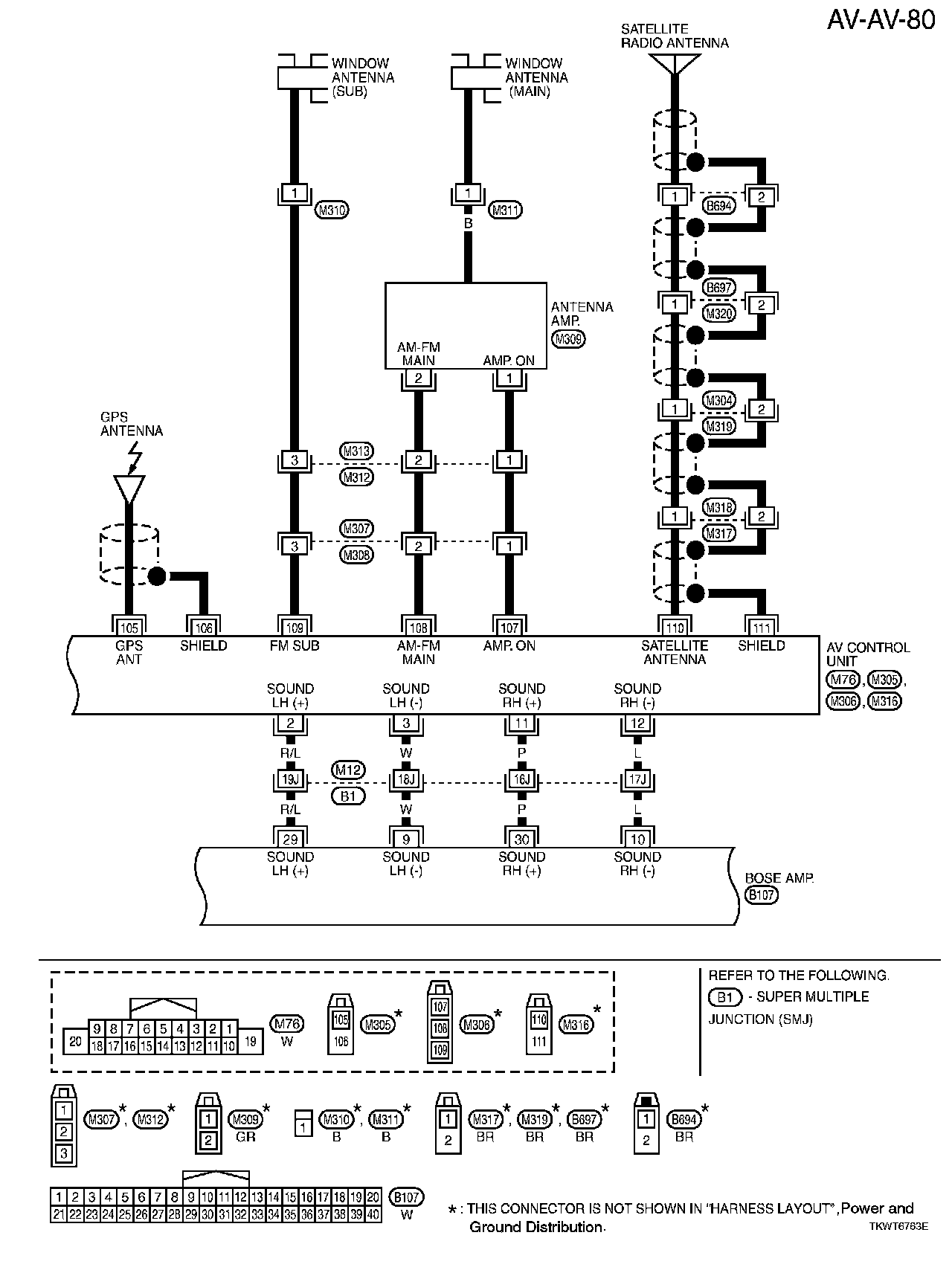

AV-AV-80:

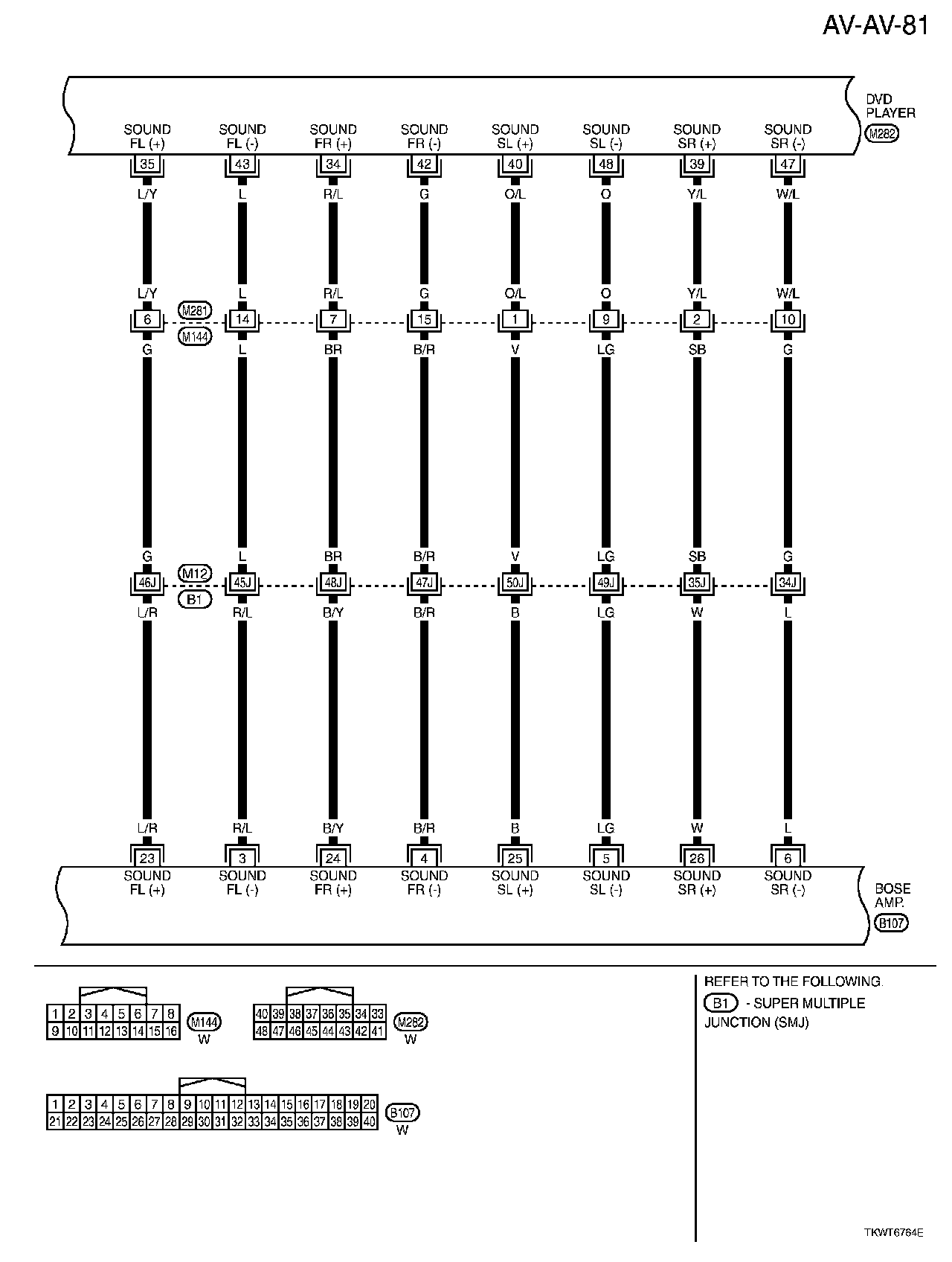

AV-AV-81:

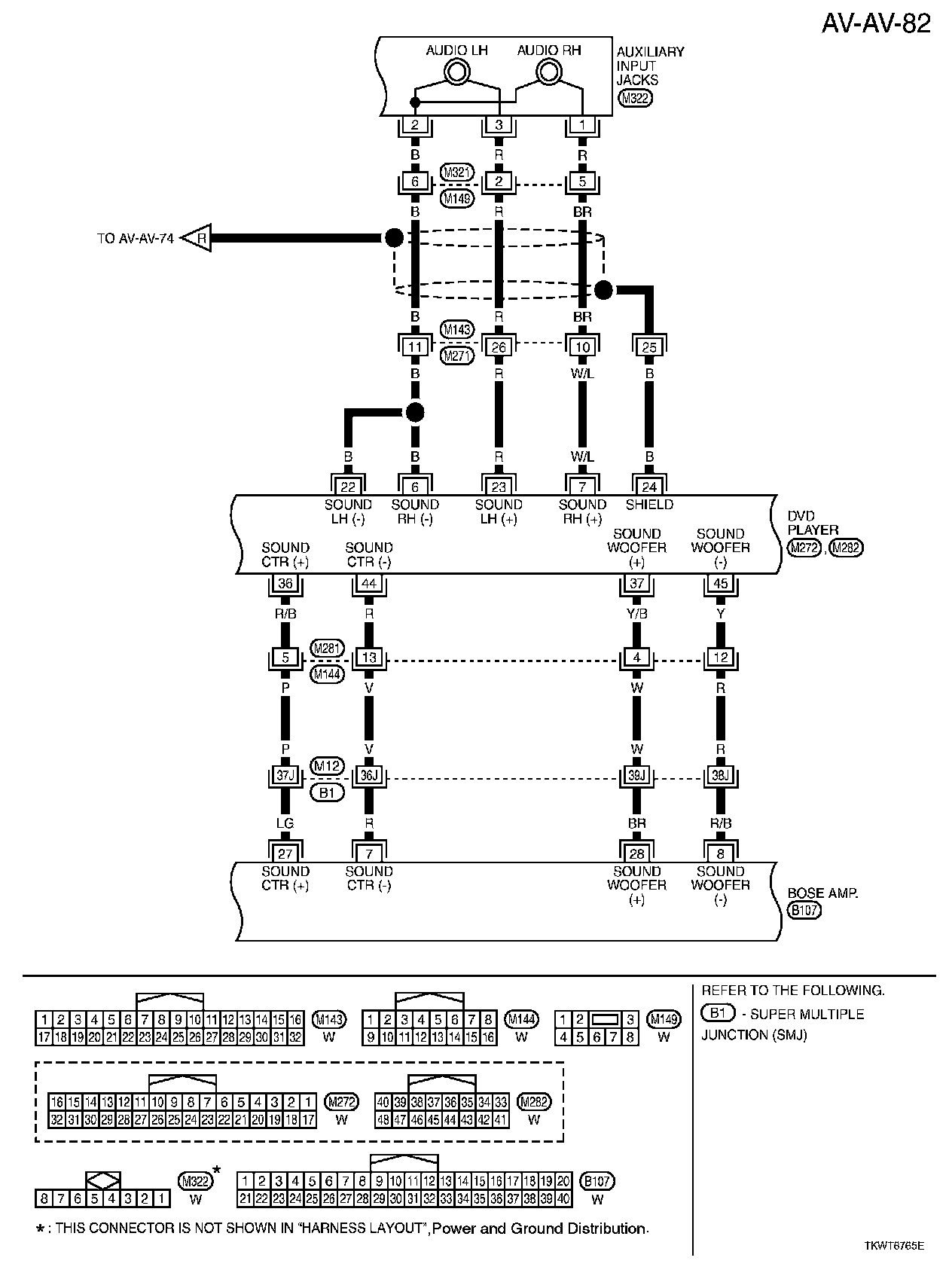

AV-AV-82:

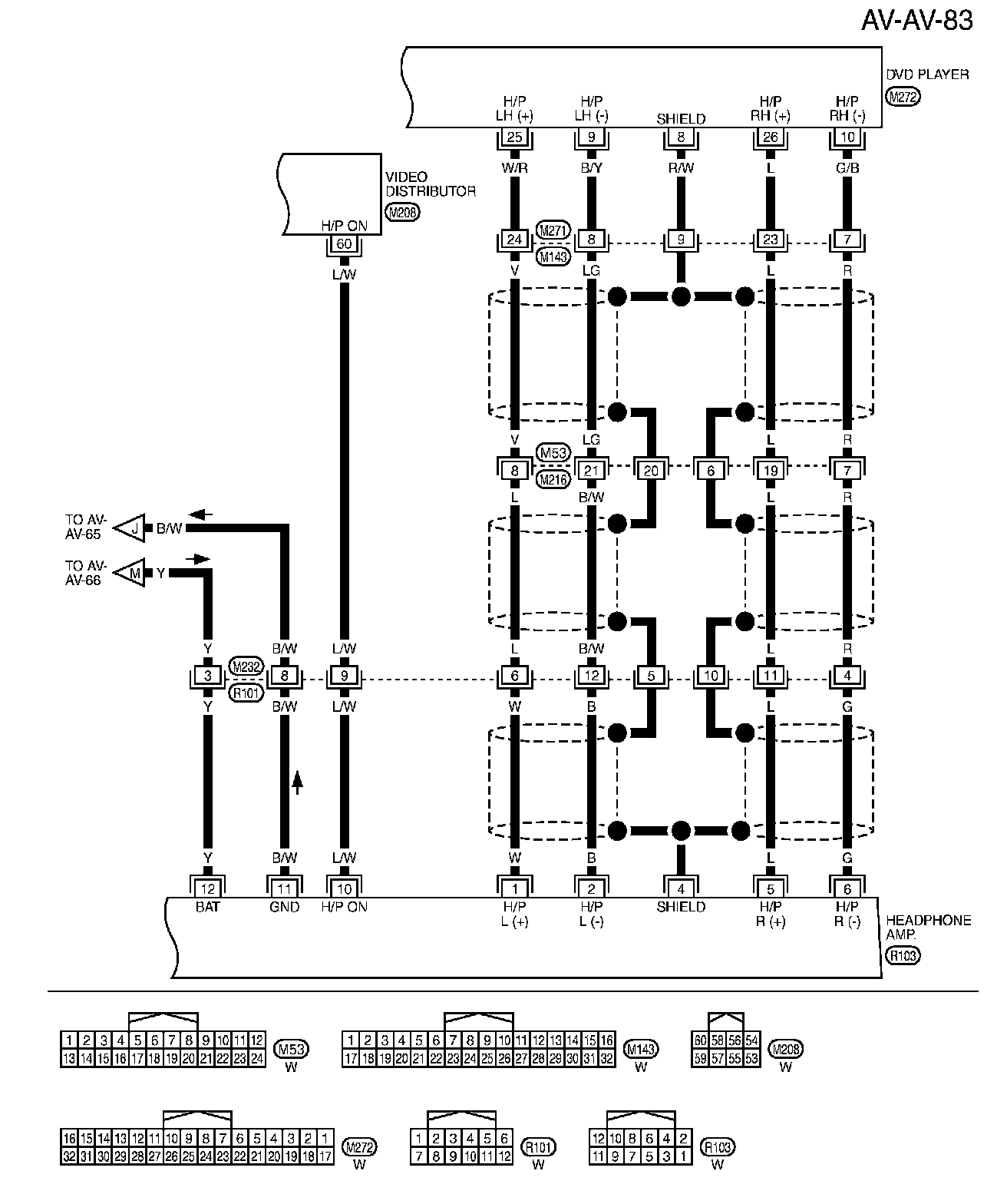

AV-AV-83:

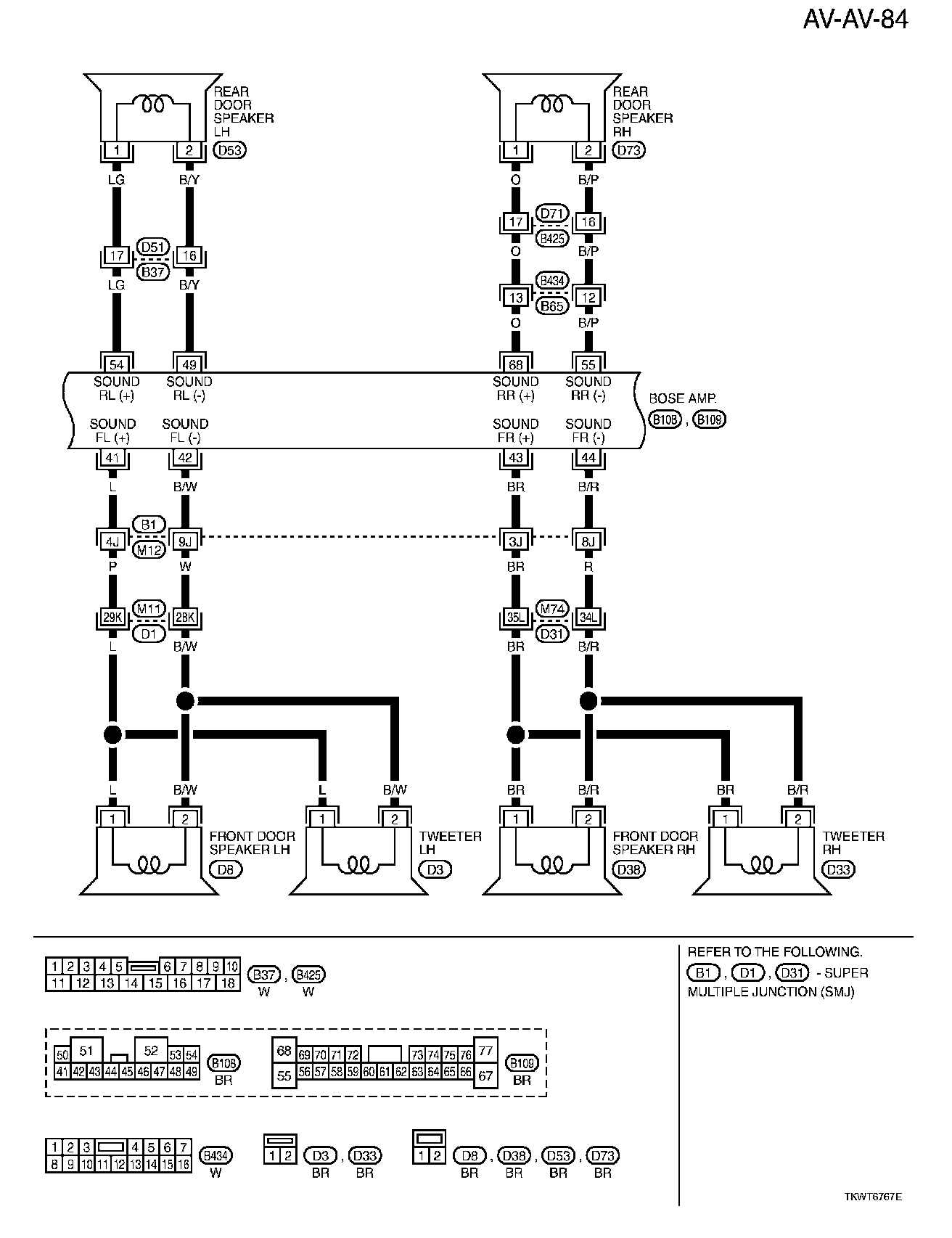

AV-AV-84:

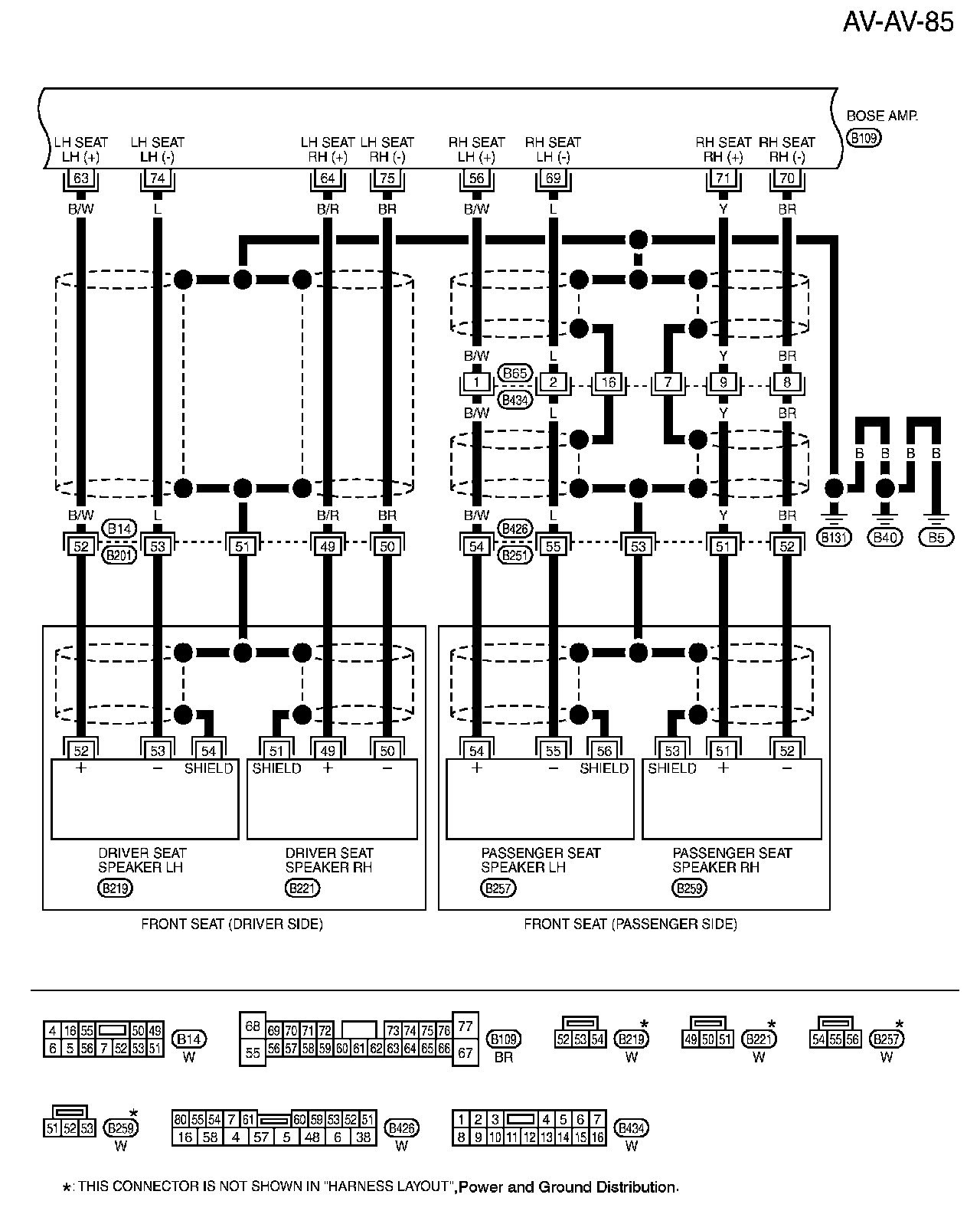

AV-AV-85:

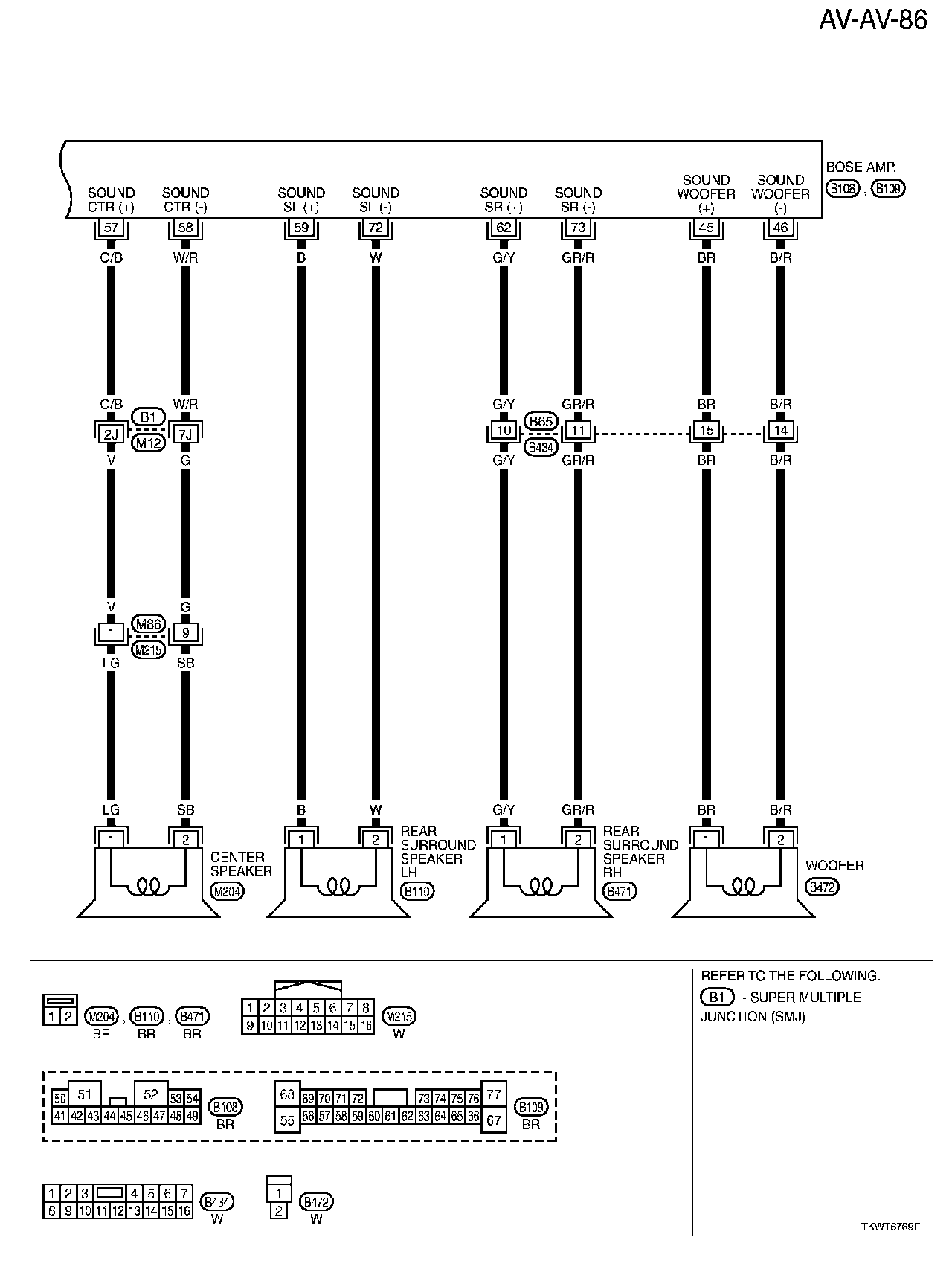

AV-AV-86:

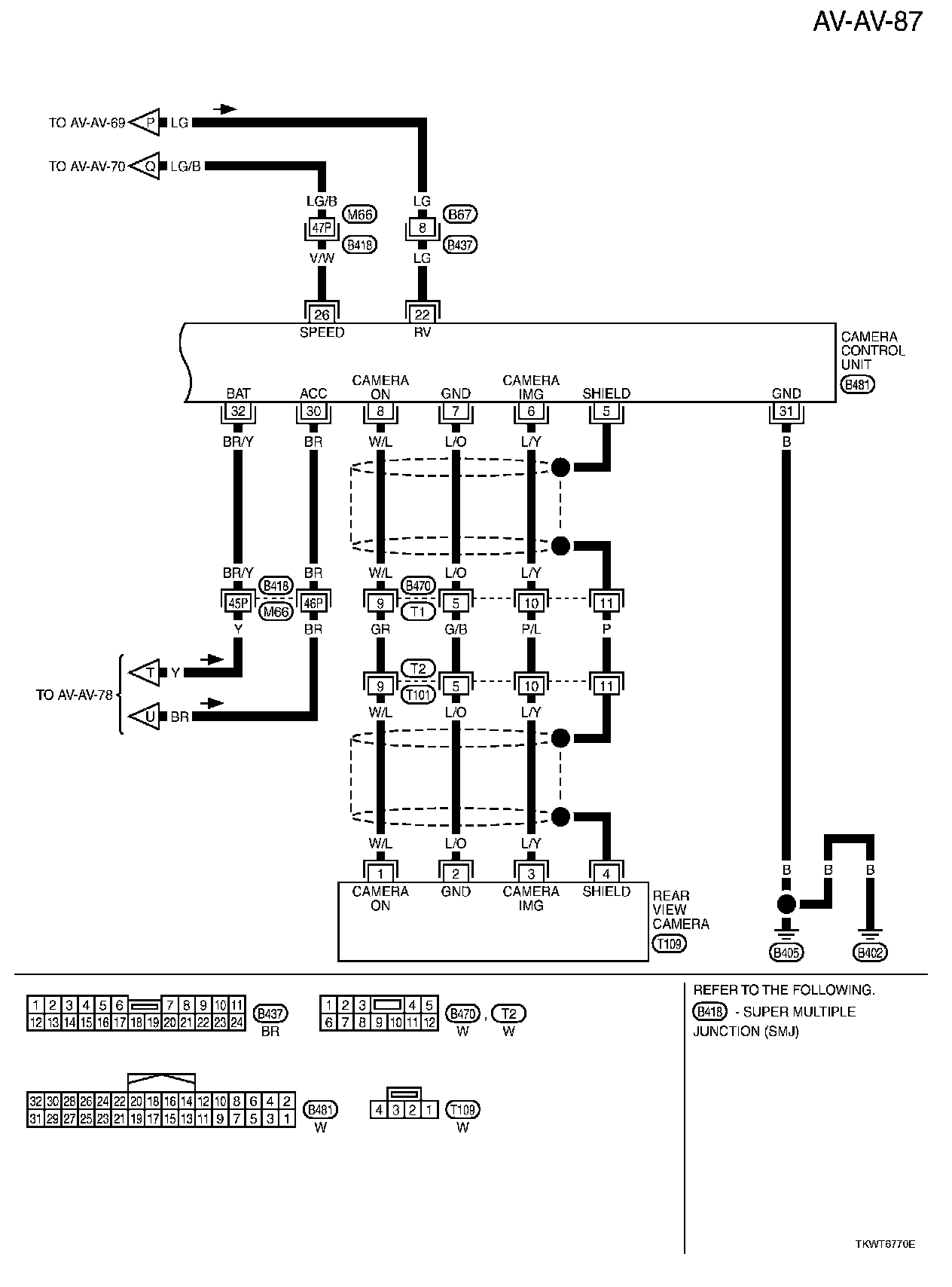

AV-AV-87:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
