Check Changeover Switch Circuit

REVERSE INTERLOCK DOOR MIRROR SYSTEM

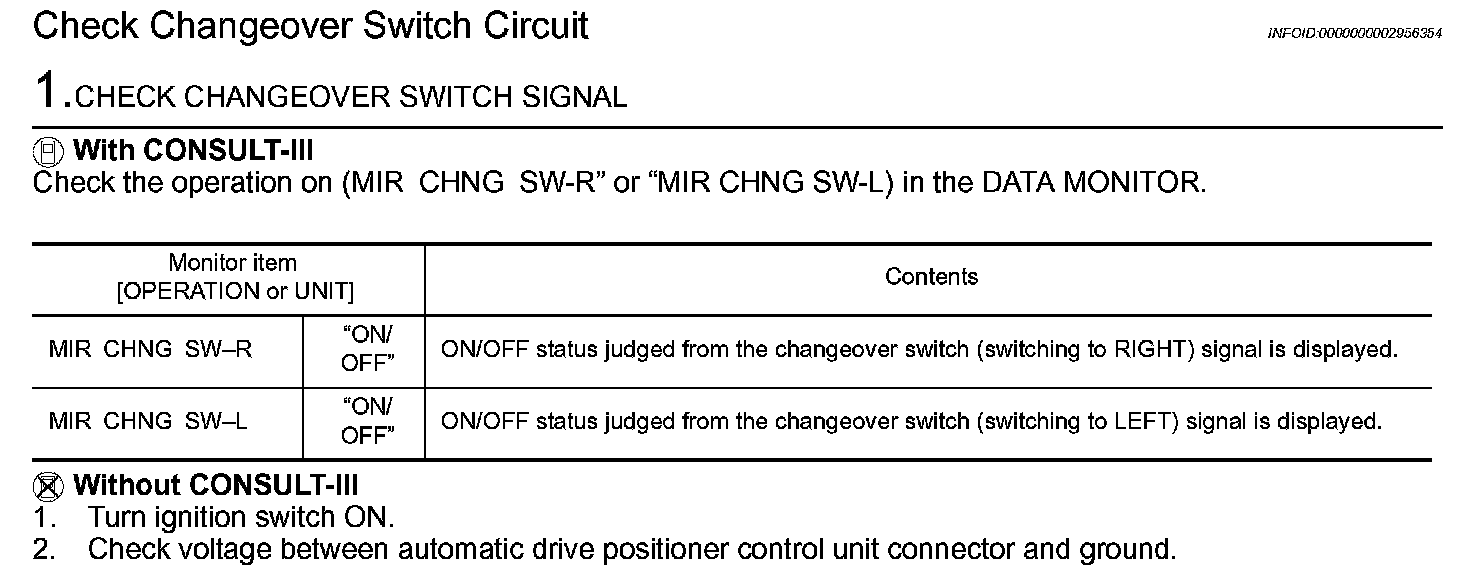

Check Changeover Switch Circuit

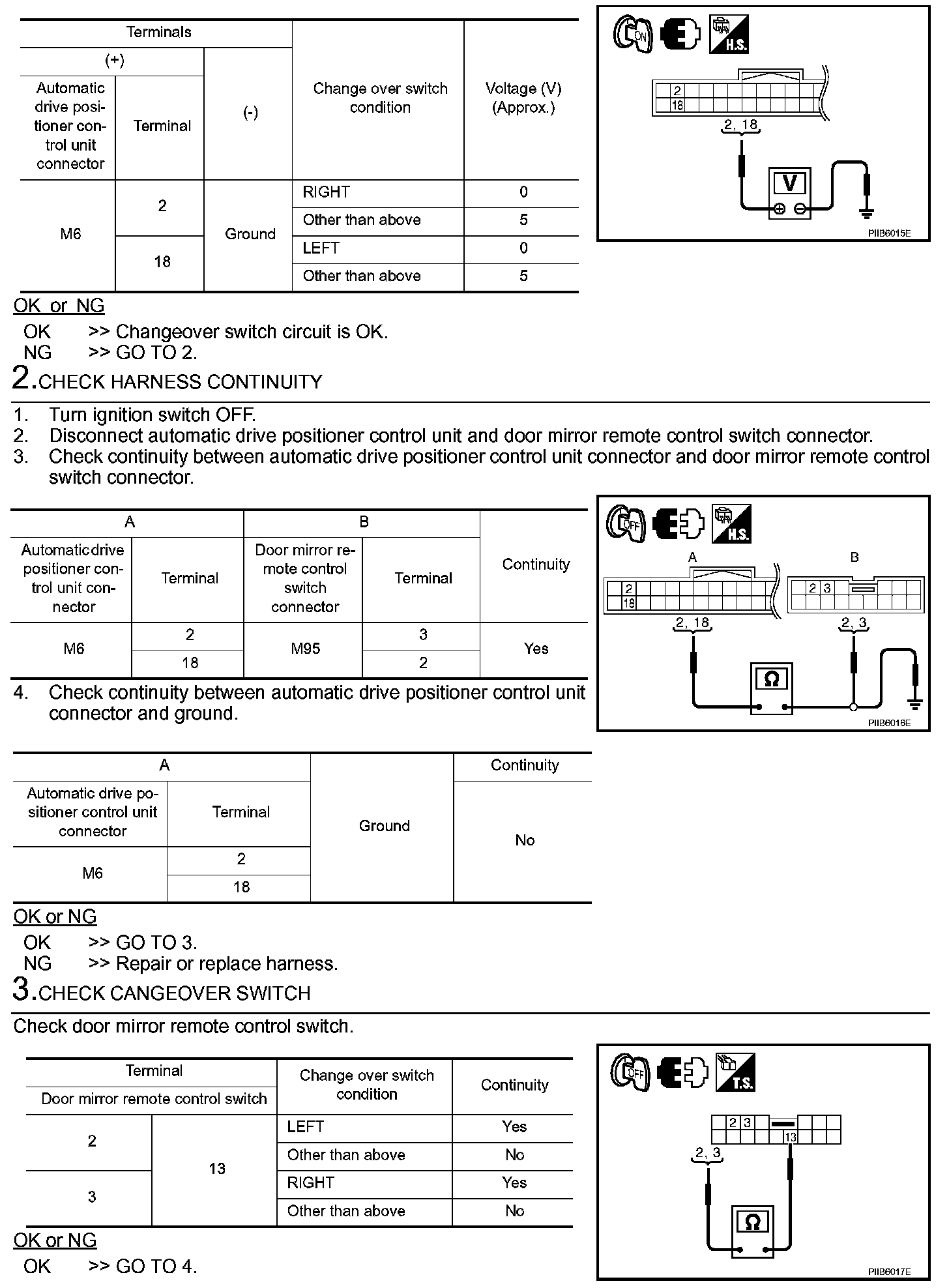

Step 1:

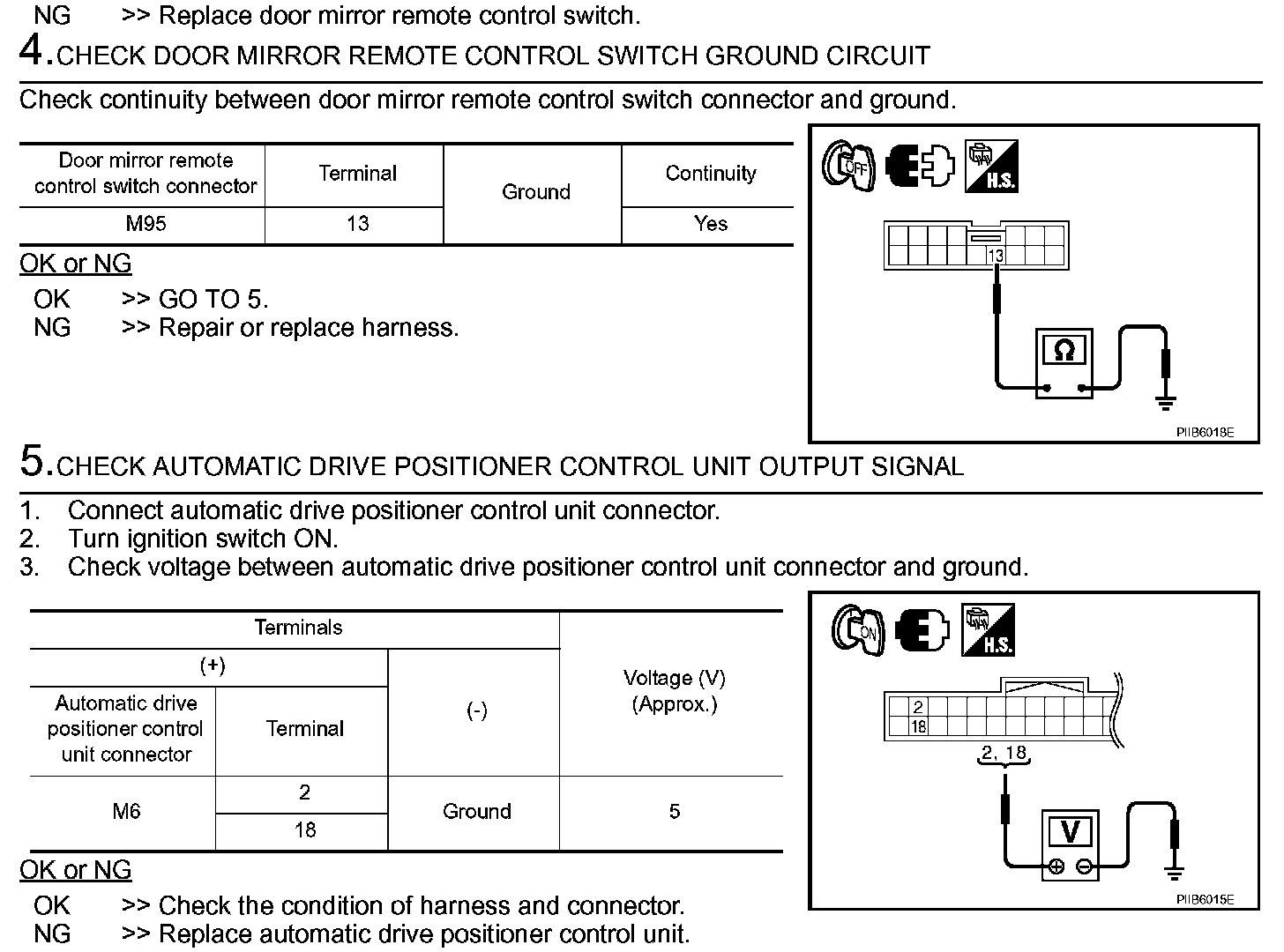

Step 1 (Continued)-3:




Step 3 (Continued)-5:
