Check Mirror Sensor Circuit

REVERSE INTERLOCK DOOR MIRROR SYSTEM

Check Mirror Sensor Circuit

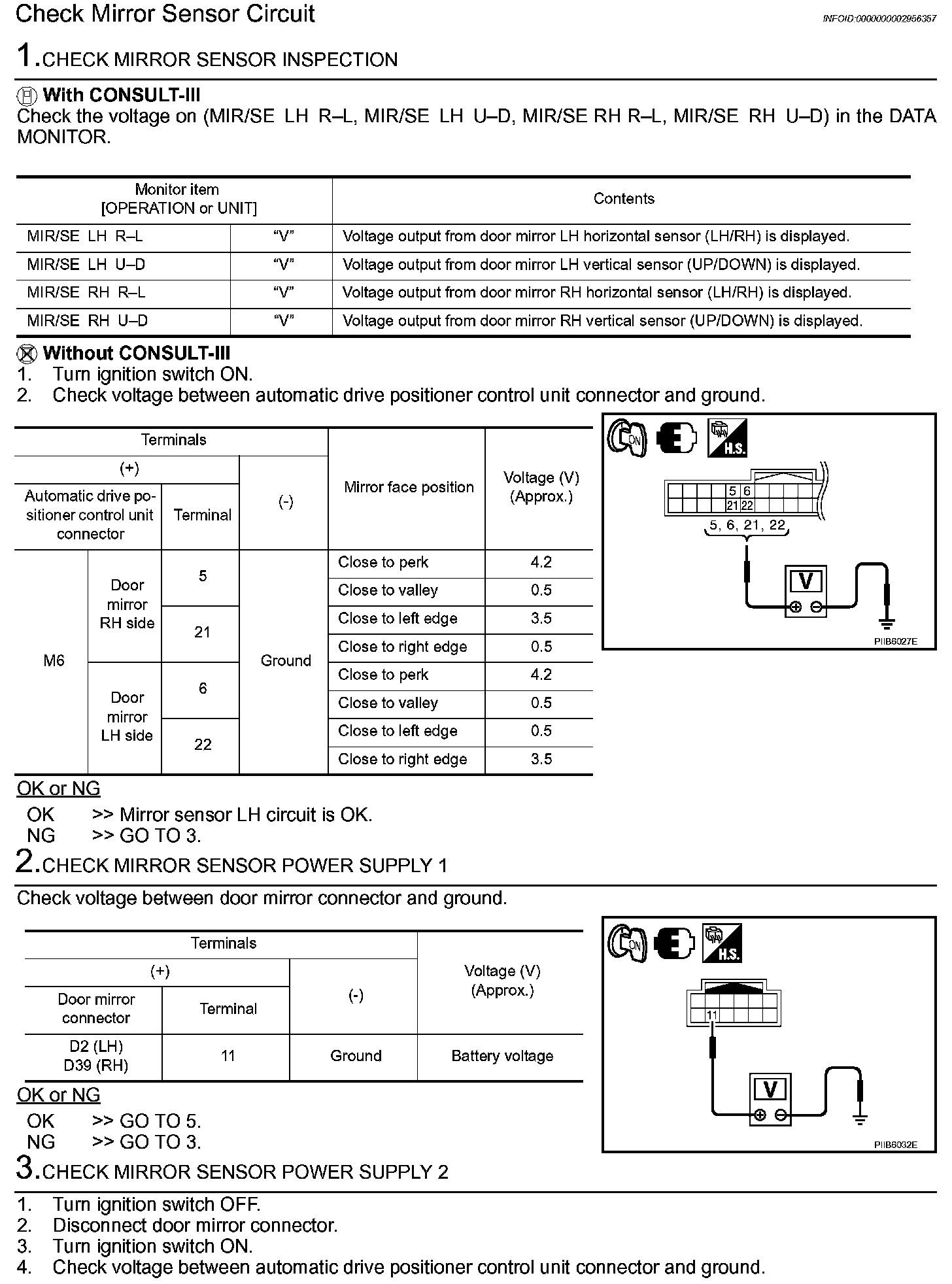

Step 1-3:

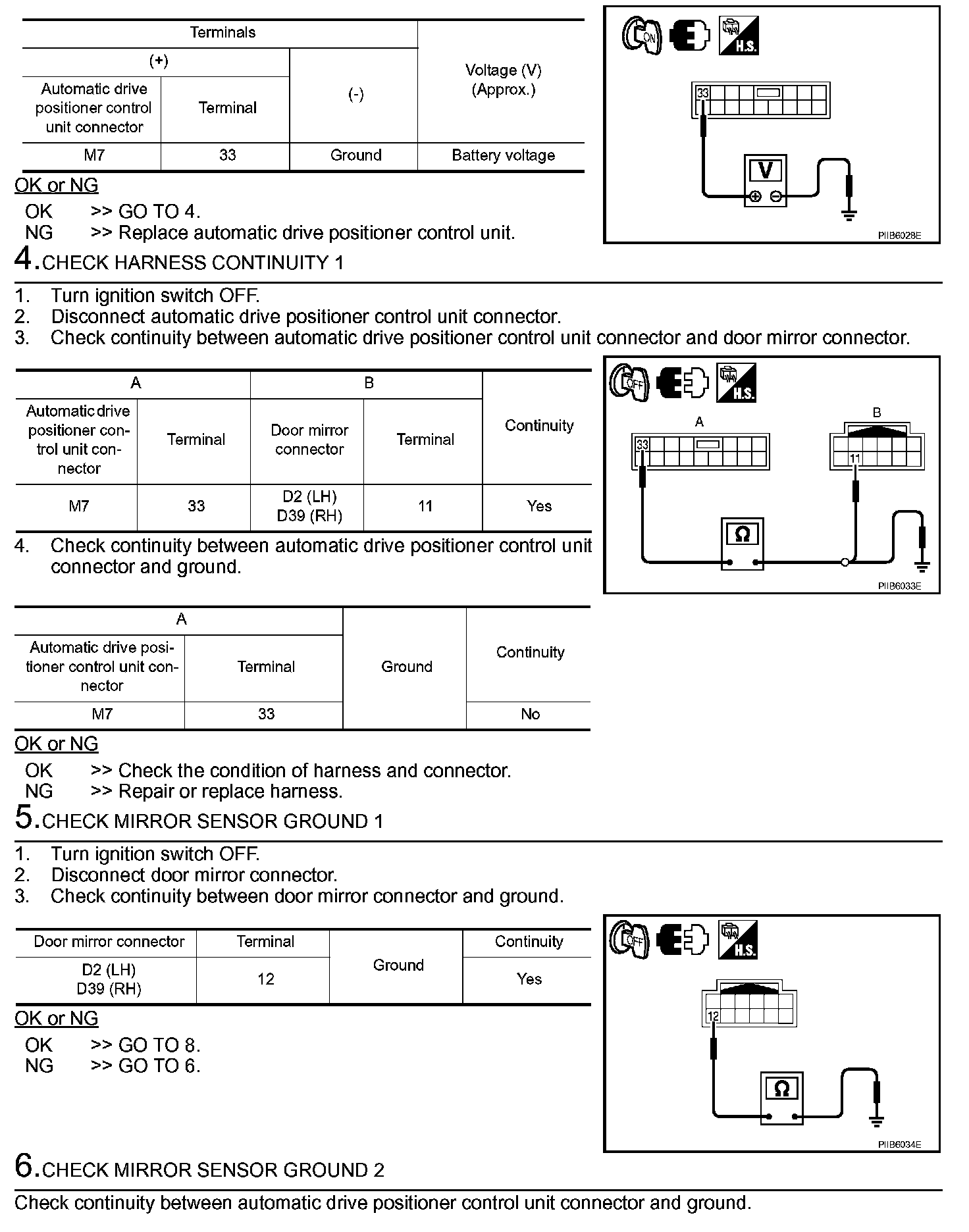

Step 3 (Continued)-6:

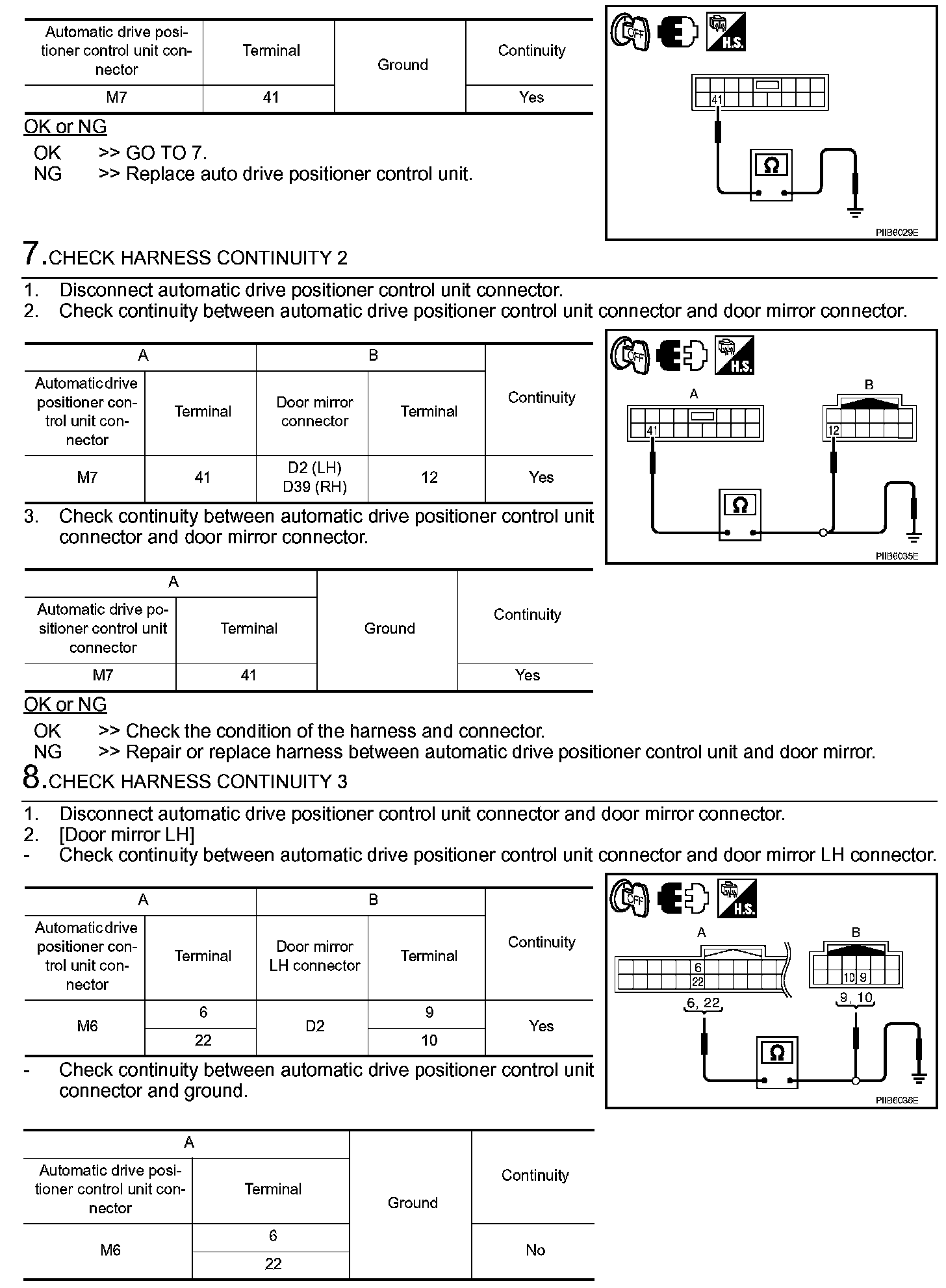

Step 6 (Continued)-8:

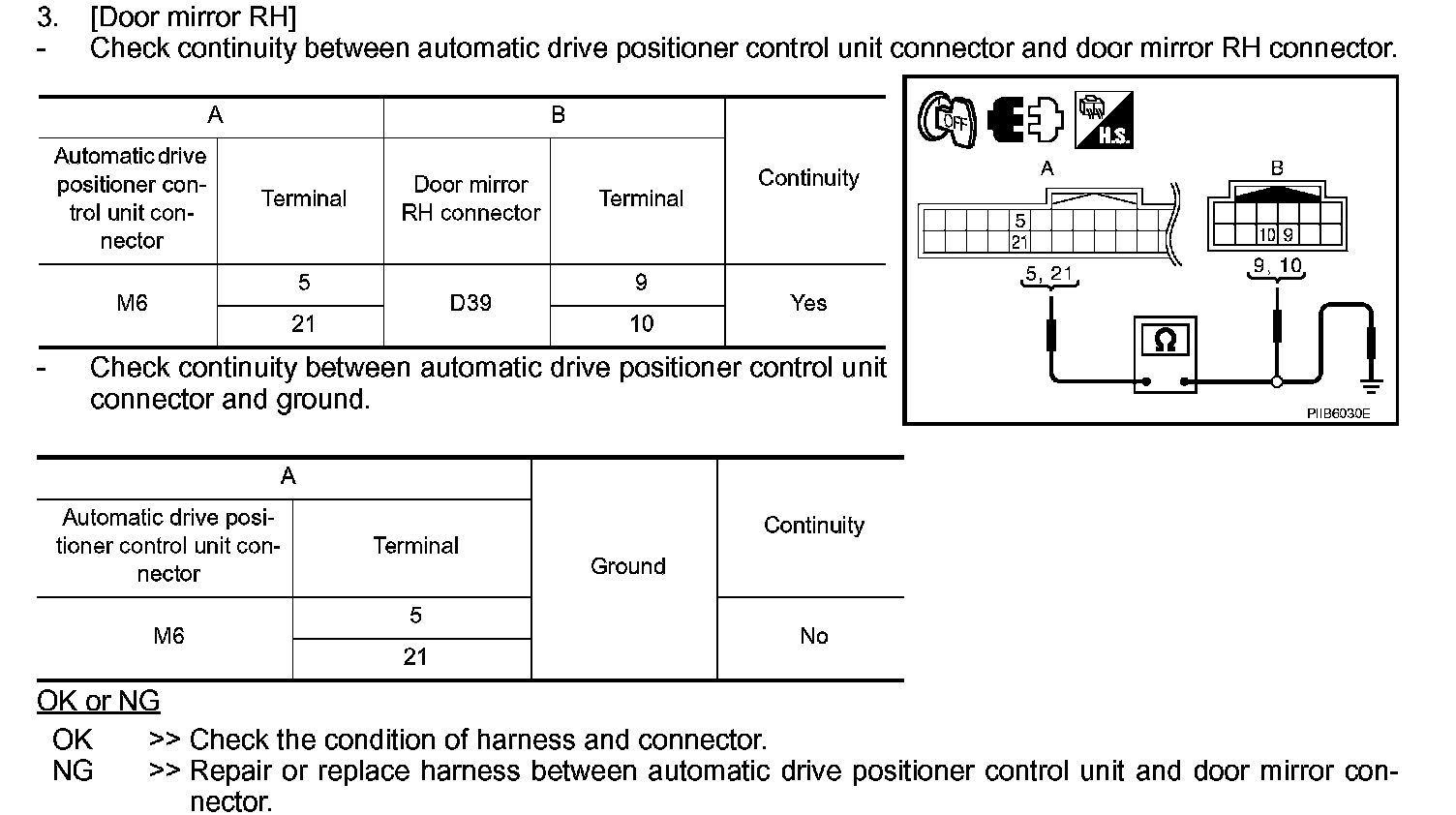

Step 8 (Continued):
