Automatic Drive Positioner Control Unit

REVERSE INTERLOCK DOOR MIRROR SYSTEM

Terminal and Reference Value for Automatic Drive Positioner Control Unit

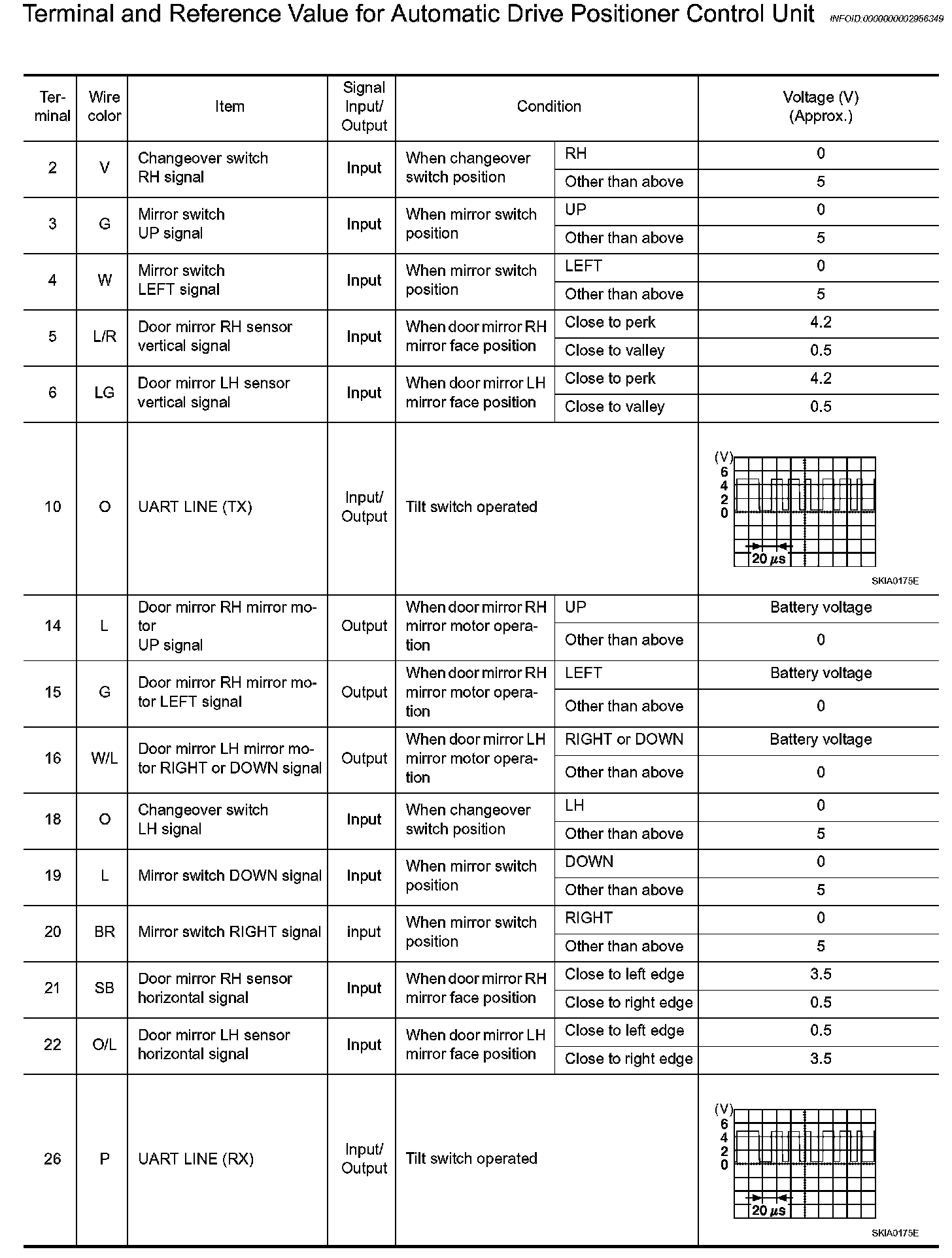

Terminal And Reference Value For Automatic Drive Positioner Control Unit (Part 1):

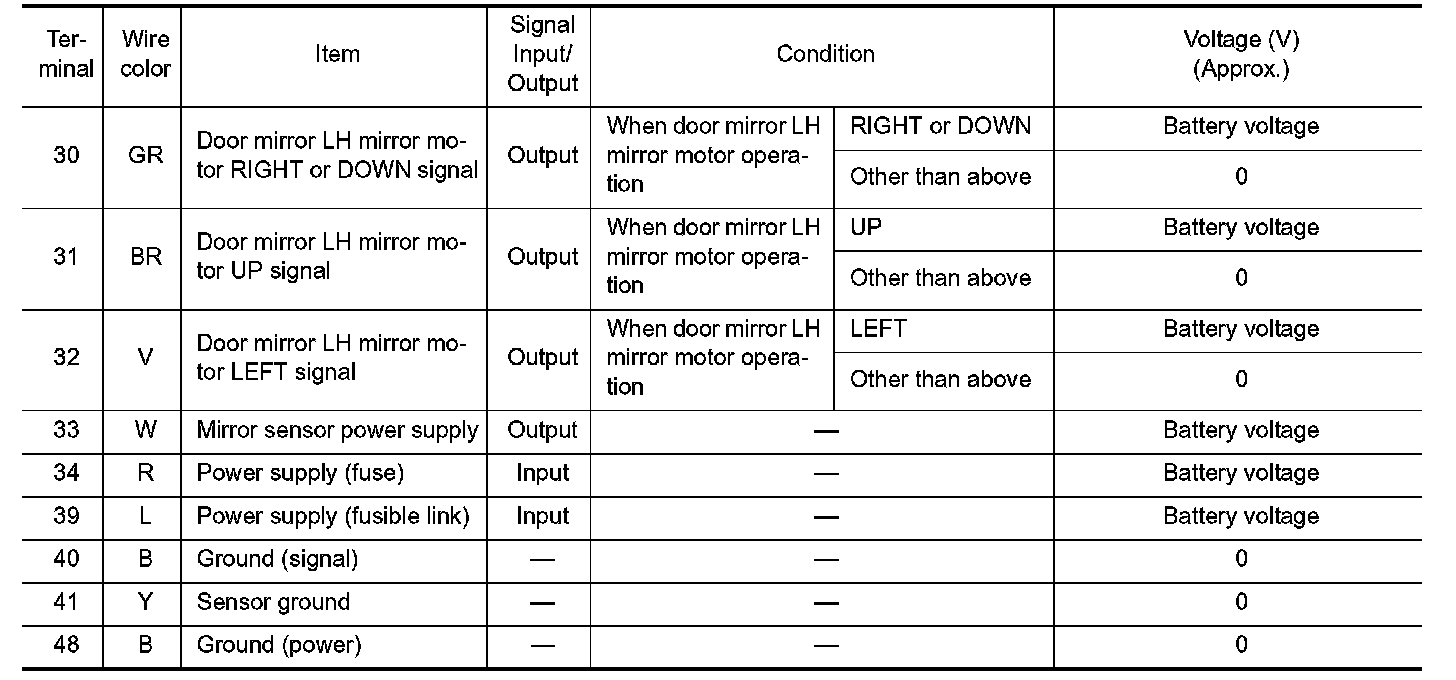

Terminal And Reference Value For Automatic Drive Positioner Control Unit (Part 2):
